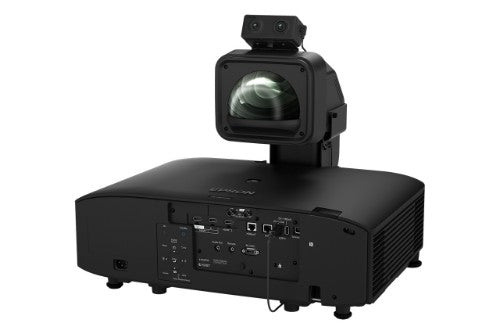

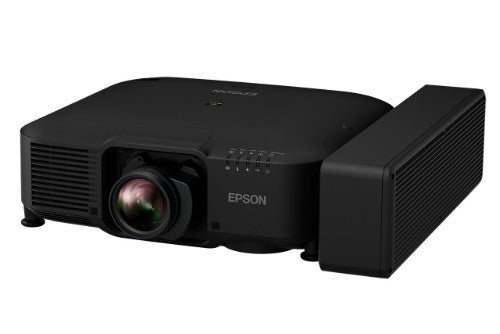

Epson EB-PQ2010B

EB-PQ2010B

Key Features

• Patented 4K and imaging technology: Outstanding 4K image quality delivers superb immersivity
• Ultra-compact and lightweight: The world's smallest and lightest 10,000lm 4K projector{s1
• Cross-platform lens compatibility: Lets you build the optimal projection solution for every requirement
• Fit-and-forget reliability: Up to 20,000 hours maintenance free
• Reduced environmental impact: Energy-efficient with reduced requirements for packaging and transport

Reasons To Buy

Legal Statement

Complies with The UK Product Security and Telecommunications Infrastructure (Product Security) requirements. Epson will provide security updates for 7 years from purchase

Description

10,000lm 4K projector
Designed to engage and captivate audiences with ultra-high resolution, large format content, the EB-PQ2010B uses 3LCD technology to deliver outstanding colour reproduction, while Epson's patented 4K Crystal Motion technology offers stunning image quality. Affordable and energy-efficient, the projector also features interchangeable lenses, a light and compact design and extensive connectivity.

The world's smallest and lightest 10,000lm 4K projector¹
Building on the success of the EB-PU Series, the EB-PQ2010B is not only the smallest and lightest in its class, but is highly affordable, versatile, energy-efficient and packed with advanced features.

A revolutionary 4K experience
Marvel at the clarity of the images produced by Epson’s latest 4K technology. Combining its patented, state of the art 4K Crystal Motion and double micro-lens array technologies, Epson achieves a new benchmark in 4K image quality.

Fantastically flexible
Featuring a wide range of connectivity, including 12G SDI in/out and HDMI in/out supporting 120Hz 4K. This high brightness projector also benefits from cross-platform lens compatibility, using the same 4K lenses as the existing EB-PU Series, including the ELPLX02S zero-offset ultra-short throw lens which is perfect for immersive spaces. This projector is supplied 'body-only', allowing you to build the perfect solution for your installation.

Reliable
Built for exceptional reliability, the EB-PQ2010B is compatible with the ELPAF63 External Air Filter and provides up to 20,000 hours maintenance-free operation, or even longer in extended modes.

Extensive software
Compatible with the ELPEC01 camera, Epson Projector Professional Tool and Epson Config Tool for a wealth of calibration, assistance and control functionality.

Specifications

Projector
Number of colours	1.07 billion colours
Projector native resolution	UHD 4K (3840x2160)
Native aspect ratio	16:9
Supported aspect ratios	16:9, 21:9
Contrast ratio (typical)	5000000:1
Matrix size	2.64 cm (1.04")
Keystone correction, vertical	-45 - 45°
Keystone correction, horizontal	-30 - 30°
Projection technology	3LCD
Projector brightness	10000 ANSI lumens
Heat dissipation	2084 BTU/h
Smart projector	No
Lamps
Light source type	Laser
Service life of light source	20000 h
Service life of light source (economic mode)	30000 h
Light source
Light source type	Laser
Service life of light source	20000 h
Service life of light source (economic mode)	30000 h
Lens system
Focus	No
Throw ratio	0.34 - 7.16:1
Video
Video colour modes	Cinema, Dynamic, Natural, Presentation
Analog signal format system	Not supported
Full HD	Yes
3D	No
Ports & interfaces
HDBaseT port	Yes
USB 2.0 Type-B ports quantity	1
VGA (D-Sub) ports quantity	0
HDMI ports quantity	3
USB 2.0 ports quantity	2
Serial interface type	RS-232C
DVI port	No
AC (power) in	Yes
Service port type	USB Type-B
USB 2.0 Type-A ports quantity	2
Network
Smart TV	No
Ethernet LAN	Yes
Ethernet LAN data rates	10,100 Mbit/s
Storage
Card reader integrated	No
Sound emission
Noise level	39 dB
Noise level (economic mode)	29 dB
Technical details
Product colour	Black
On Screen Display (OSD)	Yes
Colour depth	10 bit
Heat dissipation	2084 BTU/h
Performance
Market positioning	Presentation
Password protection	Yes
On Screen Display (OSD)	Yes
Noise level	39 dB
Noise level (economic mode)	29 dB
Heat dissipation	2084 BTU/h
Features
Interactive	No
Password protection	Yes
On Screen Display (OSD)	Yes
Noise level	39 dB
Noise level (economic mode)	29 dB
High Dynamic Range (HDR) technology	High Dynamic Range 10 (HDR10), Hybrid Log-Gamma (HLG)
High Dynamic Range (HDR) supported	Yes
Design
Market positioning	Presentation
Cable lock slot type	Kensington
Product colour	Black
Cable lock slot	Yes
Placement	Ceiling, Desktop, Floor, Flying frame
Display
Built-in display	No
Colour depth	10 bit
Power
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power source	AC
Power consumption (typical)	558 W
Power consumption (standby)	0.5 W
Power consumption (economy mode)	483 W
Security
Cable lock slot type	Kensington
Cable lock slot	Yes
Operational conditions
Operating relative humidity (H-H)	20 - 80%
Storage temperature (T-T)	-10 - 60 °C
Storage relative humidity (H-H)	10 - 90%
Weight & dimensions
Weight	18.8 kg
Width	545 mm
Depth	436 mm
Height	189 mm
Packaging content
Remote control included	Yes
Batteries included	Yes
Other features
Colour depth	10 bit
Power consumption (economy mode)	483 W
