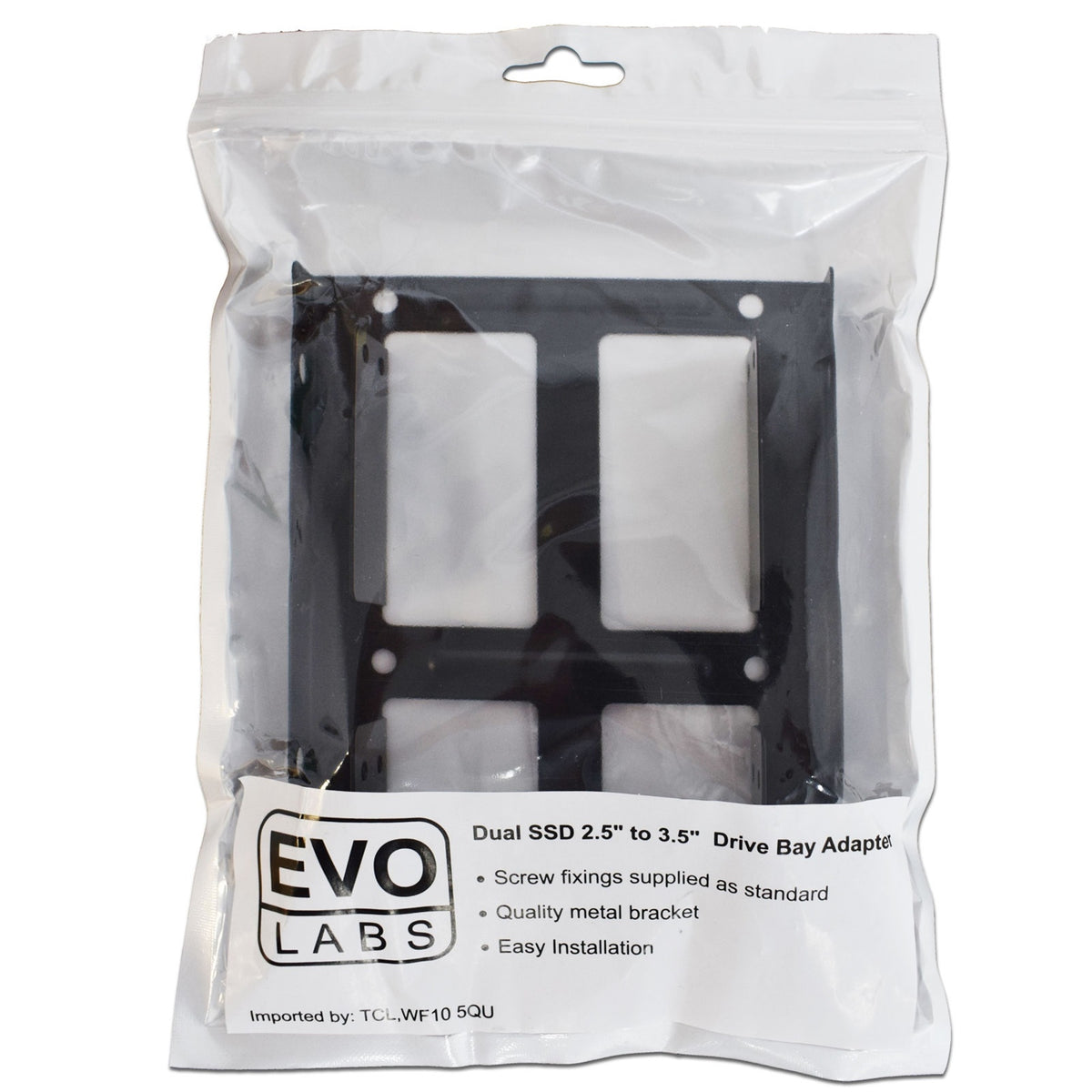

Evo Labs 2.5 INCH to 3.5 INCH Double Internal Drive Bay Adapter, Dual Metal, for 2.5 INCH SSD/HDD

The Evo Labs ESHD-2535B Double Internal Drive Bay Adapter is a Universal Bracket designed to fit any Standard 3.5-inch Internal Hard Drive Bay found inside Desktop Computer Cases.

Because it adheres to standard 3.5-inch form-factor specifications, it does not target specific computer brands or models. Instead, its compatibility is defined by the following standard hardware:

Drive Compatibility (What goes inside the adapter)

The adapter features mounting holes to secure up to two 2.5-inch storage drives simultaneously. It fits:
2.5-inch Solid State Drives (SSDs) of any brand (e.g., Samsung, Crucial, Kingston, SanDisk, ADATA).
2.5-inch Hard Disk Drives (HDDs) typically used in laptops.
Standard SATA I, II, and III drive interfaces.

Case Compatibility (Where the adapter fits)

The external dimensions match a standard 3.5-inch desktop hard drive. It fits inside:
PC Desktop Towers (Full-tower, mid-tower, and mini-tower enclosures).
Server Rack Enclosures that feature standard 3.5-inch internal storage slots.
Both screw-on and tool-less/slide-in drive caddies or trays, using the standard side-mounting screw holes.

Note:
It will not fit into compact laptops, All-in-One PCs, or Small Form Factor (SFF) slim desktops unless they explicitly feature a full-sized, vacant 3.5-inch internal hard drive ba

Key Features:
2.5" to 3.5" bracket for up to 2x 2.5" drives
Perfect for SSD upgrades in PC desktops
Ideal for 2.5" HDD or SSD fitment into 3.5" Drive Bays
Easy and secure 3.5" bay placement
Screw fixings supplied as standard

Specifications

Product Type:
Internal Drive Bay Mounting Bracket / Adapter

Material:
Rigid Dual Metal construction (improves durability and passive heat dissipation)

Color:
Matte Black

Weight:
67 grams (0.067 kg)

Compatibility & Capacity

Input (Internal Drive Capacity):
Fits up to two (2) 2.5-inch storage drives simultaneously.

Supported Drive Types:
2.5-inch Solid State Drives (SSDs) and 2.5-inch Hard Disk Drives (HDDs).

Output (Host Case Fitment):
Fits into a single standard 3.5-inch internal drive bay.

Drive Thickness Supported:
Accepts standard 7mm and 9.5mm thick 2.5-inch drives.

Package Contents
1 x Evo Labs ESHD-2535B Metal Bracket
Mounting Screws: Complete set of standard screw fixings included (for securing the drives to the bracket, and the bracket to the PC case).
