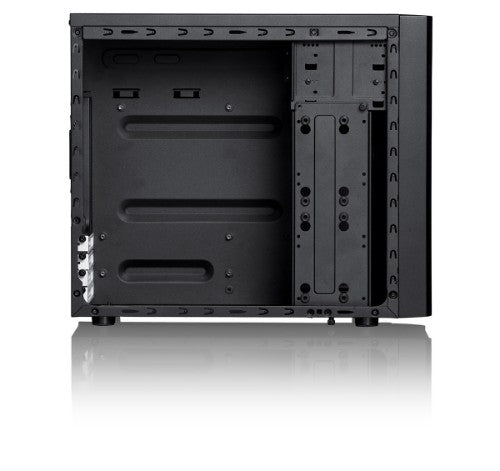

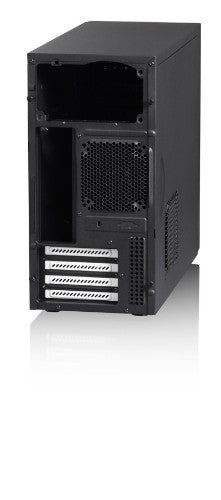

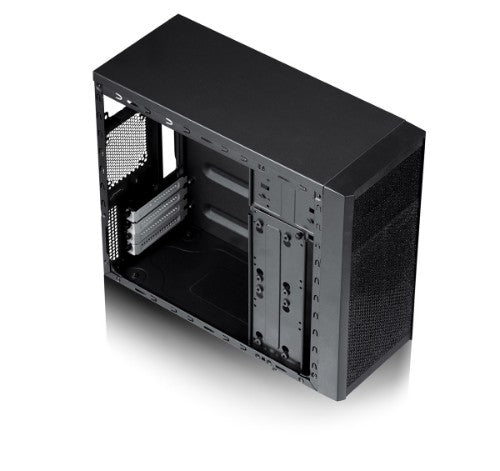

Fractal Design Core 1000 USB 3.0 Midi Tower Black

mATX, Mini ITX, DTX, 3.5"/2.5" x 2, USB 3.0, USB 2.0

Reasons To Buy

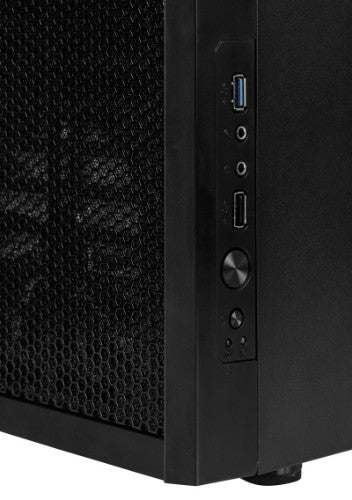

USB 3.0 I/O Panel

1x USB 3.0 with internal connector, 1x USB 2.0

1 x 120 mm Silent Fan

One Silent Series R2 fan included: 1x 120 mm in front

Smart HDD/SSD positioning

Innovative HDD positioning which mounts the HDD or SSDs vertically on the mounting bracket with anti-vibration silicone grommets

Description

The Fractal Design Core Series offers a unique combination of design, cooling performance and value.
The Core 1000 USB 3.0 brings forth many features usually only seen in more expensive and larger cases. It supports long graphics cards up to 350mm in length as a result of the innovative, vertical HDD mounting bracket. The front panel is easily removable and pre-fitted with fan filters to ensure a dust free interior.
The sleek black interior is contrasted with white expansion slots while all HDD mountings are fitted with anti-vibration silicone grommets for optimal silence.

Key Features

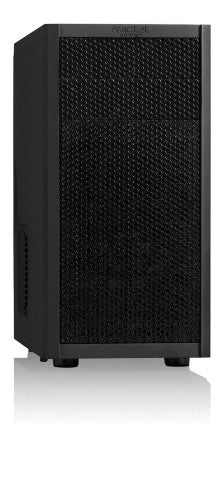

- Simple yet elegant mesh front panel allowing for increased airflow through the case
- Optimized for performance in a compact, micro-ATX form factor with multiple cooling options
- NEW: 1 x USB 3.0 with internal connector, 1 x USB 2.0
- One Silent Series R2 fan included: 1 x 120mm in front
- A total of 3 fan slots (1 x 120mm in front, 1 x 92mm in rear, 1 x 120mm in side panel)
- Innovative HDD positioning which mounts the HDD or SSDs vertically on the mounting bracket with anti-vibration silicone grommets
- Supports long graphics cards up to 350mm in length
- Supports various combinations of drive sets ups: 3 x 2.5" SSD, 2 x 3.5" HDD or 1 x 2.5" SSD + 1 x 3.5" HDD
- Dust filter for front fan position

Specifications

Technical details
Number of 5.25" bays	2
Number of 3.5" bays	2
Number of 2.5" bays	3
Supported motherboard form factors	DTX, micro ATX, Mini-ITX
Supported HDD sizes	2.5,3.5"
Suitable for	Home/Office
Side window	No
Reset button	Yes
Built-in speaker(s)	No
Product colour	Black
Number of expansion slots	4
Maximum CPU cooler height	14.8 cm
Maximum graphics card length	35 cm
Type	PC
Form factor	Midi Tower
Harmonized System (HS) code	84733080
Indication
LED indicators	Yes
Illumination	No
Ergonomics
Reset button	Yes
LED indicators	Yes
Design
Number of 5.25" bays	2
Number of 3.5" bays	2
Number of 2.5" bays	3
Supported motherboard form factors	DTX, micro ATX, Mini-ITX
Suitable for	Home/Office
Side window	No
Reset button	Yes
LED indicators	Yes
Illumination	No
Built-in speaker(s)	No
Product colour	Black
Number of expansion slots	4
Maximum CPU cooler height	14.8 cm
Maximum graphics card length	35 cm
Type	PC
Form factor	Midi Tower
Power supply
Supported power supply form factors	ATX
Power supply included	No
Ports & interfaces
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Audio input	Yes
Audio output	Yes
USB 2.0 ports quantity	1
Cooling
Front fans installed	1x 120 mm
Number of front fans supported (max)	1
Front fans diameters supported	120 mm
Number of side fans supported (max)	1
Side fans diameters supported	120 mm
Number of rear fans supported (max)	1
Rear fans diameters supported	92 mm
Liquid cooling capability	No
Storage
Supported HDD sizes	2.5,3.5"
Packaging content
Manual	Yes
Weight & dimensions
Width	175 mm
Depth	420 mm
Height	355 mm
Weight	4.1 kg
Packaging data
Package width	230 mm
Package height	415 mm
Package depth	473 mm
Package weight	5 kg
Manual	Yes
Logistics data
Harmonized System (HS) code	84733080
Other features
Manual	Yes
Harmonized System (HS) code	84733080
