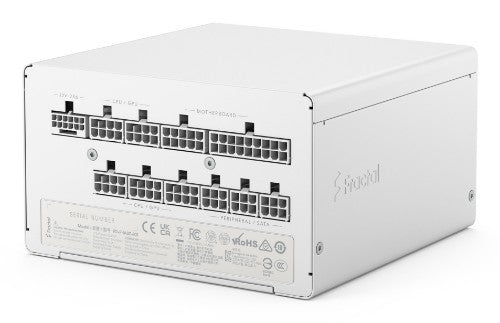

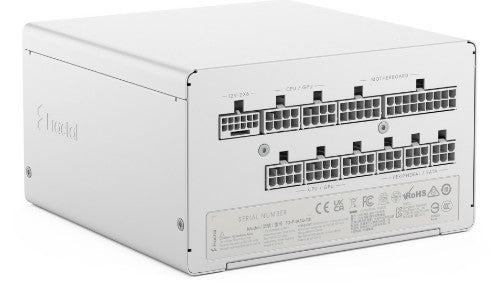

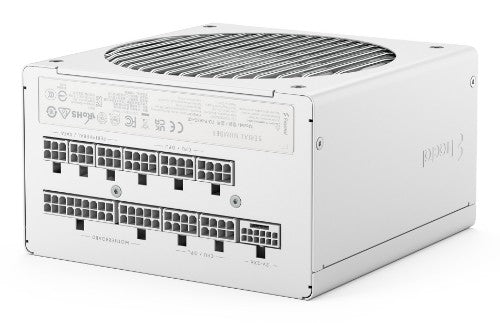

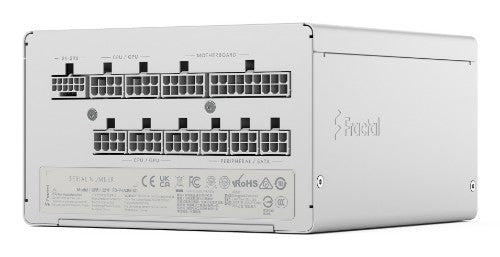

Fractal Design Ion 3 Gold 1000W power supply unit 24-pin ATX ATX White

1000 W, 80PLUS Gold, ATX 3.1, Fully modular, 100-240 V, FDB

Description

Ion 3 Gold delivers efficient, stable power for next-generation gaming systems. With ATX12V 3.1 compatibility, native PCIe Gen 5 support, and 80 PLUS Gold efficiency, it’s built for reliable, long-term performance.

Future-ready
Connect next-generation components with ATX12V 3.1 compatibility and enjoy stable performance with graphics card power excursion support.

Native Gen 5 support
Power modern graphics cards with 16-pin PCIe Gen 5 12V-2×6 support featuring shortened sense pins for a reliable, secure connection.

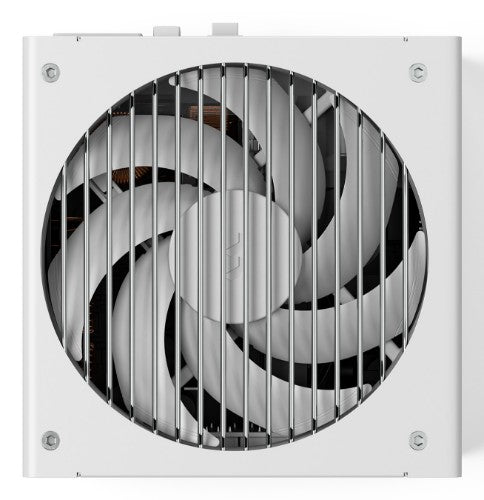

Momentum cooling
Featuring a powerful Momentum 14 fan with a fluid dynamic bearing and LCP blades to ensure lower noise, cooler operation, and a longer lifespan.

Certified efficiency
80 PLUS Gold–certified for efficient performance with reduced energy use and heat output through optimized power delivery.

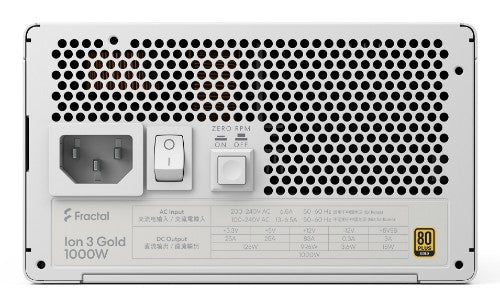

Quiet operation
Featuring variable fan speeds for adaptive cooling and the option to activate Zero RPM Mode for near-silent operation under lighter loads.

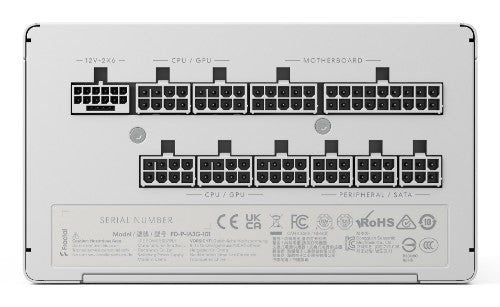

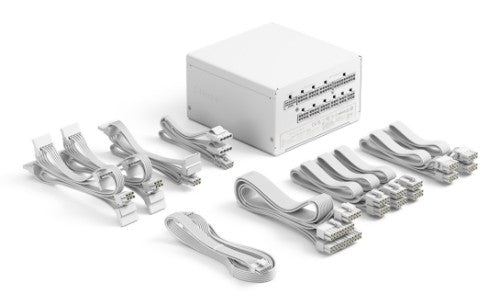

Fully modular
Achieve a clean, uncluttered build with a fully modular design and UltraFlex cables for smoother cable routing.

Designed to last
Built with high-quality, reliable components including Japanese 105°C capacitors and an extensive 10-year warranty.

Specifications

Cooling
Fan location	Rear
Design
80 PLUS certification	80 PLUS Gold
Product colour	White
Fan location	Rear
Power
Total power	1000 W
AC input voltage	100 - 240 V
Power Factor Correction (PFC) type	Active
Power protection features	Over current, Over power, Over voltage, Short circuit, Under voltage
Efficiency	45%
Number of +12V rail(s)	1
Ports & interfaces
SATA power cable length	150,650 mm
Peripheral (Molex) power cable length	150,650 mm
Motherboard power connector	24-pin ATX
Number of SATA power connectors	10
Peripheral (Molex) power connectors (4-pin)	2
PCI Express power connectors (6+2 pin)	3
ATX Power connector (24-pin)	Yes
Cabling type	Fully-Modular
Performance
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Gold
Purpose	PC
ATX version	3.1
Mean time between failures (MTBF)	100000 h
Bearing technology	FDB
Operational conditions
Operating temperature (T-T)	40 - 50 °C
Certificates
Compliance certificates	BSMI, CB, CCC, CE, Federal Communications Commission (FCC), ICES, KC, RCM, TÜV mark, UKCA, cULus
80 PLUS certification	80 PLUS Gold
Packaging content
Cables included	DC
Weight & dimensions
Width	150 mm
Depth	150 mm
Height	86 mm
Weight	1.8 kg
Packaging data
Cables included	DC
Package depth	354 mm
Package width	189 mm
Package height	122 mm
Package weight	3.3 kg
Technical details
Sustainability certificates	ErP
Compliance certificates	BSMI, CB, CCC, CE, Federal Communications Commission (FCC), ICES, KC, RCM, TÜV mark, UKCA, cULus
