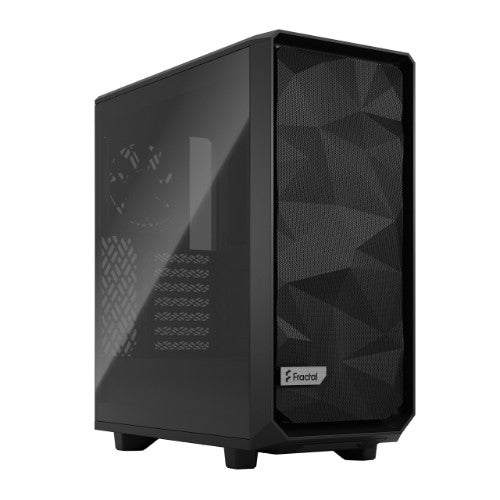

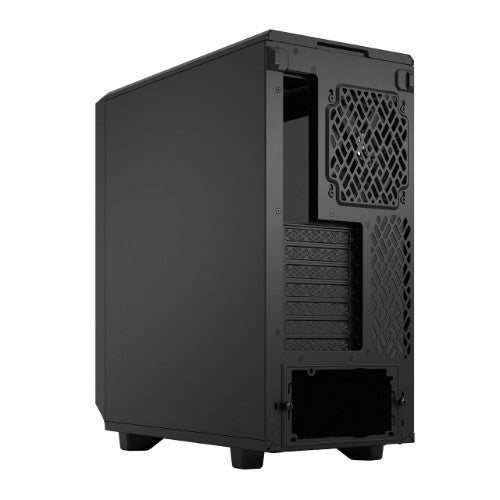

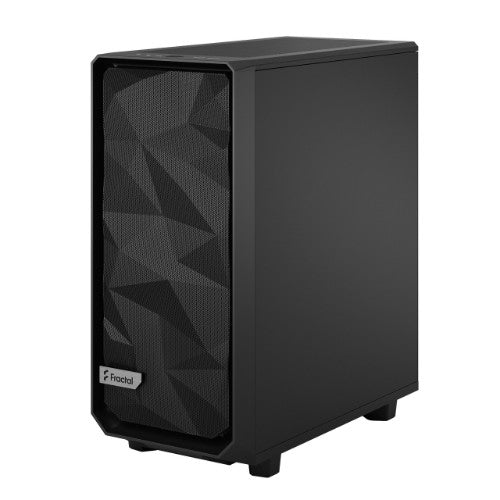

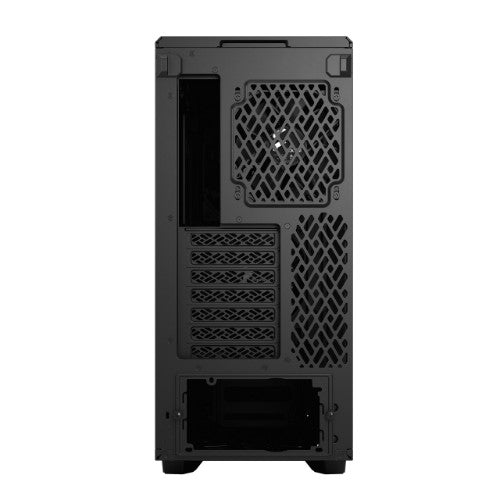

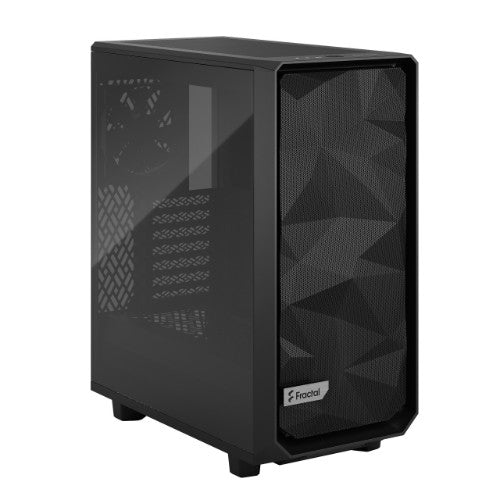

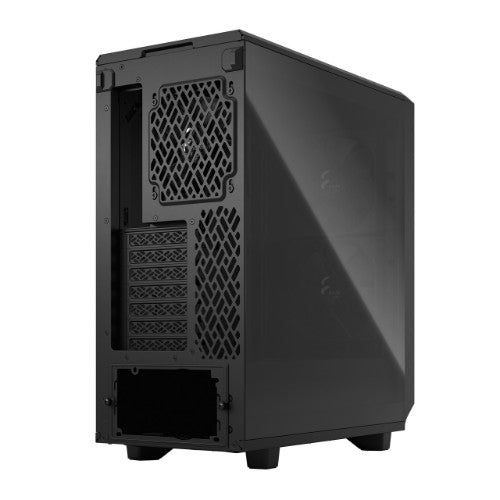

Fractal Design Meshify 2 Compact Tower Black

ATX/mATX/Mini-ITX, 3x fans included, Dust filters, Cable routing grommets

Key Features

• Iconic angular mesh front provides filtered airflow with a bold, stealth-inspired aesthetic
• Room for GPUs up to 360 mm with a 240 mm radiator in the top, or up to 360/280 mm front radiators with GPUs under 305 mm
• Versatile and space-efficient ATX form-factor design offers the performance and capacity of much larger cases

Reasons To Buy

Nexus+ 2 fan hub

Ultra-slim Nexus+ 2 fan hub connects up to three PWM fans and six 3-pin fans

Versatile Multibracket

Versatile Multibracket that converts any unused fan position to an HDD, SSD or pump mount

Cable management

Detachable PSU cable shield and integrated cable guides with velcro straps further simplify cable management behind the board

Description

Removable front filter
- New front panel design with hinged removable mesh and tether-free bezel for easier access to front fan mounts
- Easy-to-clean filters on the front, top and base with full PSU coverage and convenient front access
- New front nylon filter that can be removed for increased airflow

Robust cooling
- Install up to 7 fans, front radiators up to 360 mm, or top radiators up to 240 mm
- Open interior layout creates a smooth airflow path from intake to exhaust
- Install up to 7x 120 mm or 4x 140 mm fans (1x 120 mm and 2x 140 mm Dynamic X2 fans included)

Fully featured
- Seamlessly integrated steel panel with steel frame support and bolt-free top-latching mechanism
- Flexible storage options supporting two 2.5”/3.5” drives and up to four SSDs (two SSD brackets included)
- Improved cable routing with three integrated cable alignment clips and six velcro straps

Top priority access
The fully removable top panel opens to provide excellent interior access

Spaciously compact
Clever layout enables the capacity of much larger cases

Type-C interface
USB 3.1 Gen 2 Type-C front I/O offers fast-charging and speeds up to 10 Gbps

Smooth and quiet operation
The sturdy steel drive trays are vibration-damped by cushioning rubber grommets

Full length shroud
A full-length power supply shroud readily conceals the drive cage and excess cabling

Specifications

Design
Volume	39.4 L
Anti-dust filter	Yes
Number of external 5.25" bays	0
Material	Steel, Tempered glass
Number of 5.25" bays	0
Number of 3.5" bays	2
Number of 2.5" bays	4
Number of internal 3.5" bays	2
Supported motherboard form factors	ATX, micro ATX, Mini-ITX
Suitable for	Gaming
Side window	Yes
Reset button	Yes
Illumination	No
Cable management	Yes
Product colour	Black
Number of expansion slots	7
Maximum CPU cooler height	16.9 cm
Maximum graphics card length	36 cm
Maximum PSU length	20 cm
Type	PC
Form factor	Tower
On/off button	Yes
Tempered glass panel(s)	Yes
Technical details
Number of 5.25" bays	0
Number of 3.5" bays	2
Number of 2.5" bays	4
Number of internal 3.5" bays	2
Supported motherboard form factors	ATX, micro ATX, Mini-ITX
Supported HDD sizes	2.5,3.5"
Suitable for	Gaming
Side window	Yes
Reset button	Yes
Product colour	Black
Number of expansion slots	7
Maximum CPU cooler height	16.9 cm
Maximum graphics card length	36 cm
Maximum PSU length	20 cm
Type	PC
Form factor	Tower
Harmonized System (HS) code	84733080
Material
Material	Steel, Tempered glass
Indication
Illumination	No
Ergonomics
Reset button	Yes
Cable management	Yes
On/off button	Yes
Power supply
Supported power supply form factors	ATX
Power supply included	No
Power supply location	Bottom
Ports & interfaces
USB 3.2 Gen 2x2 Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Audio input	Yes
Audio output	Yes
USB 2.0 ports quantity	0
Cooling
Front radiator installed	No
Front radiator sizes supported	280,360 mm
Rear radiator installed	No
Rear radiator sizes supported	120 mm
Top radiator installed	No
Top radiator sizes supported	240 mm
Front fans installed	2x 140 mm
Number of front fans supported (max)	3
Front fans diameters supported	120,140 mm
Rear fans installed	1x 120 mm
Number of rear fans supported (max)	1
Rear fans diameters supported	120 mm
Number of top fans supported (max)	2
Top fans diameters supported	120,140 mm
Number of bottom fans supported (max)	1
Bottom fans diameters supported	120 mm
Liquid cooling capability	Yes
Storage
Supported HDD sizes	2.5,3.5"
Weight & dimensions
Volume	39.4 L
Width	210 mm
Depth	424 mm
Height	475 mm
Weight	8.1 kg
Packaging data
Package width	320 mm
Package height	554 mm
Package depth	542 mm
Package weight	9.8 kg
Logistics data
Harmonized System (HS) code	84733080
Other features
Volume	39.4 L
Harmonized System (HS) code	84733080
