Fractal Design Ridge Small Form Factor (SFF) White

mITX, PCIe 4.0, 374 x 110 x 395 mm, White

Key Features

• Supports GPUs up to a length of 335 mm
• All panels are removable, enabling maximum accessibility
• Available with either PCIe 4.0 or PCIe 3.0 riser card

Description

An uncluttered, small form factor case designed to integrate seamlessly into your living space and daily rituals. An evolution of the slimline format, Ridge was developed in collaboration with gaming and entertainment enthusiasts to subtly improve their homes and enhance the small form factor PC experience.

Find your balance
Maximized capability with a minimized footprint

Inch-perfect efficiency
- Meticulously engineered to maximize its capability while minimizing its footprint
- Small form factor case with a volume of 12.6 liters
- Supports GPUs up to a length of 335 mm

Horizontal or vertical

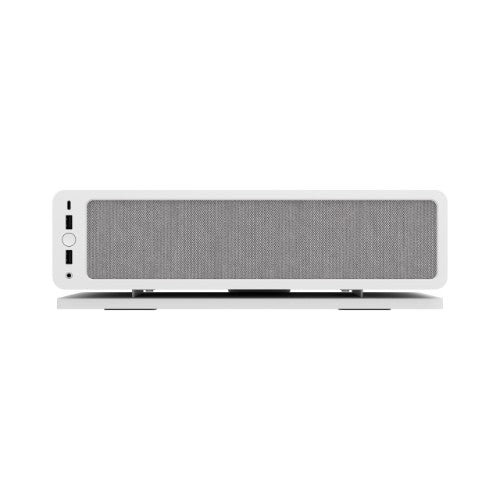

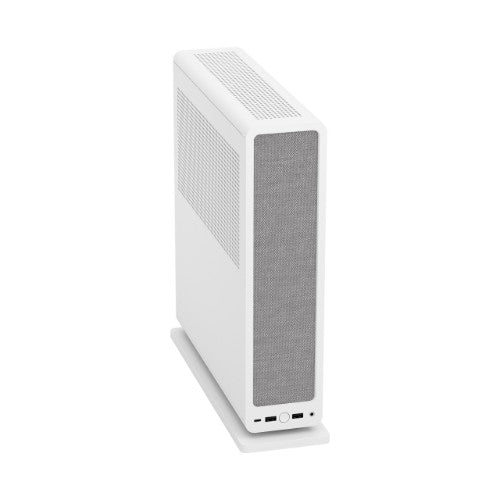

- Multiple feet configurations allow for both horizontal and vertical orientation
- Elevate any gaming desk, workspace or entertainment area

Unrivalled access

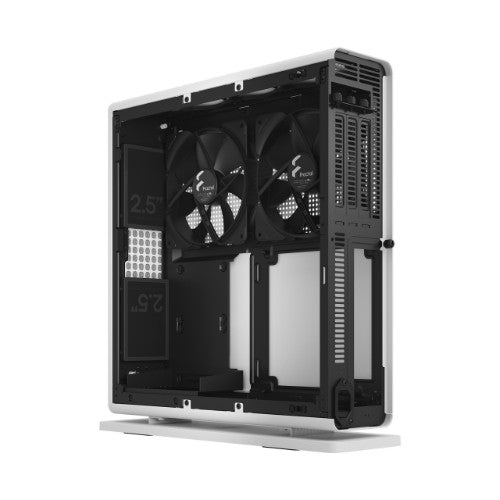

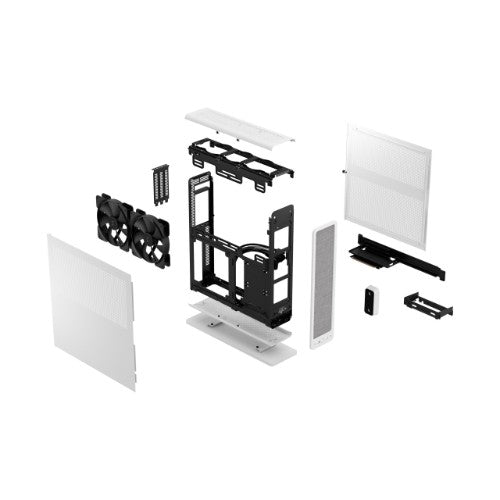

Remove any panel to gain easy access to every side of your build

All-around ventilation
- Ventilated on all sides to maximize its cooling potential

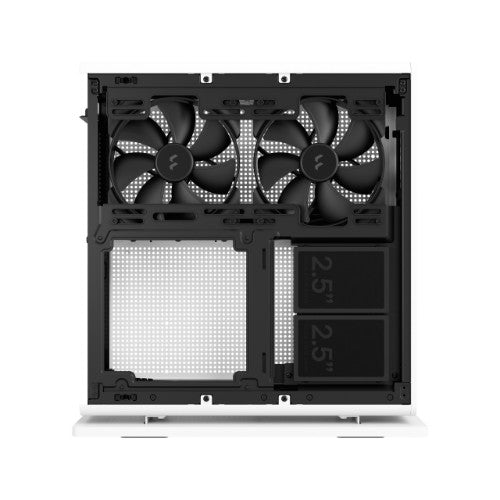

- Comes with 2x 140 mm PWM Aspect fans pre-installed
- Supports 2x 120/140 mm and 3x 80 mm fans

Well-balanced design
- Stylish fabric front with CNC machined aluminum frame
- Features a Power LED bar in front

Type-C interface
Front I/O comes with 2x USB 3.0, 1x USB type-C and a combined mic and headphone jack

Smart configurations
- Comes with our own PCIe 4.0 or PCIe 3.0 riser card pre-installed
- Four 2.5” drive mounts included

Specifications

Design
Volume	12.6 L
Anti-dust filter	No
Number of external 5.25" bays	0
Material	Steel
Number of 5.25" bays	0
Number of 3.5" bays	0
Number of 2.5" bays	4
Number of internal 3.5" bays	0
Supported motherboard form factors	Mini-ITX
Side window	No
Number of internal 5.25" bays	0
Illumination	No
Cable management	Yes
Product colour	White
Number of expansion slots	3
Maximum CPU cooler height	7 cm
Maximum graphics card length	33.5 cm
Type	PC
Form factor	Small Form Factor (SFF)
On/off button	Yes
RGB control button	Yes
Technical details
Number of 5.25" bays	0
Number of 3.5" bays	0
Number of 2.5" bays	4
Number of internal 3.5" bays	0
Supported motherboard form factors	Mini-ITX
Supported HDD sizes	2.5"
Side window	No
Number of internal 5.25" bays	0
Product colour	White
Number of expansion slots	3
Maximum CPU cooler height	7 cm
Maximum graphics card length	33.5 cm
Type	PC
Form factor	Small Form Factor (SFF)
Material
Material	Steel
Indication
Illumination	No
Ergonomics
Cable management	Yes
On/off button	Yes
Power supply
Supported power supply form factors	SFX, SFX-L
Power supply included	No
Ports & interfaces
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 2.0 ports quantity	0
Combo headphone/mic port	Yes
Cooling
Front radiator installed	No
Rear radiator installed	No
Top radiator installed	No
Side fans installed	2x 140 mm
Number of side fans supported (max)	2
Side fans diameters supported	120,140 mm
Number of top fans supported (max)	3
Top fans diameters supported	80 mm
Side radiator sizes supported	120,280 mm
Storage
Supported HDD sizes	2.5"
Packaging content
Manual	Yes
Weight & dimensions
Volume	12.6 L
Width	110 mm
Depth	374 mm
Height	395 mm
Weight	4.3 kg
Packaging data
Package width	167 mm
Package height	431 mm
Package depth	426 mm
Package weight	5.5 kg
Manual	Yes
Other features
Volume	12.6 L
Manual	Yes
