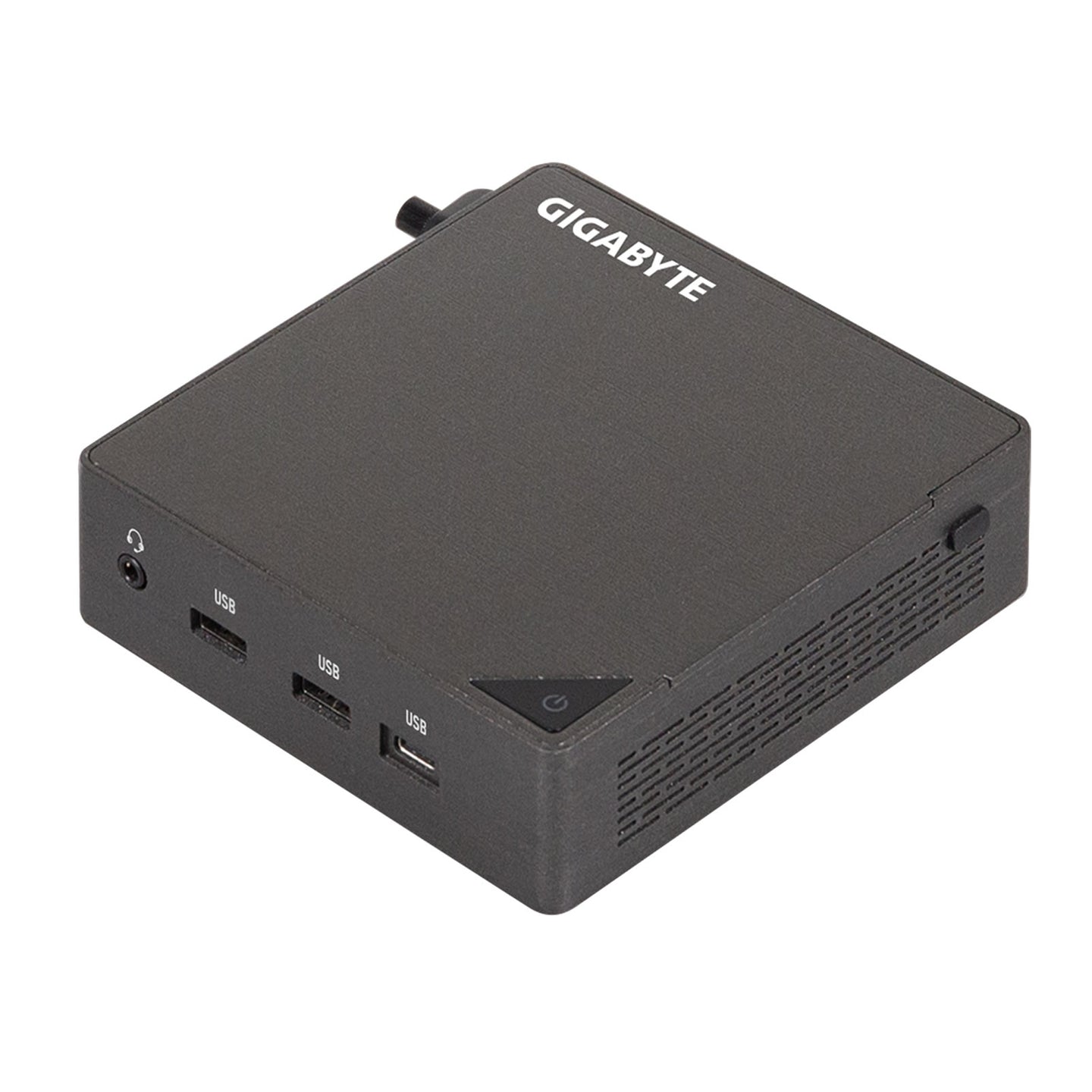

GIGABYTE BRIX Core Ultra 5 225H DDR5 SO-DIMM WiFi_BT 2.5G 0.46L sized PC

The GIGABYTE BRIX GB-BRU5-225H is a new mini-PC featuring the latest Intel® Core™ Ultra processors (Series 2) and boasts an integrated GPU with a remarkable 20% performance increase over the previous generation. Furthermore, it unleashes exceptional AI performance, delivering up to 83 Tera Operations Per Second (TOPS), making it perfectly suited for demanding generative AI tasks and intensive multitasking scenarios.

Space-saving
Ultra compact PC design. Particularly useful in environments with limited space.

Low power
Energy savings and lower electricity bills.

Portability
Easily carried around for use in different locations.

Low noise
Quieter operation, which is particularly appreciated in quiet working environments.

Suitability for specific purposes
Designed for specific purposes, such as home theater PCs, smart home controllers, data storage servers, etc.

Low maintenance costs
With a simple design and fewer components, it reduces maintenance costs and makes upgrades or repairs easier.

DIMENSIONS
Size
112.6 x 34.4 x 119.4 mm (W x H x D) (Slim chassis design)

Motherboard Size
105 mm x 114.49 mm

PERFORMANCE
CPU
Intel® Core™ Ultra 5 processor 225H, 14C (4P + 8E + 2LPE), 28W

Memory
2 x SO-DIMM DDR5 slots, support up to 5600MHz, Max. 96GB
or
2 x CSO-DIMM DDR5 slots, support up to 6400MHz, Max. 96GB

Graphics
Intel® Arc™ Graphics, 130T GPU
2 x HDMI v2.1, 4096x2160 60Hz (TMDS, CEC)
2 x USB Type-C ALT (DisplayPort v2.1)
(Intel® Arc™ Graphics requires using 2 x SO-DIMM/CSO-DIMM dual channel memory)

Audio
Realtek ALC245

NETWORKING
LAN
2.5GbE LAN (Intel® I226V)

EXPANSION SLOTS
1 x M.2 M Key 2280 slot (PCIe Gen4x4) (PCIe Gen5x4, ready design)
1 x M.2 M Key 2280 slot (PCIe Gen4x4 + SATA)
1 x M.2 E Key 2230 Wi-Fi & BT slot (Wi-Fi 7 RTL8922AE)

I/O PORTS
Front I/O
1 x Headset
2 x USB 3.2 Gen2 Type-A
1 x USB 3.2 Gen2 Type-C (ALT)

Rear I/O
2 x HDMI (TMDS & CEC)
1 x USB4
1 x USB 3.2 Gen2 Type-C (PD IN)
1 x USB 3.2 Gen2 Type-A
1 x USB 2.0 Type-A
1 x RJ45

Left I/O
1 x Kensington Lock Slot

POWER
Input: AC 100-240V
Output: DC 20V/5A, 100W (Type-C PD)

VESA MOUNT
Supports 75 x 75 and 100 x 100 mm

OPERATING SYSTEM
Windows 11 64-bit

ENVIRONMENT
System Operating Temperature: 0°C to +35°C
System Storage Temperature: -20°C to +60°C

NPU
Intel® AI Boost NPU up to 13 TOPs
