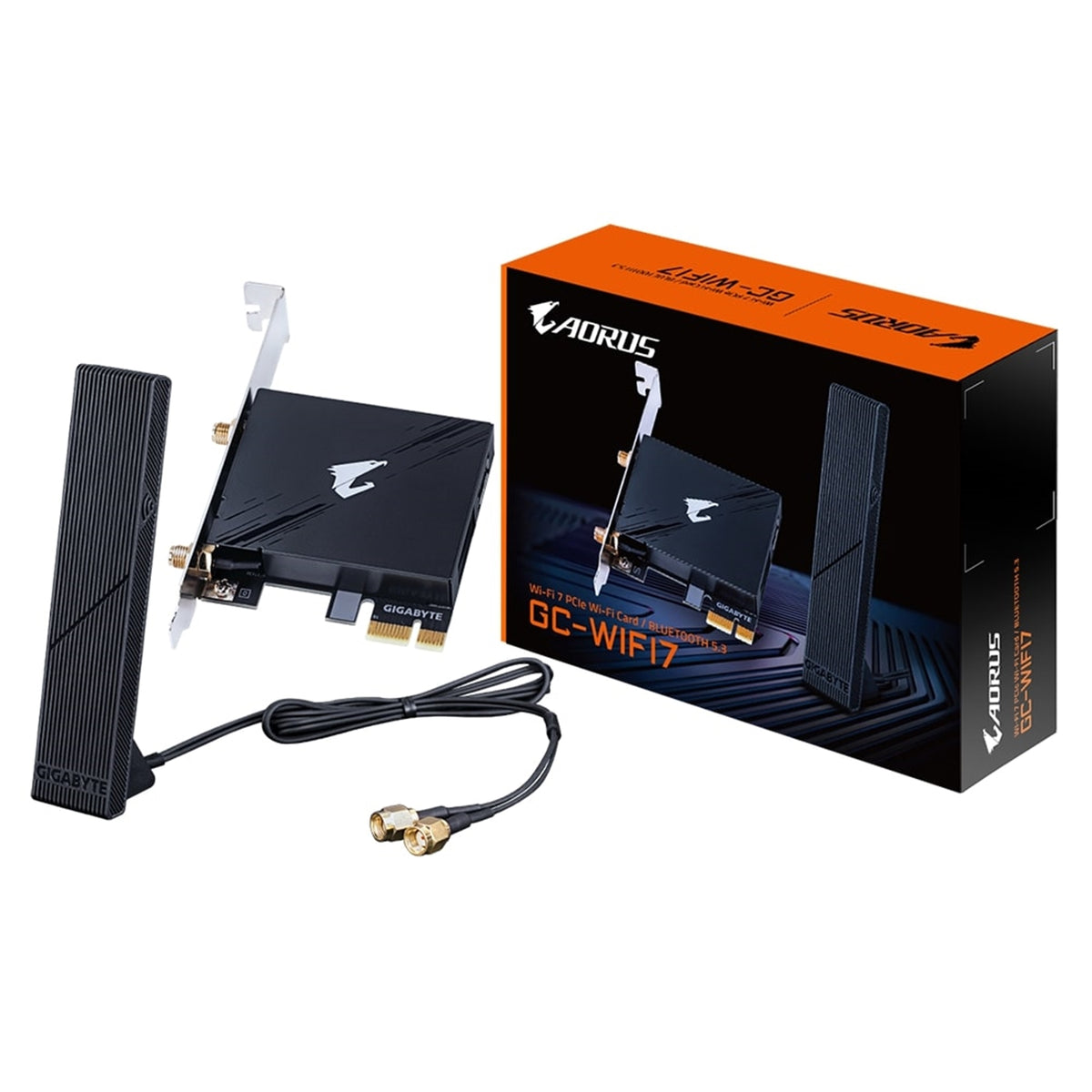

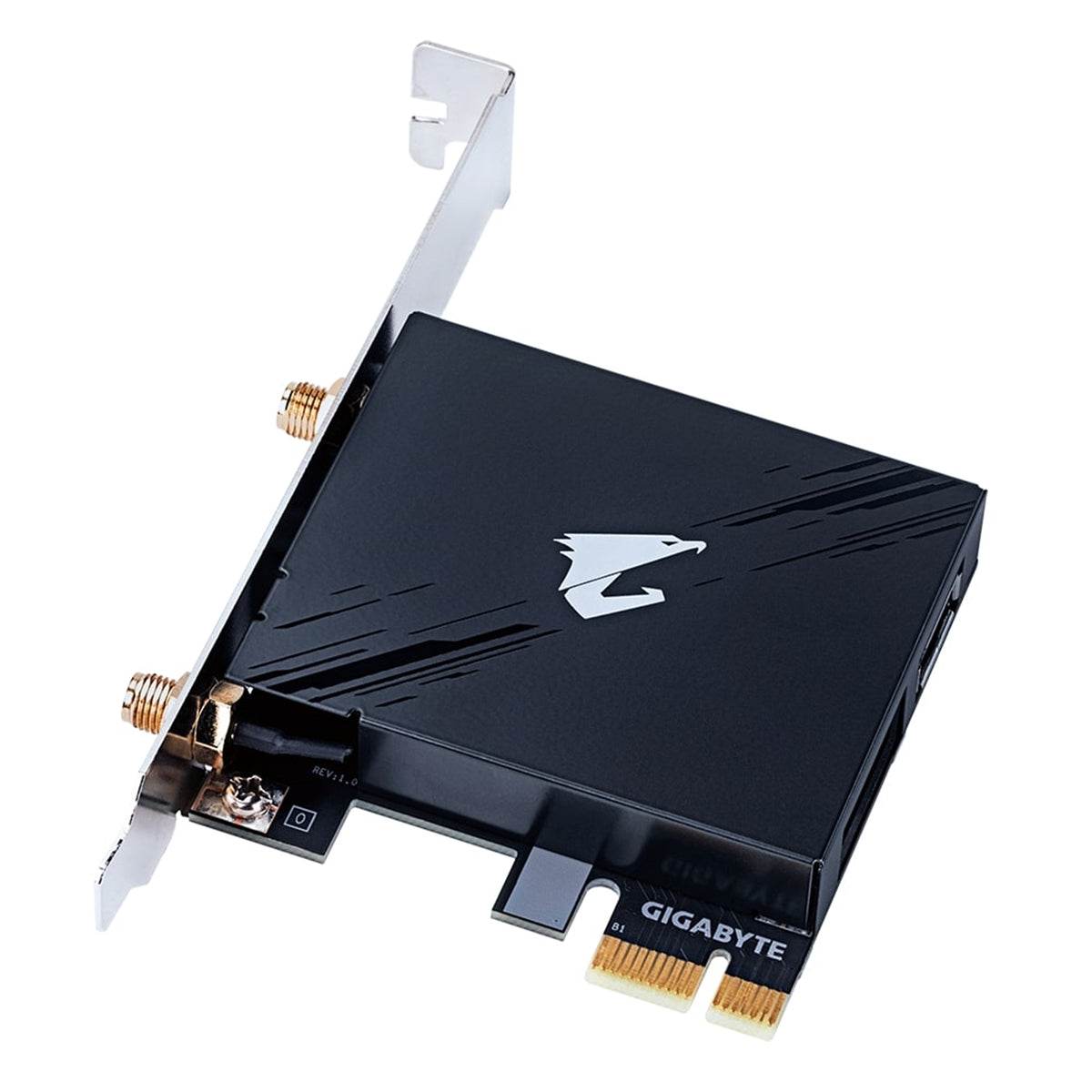

The GIGABYTE GC-WIFI7 is an internal PCIe wireless adapter for desktop PC owners who want to add Wi-Fi 7 and Bluetooth connectivity. It suits users upgrading a PC for online gaming, video calls, streaming or large file transfers, including applications where a responsive wireless link is useful.
Key features
- Built-in Wi-Fi 7 module
- Supports high-speed wireless connections of up to 5800Mbps
- Offers up to 320MHz bandwidth support across the 2.4GHz, 5GHz, and 6GHz bands
- MLO (Multi-Link Operation) enables simultaneous connections on two bands
- MRU (Multiple RU) enhances interference mitigation and OFDMA efficiency
- 4K-QAM allows for higher transmission rates, resulting in increased efficiency
- Bluetooth 5.3 Compatible
- Supports MU-MIMO TX/RX
- Complies with IEEE 802.11 a/b/g/n/ac/ax/be standards
- Equipped with an ultra-high gain 2Tx2R antenna, supporting both directional and omnidirectional signals
- PCIe x1 Interface Card
Specification
| Specification | Detail |
|---|---|
| 5800 Mbps | Wi-Fi 7 |
| 2400Mbps | Wi-Fi 6E |
| 867Mbps | Wi-Fi 5 |
| Wi-Fi 7 brings you the Ultimate VR experience | Wi-Fi 7 provides significant benefits to the realm of virtual reality (VR). With its high bandwidth and low latency capabilities, Wi-Fi 7 ensures a smooth and immersive VR experience. |
| 320/160 MHz channels | Wi-Fi 7 supports up to 320 MHz channels, providing a significant increase in bandwidth for faster data rates. |
| Multi-link Operation | With MLO(Multi-Link Operation) technology, you can allocate the 2.4GHz band for streaming and the 5/6GHz band for gaming, resulting in a higher quality network experience with fewer interruptions. |
| 4K-QAM | With 4K-QAM technology, Wi-Fi 7 improves data throughput, resulting in faster file transfers and seamless streaming. |
| Deterministic low latency | Deterministic low latency ensures minimal delays, making it ideal for real-time applications like video conferencing and online gaming. |
| GIGABYTE Ultra-high Gain Antenna | Experience enhanced signal strength with the GIGABYTE Ultra-high gain Antenna, which incorporates a smart antenna function to optimize Wi-Fi signal transmission. |
| Direction Signal | up to 5dBi |
| Omnidirectional Signal | up to 4dBi |
| Connectivity | Wireless |
| Host interface | PCI Express |
| Interface | WLAN / Bluetooth |
| Maximum data transfer rate | 5800 Mbit/s |
| Networking standards | IEEE 802.11be, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Wi-F | Yes |
| Wi-Fi band | Tri-band (2.4 GHz / 5 GHz / 6 GHz) |
| Frequency range | 2.4 - 6 GHz |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Quick installation guide | Yes |
| Internal | Yes |
| Component for | PC |
| Product color | Black |
| Antenna | Yes |
| Antenna type | 2x2 |
| Weight &Dimensions | 8.27 x 5.83 x 2.16 inches 0.69 lbs. |
-
