Gigabyte

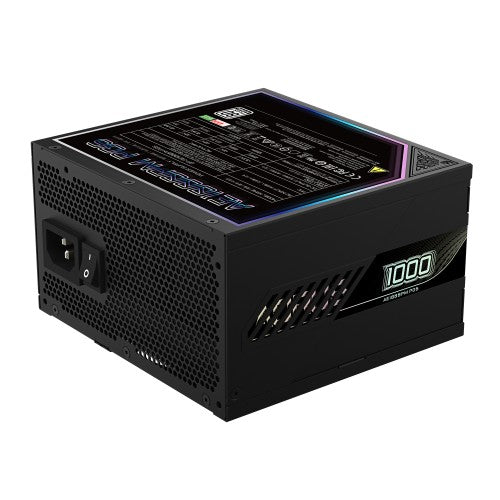

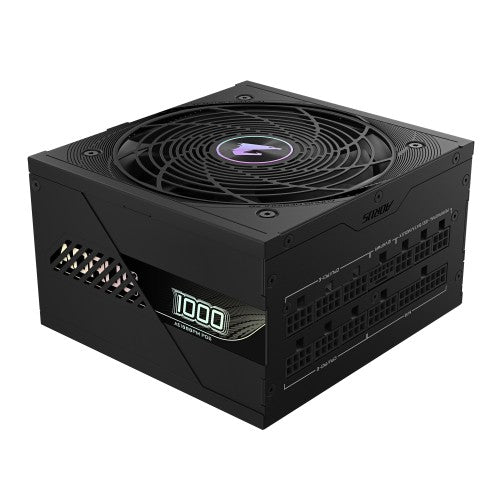

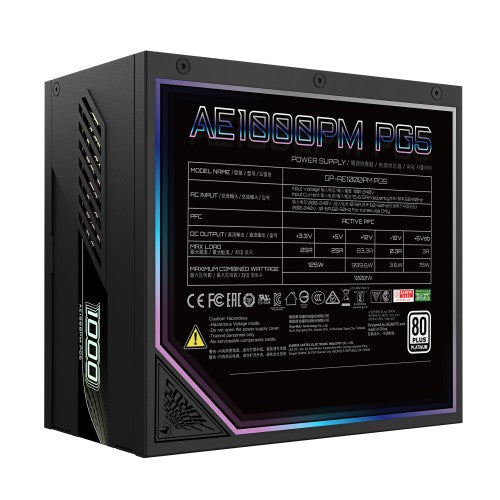

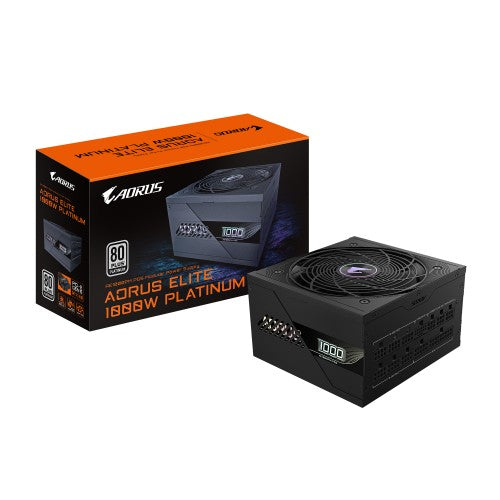

GIGABYTE AORUS ELITE P1000W ICE Power Supply Unit - PCIe 5.0, 80 PLUS Platinum, Fully modular design, 120mm Fan, ATX 3.0 compatible, EU Plug

SKU GP-AE1000PM PG5
£167.98
£111.12
£167.98
£111.12
Excluding taxes
AORUS ELITE P1000W ICE Power Supply Unit - PCIe 5.0, 80 PLUS Platinum, Fully modular design, 120mm Fan, ATX 3.0 compatible, EU Plug

Key Features

  • ATX 3.0 and PCIe Gen 5.0 ready (compatible with ATX 3.1)
  • 80 PLUS Platinum certified
  • 100% Japanese capacitors
  • 120mm smart Fluid Dynamic Bearing (FDB) fan
  • Compact design
  • Fully modular design
  • Powerful single +12V rail
  • OVP/OPP/SCP/UVP/OCP/OTP protection

Description

Ensure reliable and efficient power delivery with GIGABYTE power supplies. Designed for peak performance and durability, our PSUs offer stable and consistent energy to power your high-performance systems. With advanced protections and high-quality components, GIGABYTE power supplies provide the confidence you need for seamless, uninterrupted computing experiences.

Specifications

Cooling
Fan diameter 12 cm
Number of fans 1 fan(s)
Fan location Top
Cooling type Active
Performance
On/off switch Yes
Power supply unit (PSU) form factor ATX
80 PLUS certification 80 PLUS Platinum
Purpose PC
ATX version 3.1
Mean time between failures (MTBF) 100000 h
Bearing technology Ball bearing
Design
80 PLUS certification 80 PLUS Platinum
Product colour Black
Fan diameter 12 cm
On/off switch Yes
Number of fans 1 fan(s)
Fan location Top
Cooling type Active
Power
Total power 1000 W
Power Good signal delay range 100 - 150 ms
AC input voltage 100 - 240 V
AC input frequency 50/60 Hz
Input current 15 - 6.5 A
Power factor 0.9
Power Factor Correction (PFC) type Active
Combined power (+3.3V) 125 W
Combined power (+12V) 999.6 W
Combined power (+5V) 125 W
Combined power (-12V) 3.6 W
Combined power (+5Vsb) 15 W
Max output current (+3.3V) 25 A
Max output current (+12V) 83.3 A
Max output current (+5V) 25 A
Max output current (-12V) 0.3 A
Max output current (+5Vsb) 3 A
Power protection features Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Hold time 16 ms
Efficiency 92%
Ports & interfaces
Motherboard power cable length 65 cm
Motherboard power connector 20+4 pin ATX
Number of SATA power connectors 6
Peripheral (Molex) power connectors (4-pin) 4
PCI Express power connectors (6+2 pin) 6
CPU power connector (4+4 pin) Yes
PCI Express connector Yes
Floppy drive power connector 2
Floppy disk drive connector Yes
ATX power connector (20+4 pin) Yes

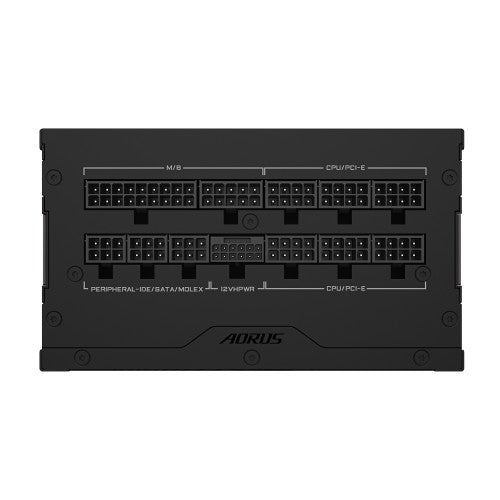

Cabling type Fully-Modular
Weight & dimensions
Width 150 mm
Depth 140 mm
Height 86 mm
Weight 3.08 kg
Packaging data
Package depth 206 mm
Package width 340 mm
Package height 120 mm
Package type Box
Package weight 3.72 kg
Technical details
Warranty period 10 year(s)
Certificates
80 PLUS certification 80 PLUS Platinum
