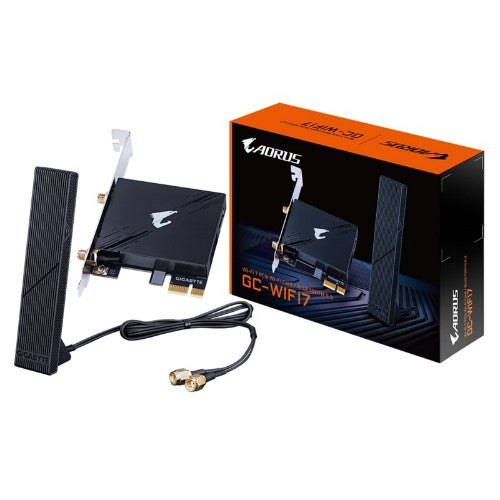

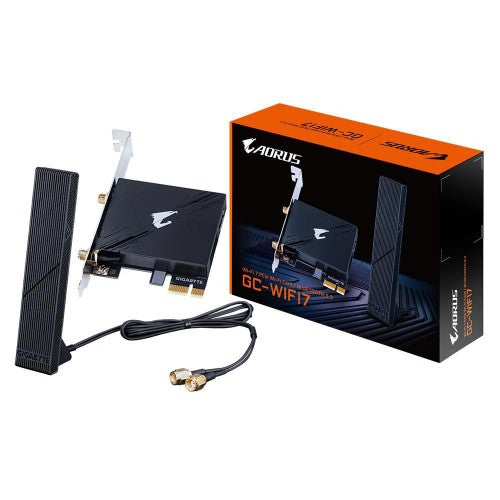

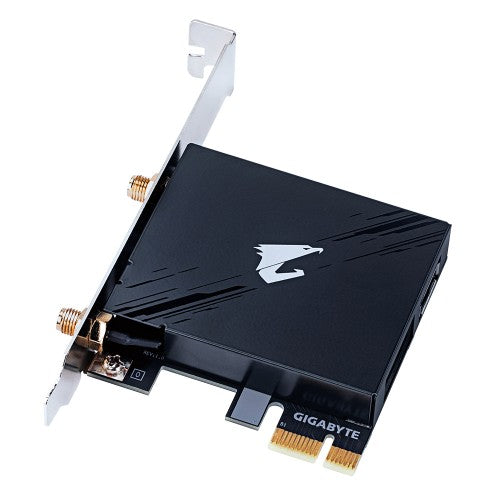

GIGABYTE GC-WIFI7 network card Internal WLAN / Bluetooth 5800 Mbit/s

Wi-Fi 7, 5800 Mbps, MU-MIMO, 2.4GHz, 5GHz, 6GHz, Bluetooth 5.3

Key Features

• Built-in Wi-Fi 7 module
• Supports high-speed wireless connections of up to 5800Mbps
• Offers up to 320MHz bandwidth support across the 2.4GHz, 5GHz, and 6GHz bands
• MLO (Multi-Link Operation) enables simultaneous connections on two bands
• MRU (Multiple RU) enhances interference mitigation and OFDMA efficiency
• 4K-QAM allows for higher transmission rates, resulting in increased efficiency
• Bluetooth 5.3 Compatible
• Supports MU-MIMO TX/RX
• Complies with IEEE 802.11 a/b/g/n/ac/ax/be standards
• Equipped with an ultra-high gain 2Tx2R antenna, supporting both directional and omnidirectional signals
• PCIe x1 Interface Card

Description

Wi-Fi 7 brings you the Ultimate VR experience

Wi-Fi 7 provides significant benefits to the realm of virtual reality (VR). With its high bandwidth and low latency capabilities, Wi-Fi 7 ensures a smooth and immersive VR experience.

320/160 MHz channels
Wi-Fi 7 supports up to 320 MHz channels, providing a significant increase in bandwidth for faster data rates.

4K-QAM
With 4K-QAM technology, Wi-Fi 7 improves data throughput, resulting in faster file transfers and seamless streaming.

Multi-link Operation
With MLO(Multi-Link Operation) technology, you can allocate the 2.4GHz band for streaming and the 5/6GHz band for gaming, resulting in a higher quality network experience with fewer interruptions.

Deterministic low latency
Deterministic low latency ensures minimal delays, making it ideal for real-time applications like video conferencing and online gaming.

GIGABYTE Ultra-high Gain Antenna
Experience enhanced signal strength with the GIGABYTE Ultra-high gain Antenna, which incorporates a smart antenna function to optimize Wi-Fi signal transmission.

Specifications

Ports & interfaces
Internal	Yes
Interface	WLAN / Bluetooth
Host interface	PCI Express
Connectivity technology	Wireless
Bandwidth
Maximum data transfer rate	5800 Mbit/s
Wireless LAN features
Wi-Fi band	Tri-band (2.4 GHz / 5 GHz / 6 GHz)
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Wi-Fi	Yes
Antenna
Antenna	Yes
Frequency range	2.4 - 6 GHz
Antenna type	2x2
Technical details
Product colour	Black
Network
Wi-Fi band	Tri-band (2.4 GHz / 5 GHz / 6 GHz)
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Wi-Fi	Yes
Bluetooth version	5.3
Networking standards	IEEE 802.11be, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Frequency range	2.4 - 6 GHz
Maximum data transfer rate	5800 Mbit/s
Bluetooth	Yes
Design
Product colour	Black
Antenna	Yes
Internal	Yes
Antenna type	2x2
Component for	PC
Packaging content
Quick installation guide	Yes
Packaging data
Quick installation guide	Yes
Other features
Bluetooth version	5.3
Bluetooth	Yes
Antenna type	2x2
