Gigabyte

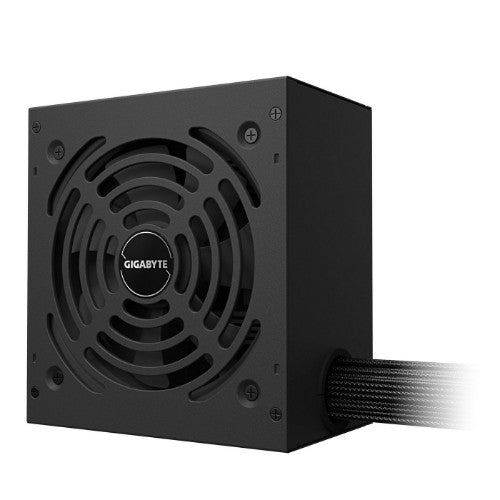

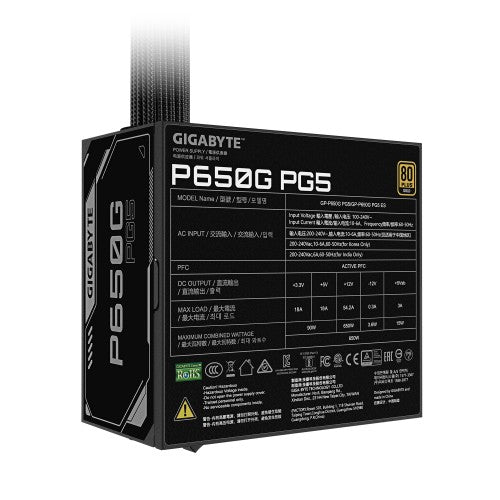

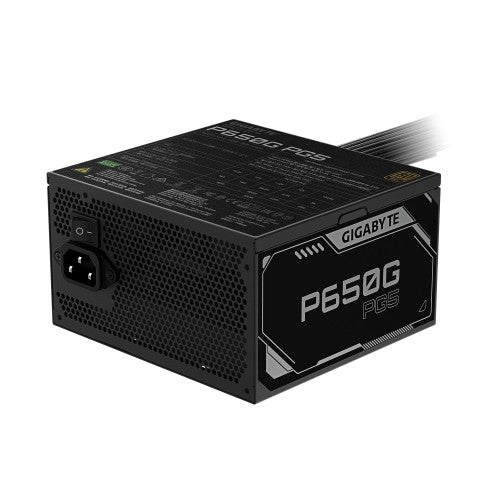

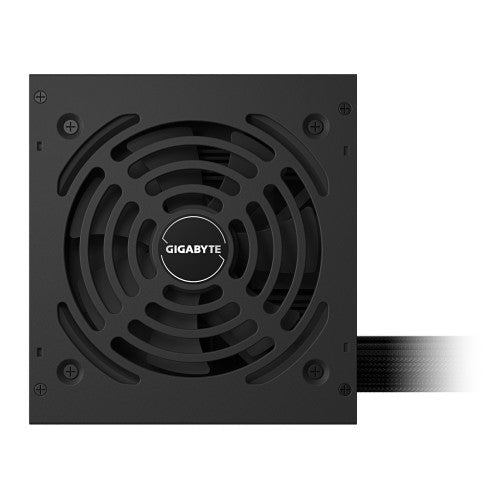

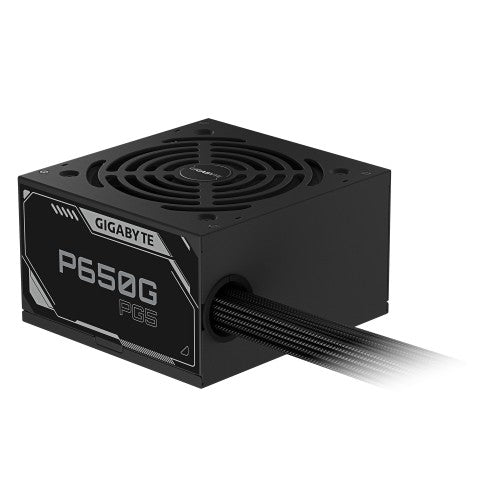

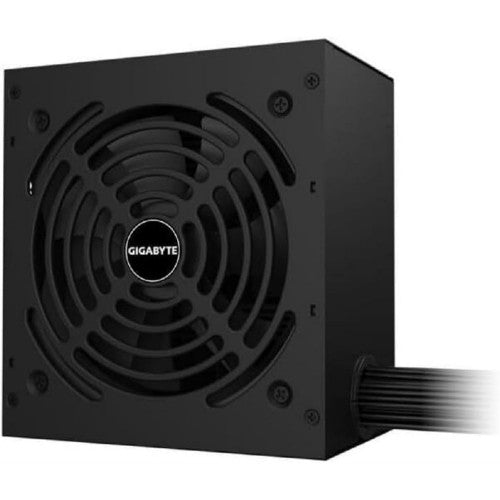

GIGABYTE P650G PCIE 5.1 Power Supply - PCIe 5.1, 80 PLUS Silver, 120mm Fan, ATX 3.1 compatible, EU Plug

SKU GP-P650G PG5
£39.08
£39.08
Excluding taxes
P650G PCIE 5.1 Power Supply - PCIe 5.1, 80 PLUS Silver, 120mm Fan, ATX 3.1 compatible, EU Plug

Key Features

  • ATX 3.1 and PCIe Gen 5.1 ready
  • 80 PLUS Gold certified
  • Main Japanese capacitors
  • 120mm Silent Hydraulic Bearing (HYB) Fan
  • Powerful single +12V rail
  • OVP/OPP/SCP/UVP/OCP/OTP protection
  • Compact design

Description

Ensure reliable and efficient power delivery with GIGABYTE power supplies. Designed for peak performance and durability, our PSUs offer stable and consistent energy to power your high-performance systems. With advanced protections and high-quality components, GIGABYTE power supplies provide the confidence you need for seamless, uninterrupted computing experiences.

Specifications

Cooling
Fan diameter 12 cm
Number of fans 1 fan(s)
Fan location Top
Cooling type Active
Performance
On/off switch Yes
Power supply unit (PSU) form factor ATX
80 PLUS certification 80 PLUS Gold
Purpose PC
ATX version 3.1
Mean time between failures (MTBF) 100000 h
Bearing technology HYB
Design
80 PLUS certification 80 PLUS Gold
Product colour Black
Fan diameter 12 cm
On/off switch Yes
Number of fans 1 fan(s)
Fan location Top
Cooling type Active
Power
Total power 650 W
Maximum input current (@220V) 6 A
Power Good signal delay range 100 - 150 ms
AC input voltage 100 - 240 V
AC input frequency 50/60 Hz
Input current 10 - 6 A
Power Factor Correction (PFC) type Active
Maximum input current (@110V) 10 A
Combined power (+3.3V) 90 W
Combined power (+12V) 650 W
Combined power (+5V) 650 W
Combined power (-12V) 3.6 W
Combined power (+5Vsb) 15 W
Max output current (+3.3V) 18 A
Max output current (+12V) 54.2 A
Max output current (+5V) 18 A
Max output current (-12V) 0.3 A
Max output current (+5Vsb) 18 A
Power protection features Over power, Overcharge, Short circuit, Under voltage
Ports & interfaces
Motherboard power cable length 60 cm
SATA power cable length 120,500 mm
Peripheral (Molex) power cable length 150 mm
PCI Express power cable length 50 cm
CPU power cable length 60 cm
Motherboard power connector 20+4 pin ATX
Number of SATA power connectors 6
Peripheral (Molex) power connectors (4-pin) 3
PCI Express power connectors (6+2 pin) 2
CPU P4 connector (4-pin) 1
CPU power connector (4+4 pin) Yes
Floppy disk drive connector Yes
ATX power connector (20+4 pin) Yes
Cabling type Non-Modular
Weight & dimensions
Width 140 mm
Depth 150 mm
Height 86 mm
Weight 1.76 kg
Packaging data
Package depth 110 mm
Package width 260 mm
Package height 180 mm
Package type Box
Package weight 1.92 kg
Technical details
Warranty period 5 year(s)
Certificates
80 PLUS certification 80 PLUS Gold
Logistics data
Warranty period 5 year(s)
