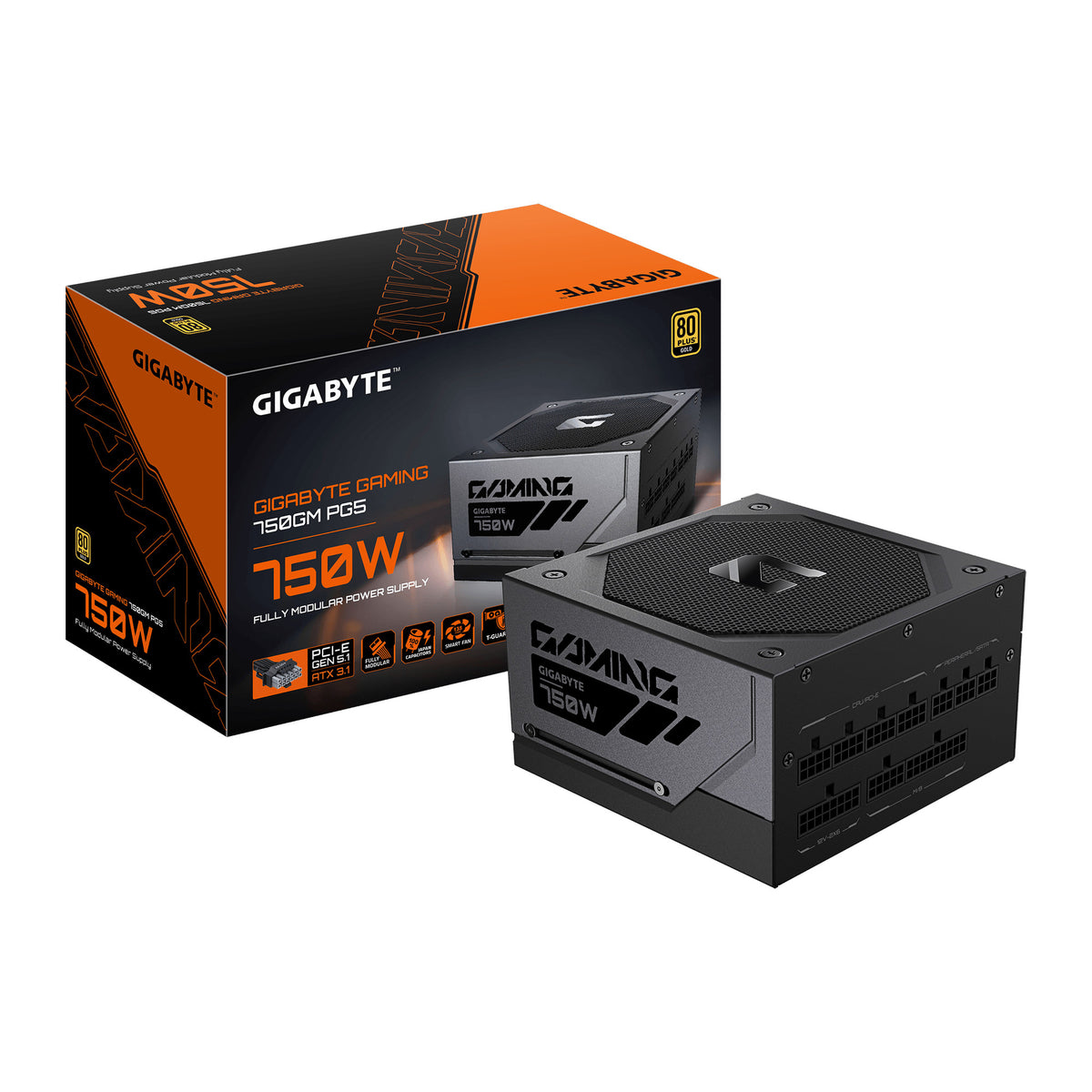

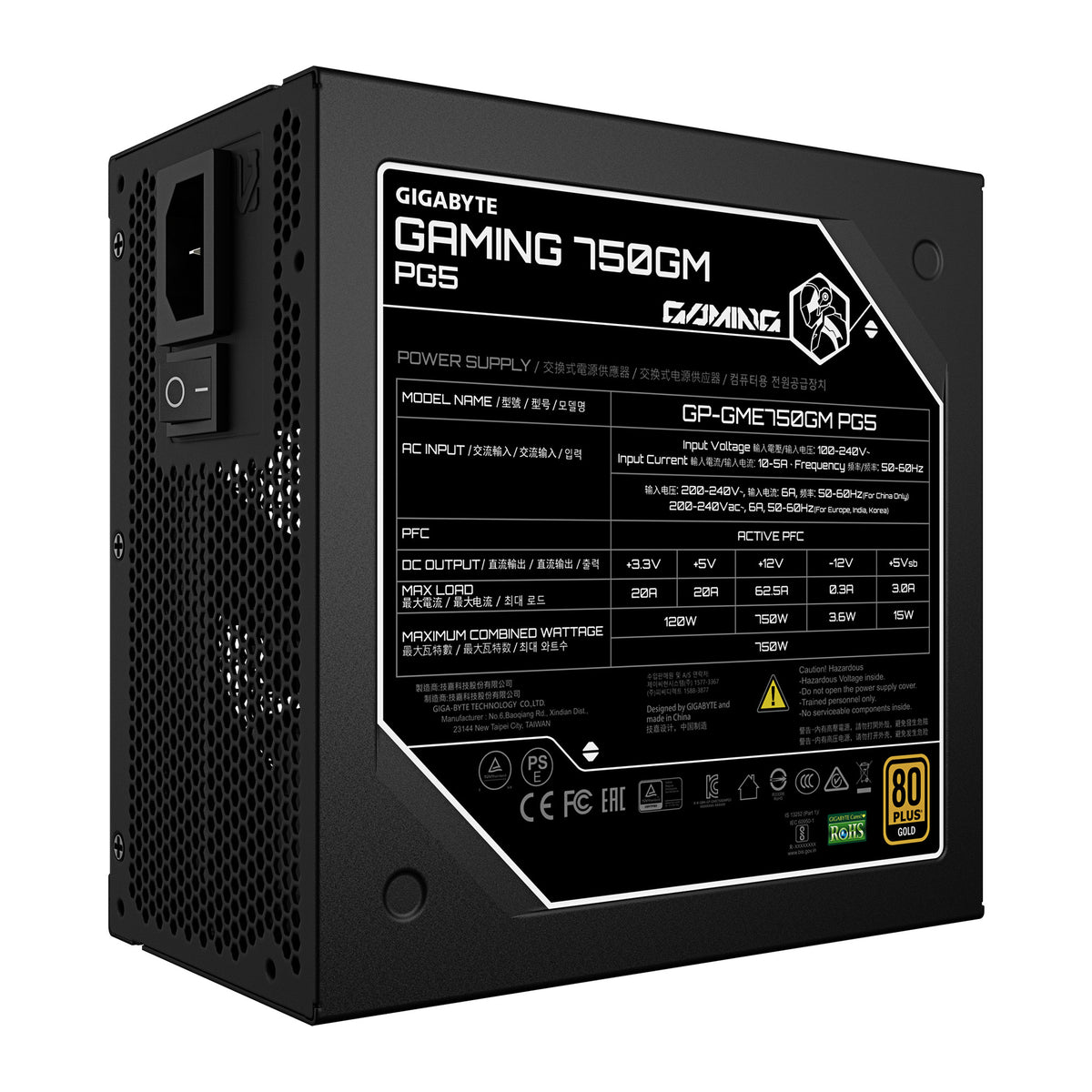

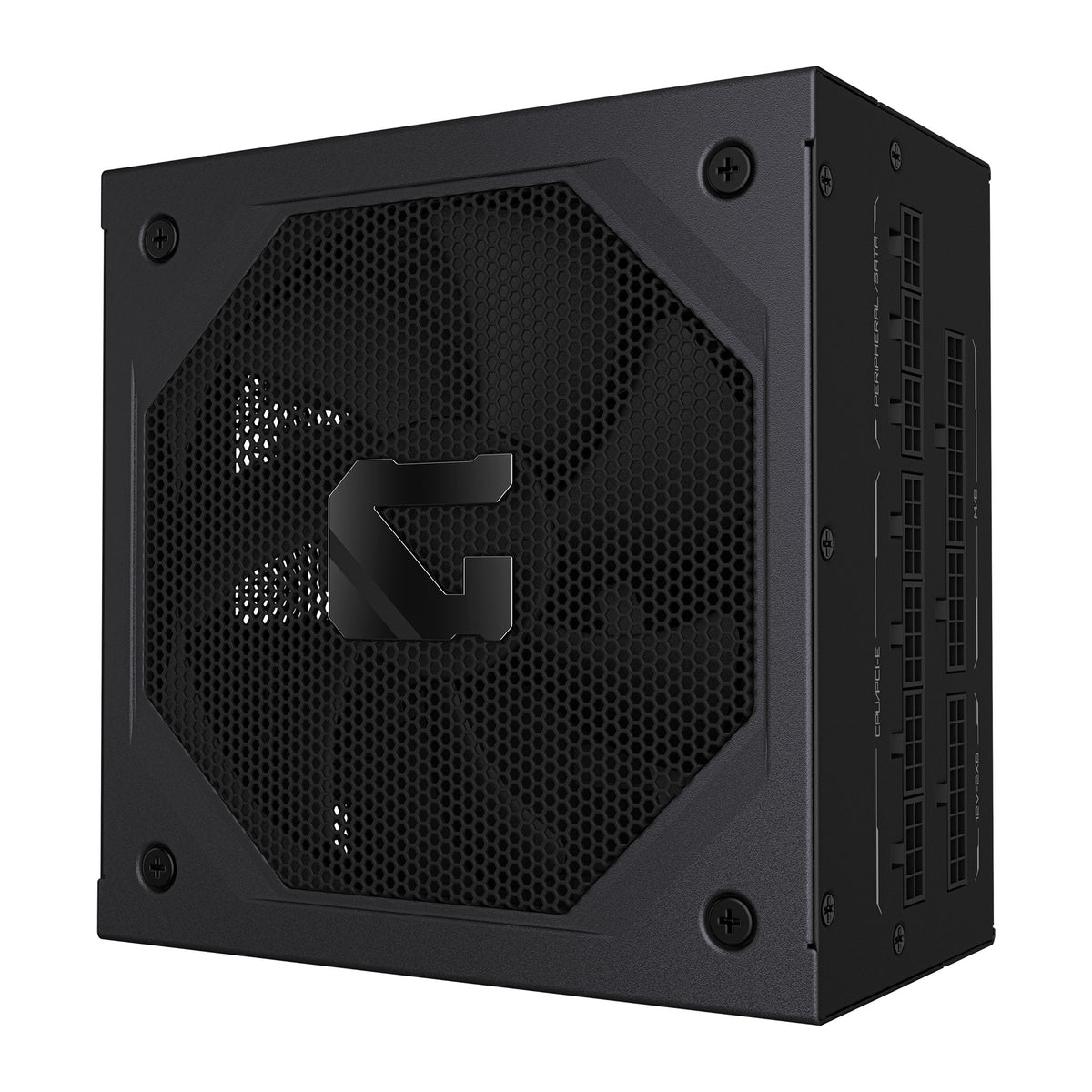

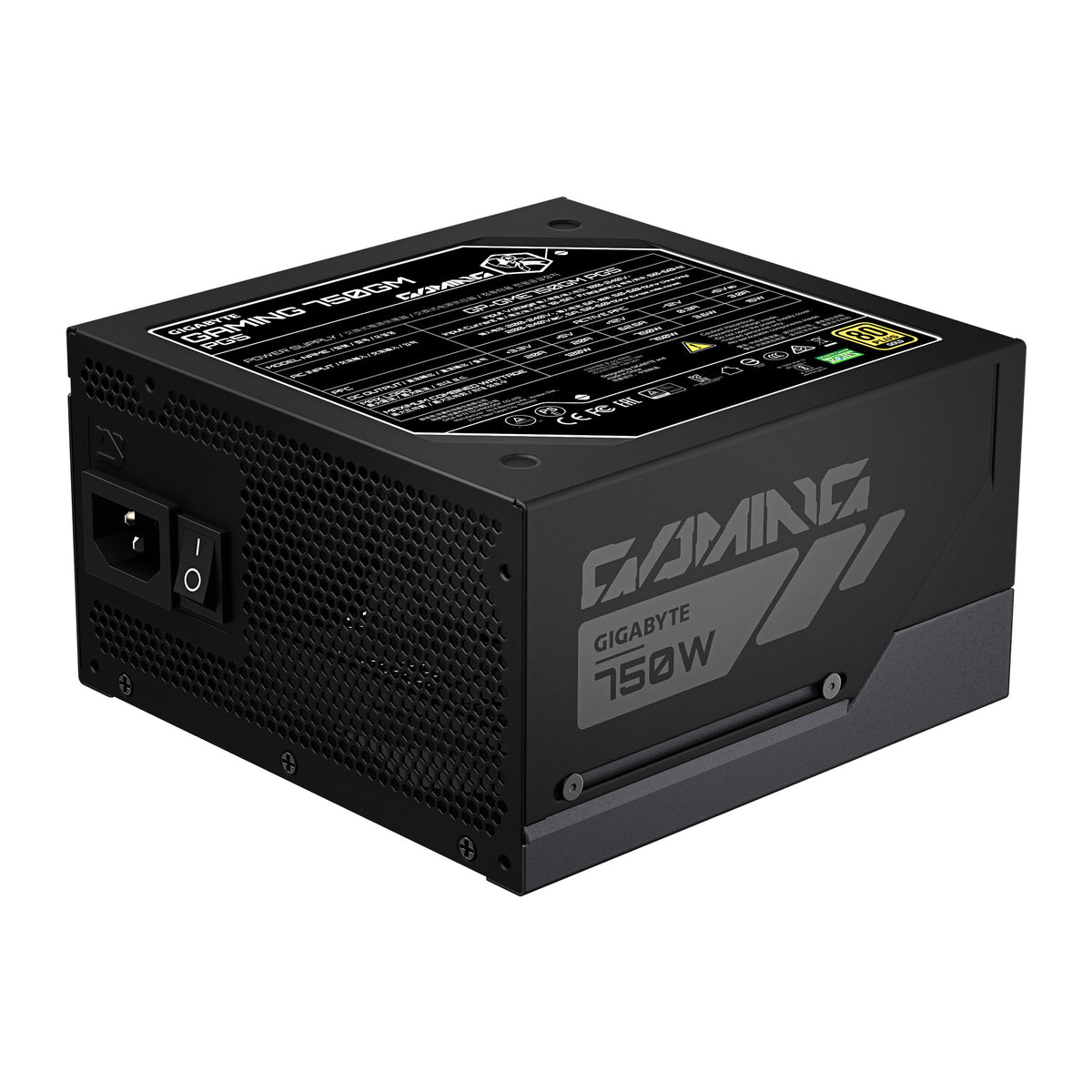

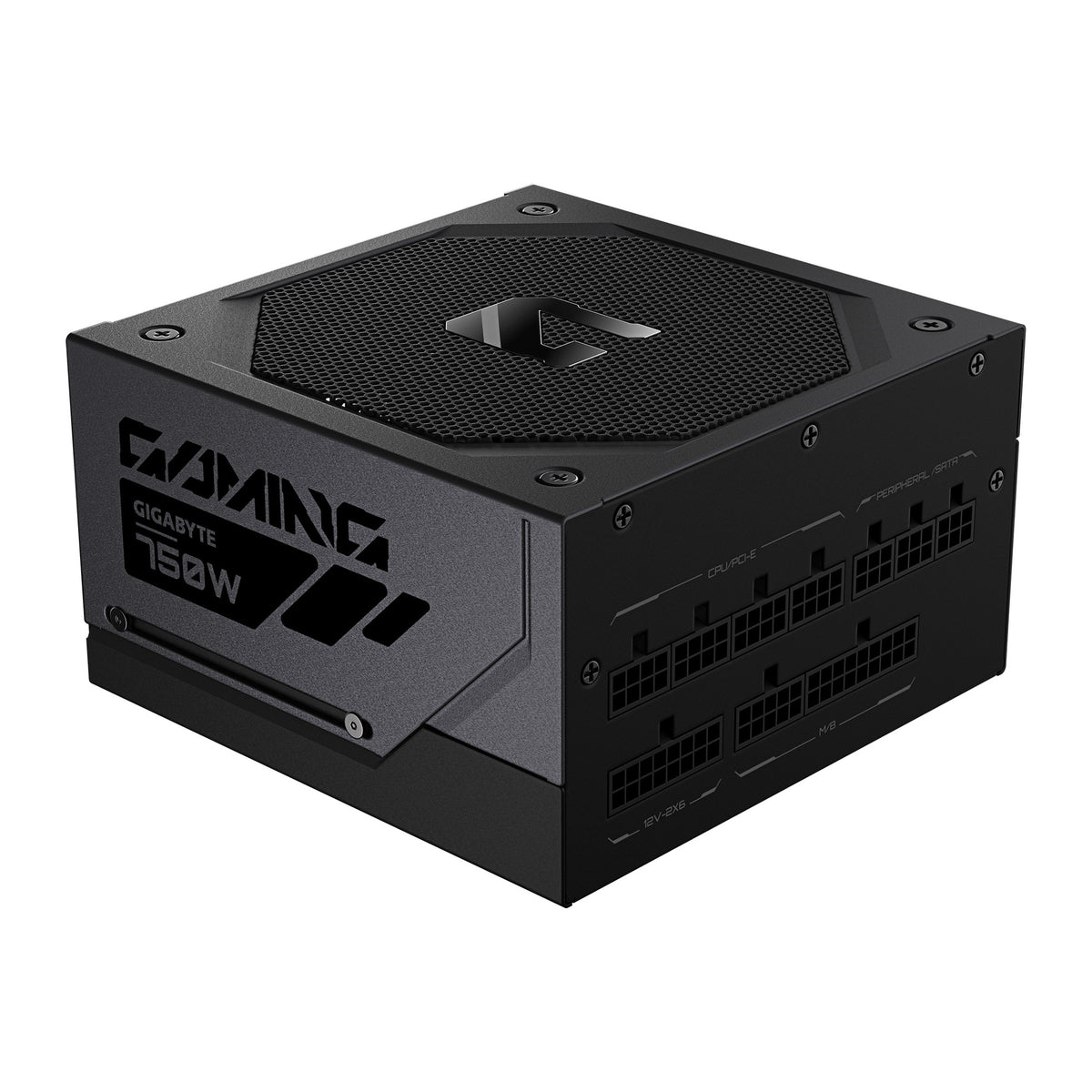

The Gigabyte GP-GME750GM PG5 is a 750W power supply unit with ATX 12V v3.1 type.
Features
- 80 PLUS Gold certified
- Cybenetics ETA Platinum & LAMBDA A+ certified
- T-Guard Active GPU Protection
- 135mm Smart Fluid Dynamic Bearing (FDB) Fan
- HybridCool Smart Fan Control
- 100% Japanese capacitors
- Powerful single +12V rail
- OVP / OPP / SCP / UVP / OCP / OTP / NLO / SIP protection
- 3-year warranty
Specification
| Specification | Detail |
|---|---|
| Built to Power. Born to Win. | The GIGABYTE GAMING 750GM PG5 is a 750W, 80 PLUS Gold, fully modular ATX 3.1 power supply built for modern gaming rigs. It provides stable, efficient, and ultra-quiet power with intelligent safeguards to ensure peak performance when the stakes are highest. |
| DOUBLE DOWN ON SAFETY | Dual-layer defense engineered for high-draw, high-performance graphics cards. |
| T-Guard: Active GPU Thermal Protection | Designed for high-performance GPUs, T-Guard monitors the 12V-2x6 cable for abnormal heat buildup. If a risk is detected, power to the GPU is cut to help prevent potential damage while the system stays active, allowing time to secure data and avoid gameplay interruptions |
| Dual-Color 12V-2x6 Connector | The dual-tone connector gives a clear visual cue to confirm a secure connection. |
| POWER EVERY PLAY | Clean, efficient power for demanding gaming systems. |
| BUILD WITH EASE | DIY-friendly features for clean, hassle-free installs |
| Fully Modular Design with Embossed Cables | Connect only what’s required, and enjoy clean builds with flexible embossed cables designed for smooth routing and hassle-free cable management. |
| Standard ATX Size | Compact 150mm length fits easily into most PC cases, offering broad compatibility and more room to work with. |
| GAMING Aesthetics | A bold dual-color finish adds a distinctive gaming look that helps your build stand out from the crowd. |
| Fluid Dynamic Bearing | The fan’s Fluid Dynamic Bearing design ensures long lifespan, smooth operation, and consistently low noise over time. |
| Comprehensive Protection Suite | Advanced safeguards, including NLO and SIP, provide enhanced system protection and peace of mind. |
| Warranty | 3 years |
| Model | GP-GME750GM PG5 |
| Type | Intel Form Factor ATX 12V v3.1 |
| PFC | Active PFC (>0.9 typical) |
| Input Voltage | 100-240 Vac |
| Input Current | 10-5A |
| Input Frequency | 50-60 Hz |
| Output Capacity | 750W |
| Dimensions | 150 x 150 x 86mm |
| Fan Type | 135mm FDB Fan |
| 80 PLUS | Gold |
| Efficiency | 90% at typical load |
| MTBF | >100,000 hours |
| Protections | OVP / OPP / SCP / UVP / OCP / OTP / NLO / SIP |
| Power Good Signal | 100-150ms |
| Hold Up Time | >17ms(80% load) |
| Cable Type | Embossed, All black |

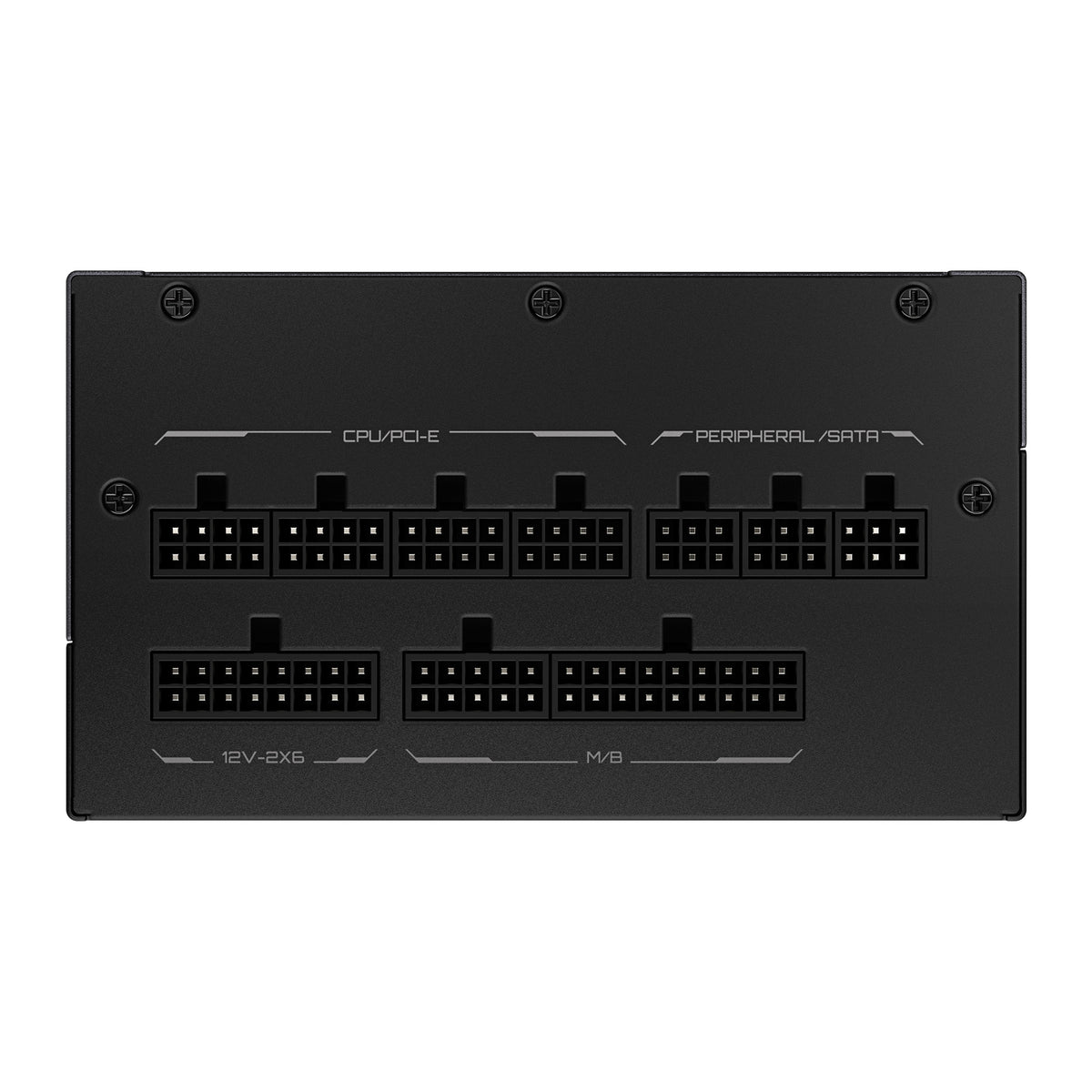

| Connectors | ATX/MB 20+4 Pin x 1 : 610mm*1 CPU/EPS 4+4 Pin x 2 : 600mm*2 PCI-e 16 Pin x 1: 700mm*1 PCI-e 6+2 Pin x 4 : 600mm+150mm*2 SATA x 8 : 600mm+150mm+150mm+150mm*2 4 Pin Peripheral x 4 : 500mm+150mm+150mm+150mm*1 |
-
