Gigabyte

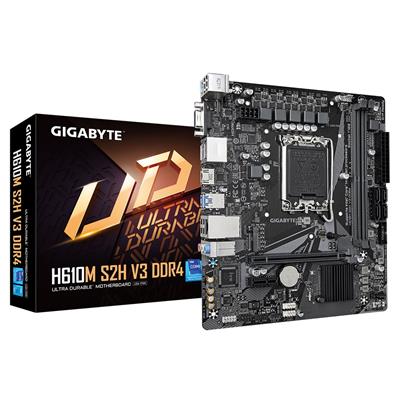

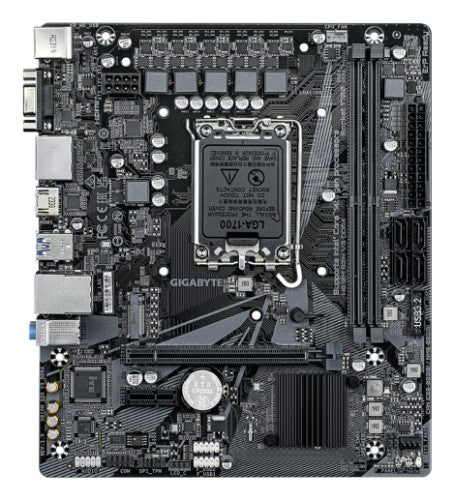

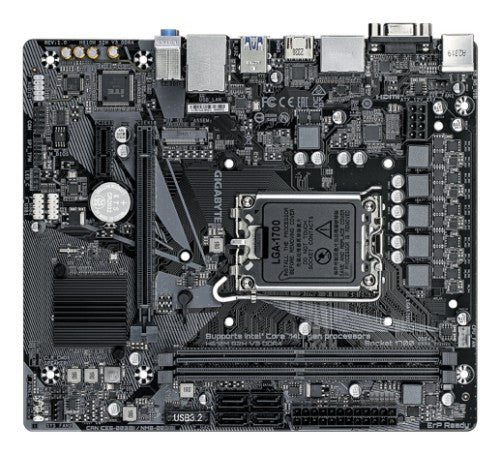

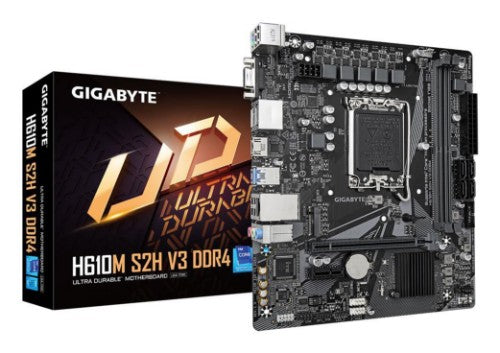

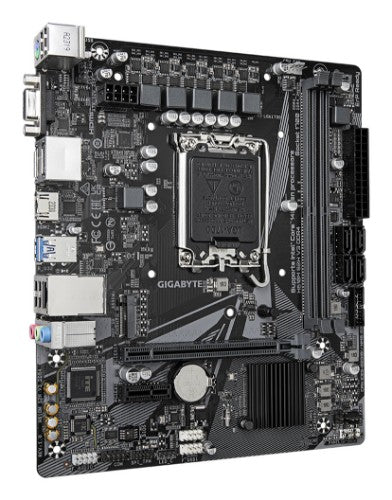

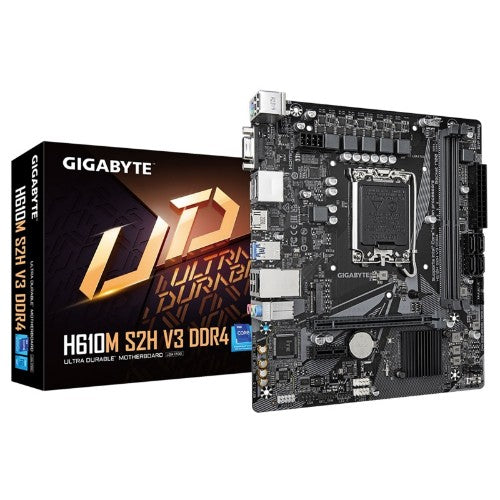

GIGABYTE H610M S2H V3 DDR4 Motherboard - Supports Intel Core 14th CPUs, 4+1+1 Hybrid Digital VRM, up to 3200MHz DDR4, 1xPCIe 3.0 M.2, GbE LAN , USB 3.2 Gen 1

SKU H610M S2H V3 DDR4
£48.35
£48.35
Excluding taxes
H610M S2H V3 DDR4 Motherboard - Supports Intel Core 14th CPUs, 4+1+1 Hybrid Digital VRM, up to 3200MHz DDR4, 1xPCIe 3.0 M.2, GbE LAN , USB 3.2 Gen 1

Key Features

  • Supports Intel Core 14th/ 13th /12th processors
  • Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
  • 4+1+1 Hybrid Digital VRM Design
  • GbE LAN with Bandwidth Management
  • NVMe PCIe 3.0 x4 M.2
  • High Quality Audio Capacitors and Audio Noise Guard
  • Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
  • GIGABYTE APP Center, Simple and Easy Use
  • Anti-Sulfur Resistors Design

Description

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

Specifications

Internal I/O
Number of M.2 (M) slots 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors 0
Total number of SATA connectors 4
Front panel connector Yes
12V power connector Yes
Supported storage drive interfaces M.2, SATA III
USB 2.0 connectors 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
TPM connector Yes
Serial port headers 1
Number of SATA III connectors 4
Front panel audio connector Yes
EPS power connector (8-pin) Yes
CPU fan connector Yes
Chassis intrusion connector Yes
ATX Power connector (24-pin) Yes
RGB LED pin header Yes
Number of CPU fan connectors 1
Number of EPS power connectors (8-pin) 1
Number of RGB LED pin headers 1
Technical details
Motherboard chipset family Intel
Motherboard chipset Intel H610 Express
Supported processor sockets LGA 1700
Serial port headers 1
PC health monitoring Fan, Temperature, Voltage, Water cooling
Parallel processing technology support Not supported
HDMI version 2.1
Cooling type Active
Motherboard form factor micro ATX
Component for PC
Total number of SATA connectors 4
Warranty period 3 year(s)
Audio
Audio output channels 7.1 channels
Performance
Number of HDDs supported 4
Supported storage drive types HDD & SSD
Windows operating systems supported Windows 10 x64, Windows 11 x64
Motherboard chipset family Intel
Motherboard chipset Intel H610 Express
Supported processor sockets LGA 1700
PC health monitoring Fan, Temperature, Voltage, Water cooling
Cooling type Active
Audio output channels 7.1 channels
Motherboard form factor micro ATX
Component for PC
Processor
Processor manufacturer Intel
Compatible processor series Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7
Supported processor sockets LGA 1700
Processor socket LGA 1700
Memory
Number of memory slots 2
Memory slots type DIMM
Supported memory types DDR4-SDRAM
Memory channels Dual-channel
Supported memory clock speeds 2133,2400,2666,2933,3000,3200 MHz
Maximum internal memory 64 GB
Unbuffered memory Yes
Supported memory clock speed (max) 3200 MHz
ECC сompatibility ECC & Non-ECC
Storage controllers
Number of HDDs supported 4
Supported storage drive types HDD & SSD
Supported storage drive interfaces M.2, SATA III
Number of storage drives supported 5
Graphics
Parallel processing technology support Not supported
Maximum resolution 4096 x 2304 pixels
HDCP Yes

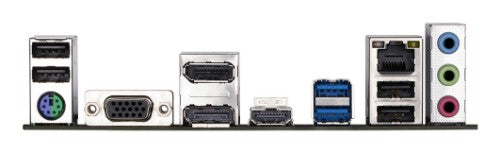

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 0
DisplayPort version 1.2
USB connector type USB Type-A
USB 2.0 ports quantity 4
VGA (D-Sub) ports quantity 1
PS/2 ports quantity 1
Microphone in Yes
HDMI version 2.1
HDMI ports quantity 1
Ethernet LAN (RJ-45) ports 1
DVI-D ports quantity 0
DisplayPorts quantity 2
Line-in Yes
Network
Ethernet LAN Yes
Wi-Fi No
Ethernet interface type Gigabit Ethernet
Features
Power source type ATX
Windows operating systems supported Windows 10 x64, Windows 11 x64
Motherboard chipset family Intel
Motherboard chipset Intel H610 Express
Supported processor sockets LGA 1700
PC health monitoring Fan, Temperature, Voltage, Water cooling
Cooling type Active
Audio output channels 7.1 channels
Motherboard form factor micro ATX
Component for PC
Product colour Black
Expansion slots
Number of M.2 (M) slots 1
PCI Express x1 (Gen 3.x) slots 1
PCI Express x16 (Gen 4.x) slots 1
1st M.2 largest key size 2280
1st M.2 highest PCI Express generation 3.0
BIOS
Battery technology Lithium-Manganese Dioxide (LiMnO2)
BIOS type UEFI AMI
Clear CMOS jumper Yes
BIOS memory size 128 Mbit
ACPI version 5.0
System Management BIOS (SMBIOS) version 2.7
Desktop Management Interface (DMI) version 2.7
Power
Power source type ATX
Video
Maximum resolution 4096 x 2304 pixels
HDCP Yes
Packaging data
Package width 265 mm
Package depth 235 mm
Package height 52 mm
Package weight 774 g
Software
Windows operating systems supported Windows 10 x64, Windows 11 x64
Bundled software Norton Internet Security (OEM version) LAN bandwidth management software
Battery
Battery technology Lithium-Manganese Dioxide (LiMnO2)
Battery weight 3 g
Number of battery cells 1
Lithium weight per battery 0.07 g
Battery type CR2032
Logistics data
Products per shipping (inner) case 1 pc(s)
Country of origin China
Weight & dimensions
Height 35 mm
Package width 265 mm
Package depth 235 mm
Package height 52 mm
Package weight 774 g
Width 223 mm
Depth 193 mm
Packaging content
Bundled software Norton Internet Security (OEM version) LAN bandwidth management software
Batteries included Yes
Other features
Height 35 mm
Package width 265 mm
Package depth 235 mm
Package height 52 mm
Package weight 774 g
