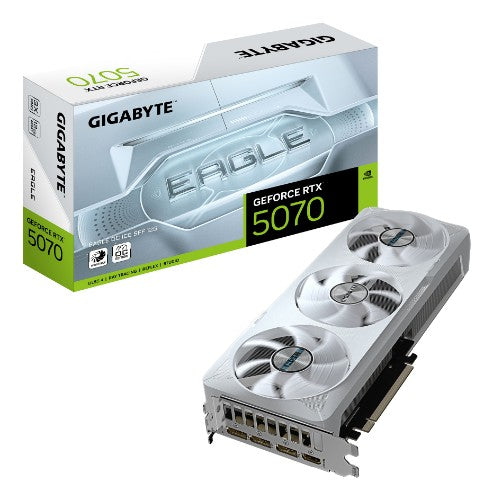

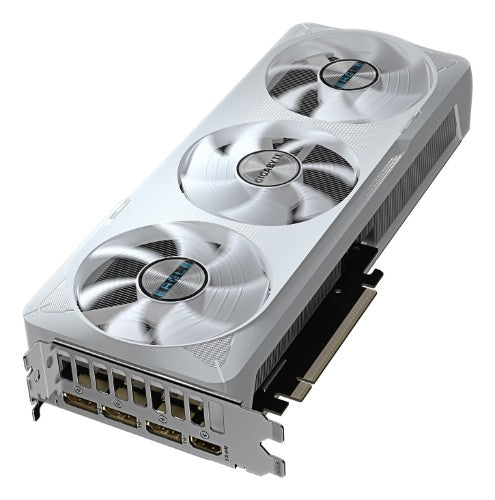

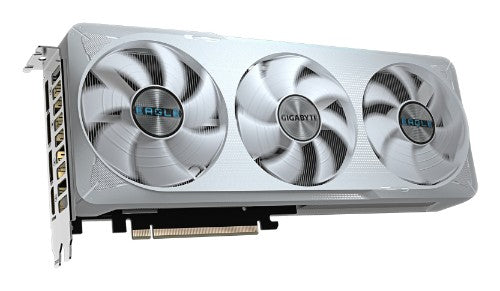

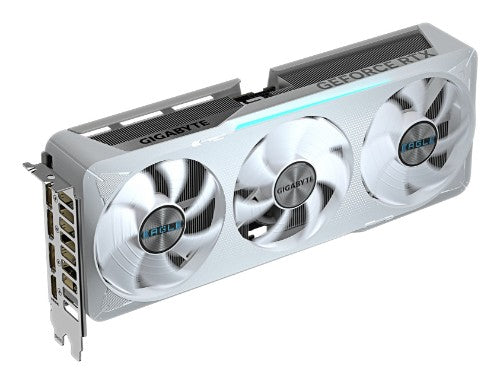

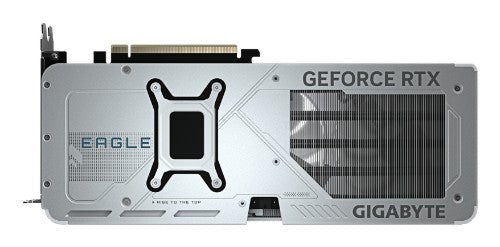

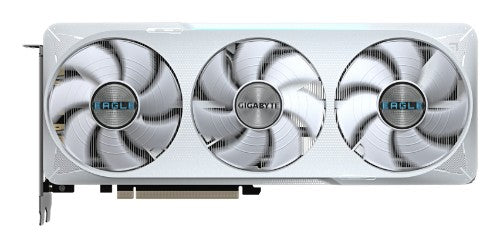

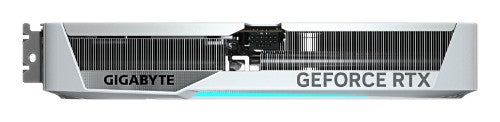

Gigabyte NVIDIA GeForce RTX 5070 EAGLE OC ICE SFF | 12GB | GDDR7 | 6144 CUDA Cores | 2587 MHz Core Clock | Triple Fan | White | 3x DisplayPorts | 1x HDMI Port

GeForce RTX 5070 EAGLE OC ICE SFF 12G Graphics Card - 12GB GDDR7, 192bit, PCI-E 5.0, 2587 MHz Core Clock, 3 x DP 2.1a, 1 x HDMI 2.1b, NVIDIA DLSS 4, GV-N5070EAGLEOC ICE-12GD Powered by the NVIDIA Blackwell architecture and DLSS 4 Powered by GeForce RTX 5070 Integrated with 12GB GDDR7 192bit memory interface WINDFORCE cooling system Hawk fan Server-grade Thermal conductive gel NVIDIA SFF-ready RGB Lighting Reinforced structure

Key Features

• Powered by GeForce RTX 5070
• Integrated with 12GB GDDR7 192bit memory interface
• WINDFORCE cooling system
• NVIDIA SFF-ready
• RGB Lighting
• Reinforced structure

Description

Unlock unparalleled gaming prowess with GIGABYTE's NVIDIA graphics cards. Engineered for peak performance and visual excellence, our GPUs redefine gaming standards. With advanced cooling solutions and cutting-edge technologies, GIGABYTE NVIDIA graphics cards deliver stunning visuals and seamless gameplay experiences, empowering gamers to dominate every virtual battlefield with confidence and precision.

Specifications

Processor
Graphics processor family	NVIDIA
Processor frequency	2587 MHz
Parallel processing technology support	Not supported
Maximum displays per videocard	4
CUDA cores	6144
CUDA	Yes
Maximum resolution	7680 x 4320 pixels
Graphics processor	GeForce RTX 5070
Memory
Discrete graphics card memory	12 GB
Memory clock speed	28000 MHz
Memory bandwidth (max)	28 GB/s
Memory bus	192 bit
Graphics card memory type	GDDR7

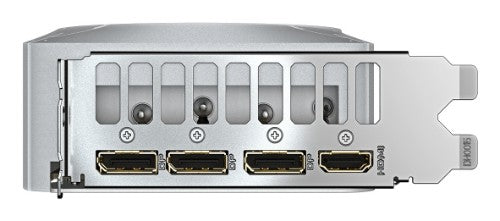

Ports & interfaces
HDMI version	2.1b
HDMI ports quantity	1
DisplayPort version	2.1a
DVI-I ports quantity	0
DVI-D ports quantity	0
DisplayPorts quantity	3
Interface type	PCI Express x16 5.0
Video
DirectX version	12.0
OpenGL version	4.6
HDMI version	2.1b
Dual Link DVI	No
CUDA cores	6144
Performance
NVIDIA G-SYNC	Yes
DirectX version	12.0
OpenGL version	4.6
Dual Link DVI	No
TV tuner integrated	No
Warranty period	3 year(s)
Overclocked (OC) edition	Yes
Design
Number of fans	3 fan(s)
Illumination	Yes
Cooling type	Active
Form factor	Full-Height/Full-Length (FH/FL)
Product colour	White
Number of slots	2
Cooling technology	GIGABYTE WINDFORCE 3X
Power
Supplementary power connectors	1x 16-pin
Minimum system power supply	750 W
Weight & dimensions
Number of slots	2
Weight	2 kg
Height	120 mm
Depth	50 mm
Length	290 mm
Technical details
Cooling type	Active
Form factor	Full-Height/Full-Length (FH/FL)
Product colour	White
TV tuner integrated	No
Warranty period	3 year(s)
System requirements
Minimum system power supply	750 W
Packaging data
Package type	Box
Package width	230 mm
Package height	85 mm
Package depth	398 mm
Package weight	3 kg
Cables included	Power
Packaging content
Cables included	Power
Quick installation guide	Yes
Logistics data
Products per shipping (inner) case	1 pc(s)
