Gigabyte

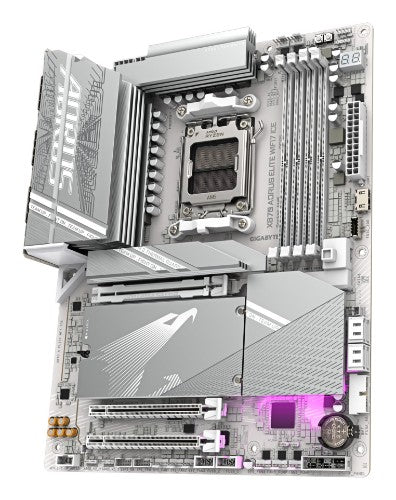

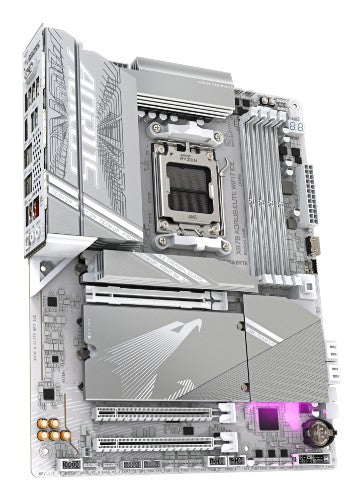

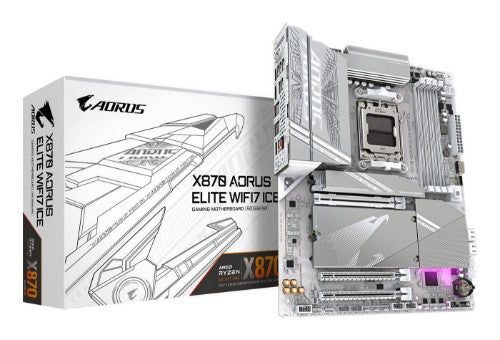

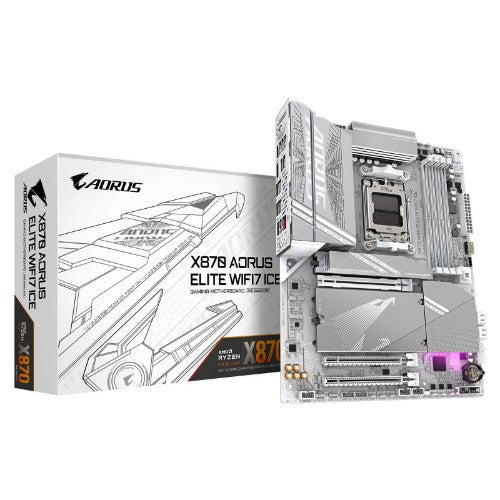

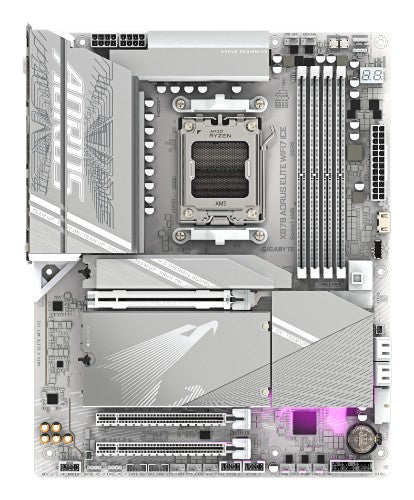

Gigabyte X870 AORUS ELITE WIFI7 ICE | AMD AM5 Socket Motherboard | ATX | 4x DDR5 Slots | 4x M.2 Sockets | 3x USB-C Port | Fitted I/O Shield | 2.5GbE LAN | Wi-Fi 7 | 2x HDMI Port / 2x USB-C (USB4)

SKU X870 A ELITE WF7 ICE
£225.48
£225.48
Excluding taxes
X870 AORUS ELITE WIFI7 ICE Motherboard - Supports AMD Ryzen 9000 CPUs, 16+2+2 Phases Digital VRM, up to 8200MHz DDR5 (OC), 3xPCIe 5.0 + 1xPCIe 4.0, Wi-Fi 7, 2.5GbE LAN, USB 4

Key Features

  • Supports AMD Ryzen 9000 Series, 8000 Series, 7000 Series Processors
  • Twin 16+2+2 Phases Digital VRM with DrMOS
  • Dual Channel DDR5：4*DIMMs with AMD EXPO™ Memory Module Support
  • PCIe Gen5 x16 with PCIe UD Slot X & EZ-Latch Plus
  • Ultra-Fast Storage: 4*M.2 slots, including 3* PCIe 5.0 x4
  • Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard L
  • Extended Connectivity: Dual USB4 Type-C with DP-Alt, HDMI
  • Fast Networking: 2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna

Description

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

Specifications

Internal I/O
Number of M.2 (M) slots 4
USB 3.2 Gen 2 (3.1 Gen 2) connectors 0
Total number of SATA connectors 4
Front panel connector Yes
12V power connector Yes
Supported storage drive interfaces M.2
USB 2.0 connectors 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
TPM connector Yes
Number of SATA connectors 0
Number of SATA III connectors 4
Number of SATA II connectors 0
Number of chassis fan connectors 6
Front panel audio connector Yes
EPS power connector (8-pin) Yes
CPU fan connector Yes
ATX Power connector (24-pin) Yes
RGB LED pin header Yes
USB 3.2 Gen 2x2 connectors 1
Number of CPU fan connectors 2
Number of EPS power connectors (8-pin) 2
Number of water pump connectors 3
Number of RGB LED pin headers 4
Technical details
Number of displays supported 4
Motherboard chipset family AMD
Motherboard chipset AMD X870
Supported processor sockets Socket AM5
PC health monitoring Fan, Noise, Temperature, Voltage, Water cooling
Parallel processing technology support Not supported
On-board graphics card Yes
HDMI version 2.1
Motherboard form factor ATX
Component for PC
Total number of SATA connectors 4
Maximum internal memory supported by processor 256 GB
Warranty period 3 year(s)
Audio
Audio output channels 7.1 channels
Performance
Number of HDDs supported 4
Supported storage drive types HDD & SSD
Windows operating systems supported Windows 11 x64
Motherboard chipset family AMD
Motherboard chipset AMD X870
RAID levels 0, 1, 10
Supported processor sockets Socket AM5
PC health monitoring Fan, Noise, Temperature, Voltage, Water cooling
Audio output channels 7.1 channels
Motherboard form factor ATX
Component for PC
Processor
Processor manufacturer AMD
Maximum internal memory supported by processor 256 GB
Compatible processor series AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported processor sockets Socket AM5
Processor socket Socket AM5
Memory
Number of memory slots 4
Memory slots type DIMM
Supported memory types DDR5-SDRAM
Memory channels Dual-channel
Supported memory clock speeds 4400,4800,5200,5600,6000,6200,6400,6600,6666,6800,7000,7200,7600,7800,8000,8200 MHz
Maximum internal memory 256 GB
Unbuffered memory Yes
Supported memory clock speed (max) 8200 MHz
ECC сompatibility Non-ECC
Maximum internal memory per slot 64 GB
Storage controllers
Number of HDDs supported 4
Supported storage drive types HDD & SSD
Supported storage drive interfaces M.2
RAID levels 0, 1, 10
Number of storage drives supported 8
RAID support Yes
Graphics
Number of displays supported 4
Parallel processing technology support Not supported
On-board graphics card Yes
Maximum resolution 4096 x 2160 pixels
HDCP Yes
Discrete graphics support Yes
DirectX version 12.0
On-board graphics card model AMD Radeon Graphics

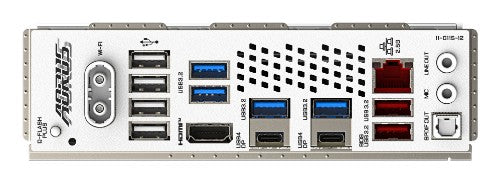

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 0
DisplayPort version 1.4
USB 2.0 ports quantity 4
WiFi-AP antenna jack 2
VGA (D-Sub) ports quantity 0
S/PDIF out port Yes
PS/2 ports quantity 0
Microphone in Yes
Headphone outputs 1
HDMI version 2.1
HDMI ports quantity 1
DVI-D ports quantity 0
DisplayPorts quantity 0
USB 3.2 Gen 2x2 Type-C ports quantity 0
USB4 Gen 3x2 ports quantity 2
USB4 Gen 2x2 ports quantity 0
Network
Ethernet LAN Yes
Wi-Fi Yes
Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
LAN controller Realtek RTL8125
Ethernet interface type 2.5 Gigabit Ethernet
Bluetooth Yes
Bluetooth version 5.4
Top Wi-Fi standard Wi-Fi 7 (802.11be)
WLAN controller model MediaTek MT7925
Features
Windows operating systems supported Windows 11 x64
Motherboard chipset family AMD
Motherboard chipset AMD X870
Supported processor sockets Socket AM5
PC health monitoring Fan, Noise, Temperature, Voltage, Water cooling
Audio output channels 7.1 channels
Motherboard form factor ATX
Component for PC
Audio chip Realtek ALC1220
Product colour White
Expansion slots
Number of M.2 (M) slots 4
PCI Express x1 (Gen 3.x) slots 0
PCI Express x4 (Gen 3.x) slots 0
PCI Express x8 (Gen 3.x) slots 0
PCI Express x16 (Gen 3.x) slots 1
PCI Express x1 (Gen 4.x) slots 0
PCI Express x16 (Gen 4.x) slots 1
PCI Express x16 (Gen 5.x) slots 1
PCI Express x4 (Gen 4.x) slots 0
PCI Express x8 (Gen 4.x) slots 0
PCI Express x8 (Gen 5.x) slots 0
1st M.2 largest key size 25110
1st M.2 highest PCI Express generation 5.0
2nd M.2 largest key size 22110
2nd M.2 highest PCI Express generation 5.0
3rd M.2 largest key size 22110
3rd M.2 highest PCI Express generation 5.0
4th M.2 largest key size 22110
4th M.2 highest PCI Express generation 4.0
BIOS
Battery technology Lithium-Manganese Dioxide (LiMnO2)
BIOS type UEFI AMI
Clear CMOS jumper Yes
BIOS memory size 256 Mbit
ACPI version 5.0
Clear CMOS button Yes
System Management BIOS (SMBIOS) version 2.7
Desktop Management Interface (DMI) version 2.7
Video
Maximum resolution 4096 x 2160 pixels
HDCP Yes
Discrete graphics support Yes
DirectX version 12.0
Packaging data
Package width 335 mm
Package depth 270 mm
Package height 80 mm
Package weight 2.74 kg
Software
Windows operating systems supported Windows 11 x64
Bundled software Norton® Internet Security (OEM version) LAN bandwidth management software
Battery
Battery technology Lithium-Manganese Dioxide (LiMnO2)
Battery weight 3 g
Number of battery cells 1
Lithium weight per battery 0.07 g
Battery type CR2032
Logistics data
Products per shipping (inner) case 1 pc(s)
Country of origin China
Weight & dimensions
Height 35 mm
Package width 335 mm
Package depth 270 mm
Package height 80 mm
Package weight 2.74 kg
Weight 2.4 kg
Width 305 mm
Depth 244 mm
Packaging content
Bundled software Norton® Internet Security (OEM version) LAN bandwidth management software
Batteries included Yes
Screws included Yes
Antenna included Yes
Other features
Height 35 mm
Package width 335 mm
Package depth 270 mm
Package height 80 mm
Package weight 2.74 kg
PCI Express x4 (Gen 3.x) slots 0
PCI Express x8 (Gen 3.x) slots 0
Weight 2.4 kg
PCI Express x1 (Gen 4.x) slots 0
