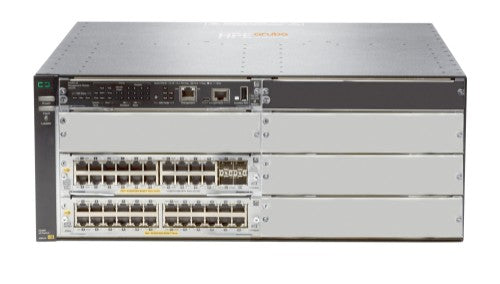

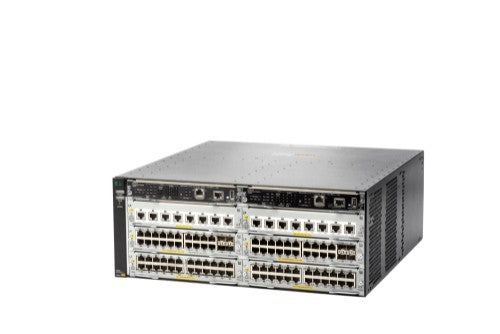

HPE Aruba Networking 5406R 44GT PoE+ and 4 port SFP+ (No PSU) v3 zl2 Switch

Aruba Networking 5406R 44GT PoE+ and 4 port SFP+ (No PSU) v3 zl2 Switch

Reasons To Buy

Power and Innovation For Your Digital Workplace

The 5400R zl2 Series is an industry-leading mobile campus access solution with HPE Smart Rate multi-gigabit ports for high-speed connectivity for the latest 802.11ac devices. It brings enterprise-class resiliency and true flexibility, security and scalability to mobile campus networks.
Based on the 6th generation ProVision ASIC, the 5400R zI2 Series has a high-speed, high-capacity architecture with 2 Tbps crossbar switching fabric with low 2.1µ latency and built-in programmable and easy to use REST API interface; provides configuration automation for Mobile-first campus networks.
Flexible connectivity options with 6- or 12- slot compact chassis, support for line rate 40 GbE uplinks, up to 96 line rate 10 GbE ports (SFP+ and 10 GBASE-T), 1 GbE and up to 288 ports of PoE+ with internal power supplies.
Optimized for the digital workplace with unified management and security tools such as ClearPass Policy Manager, Airwave and Central. Provides optimal configuration automatically when connected to access points for PoE priority, VLAN configuration, and rogue AP containment.
License free software with advanced Layer 2 and 3 feature set including IPv6, IPv4 BGP, policy based routing, VRRP, OSPF, Tunnel Node and robust QoS.

Resiliency and High Availability at the Edge

The 5400R zI2 Series using the sixth generation ProVision ASIC delivers wire-speed classification and policy enforcement. This hardware-based control of access and traffic allows protection, detection and response to network threats with no network performance degradation.
Uninterrupted switching and routing for improved support of applications such as unified communications and enhanced L3 high availability.
Supports virtual router redundancy protocol (VRRP) allowing groups of two routers to dynamically back each other up to create highly available router environments in both IPv4 and IPv6 networks.
Redundant management and power systems enhance system availability and continuity of operations. Hot-swappable modules and optional redundant power supply provides uninterrupted power and allows swapping of modules with no impact on the network availability.
Virtual Switching Framework (VSF) virtualizes up to two physical switches into one logical device for simpler, flatter, more agile networks. Fast Software Upgrade minimizes downtime during upgrade on 5400R zI2 Series VSF stack.

Robust Security and Dynamic Quality of Service (QoS)

The HPE Aruba Networking 5400R zl2 Switch Series includes a robust set of security and quality of services features to build a network that meets ever-changing corporate policies and compliances.
Flexible authentication options include 802.1X, MAC and Web delivering greater policy-driven application security. Industry standard MACsec provides link-level encryption security between two points using copper or fiber links (available on select modules only).
Advanced distributed denial of service (DDOS) protection, such as DHCP Snooping, IP Source Guard, and ARP Protection, and flexible traffic controls, such as policy-based routing, QoS, and ACLs, manage end-to-end application priorities.
Powerful multilevel-access security controls, such as varying security management login, RADIUS/TACACS+, and SSH for safe control change management access. Defend the edge of your IPv6 network with DHCPv6 Protection and Dynamic IPv6 Lockdown.
Tunnel Node to transport network traffic to networking controller with authentication and network policies applied and enforced at the controller.

Simplify with Integrated Wired/Wireless Management

The 5400R zl2 Series supports HPE Aruba Networking ClearPass Policy Manager for unified and consistent policy between wired and wireless users and simplifies implementation and management of guest login, user onboarding, network access, security, QoS, and other network policies.
Supports HPE Aruba Networking AirWave to provide common platform for Zero-Touch Provisioning management, and monitoring for wired and wireless network devices.
RMON, XRMON and sFlow provide advanced monitoring and reporting capabilities for statistics, history, alarms, and events.
HPE Aruba Networking Central cloud-based management platform offers simple, secure, and cost effective way to manage switches.
Supports both cloud-based Central and On-Premise AirWave with the same hardware ensuring change of management platform without ripping and replacing switching infrastructure.

Description

The HPE Aruba Networking 5400R zl2 Switch Series brings enterprise-class resiliency and innovative flexibility to mobile-first networks. This advanced Layer 3 modular switch provides scalable aggregation with HPE Smart Rate multi-gigabit ports for high-speed 802.11ac devices, Dynamic Segmentation, Virtual Switching Framework (VSF) stacking technology, hitless failover, line rate 40 GbE, robust QoS and security and requires no software licensing. The 5400R zl2 Series is easy to deploy and manage with advanced security and network management tools like HPE Aruba Networking ClearPass Policy Manager, HPE Aruba Networking AirWave and cloud-based HPE Aruba Networking Central.

What is new supporting point:
Powerful Layer 3 modular switch series with VSF stacking, low latency, resiliency and Dynamic Segmentation for a better mobile-first campus experience.
Scalable line rate 40 GbE for wireless traffic aggregation.
Fast software upgrade for 5400R zI2 series VSF stack minimizes downtime.
HPE Aruba Networking ClearPass Policy Manager, HPE Aruba Networking AirWave and HPE Aruba Networking Central support.
HPE Smart Rate for high speed multi gigabit bandwidth and PoE+ power.
Ready for the software defined network with REST APIs and OpenFlow support.

Specifications

Management features
Switch type	Managed
Web-based management	Yes
Quality of Service (QoS) support	Yes
Switch layer	L3
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	44
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Compatible memory cards	SD
I/O ports	44 RJ‑45 auto‑sensing 10/100/1000 PoE+ ports 4 open 10 GbE SFP+ transceiver 4 open module slots Supports a maximum of 144 auto‑sensing 10/100/1000 ports or 144 SFP ports or 48 SFP+ ports or 48 HPE Smart Rate Multi‑Gigabit or 12 40 GbE ports, or a combination.
Network
Auto-sensing	Yes
Networking standards	IEEE 802.3, IEEE 802.3at, IEEE 802.3ab, IEEE 802.3u
Full duplex	Yes
VLAN support	Yes
Routing entries	10000
IP routing	Yes
Auto MDI/MDI-X	Yes
10G support	Yes
IGMP snooping	Yes
Data transmission
Throughput	571.4 Mpps
Latency (1 Gbps)	2 µs
Latency (10 Gbps)	1 µs
MAC address table	64000 entries
Switching capacity	960 Gbit/s
Jumbo frames support	Yes
Security
SSH/SSL support	Yes
IGMP snooping	Yes
Access Control List (ACL)	Yes
Design
Form factor	4U
Product colour	Grey
Stackable	Yes
Rack mounting	Yes
Performance
Processor frequency	1200 MHz
Noise level	44 dB
Memory type	DDR3-SDRAM
Internal memory	4096 MB
Flash memory	16 MB
Built-in processor	Yes
Stackable	Yes
Harmonized System (HS) code	85176990
Power
Power supply included	No
AC input voltage	200 - 240 V
AC input frequency	50/60 Hz
Power supply note	2 power supply slots 1 minimum power supply required (ordered separately)
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Other features
Latency	1000 Mb Latency: < 2.8 µs; 10 Gbps Latency: < 1.8 µs; 40 Gbps Latency: < 1.5 µs
Performance management	HPE Aruba Networking Management Software HPE Aruba Networking Central HPE Intelligent Management Center Basic Software Platform (IMC) Command-line interface Web browser Configuration menu Out-of-band management (RJ-45 Ethernet) Out-of-band management (serial RS-232C or micro USB) SNMP manager
Memory and processor	Depend on the model: Dual Arm Cortex A9 at 1 GHz; Packet buffer size: 13.5 MB internal Arm 11 at 450 MHz; Packet buffer size: 18 MB internal. Dual Arm Cortex A9 at 1; Packet buffer size: 13.5 MB internal Arm 11 at 550 MHz; Packet buffer size: 18 MB internal. Dual Arm Cortex A9 at 1 GHz; Packet buffer size: 13.5 MB internal Freescale P2020 dual core at 1.2 GHz, 16 MB flash, 1 GB SD Card, 4 GB DDR3 SODIMM.
Weight (imperial)	12.8 kg (28.1 lbs)
I/O ports	44 RJ‑45 auto‑sensing 10/100/1000 PoE+ ports 4 open 10 GbE SFP+ transceiver 4 open module slots Supports a maximum of 144 auto‑sensing 10/100/1000 ports or 144 SFP ports or 48 SFP+ ports or 48 HPE Smart Rate Multi‑Gigabit or 12 40 GbE ports, or a combination.
Dimensions (W x D x H) (imperial)	444.5 x 450.9 x 175.3 mm (17.5 x 17.8 x 6.9")
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	15 - 95%
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	15 - 95%
Heat dissipation	2450 BTU/h
Virtual LAN features
VLAN support	Yes
Weight & dimensions
Width	444.5 mm
Depth	450.9 mm
Height	175.3 mm
Weight	12.8 kg
Weight (imperial)	12.8 kg (28.1 lbs)
Dimensions (W x D x H) (imperial)	444.5 x 450.9 x 175.3 mm (17.5 x 17.8 x 6.9")
Technical details
Form factor	4U
Product colour	Grey
Stackable	Yes
Processor frequency	1200 MHz
Noise level	44 dB
Rack mounting	Yes
Built-in processor	Yes
Memory
Memory type	DDR3-SDRAM
Internal memory	4096 MB
Flash memory	16 MB
Logistics data
Harmonized System (HS) code	85176990
