HPE Aruba Networking AP-505 (RW) Dual Radio 2x2 802.11ax Internal Antennas Unified Campus AP

Aruba Networking AP-505 (RW) Dual Radio 2x2 802.11ax Internal Antennas Unified Campus AP

Reasons To Buy

Cloud Management and Ready for IoT

HPE Aruba Networking 500 Series Campus Access Points can managed with HPE Aruba Networking Central, an AI-powered solution that simplifies IT operations, improves agility, and reduces costs by unifying management of campus, branch, remote, data center, and IoT networks from one dashboard.
Supports Bluetooth 5 and Zigbee wireless protocols through an integrated IoT radio, and third-party expansion with an integrated USB port.
HPE Aruba Networking Central Client Insights uses deep packet inspection to provide additional context and behavioral information that help verify devices are receiving proper policy enforcement and continuously monitor for rogue devices.

Wi-Fi 6 Performance

HPE Aruba Networking 500 Series Campus Access Points deliver a maximum combined data rate of 1.49 Gbps with 2 spatial streams to meet the needs of low and medium-density environments.
Wi-Fi CERTIFIED with support for Wi-Fi 6 features such as OFDMA, bidirectional MU-MIMO, and target wait time (TWT) to drive improved efficiency. It handles multiple Wi-Fi 6 capable clients on each channel simultaneously, regardless of device or traffic type.
Enhanced wireless experience with HPE Aruba Networking ClientMatch technology that removes sticky client issues by steering a client to the AP where it receives the best radio signal.

Simple and Secure Access

HPE Aruba Networking 500 Series Campus Access Points offer enhanced security with dynamic segmentation to remove the time-consuming and error-prone task of managing complex and static VLANs, ACLs, and subnets by dynamically assigning policies and keeping traffic protected and separated.
It offers stronger encryption and authentication with WPA3, protected credentials/keys storage for guest access with Enhanced Open (OWE), and user and IoT access policy enforcement firewalls (PEF).
WPA3 and Enhanced Open security increases enterprise-level security by providing stronger guest access protections without increasing complexity.
For enhanced device assurance, the APs include an installed trusted platform module (TPM) for protected storage of credentials and keys, and boot code.

Description

HPE Aruba Networking 500 Series Campus Access Points deliver cost-effective Wi-Fi 6 coverage for indoor environments such as mid-sized offices, schools, and retail spaces where fewer people are on the network at the same time. With a 1.49 Gbps maximum combined data rate, the 500 series delivers reliable Wi-Fi for medium-density environments and is supported by HPE Aruba Networking Central, AI-powered management that simplifies and improves IT operations across branch, remote office, campus, data center, and IoT networks with a single point of visibility and control. The 500 series is Wi-Fi CERTIFIED and supports Wi-Fi 6 (802.11ax) features: OFDMA for multi-user efficiency, target wake time (TWT) to extend the battery life of connected Internet of Things (IoT) devices, and WPA3 and Enhanced Open (OWE) for greater password and guest security. The 500 series includes a limited lifetime warranty.

What is new supporting point:
Entry-level Wi-Fi 6 access points provide up to 1.49 Gbps maximum combined data rate
Support for orthogonal frequency-division multiple access (OFDMA) for enhanced multi-user efficiency, and WPA3 and Enhanced Open (OWE) for greater security
IoT-ready with built-in Bluetooth 5 and Zigbee support
Dynamic segmentation and policy enforcement firewalls (PEFs) automatically enforce consistent policies across wired and wireless networks, enhancing user and device security
Built-in technology that resolves sticky client issues and improves the performance of mobile Wi-Fi clients
Available in optional eco-friendly 10-packs

Specifications

Data transmission
Ethernet LAN data rates	1000 Mbit/s
Maximum data transfer rate	1774 Mbit/s
Performance
2.4 GHz	Yes
5 GHz	Yes
Auto MDI/MDI-X	Yes
Spread spectrum method	DSSS, OFDM, OFDMA
Frequency band	20/40 (2.4 GHz), 20/40/80 (5 GHz), maximum peak data rate 1.49 Gbps
Networking standards	IEEE 802.11ax, IEEE 802.11mc
Modulation	16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK
Ethernet LAN data rates	1000 Mbit/s
Certification	UL2043 plenum rating Wi‑Fi Alliance: Wi-Fi CERTIFIED a, b, g, n, ac Wi-Fi CERTIFIED 6 (ax) WPA, WPA2 and WPA3-Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, W-Fi Agile Multiband Wi-Fi CERTIFIED Location Bluetooth SIG Ethernet Alliance (PoE, PD device, Class 4)
Maximum data transfer rate	1774 Mbit/s
MIMO type	Multi User MIMO
MIMO	Yes
Compatible operating systems	HPE Aruba Networking Wireless Operating System 8.6.0.0 or later; HPE Aruba Networking Instant OS 8.6.0.0 or later; HPE Aruba Networking Wireless Operating System 10.0.0.0 or later
Wireless LAN features
Frequency band	20/40 (2.4 GHz), 20/40/80 (5 GHz), maximum peak data rate 1.49 Gbps
Modulation	16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK
Network
Spread spectrum method	DSSS, OFDM, OFDMA
Networking standards	IEEE 802.11ax, IEEE 802.11mc
Ports & interfaces

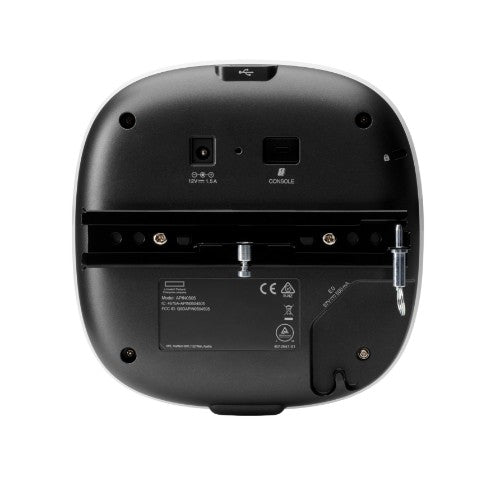

I/O ports	E0: Ethernet wired network port (RJ-45) USB 2.0 host interface (Type A connector) Serial console interface (proprietary, micro-B USB physical jack) Kensington security slot.
USB connector type	USB Type-A
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	1
Security
Cable lock slot	Yes
Security algorithms	WPA3, WPA, WPA2
Features
2.4 GHz	Yes
5 GHz	Yes
Auto MDI/MDI-X	Yes
Spread spectrum method	DSSS, OFDM, OFDMA
Frequency band	20/40 (2.4 GHz), 20/40/80 (5 GHz), maximum peak data rate 1.49 Gbps
Networking standards	IEEE 802.11ax, IEEE 802.11mc
Modulation	16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK
Ethernet LAN data rates	1000 Mbit/s
Maximum data transfer rate	1774 Mbit/s
MIMO type	Multi User MIMO
MIMO	Yes
Maximum data transfer rate (2.4 GHz)	574 Mbit/s
Maximum data transfer rate (5 GHz)	1200 Mbit/s
MACsec support	No
Compatible operating systems	HPE Aruba Networking Wireless Operating System 8.6.0.0 or later; HPE Aruba Networking Instant OS 8.6.0.0 or later; HPE Aruba Networking Wireless Operating System 10.0.0.0 or later
Management features
Access point management	On-premises; Public Cloud; Virtual Private Cloud (VPC); as a Service
Power
Power consumption (max)	16.5 W
Power over Ethernet (PoE)	Yes
Design
Placement	Ceiling, Wall
Product colour	White
Certification	UL2043 plenum rating Wi‑Fi Alliance: Wi-Fi CERTIFIED a, b, g, n, ac Wi-Fi CERTIFIED 6 (ax) WPA, WPA2 and WPA3-Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, W-Fi Agile Multiband Wi-Fi CERTIFIED Location Bluetooth SIG Ethernet Alliance (PoE, PD device, Class 4)
Cable lock slot	Yes
Cable lock slot type	Kensington
Recommended usage	Indoor
Antenna
Antenna type	Internal
Antennas quantity	2
Antenna direction type	Omni-directional
Antenna features	Integrated antenna
Technical details
Weight (imperial)	0.499 kg (1.1 lbs)
Harmonized System (HS) code	85176990
Compliance certificates	Federal Communications Commission (FCC), ISED, CE, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD)
Certificates
Certification	UL2043 plenum rating Wi‑Fi Alliance: Wi-Fi CERTIFIED a, b, g, n, ac Wi-Fi CERTIFIED 6 (ax) WPA, WPA2 and WPA3-Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, W-Fi Agile Multiband Wi-Fi CERTIFIED Location Bluetooth SIG Ethernet Alliance (PoE, PD device, Class 4)
Compliance certificates	Federal Communications Commission (FCC), ISED, CE, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD)
Weight & dimensions
Width	160 mm
Depth	161 mm
Weight	500 g
Height	37 mm
Other features
I/O ports	E0: Ethernet wired network port (RJ-45) USB 2.0 host interface (Type A connector) Serial console interface (proprietary, micro-B USB physical jack) Kensington security slot.
Weight (imperial)	0.499 kg (1.1 lbs)
Operational conditions
Operating relative humidity (H-H)	5 - 93%
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 93%
System requirements
Compatible operating systems	HPE Aruba Networking Wireless Operating System 8.6.0.0 or later; HPE Aruba Networking Instant OS 8.6.0.0 or later; HPE Aruba Networking Wireless Operating System 10.0.0.0 or later
Logistics data
Harmonized System (HS) code	85176990
