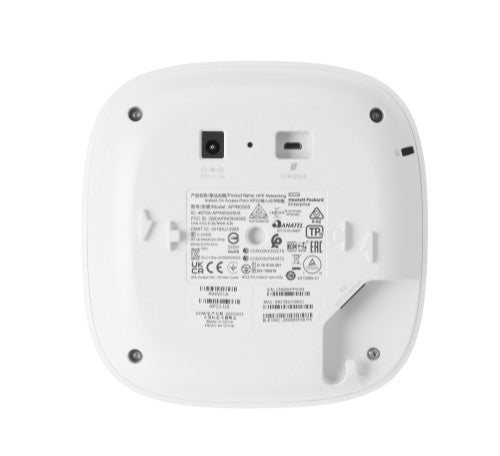

HPE Aruba Networking Networking Instant On Indoor Access Point 2x2 Wi-Fi 6 (JP) AP22

Networking Instant On Indoor Access Point 2x2 Wi-Fi 6 (JP) AP22

Reasons To Buy

Incredible Efficiency with Wi-Fi 6

HPE Networking Instant On Access Points AP22 includes an easy-to-use web GUI and templates; access points are simple to deploy and are up and running in minutes.
HPE Networking Instant On Access Points AP22 supports the Wi-Fi 6 standard, including features such as orthogonal frequency-division multiple access (OFDMA) and bi-directional MIMO (MIMO).
HPE Networking Instant On Access Points AP22 support features Target Wake Time (TWT) that help establish a schedule when clients need to communicate with an AP.

Reduce High Cost of Cabling with Full-scale Wireless Mesh Coverage

HPE Networking Instant On Access Points AP22 have built-in wireless mesh capabilities to cost-effectively extend Wi-Fi connectivity without additional cables.
Conveniently expands your network to hard-to-wire areas – nearly eliminating spotty connections and dead zones, providing Wi-Fi where you need it.

Safeguard Sensitive Data with WPA2/WPA3 and Enhanced Open

HPE Networking Instant On Access Points AP22 comes with integrated Wi-Fi Alliance security standard WPA2/WPA3 and Enhanced Open support for protected wireless access.
HPE Networking Instant On Access Points AP22 comes with integrated router, gateway, and firewall functionality.
Create up to eight different SSIDs under one network name to keep your data safe, whether surfing the web or checking HR data.
Block undesired applications and websites with greater traffic visibility without the need for any external gateway or additional costs; the control is at your fingertips.

Creates a Custom Guest Access Experience

HPE Networking Instant On Access Points AP22 are ideal for single or distributed small business sites such as graphic design firms, cafés, restaurants, and other Wi-Fi hotspots.
Simple to build landing page allows customization of your guest access page with your own brand and logo.
Gain insights into customers with third party captive portal integration with partners like Skyfii, Purple, Aislelabs, and Wavespot.

Description

HPE Networking Instant On Access Points AP22 delivers affordable, business-grade 802.11ax Wi-Fi for high performance, high density small business environments. Business-grade capabilities are designed to meet the growing number of mobile, IoT, and security needs. The compact form factor of the AP22 delivers multi-user capabilities and a maximum aggregate peak data rate of 1.2 Gbps for high-definition video streaming and cloud application requirements. Everything from mounting hardware to easy-to-use web and mobile app management tools, and business-grade software features are included; no extra charge or need for external controllers.

What is new supporting point:
Wi-Fi 6 for high performance and efficiency
Supports up to 75 associated clients
Support for WPA2/WPA3 protected employee and guest login with Enhanced Open for per user guest access

Specifications

Data transmission
Ethernet LAN data rates	10,100,1000 Mbit/s
Maximum data transfer rate	1774 Mbit/s
Performance
2.4 GHz	Yes
5 GHz	Yes
Networking standards	IEEE 802.11ax
Modulation	256-QAM, 1024-QAM
Ethernet LAN data rates	10,100,1000 Mbit/s
Certification	Wi-Fi Alliance certified (WFA) 802.11ax with (Wi-Fi 6), WPA2, WPA3
Maximum data transfer rate	1774 Mbit/s
MIMO type	Multi User MIMO
MIMO	Yes
Wireless LAN features
Modulation	256-QAM, 1024-QAM
Network
Networking standards	IEEE 802.11ax
Ports & interfaces
I/O ports	1 GbE BaseT Uplink DC Power Connector Bluetooth Low Energy (BLE) LED status Indicators Reset/LED control button Kensington security slot.
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Security
Cable lock slot	Yes
Security algorithms	WPA2, WPA3
Features
2.4 GHz	Yes
5 GHz	Yes
Networking standards	IEEE 802.11ax
Modulation	256-QAM, 1024-QAM
Ethernet LAN data rates	10,100,1000 Mbit/s
Maximum data transfer rate	1774 Mbit/s
Bluetooth	Yes
MIMO type	Multi User MIMO
MIMO	Yes
Maximum data transfer rate (2.4 GHz)	574 Mbit/s
Maximum data transfer rate (5 GHz)	1200 Mbit/s
Power
Power consumption (max)	10.1 W
Power consumption (typical)	8.8 W
Power over Ethernet (PoE)	Yes
Design
Placement	Ceiling, Wall
Product colour	White
Certification	Wi-Fi Alliance certified (WFA) 802.11ax with (Wi-Fi 6), WPA2, WPA3
Cable lock slot	Yes
Cable lock slot type	Kensington
Antenna
Antenna type	Internal
Antenna gain level (max)	5.6 dBi
Antenna direction type	Omni-directional
Technical details
Mounting	Ceiling/Wall-mount clip
Weight (imperial)	0.499 kg (1.1 lbs)
Certificates
Certification	Wi-Fi Alliance certified (WFA) 802.11ax with (Wi-Fi 6), WPA2, WPA3
Weight & dimensions
Width	160 mm
Depth	160 mm
Weight	500 g
Height	37 mm
Other features
Mounting	Ceiling/Wall-mount clip
I/O ports	1 GbE BaseT Uplink DC Power Connector Bluetooth Low Energy (BLE) LED status Indicators Reset/LED control button Kensington security slot.
Weight (imperial)	0.499 kg (1.1 lbs)
Operational conditions
Operating temperature (T-T)	0 - 40 °C
