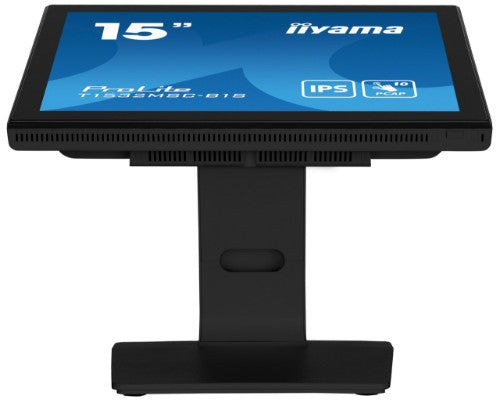

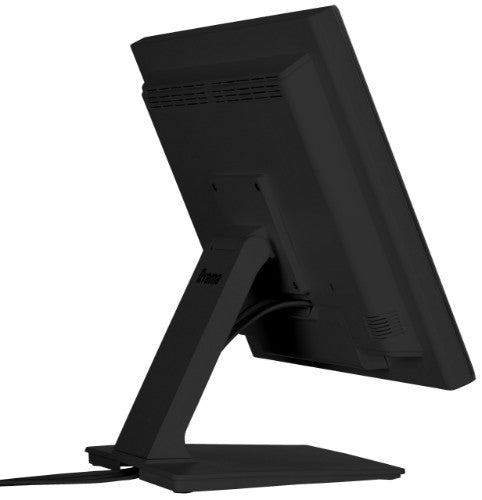

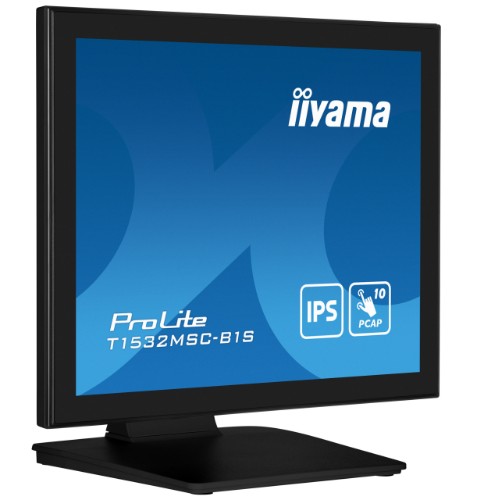

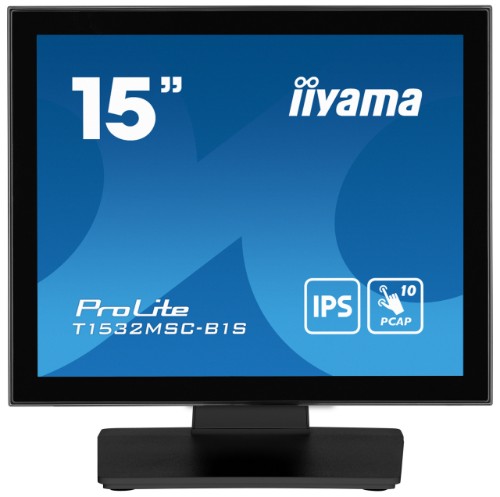

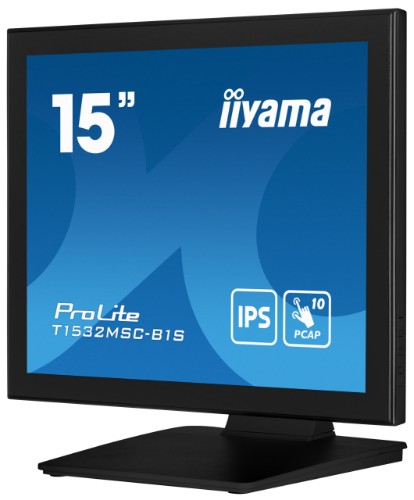

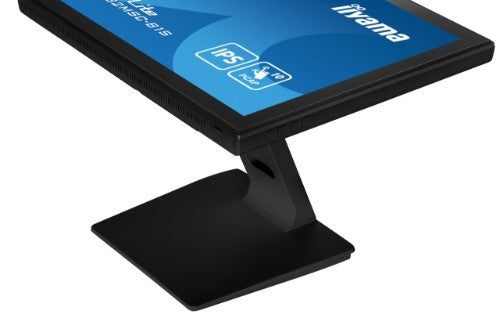

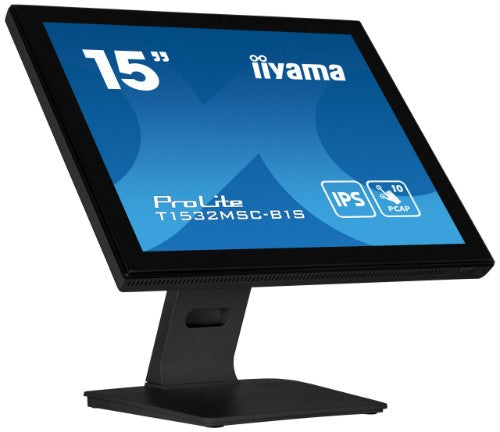

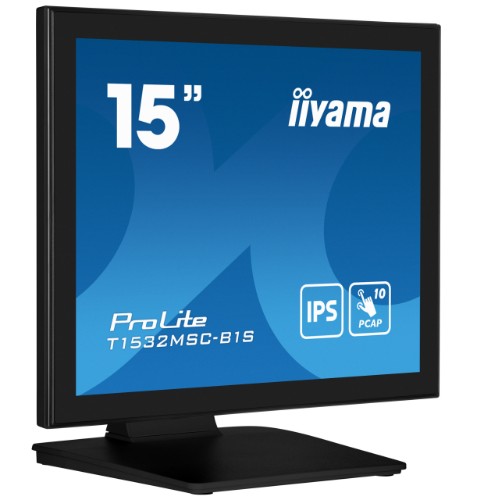

iiyama ProLite T1532MSC-B1S computer monitor 38.1 cm (15") 1024 x 768 pixels XGA LCD Touchscreen Black

15" Projective Capacitive 10pt touchscreen

Key Features

• Touch technology - Capacitive
• IP54
• Scratch resistance
• Speakers
• VESA

Reasons To Buy

Touch technology - Capacitive

This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

IP54

The IP Code classifies how resistant a device is to foreign objects and moisture. IP54 means that the monitor will operate in dusty conditions, and will resist splashing water.

Scratch resistance

Scratch resistance is a critical requirement for touch solutions deployed in commercial, educational, and industrial environments. A protective glass overlay covering the screen provides enhanced durability, ensuring reliable touch performance over time. The touch functionality remains fully operational and unaffected.

Speakers

This LED monitor is equipped with two stereo speakers.

VESA

VESA mount compliance means you can easily mount the display to any mounting that complies with the VESA standard.

Description

The ProLite T1532MSC-B1S 15" multi-touch screen is based on projected capacitive technology which thanks to a glass overlay covering the screen guarantees high durability, scratch-resistance and perfect picture performance. The touch function remains unaffected even if the glass is scratched. A solid and steady base supports the touchscreen with an adjustable stand offering full 90 degree positioning angles. Menu buttons are located on the side of the screen which can be locked to prevent tampering and includes a handy function to deactivate the touchscreen for cleaning. In addition the edge-to-edge glass design creates an eye-catching finish with high light transmission guaranteeing perfect picture clarity and brilliant colours.

Specifications

Display
HDCP	Yes
Display brightness (typical)	350 cd/m²
Screen shape	Flat
Native aspect ratio	4:3
HD type	XGA
Display technology	LCD
Viewing angle, horizontal	176°
Viewing angle, vertical	176°
Pixel pitch	0.297 x 0.297 mm
Horizontal scan range	31 - 60 kHz
Viewable size, horizontal	30.4 cm
Viewable size, vertical	22.8 cm
Digital horizontal frequency	31 - 60 kHz
Display resolution	1024 x 768 pixels
Response time	8 ms
Display diagonal	38.1 cm (15")
Contrast ratio (typical)	800:1
Touchscreen	Yes
Number of simultaneous touchpoints	10
Panel type	TN
Display diagonal (metric)	38 cm
Touch technology	Multi-touch
Touchscreen technology	Projected capacitive system
Display brightness	315 cd/m²
Audio
Built-in speaker(s)	Yes
RMS rated power	2 W
Performance
Built-in speaker(s)	Yes
RMS rated power	2 W
Built-in camera	No
AMD FreeSync	No
Compatible operating systems	All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
NVIDIA G-SYNC	No
Management features
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Multimedia
Number of speakers	2
Built-in speaker(s)	Yes
RMS rated power	2 W
Built-in camera	No
Design
Product colour	Black
Front bezel colour	Black
International Protection (IP) code	IP54
Camera
Built-in camera	No
Ports & interfaces
Built-in USB hub	No
Headphone out	No
VGA (D-Sub) ports quantity	1
HDMI ports quantity	1
DisplayPorts quantity	1
HDCP	Yes
HDMI	Yes
USB Touch port	Yes
Technical details
Cable lock slot	Yes
HDMI	Yes
Product colour	Black
User controls	picture (contrast, brightness, H. position, V. position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (timeout, position, H. position, V. position), option (reset, language, source select, display mode, volume, mute, factory)
Front bezel colour	Black
Sustainability certificates	ErP
Compliance certificates	CE, cULus, EAC, REACH, RoHS, UKCA, VCCI, WEEE
Compatible operating systems	All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Brightness	315 cd/m²
Power supply type	Internal
Active display area (W x H)	304.1 x 228.1 mm
Weight (with stand)	3.7 kg
Touch method	stylus, finger, glove (latex)
Touchscreen	Yes
Number of simultaneous touchpoints	10
Ergonomics
VESA mounting	Yes
Cable lock slot	Yes
Panel mounting interface	100 x 100 mm
Tilt angle range	-5 - 90°
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Height adjustment	No
Cable lock slot type	Kensington
Cable management	Yes
Tilt adjustment	Yes
Power
Power supply type	Internal
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (standby)	1.5 W
Power consumption (typical)	16 W
Power consumption (off)	0.3 W
Energy efficiency class (SDR)	E
Energy efficiency class (HDR)	Not available
Energy consumption (SDR) per 1000 hours	10.1 kWh
Weight & dimensions
Width (with stand)	351 mm
Depth (with stand)	200 mm
Height (with stand)	306.5 mm
Weight (with stand)	3.7 kg
Width	351 mm
Weight	3.7 kg
Height	306.5 mm
Depth	200 mm
Packaging content
Quick start guide	Yes
Cables included	AC, USB, HDMI, DisplayPort, Audio
Sustainability
Sustainability certificates	ErP
Packaging data
Quick start guide	Yes
Cables included	AC, USB, HDMI, DisplayPort, Audio
Other features
Compatible operating systems	All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Brightness	315 cd/m²
Active display area (W x H)	304.1 x 228.1 mm
User controls	picture (contrast, brightness, H. position, V. position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (timeout, position, H. position, V. position), option (reset, language, source select, display mode, volume, mute, factory)
Touch method	stylus, finger, glove (latex)
International Protection (IP) code	IP54
Width	351 mm
Weight	3.7 kg
Height	306.5 mm
Depth	200 mm
Compliance certificates	CE, cULus, EAC, REACH, RoHS, UKCA, VCCI, WEEE
Control panel	Menu, Scroll up/ Brightness, Scroll down/ Mute, Select, Power
Quick start guide	Yes
HDMI	Yes
Power supply type	Internal
Touchscreen	Yes
Number of simultaneous touchpoints	10
Front bezel colour	Black
