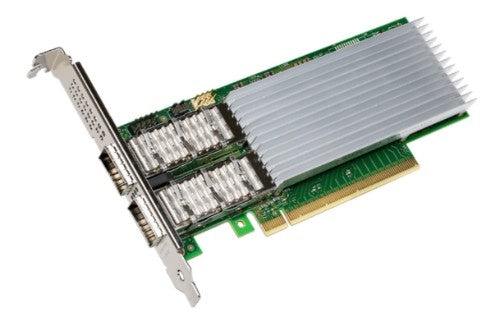

Intel Ethernet Network Adapter E810-CQDA2 Internal Fiber 100000 Mbit/s

Intel Ethernet Network Adapter E810CQDA2

Description

iWARP/RDMA
iWARP delivers converged, low-latency fabric services to data centers through Remote Direct Memory Access (RDMA) over Ethernet. The key iWARP components that deliver low-latency are Kernel Bypass, Direct Data Placement, and Transport Acceleration.

Intel® Data Direct I/O Technology
Intel® Data Direct I/O Technology is a platform technology that improves I/O data processing efficiency for data delivery and data consumption from I/O devices. With Intel DDIO, Intel® Server Adapters and controllers talk directly to the processor cache without a detour via system memory, reducing latency, increasing system I/O bandwidth, and reducing power consumption.

PCI-SIG* SR-IOV Capable
Single-Root I/O Virtualization (SR-IOV) involves natively (directly) sharing a single I/O resource between multiple virtual machines. SR-IOV provides a mechanism by which a Single Root Function (for example a single Ethernet Port) can appear to be multiple separate physical devices.

Flexible Port Partitioning
Flexible Port Partitioning (FPP) technology utilizes industry standard PCI SIG SR-IOV to efficiently divide your physical Ethernet device into multiple virtual devices, providing Quality of Service by ensuring each process is assigned to a Virtual Function and is provided a fair share of the bandwidth.

Virtual Machine Device Queues (VMDq)
Virtual Machine Device Queues (VMDq) is a technology designed to offload some of the switching done in the VMM (Virtual Machine Monitor) to networking hardware specifically designed for this function. VMDq drastically reduces overhead associated with I/O switching in the VMM which greatly improves throughput and overall system performance

Specifications

Ports & interfaces
Internal	Yes
PCI version	4.0
Fiber ports quantity	2
Fiber optic connector	QSFP28
Interface	Fiber
Host interface	PCI Express
Connectivity technology	Wired
Bandwidth
Maximum data transfer rate	100000 Mbit/s
Technical details
Interface type	PCIe v4.0 (16 GT/s)
Speed & slot width	16.0 GT/s, x16 Lane
PCI-SIG* SR-IOV Capable	Yes
On-chip QoS and Traffic Management	Yes
iWARP/RDMA	Yes
Intelligent Offloads	Yes
Intel Virtualization Technology for Connectivity (VT-c)	Yes
Intel Virtual Machine Device Queues (VMDq)	Yes
Intel Flexible Port Partitioning	Yes
Intel Data Direct I/O Technology	Yes
Storage Over Ethernet	iSCSI, NFS
Harmonized System (HS) code	85176990
Export Control Classification Number (ECCN)	5A991
Commodity Classification Automated Tracking System (CCATS)	NA
Product type	Network Interface Card
Processor family	800 Network Adapters (up to 100GbE)-800 Network Adapters (up to 100GbE)
Status	Launched
Network interface card type	Server
Network interface card cable medium	Copper, Fiber
Launch date	Q3'20
Network
LAN controller	Intel E810
Ethernet LAN data rates	1000,10000,25000,50000,100000 Mbit/s
Maximum data transfer rate	100000 Mbit/s
Design
Internal	Yes
Component for	Server/workstation
Product series	800 Series Network Adapters (up to 100GbE)
Operational conditions
Operating temperature (T-T)	0 - 60 °C
Storage temperature (T-T)	-40 - 70 °C
Performance
Speed & slot width	16.0 GT/s, x16 Lane
PCI-SIG* SR-IOV Capable	Yes
On-chip QoS and Traffic Management	Yes
iWARP/RDMA	Yes
Intelligent Offloads	Yes
Intel Virtual Machine Device Queues (VMDq)	Yes
Intel Flexible Port Partitioning	Yes
Intel Data Direct I/O Technology	Yes
Logistics data
Harmonized System (HS) code	85176990
Other features
Product type	Network Interface Card
Processor family	800 Network Adapters (up to 100GbE)-800 Network Adapters (up to 100GbE)
Interface type	PCIe v4.0 (16 GT/s)
Cable type	QSFP28 ports - DAC, Optics, and AOC's
Speed & slot width	16.0 GT/s, x16 Lane
PCI-SIG* SR-IOV Capable	Yes
On-chip QoS and Traffic Management	Yes
iWARP/RDMA	Yes
Intelligent Offloads	Yes
Intel Virtualization Technology for Connectivity (VT-c)	Yes
Intel Virtual Machine Device Queues (VMDq)	Yes
Intel Flexible Port Partitioning	Yes
Intel Data Direct I/O Technology	Yes
Storage Over Ethernet	iSCSI, NFS
Status	Launched
Network interface card type	Server
Network interface card cable medium	Copper, Fiber
Launch date	Q3'20
Product series	800 Series Network Adapters (up to 100GbE)
Harmonized System (HS) code	85176990
Export Control Classification Number (ECCN)	5A991
Commodity Classification Automated Tracking System (CCATS)	NA
Controller type	Intel(R) Ethernet Controller E810
Cabling type	QSFP28 ports - DAC, Optics, and AOC's
Bracket height	Low-Profile (LP) / Full-Height (FH)
