Intel I226-T1 Internal Ethernet 2500 Mbit/s

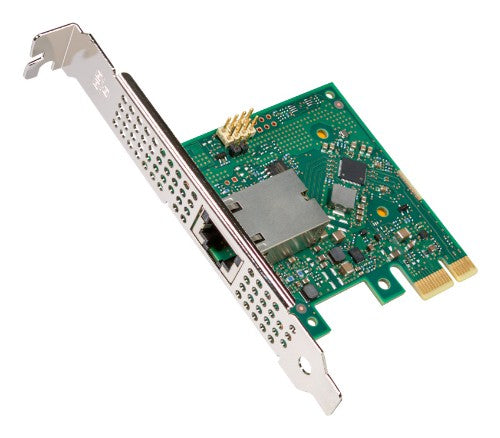

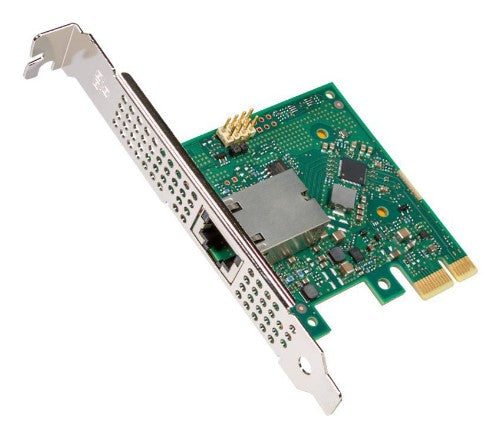

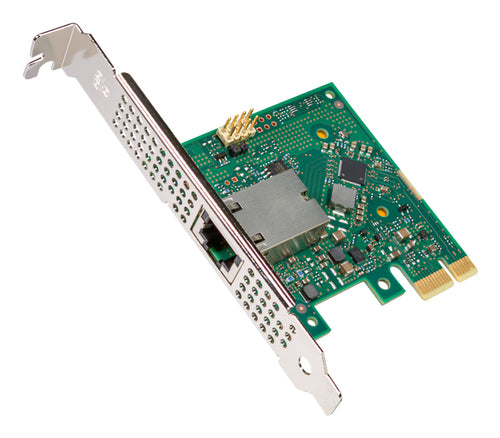

Intel Ethernet Network Adapter I226-T1, Retail Bulk

Key Features

• Low power, low cost
• Single-port 10/100/1000/2.5GBASE-T(X) Copper
• Ultra-compact footprint
• Ventilated bracket
• Environmentally friendly
• Lead free and low halogen
• PCIe 3.1 support (5GT/s)
• Distance up to 100 meters

Description

The Intel® Ethernet Network Adapter I226-T1 is ideally suited for personal computers and workstations used for enterprise, gaming, and home networks. These systems require more bandwidth than ever before. This ultra-compact, easy-to-integrate PCIe 3.1 x1 adapter, is a cost-effective networking solution for speeds up to 2.5GbE. The I226-T1 is also designed with a ventilated bracket, for increased efficiency and reduced power consumption.
Packed with performance optimization capabilities, the I226-T1 includes advanced interrupt-handling features to reduce CPU overhead. Combining interrupt-handling features with intelligent filtering, ordering, and directing packets to specific queues and cores, enables load-balancing network traffic flows to improve throughput in multi-core platforms.
Based on the Intel® Ethernet Controller I226-LM, this versatile networking solution supports 2.5Gbps, 1Gbps, 100Mbps and 10Mbps network speeds without the need to overhaul existing cabling infrastructure. Simplifying technology transitions with autonegotiation between port speeds provides maximum flexibility.

Specifications

Ports & interfaces
Internal	Yes
PCI version	3.1
Ethernet LAN (RJ-45) ports	1
PCI Card form factor	Full-height (low-profile)
Interface	Ethernet
Host interface	PCI Express
Connectivity technology	Wired
Bandwidth
Maximum data transfer rate	2500 Mbit/s
Wireless LAN features
Wi-Fi	No
Technical details
Product colour	Green, Silver
PCI Card form factor	Full-height (low-profile)
Harmonized System (HS) code	8517620090
Export Control Classification Number (ECCN)	5A991.B.4.A
Sustainability compliance	Yes
Compliance certificates	BSMI, CE, Federal Communications Commission (FCC), KCC, RoHS, VCCI
Network interface card cable medium	Copper
Market segment	Desktop
Launch date	Q3'23
Network
Ethernet interface type	2.5 Gigabit Ethernet
Wi-Fi	No
Ethernet LAN	Yes
Networking standards	IEEE 802.3, IEEE 802.3x, IEEE 802.3z
Maximum operating distance	100 m
Jumbo frames support	Yes
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
Maximum data transfer rate	2500 Mbit/s
Design
Product colour	Green, Silver
Internal	Yes
PCI Card form factor	Full-height (low-profile)
LED indicators	Activity, Link
Component for	PC/Server
Power
Power consumption (typical)	1.4 W
Indication
LED indicators	Activity, Link
Operational conditions
Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-40 - 70 °C
Sustainability
Sustainability compliance	Yes
Weight & dimensions
Width	68.7 mm
Depth	65.3 mm
Performance
Ethernet adapter ARK ID	225771
Logistics data
Harmonized System (HS) code	8517620090
Other features
Ethernet adapter ARK ID	225771
Network interface card cable medium	Copper
Market segment	Desktop
Launch date	Q3'23
Harmonized System (HS) code	8517620090
Export Control Classification Number (ECCN)	5A991.B.4.A
Cabling type	CAT5e, CAT6, CAT6A
