Intel X550-T2 Internal Ethernet 10000 Mbit/s

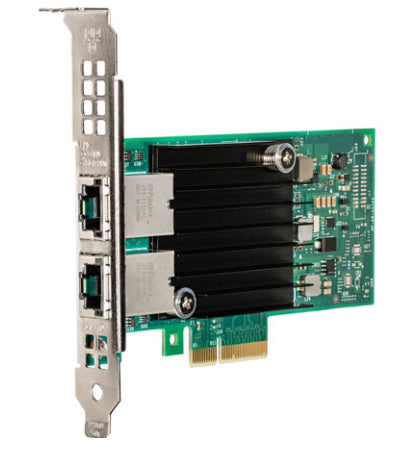

Intel® Ethernet Converged Network Adapter X550-T2

Description

Intel® Data Direct I/O Technology is a platform technology that improves I/O data processing efficiency for data delivery and data consumption from I/O devices. With Intel DDIO, Intel® Server Adapters and controllers talk directly to the processor cache without a detour via system memory, reducing latency, increasing system I/O bandwidth, and reducing power consumption.

Single-Root I/O Virtualization (SR-IOV) involves natively (directly) sharing a single I/O resource between multiple virtual machines. SR-IOV provides a mechanism by which a Single Root Function (for example a single Ethernet Port) can appear to be multiple separate physical devices.

Flexible Port Partitioning (FPP) technology utilizes industry standard PCI SIG SR-IOV to efficiently divide your physical Ethernet device into multiple virtual devices, providing Quality of Service by ensuring each process is assigned to a Virtual Function and is provided a fair share of the bandwidth.

Specifications

Ports & interfaces
Internal	Yes
Ethernet LAN (RJ-45) ports	2
PCI Card form factor	Half-height (low-profile)
Interface	Ethernet
Host interface	PCI Express
Connectivity technology	Wired
Bandwidth
Data transfer rate	8 GT/s
Maximum data transfer rate	10000 Mbit/s
Network
Data transfer rate	8 GT/s
VLAN tagging	Yes
Ethernet interface type	5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
iSCSI support	Yes
Ethernet LAN	Yes
Cabling technology	10GBase-T
Networking standards	IEEE 802.1Q, IEEE 802.1as, IEEE 802.1p, IEEE 802.3, IEEE 802.3ad
LAN controller	Intel® X550
Ethernet LAN data rates	100,1000,2500,5000,10000 Mbit/s
Maximum data transfer rate	10000 Mbit/s
Technical details
Interface type	PCIe v3.0 (8.0GT/s)
Product colour	Green, Silver
PCI-SIG* SR-IOV Capable	Yes
PCI Card form factor	Half-height (low-profile)
On-chip QoS and Traffic Management	Yes
Number of VLANs	4096
iWARP/RDMA	No
Intelligent Offloads	Yes
Intel Virtualization Technology for Connectivity (VT-c)	Yes
Intel Virtual Machine Device Queues (VMDq)	Yes
Intel Flexible Port Partitioning	Yes
Intel Data Direct I/O Technology	Yes
Fiber Channel over Ethernet	Yes
Product type	13
Status	Launched
Design
Product colour	Green, Silver
Internal	Yes
PCI Card form factor	Half-height (low-profile)
Product family	Intel 10 Gigabit server adapter
Product series	Intel® Ethernet Converged Network Adapter X550 Series
Software
Windows operating systems supported	Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Linux operating systems supported	Red Hat Enterprise Linux WS 5.0, Red Hat Enterprise Linux WS 6.0, SUSE Linux Enterprise Desktop 10, SUSE Linux Enterprise Desktop 11
System requirements
Server operating systems supported	Windows Server 2003, Windows Server 2008 R2, Windows Server 2008 R2 x64, Windows Server 2008 x64, Windows Server 2012 R2, Windows Server 2012 R2 x64
Windows operating systems supported	Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Linux operating systems supported	Red Hat Enterprise Linux WS 5.0, Red Hat Enterprise Linux WS 6.0, SUSE Linux Enterprise Desktop 10, SUSE Linux Enterprise Desktop 11
Compatible operating systems	intel.com/support/EthernetOS
Operational conditions
Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	0 - 90%
Performance
Server operating systems supported	Windows Server 2003, Windows Server 2008 R2, Windows Server 2008 R2 x64, Windows Server 2008 x64, Windows Server 2012 R2, Windows Server 2012 R2 x64
Desktop Management Interface (DMI) version	2.0
Ethernet adapter ARK ID	88209
Windows operating systems supported	Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Linux operating systems supported	Red Hat Enterprise Linux WS 5.0, Red Hat Enterprise Linux WS 6.0, SUSE Linux Enterprise Desktop 10, SUSE Linux Enterprise Desktop 11
PCI-SIG* SR-IOV Capable	Yes
On-chip QoS and Traffic Management	Yes
Number of VLANs	4096
iWARP/RDMA	No
Intelligent Offloads	Yes
Intel Virtual Machine Device Queues (VMDq)	Yes
Intel Flexible Port Partitioning	Yes
Intel Data Direct I/O Technology	Yes
Fiber Channel over Ethernet	Yes
Other features
Compatible operating systems	intel.com/support/EthernetOS
Data transfer rate	8 GT/s
Product type	13
Desktop Management Interface (DMI) version	2.0
Ethernet adapter ARK ID	88209
Interface type	PCIe v3.0 (8.0GT/s)
Cable type	RJ-45 Category-6 up to 55m; Category-6A up to 100m
PCI-SIG* SR-IOV Capable	Yes
On-chip QoS and Traffic Management	Yes
Number of VLANs	4096
iWARP/RDMA	No
Intelligent Offloads	Yes
Intel Virtualization Technology for Connectivity (VT-c)	Yes
Intel Virtual Machine Device Queues (VMDq)	Yes
Intel Flexible Port Partitioning	Yes
Intel Data Direct I/O Technology	Yes
Fiber Channel over Ethernet	Yes
Status	Launched
Product family	Intel 10 Gigabit server adapter
Product series	Intel® Ethernet Converged Network Adapter X550 Series
