j5create

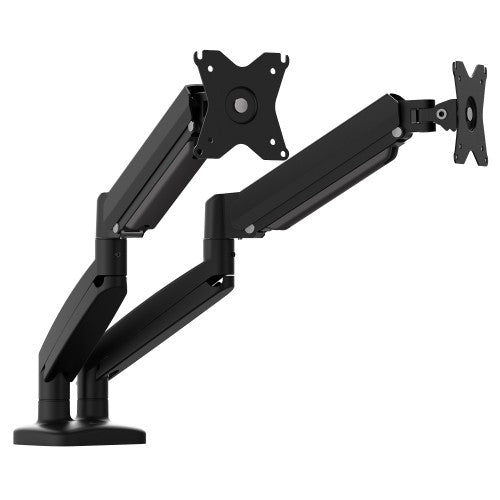

j5create JTSA102 Ergonomic Dual Monitor Mount, Black

SKU JTSA102-N
£68.96
£68.96
Excluding taxes
Ergonomic Dual Monitor Mount

Key Features

  • Maximize your desktop space and enjoy more benefits of dual monitors
  • Fully adjustable gas spring monitor arms. Easily adjusts monitors to any height
  • Allows the screens to swivel 180°, tilt -45° to +90°and rotate 360°. Conveniently set your monitors at optimal angles
  • Supports 17” to 32” monitors weighing up to 8kg each, works with most VESA® - compatible monitors
  • Simple to Install, includes clear instructions and all necessary tools

Description

The JTSA102 is a gas spring dual monitor mount. The single arm can hold max two 32” screens weighing up to 8kg/17.6 lbs. Easily adjust your screens to any height. The gas spring allows the screen to swivel 180°, tilt -45° to +90°and rotate 360°. Conveniently set your monitor at an optimal angle. This monitor mount gives you the ability to create a more efficient workspace, whether you need extra space or a standing desk setup.

Specifications

Mounting
Maximum weight capacity (per display) 8 kg
Desk thickness (min) 1 cm
Minimum screen size 43.2 cm (17")
Number of displays supported 2
Mounting type Desk
Minimum VESA mount 75 x 75 mm
Maximum VESA mount 100 x 100 mm

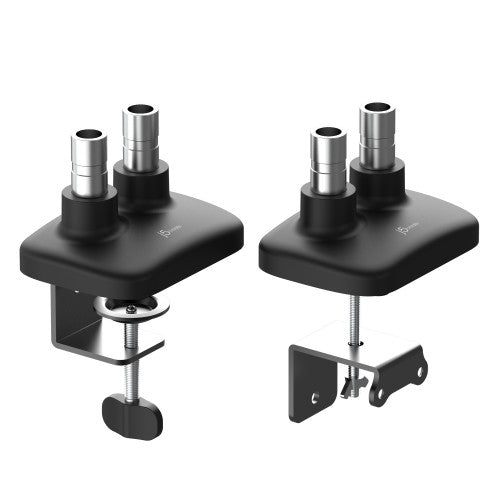

Mounting Clamp/Grommet
Maximum weight capacity 16 kg
Maximum screen size 81.3 cm (32")
Grommet mount desk thickness (max) 5 cm
Ergonomics
Cable management Yes
Adjustable depth Yes
Height adjustment Yes
Swivel angle 180°
Tilt angle range -45 - 90°
Angle of rotation 360°
Rotating Yes
Tilt adjustment Yes
Swivelling Yes
Design
Easy to install Yes
Product colour Black
Housing material Aluminium, Plastic, Steel
Orientation Landscape/Portrait
Technical details
Mounting type Desk
Product colour Black
Cable management Yes
Sustainability compliance Yes
Warranty period 2 year(s)
Compliance certificates CE, REACH, RoHS
Weight & dimensions
Width 140 mm
Depth 320 mm
Height 465 mm
Weight 3.4 kg
Package width 243 mm
Package depth 515 mm
Package height 127 mm
Package type Box
Package weight 4.25 kg
Packaging data
Package width 243 mm
Package depth 515 mm
Package height 127 mm
Package type Box
Package weight 4.25 kg
Quantity per pack 1 pc(s)
Packaging content
Packaging content 1 - JTSA102 Ergonomic Dual Monitor Mount 1- Installation tools & accessories 1 - Quick Installation Guide (QIG)
Mounting kit Yes
Operational conditions
Operating temperature (T-T) 0 - 30 °C
Operating relative humidity (H-H) 0 - 85%
Maximum operating temperature 30 °C
Storage temperature (T-T) -10 - 65 °C
Storage relative humidity (H-H) 0 - 85%
Sustainability
Sustainability compliance Yes
Other features
Warranty period 2 year(s)
Compliance certificates CE, REACH, RoHS
Mounting type Desk
Mounting Clamp/Grommet
Country of origin China
Logistics data
Master (outer) case width 148 mm
Master (outer) case length 536 mm
Master (outer) case height 275 mm
Products per master (outer) case 1 pc(s)
Master (outer) case GTIN (EAN/UPC) 24712795088278
Country of origin China
Master (outer) case net weight 4.6 kg
Export Control Classification Number (ECCN) EAR99
