j5create

j5create JVA11-N 4K HDMI™ Capture Adapter

SKU JVA11-N
£36.42
£36.42
Excluding taxes

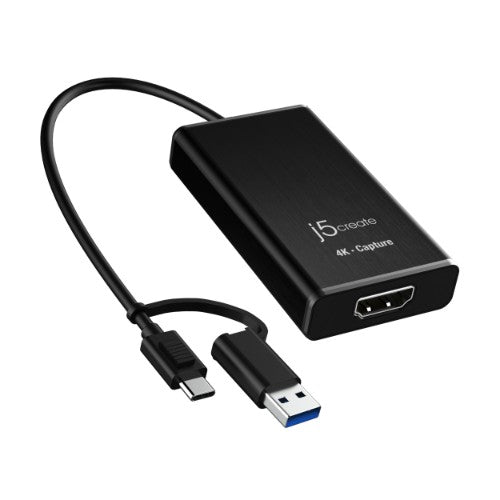

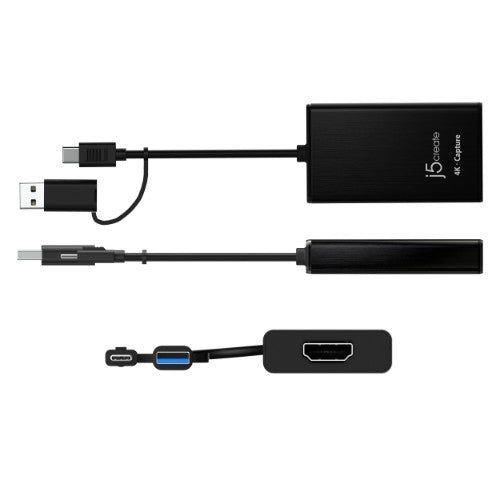

j5create JVA11 4K HDMI™ Capture Adapter, Black

Key Features

  • HDMI™ input for capturing
  • 4K video and audio high-performance record through USB-C® 3.2 Gen 1
  • UVC standard - No driver installation required
  • Ultra-low latency stream through USB-C® 3.2 Gen 1 connection
  • Field production made easy with its compact size

Description

Record or stream high resolution video content with a compact 4K capture device. The USB-C® cable includes a USB™ Type-A adapter for increased device compatibility and works with a variety of video capture software. USB™ 3.2 supports high quality streams and recordings. Its small size makes it easy to transport and put away. This is a great device for video podcasts, field production, and capturing gameplay.

Specifications

Performance
Country of origin Taiwan
Internal No
Host interface USB 3.2 Gen 1 (3.1 Gen 1)
Video capture resolution (max) 3840 x 2160 pixels
Plug and Play Yes
Product colour Black
Housing material Aluminium
Cable length 0.19 m
Technical details
Country of origin Taiwan
Package type Box
Package width 145 mm
Package height 25 mm
Internal No
Host interface USB 3.2 Gen 1 (3.1 Gen 1)
Video capture resolution (max) 3840 x 2160 pixels
Plug and Play Yes
Product colour Black
Housing material Aluminium
Cable length 0.19 m
Warranty period 2 year(s)
Video
Analog signal format system Not supported
Supported resolutions 4K30 fps, 2K60 fps, 1080p120 fps
Maximum frame rate 120 fps
Ports & interfaces
DVI-I ports quantity 0
DVI-D ports quantity 0
HDMI in 1
Number of HDMI outputs 0
RJ-45 ports quantity 0
VGA (D-Sub) ports quantity 0
Composite video in 0
S-Video inputs quantity 0
Headphone outputs 0
Composite video out 0
S-Video outputs quantity 0
HDMI ports quantity 1
Digital audio optical out 0
Digital audio optical in 0
AV output No
AV input No
DC-in jack No
BNC ports quantity 0
USB ports quantity 0
USB version 2.0/3.2 Gen 1 (3.1 Gen 1)
USB port No
USB connector type USB Type-A, USB Type-C
Power
Power supply type USB
Software
Mac compatibility Yes
Windows operating systems supported Yes
Mac operating systems supported Yes
Other operating systems supported Android
System requirements
Minimum processor Available USB-C® or USB™ Type-A port (USB™ 3.2 / 3.0 is recommended) Windows® 7 or later macOS® 10.12 or later Android™ 8.1 or later Chrome OS™ with UVC support CPU: Intel® Core™ i7 6700HQ & above GPU: NVIDA® GTX 960M & above RAM: 8 GB or higher
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -10 - 65 °C
Operating relative humidity (H-H) 0 - 80%
Storage relative humidity (H-H) 0 - 85%
Weight & dimensions
Width 41 mm
Depth 14.1 mm
Height 72 mm
Weight 55 g
Packaging data
Package type Box
Package width 145 mm
Package height 25 mm
Package weight 96 g
Package depth 95 mm
Packaging content
Low-profile bracket No
Full-height bracket No
Software CD No
Protective case No
Remote control included No
Batteries included No
Screws included No
Quick installation guide Yes
Quantity 1
User guide No
Manual No
AC adapter included No
Software included No
Logistics data
Country of origin Taiwan
