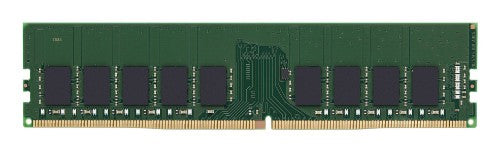

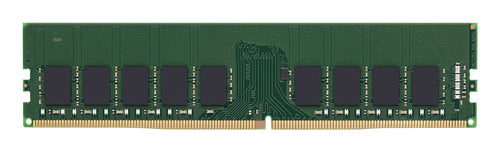

Kingston Technology KSM32ED8/32HD memory module 32 GB 1 x 32 GB DDR4 3200 MT/s 288-pin DIMM ECC

32GB DDR4 3200MT/s ECC Unbuffered DIMM CL22 2Rx8 1.2V 288-pin 16Gbit Hynix D

Key Features

• Power Supply: VDD = 1.2V Typical
• VDDQ = 1.2V Typical
• VPP = 2.5V Typical
• VDDSPD = 2.2V to 3.6V
• Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
• Low-power auto self refresh (LPASR)
• Data bus inversion (DBI) for data bus
• On-die VREFDQ generation and calibration
• Dual-rank
• On-board I2 serial presence-detect (SPD) EEPROM
• Temperature sensor with integrated SPD
• 16 internal banks; 4 groups of 4 banks each
• Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
• Selectable BC4 or BL8 on-the-fly (OTF)
• Fly-by topology
• Terminated control command and address bus
• PCB: Height 1.23” (31.25mm)
• RoHS Compliant and Halogen-Free

Description

Kingston's KSM32ED8/32HD is a 2G x 72-bit (32GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 2Rx8, ECC, memory module, based on eighteen 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. Each 288-pin DIMM uses gold contact fingers.

Specifications

Power
Memory voltage	1.2 V
Design
JEDEC standard	Yes
Memory
Buffered memory type	Unregistered (unbuffered)
Memory layout (modules x size)	1 x 32 GB
Internal memory	32 GB
Component for	Server
Memory form factor	288-pin DIMM
CAS latency	22
Memory voltage	1.2 V
Module configuration	2048M x 72
Row cycle time	45.75 ns
Row active time	32 ns
SPD profile	Yes
Memory channels	Dual-channel
Memory ranking	2
ECC	Yes
Internal memory type	DDR4
Programming power voltage (VPP)	2.5 V
Features
Buffered memory type	Unregistered (unbuffered)
Memory layout (modules x size)	1 x 32 GB
Internal memory	32 GB
Component for	Server
Memory form factor	288-pin DIMM
CAS latency	22
Memory voltage	1.2 V
Module configuration	2048M x 72
Row cycle time	45.75 ns
Row active time	32 ns
SPD profile	Yes
Memory channels	Dual-channel
Memory ranking	2
ECC	Yes
Internal memory type	DDR4
Programming power voltage (VPP)	2.5 V
JEDEC standard	Yes
Memory data transfer rate	3200 MT/s
Operational conditions
Operating temperature (T-T)	0 - 85 °C
Storage temperature (T-T)	-55 - 100 °C
Technical details
Compliance certificates	RoHS
Sustainability
Compliance certificates	RoHS
Weight & dimensions
Width	133.3 mm
Height	31.2 mm
