Kingston Technology

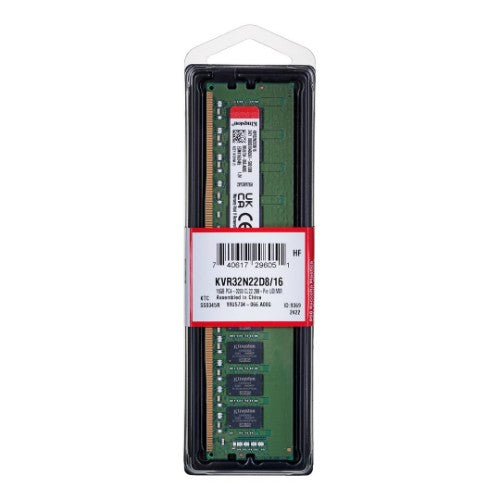

Kingston Technology ValueRAM memory module 16 GB 1 x 16 GB DDR4 3200 MT/s 288-pin DIMM

SKU KVR32N22D8/16
£192.54
£152.17
£192.54
£152.17
Excluding taxes
16GB, DDR4, 3200MT/s, Non-ECC, CL22, 1.2V, Unbuffered, DIMM

Key Features

  • Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
  • Low-power auto self refresh (LPASR)
  • Data bus inversion (DBI) for data bus
  • On-die VREFDQ generation and calibration
  • Dual-rank
  • On-board I2 serial presence-detect (SPD) EEPROM
  • 16 internal banks; 4 groups of 4 banks each
  • Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
  • Selectable BC4 or BL8 on-the-fly (OTF)
  • Fly-by topology
  • Terminated control command and address bus
  • RoHS Compliant and Halogen-Free

Description

ValueRAM, Kingston’s industry standard memory, delivers award-winning performance and legendary Kingston reliability. When you know what you want, you want ValueRAM.

Specifications

Power
Memory voltage 1.2 V
Design
Backlight No
Product colour Black, Green
Cooling type Heatsink
JEDEC standard Yes
Technical details
Product colour Black, Green
Cooling type Heatsink
Doesn't contain Halogen
Compliance certificates RoHS
Memory
Buffered memory type Unregistered (unbuffered)
Memory layout (modules x size) 1 x 16 GB
Internal memory 16 GB
Component for PC/Server
Memory form factor 288-pin DIMM
CAS latency 22
Memory voltage 1.2 V
Lead plating Gold
Module configuration 2048M x 64
Row cycle time 45.75 ns
Refresh row cycle time 350 ns
Row active time 32 ns
Memory channels Single-channel
Memory ranking 2
ECC No
Internal memory type DDR4
Programming power voltage (VPP) 2.5 V
Features
Buffered memory type Unregistered (unbuffered)
Backlight No
Product colour Black, Green
Memory layout (modules x size) 1 x 16 GB
Internal memory 16 GB
Component for PC/Server
Memory form factor 288-pin DIMM
CAS latency 22
Memory voltage 1.2 V
Lead plating Gold
Module configuration 2048M x 64
Row cycle time 45.75 ns
Refresh row cycle time 350 ns
Row active time 32 ns
Memory channels Single-channel
Cooling type Heatsink
Memory ranking 2
ECC No
Internal memory type DDR4
Programming power voltage (VPP) 2.5 V
JEDEC standard Yes
Harmonized System (HS) code 84733020
Memory data transfer rate 3200 MT/s
Operational conditions
Operating temperature (T-T) 0 - 85 °C
Storage temperature (T-T) -55 - 100 °C
Sustainability
Doesn't contain Halogen
Compliance certificates RoHS
Weight & dimensions
Width 133.3 mm
Height 31.2 mm
Logistics data
Harmonized System (HS) code 84733020
Other features
Harmonized System (HS) code 84733020
Doesn't contain Halogen
