Lenovo ThinkPad Universal USB-C Dock Wired USB 3.2 Gen 1 (3.1 Gen 1) Type-C Black

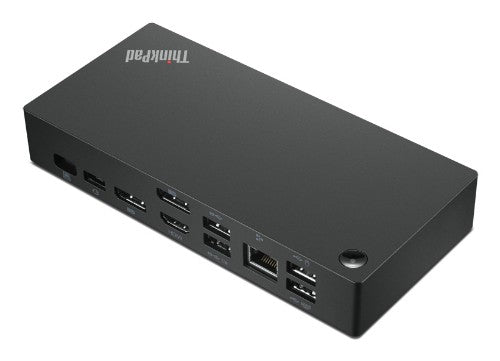

ThinkPad Universal USB-C Dock

Reasons To Buy

One Dock. No Limits.

Engineered for performance and productivity, the ThinkPad Universal USB-C Dock is compatible with most Windows 10 and above USB-C notebooks2. Ideal for both office-based and remote working, it’s an IT manager’s dream—critical firmware updates are installed automatically and traditional IT tools, such as PXE boot, WOL, and MAC Address Pass Through, are also supported.

One Cable. No Hassle.

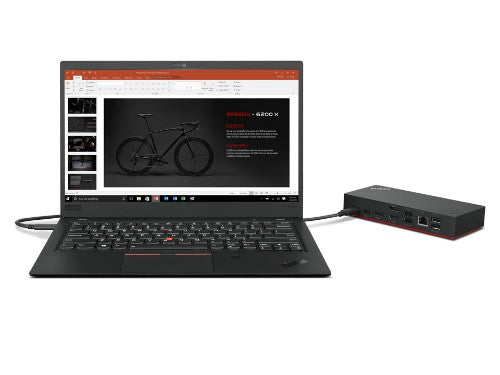

With the convenience of 11+ ports, including DisplayPort™ and HDMI™, the ThinkPad Universal USB-C Dock gives you exceptional versatility. It lets you savour blazing-fast data transfers, rapidly charge USB-C notebooks, and plug and play displays and other PC accessories. What’s more, this advanced onecable docking solution gives you more desk-space to work and play with.

One Remote Workforce. No Problem.

Remote dock management just got a whole lot smarter. Thanks to Dock Manager and our latest hardware, firmware updates can be done without any end-user interruption, which means productivity is never compromised

Description

Specifications

Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DisplayPorts quantity	2
Microphone in	No
Headphone outputs	0
DC-in jack	Yes
Connectivity technology	Wired
Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports	1
Performance
Maximum digital resolution	3840 x 2160 pixels
Number of displays supported	3
On/off switch	Yes
Product colour	Black
Card reader integrated	No
Cable lock slot	Yes
Certification	FCC/ICES, KCC, RCM, BSMI, VCCI, CB, cULus, EAC, TUV- Mark, Kvalitet, LoA, Israel SII, DoC, NOM
Cable lock slot type	Kensington
HD type	4K Ultra HD
Technical details
Product colour	Black
Cable lock slot	Yes
Harmonized System (HS) code	84733020
Compliance certificates	CE
Storage
Card reader integrated	No
Power
Power source type	USB
Power connector	USB Type-C
Power supply	90 W
Wireless charging	No
Software
Windows operating systems supported	Windows 10, Windows 7
Operational conditions
Operating temperature (T-T)	0 - 35 °C
Operating relative humidity (H-H)	20 - 95%
Weight & dimensions
Weight	340 g
Width	171 mm
Depth	80 mm
Height	30.8 mm
Package weight	955 g
Package width	210 mm
Package depth	158 mm
Package height	75 mm
Design
Windows operating systems supported	Windows 10, Windows 7
Product colour	Black
Cable lock slot	Yes
Certification	FCC/ICES, KCC, RCM, BSMI, VCCI, CB, cULus, EAC, TUV- Mark, Kvalitet, LoA, Israel SII, DoC, NOM
Cable lock slot type	Kensington
Packaging data
Quantity per pack	1 pc(s)
Package weight	955 g
Package width	210 mm
Package depth	158 mm
Package height	75 mm
Packaging content

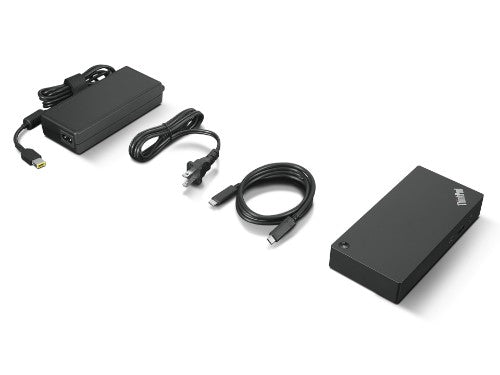

Cables included	USB Type-C
Quantity per pack	1 pc(s)
Certificates
Certification	FCC/ICES, KCC, RCM, BSMI, VCCI, CB, cULus, EAC, TUV- Mark, Kvalitet, LoA, Israel SII, DoC, NOM
Logistics data
Harmonized System (HS) code	84733020
