Lenovo ThinkSystem ST250 V3 server Tower Intel® Xeon® 6353P 2.7 GHz 32 GB DDR5-SDRAM 800 W

Intel Xeon 6353P (24MB Cache, 2.7GHz), 32GB DDR5-SDRAM (4800MHz), LAN (Broadcom 5720), 545-8i, 800W

Key Features

• Intel Xeon 6353P (24MB Cache, 2.7GHz)
• 32GB (4800MHz) DDR5-SDRAM (1 x 32)

Description

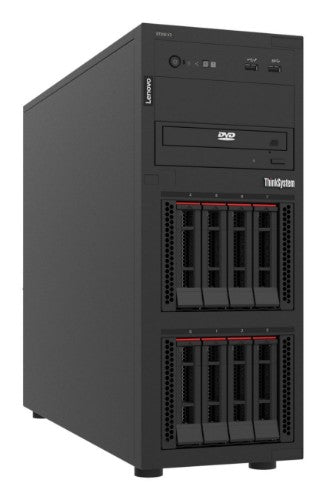

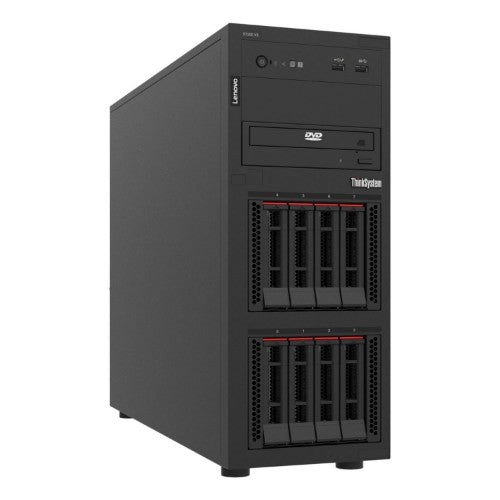

The Lenovo ThinkSystem ST250 V3 is a mainstream 1-socket tower server that also be rack mounted as a rack server. It is ideal for small-to-medium businesses, remote offices, branch offices, banking and public sector. The server supports the new Intel Xeon E-2400 Series processors, formerly codenamed "Raptor Lake".

This product guide provides essential presales information to understand the ThinkSystem ST250 V3 server, its key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the ST250 V3 and consider its use in IT solutions.

Specifications

Processor
Processor cache	24 MB
Processor frequency	2.7 GHz
Processor boost frequency	5.4 GHz
Number of processors installed	1
Processor model	6353P
Processor cores	8
Processor manufacturer	Intel
Processor family	Intel® Xeon®
Performance cores	8
Memory
Internal memory	32 GB
Memory layout (slots x size)	1 x 32 GB
Memory slots	4x DIMM
Memory clock speed	4800 MHz
Maximum internal memory	128 GB
Internal memory type	DDR5-SDRAM
ECC	Yes
Storage
Supported RAID controllers	545-8i
Supported storage drive interfaces	SAS, Serial ATA
Hot-swap	Yes
RAID support	Yes
RAID levels	0, 1, 5, 10, 50
Internal drive bays	8
Graphics
Maximum graphics card memory	16 MB
On-board graphics card	Yes
Network
LAN controller	Broadcom 5720
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Cabling technology	10/100/1000Base-T(X)
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	5
VGA (D-Sub) ports quantity	1
USB 2.0 ports quantity	1
Serial ports quantity	1
Ethernet LAN (RJ-45) ports	2
Design
Chassis type	Tower
Product colour	Black
Performance
Compatible operating systems	Microsoft Windows Server Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi
Performance management	XCC Platinum
Trusted Platform Module (TPM) version	2.0
Trusted Platform Module (TPM)	Yes
Software
Compatible operating systems	Microsoft Windows Server Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi
Power
Number of redundant power supplies supported	1
Redundant power supply (RPS) support	Yes
Power supply	800 W
Operational conditions
Storage temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	8 - 90%
Storage relative humidity (H-H)	8 - 90%
Operating temperature (T-T)	5 - 45 °C
Operating altitude	0 - 3050 m
Certificates
80 PLUS certification	80 PLUS Platinum
Management features
Performance management	XCC Platinum
Technical details
Trusted Platform Module (TPM) version	2.0
Trusted Platform Module (TPM)	Yes
Ethernet interface type	Gigabit Ethernet
Chassis type	Tower
Supported storage drives form factor (rear)	2.5''
Weight & dimensions
Width	176 mm
Height	444 mm
Depth	578 mm
