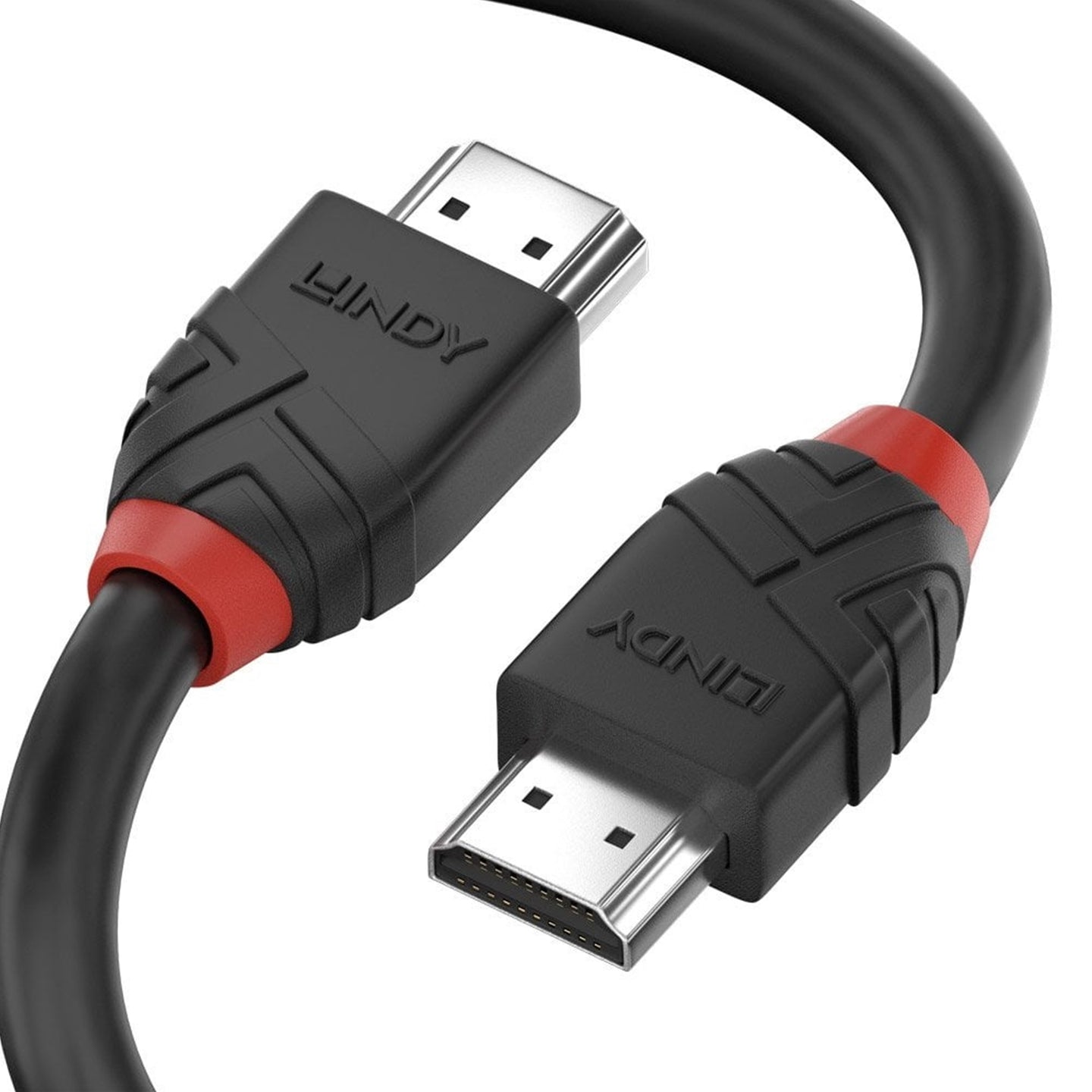

Lindy 0.5m High Speed HDMI Cable, Black Line

0.5m High Speed HDMI Cable, Black Line

Key Features

• Entry level High Speed HDMI 2.0 cable for home and small office applications
• Supports UHD resolutions up to 4096x2160@60Hz 4:4:4 8bit
• Robust PVC housing, nickel connectors, gold flashed contacts
• Triple shielded cable, corrosion resistant copper coated steel 30AWG conductors
• HDMI 2.0 compliant: 3D, 4K, 18Gbps, HEC, ARC, CEC, Dolby® True HD, DTS-HD Master Audio; 10 year warranty

Description

From the lines cable connectivity concept developed by Lindy, Black Line High Speed HDMI cables are fully featured, entry level high resolution connection solutions, perfect for home and small office use.

Black Line High Speed HDMI cables feature triple shielded construction with 30AWG copper coated steel conductors for premium performance and corrosion resistance. Nickel connectors and gold flashed contacts maintain signal integrity and reliability.

UHD resolutions up to 4K 4096x2160@60Hz 4:4:4 8bit are supported. Black Line HDMI cables are also capable of transmitting 32 channel audio and Dolby® True HD.

The HDMI 2.0 specification is supported for 18Gbps bandwidth capacity in cable lengths up to 15m.

Black Line HDMI cables are available in lengths from 0.5m to 15m.

Specifications

Features
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Maximum refresh rate	60 Hz
Colour depth	8 bit
HDMI Ethernet channel	Yes
Product colour	Black
Cable length	0.5 m
Connector 1	HDMI Type A (Standard)
Connector 2	HDMI Type A (Standard)
Connector 1 gender	Male
Connector 2 gender	Male
Connector contacts plating	Gold
Cable material	Copper-clad steel (CCS)
AWG wire size	30
HDMI version	2.0
Data transfer rate	18 Gbit/s
Maximum resolution	4096 x 2160 pixels
Supported graphics resolutions	4096 x 2160
Cable jacket material	Polyvinyl chloride (PVC)
Colour sampling	4:4:4
Bending radius (min)	6 cm
Contact material	Phosphor bronze
Connector material	Nickel
Connector housing material	Polyvinyl chloride (PVC)
Cable type	Round cable
Shield material	Aluminium
Nominal attenuation	300kHz-825MHz 5dB, 825MHz-2.475GHz 5dB, 2.475GHz-4.125GHz 12dB, 4.125GHz-5.1GHz 20dB
Certification	RoHS, REACH, UL
Quantity per pack	1 pc(s)
Operational conditions
Operating temperature (T-T)	-10 - 80 °C
Storage temperature (T-T)	-10 - 80 °C
Certificates
Certification	RoHS, REACH, UL
Weight & dimensions
Cable diameter	6 mm
Connector 1 dimensions (WxDxH)	19.2 x 34.1 x 10.6 mm
Connector 2 dimensions (WxDxH)	19.2 x 34.1 x 10.6 mm
Package type	Polybag
Packaging content
Quantity per pack	1 pc(s)
Package type	Polybag
Packaging data
Package type	Polybag
Quantity per pack	1 pc(s)
Logistics data
Harmonized System (HS) code	84733080
