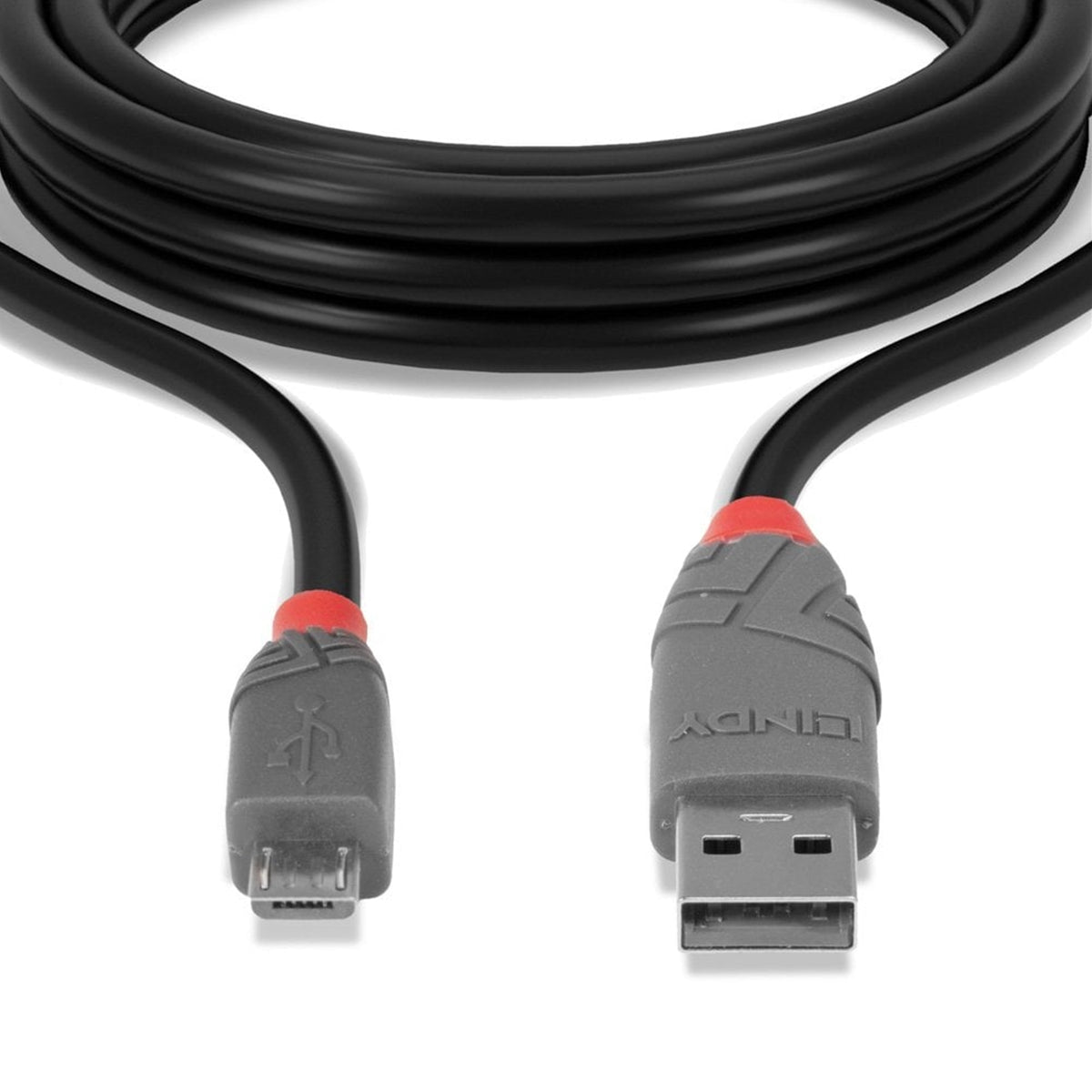

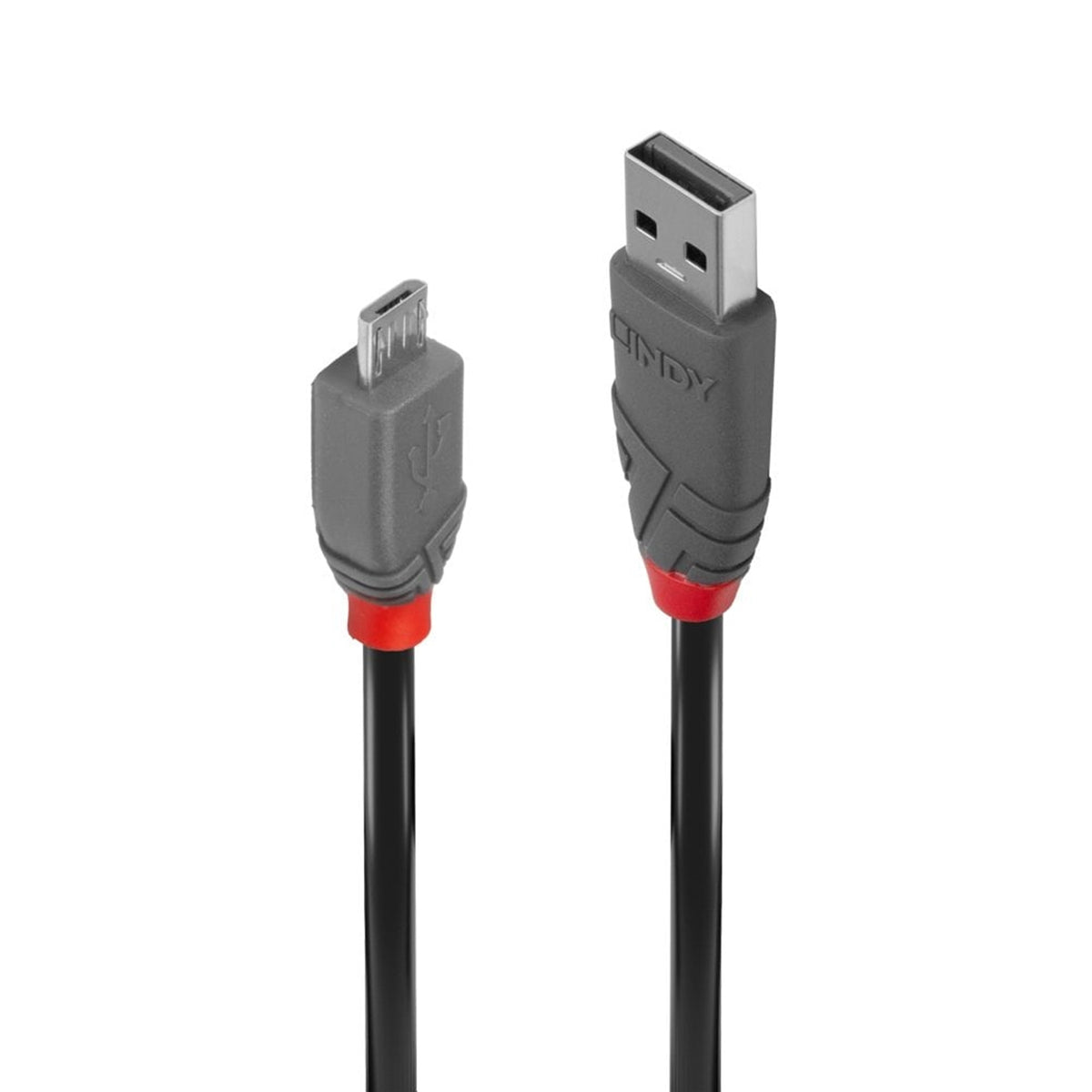

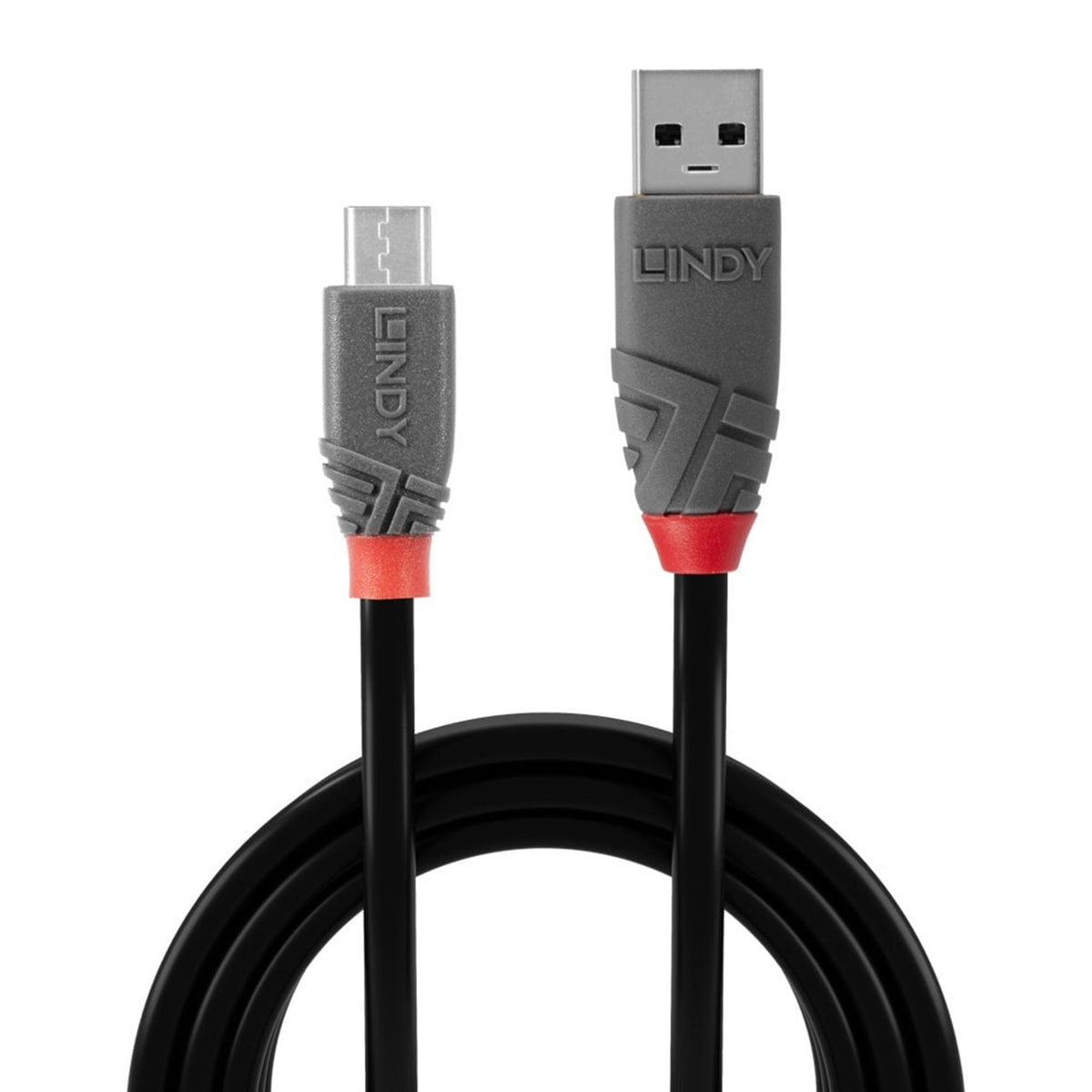

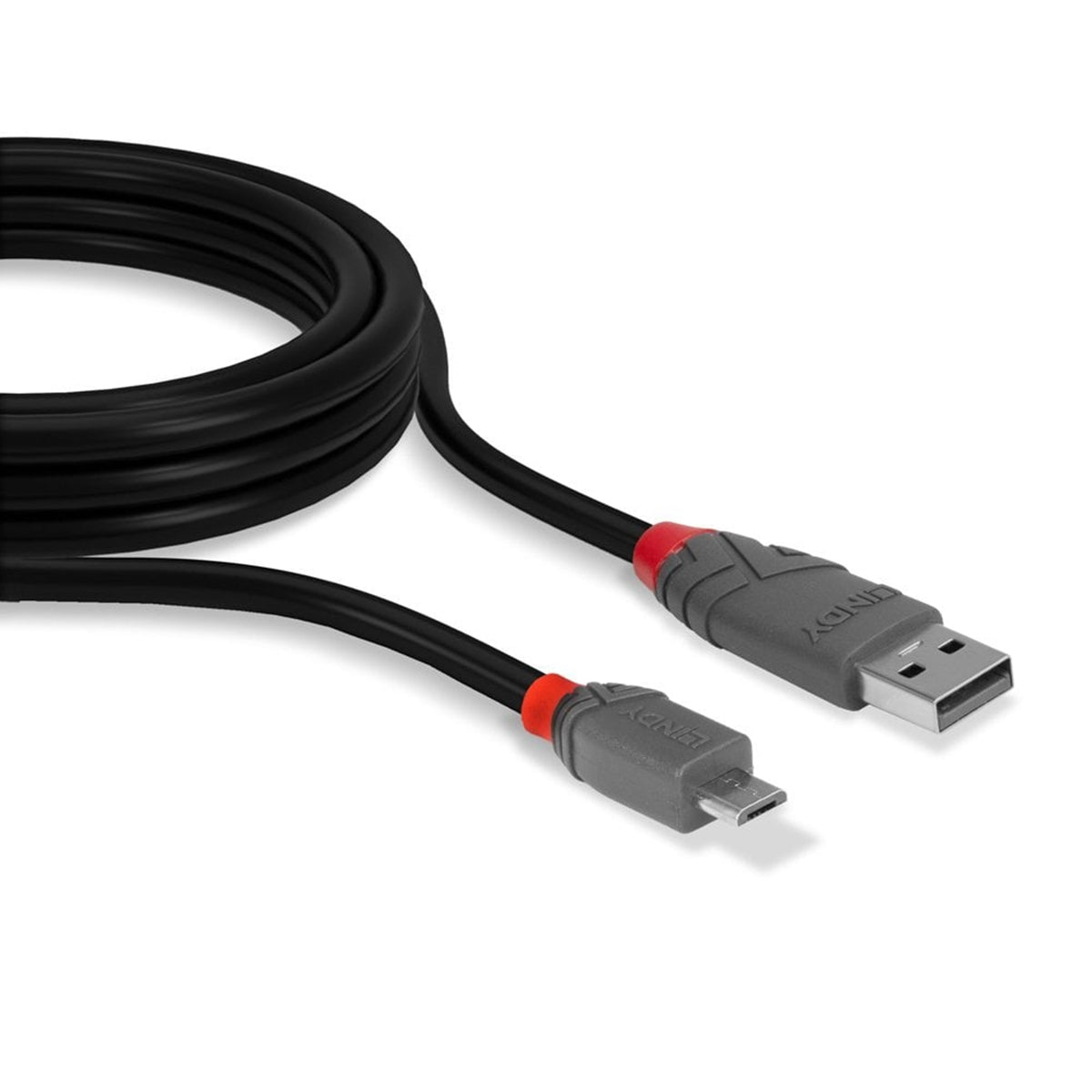

The LINDY 36730 Anthra Line is a short USB 2.0 cable for connecting a device with a Micro-B port to a computer, charger or other host with a standard USB Type-A port. Its 0.2 m length suits compact setups where a longer cable would leave excess slack.

Key features

  • Professional choice USB 2.0 Type A to Micro-B cable for commercial and high performance AV and IT installations
  • Supports data transfer speeds up to 480Mbps
  • Robust PVC housing, nickel connectors and gold plated contacts
  • Double shielded cable, corrosion resistant tinned copper conductors
  • USB 2.0, 480Mbps; 10 year warranty
  • From the Lines cable connectivity concept developed by Lindy, Anthra Line USB 2.0 Type A to Micro-B cables are the professional choice for high performance connections in commercial AV and IT installations.
  • Anthra Line USB 2.0 cables are premium connections that feature double shielded construction with copper conductors for performance and corrosion resistance. High quality gold plated contacts and nickel connectors maintain signal integrity and reliability.
  • Data transfer speeds up to 480Mbps are supported for the quick and effortless transfer of large data volumes.
  • Anthra Line USB 2.0 Type A to Micro-B cables are available in lengths from 0.2m to 5m.

Specification

Specification Detail
Connector A USB 2.0 Type A Male
Connector B USB 2.0 Type Micro-B Male
Housing Material PVC
Connector Plating Nickel
Pin Construction Copper
Pin Plating 24K Gold
USB A (approx.) W x D x H 15.5 x 35 x 7.8 mm (0.61 x 1.38 x 0.31 in)
USB Micro-B (approx.) W x D x H 10 x 24 x 7.6 mm (0.29 x 0.95 x 0.30 in)
Length 0.2 m (0.66 ft)
Standard USB 2.0
Colour Black
Type Round
Jacket Diameter 3.5 mm (0.14 in)
Jacket Material PVC
Conductor Material Tinned Copper
Conductor Gauge 28AWG
Shielding Aluminium Magnesium Braid
Specifications:
Supported Bandwidth
480Mbps
Maximum Resolution N/A
Nominal Attenuation 5.8db/km
Minimum Bend Radius 16 mm (0.63 in)
Operating Temperature 0°C - 60°C (32°F - 140°F)
Storage Temperature 0°C - 60°C (32°F - 140°F)
Packaging Type Polybag
Warranty (Years) 10
Certificated RoHS, REACH, UL
