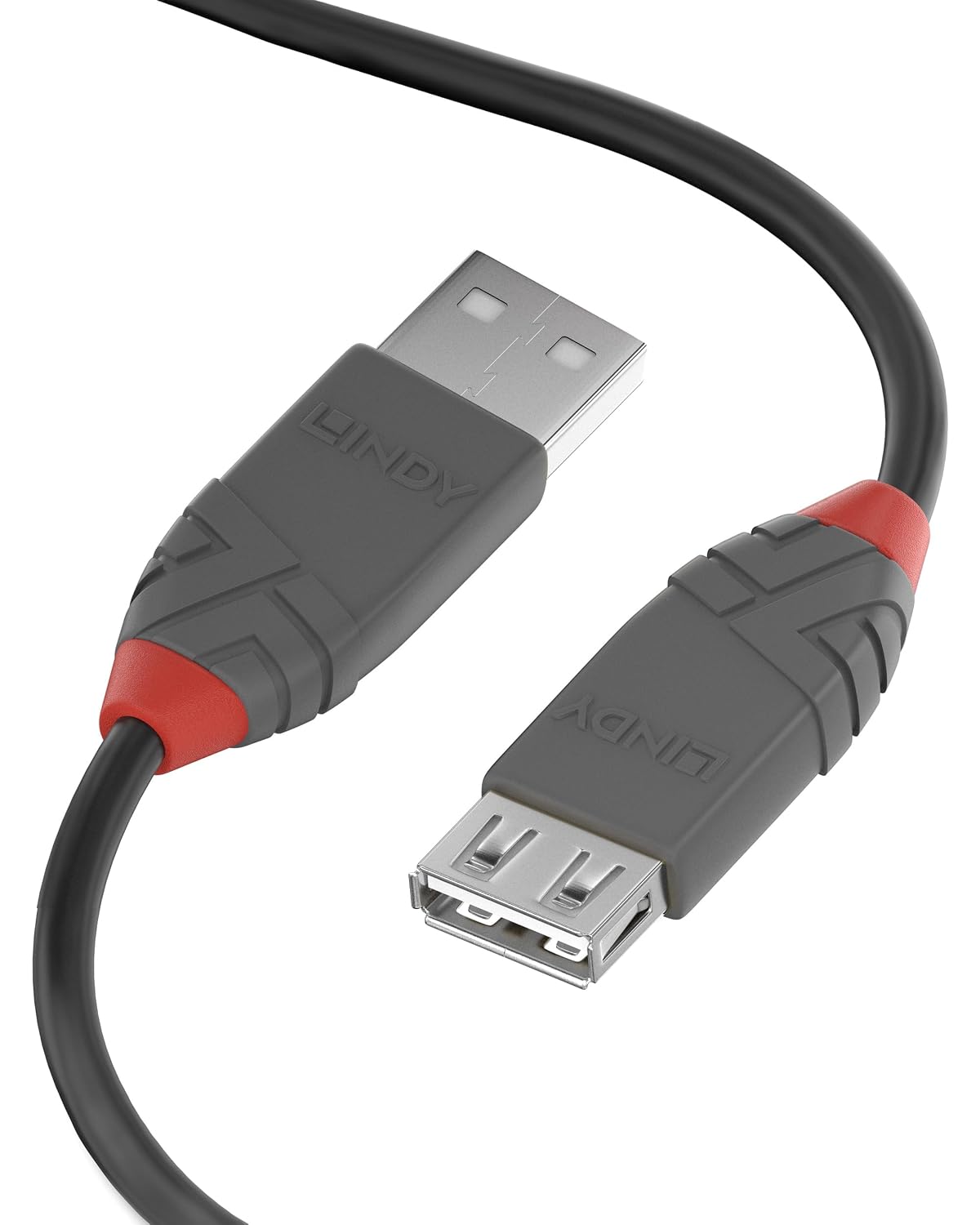

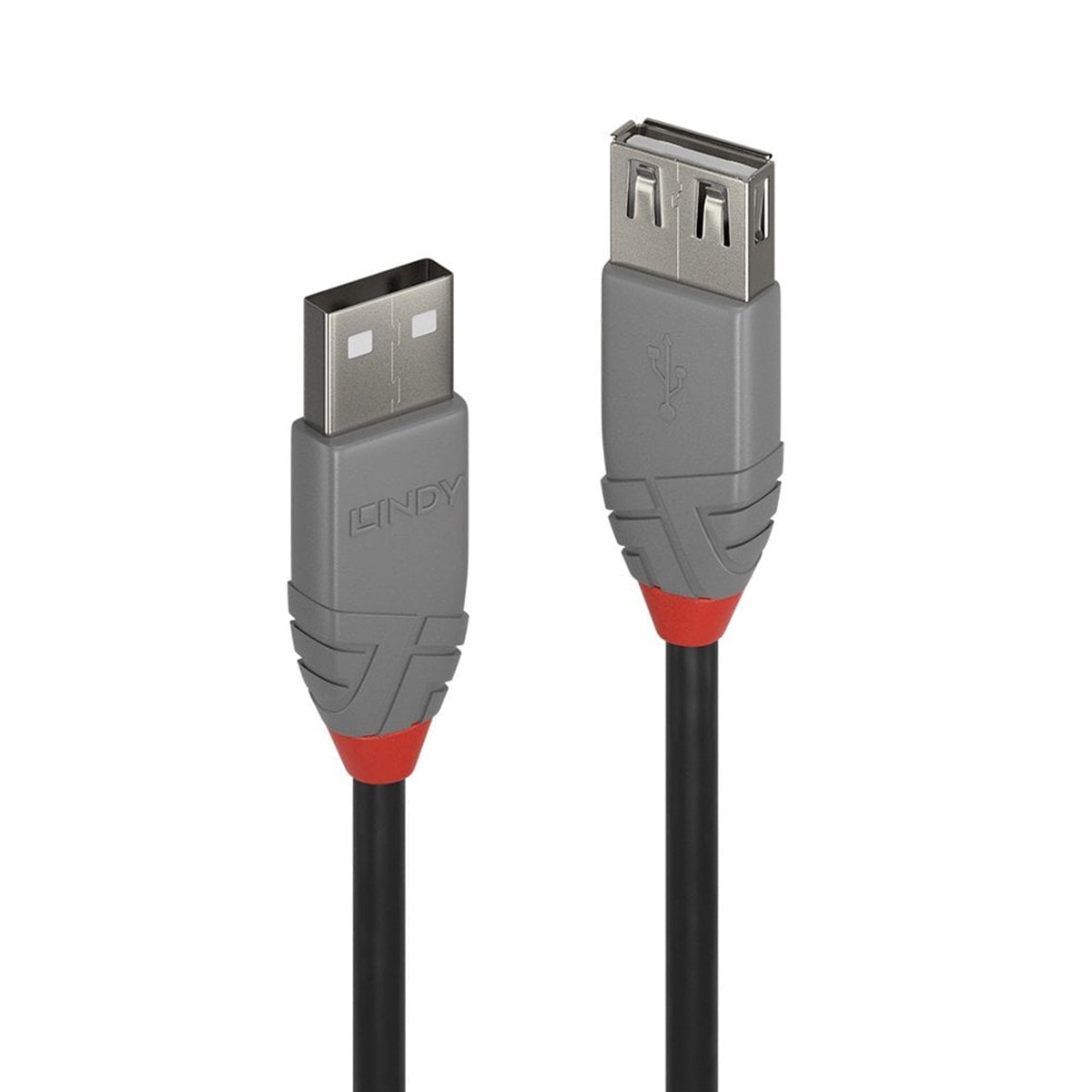

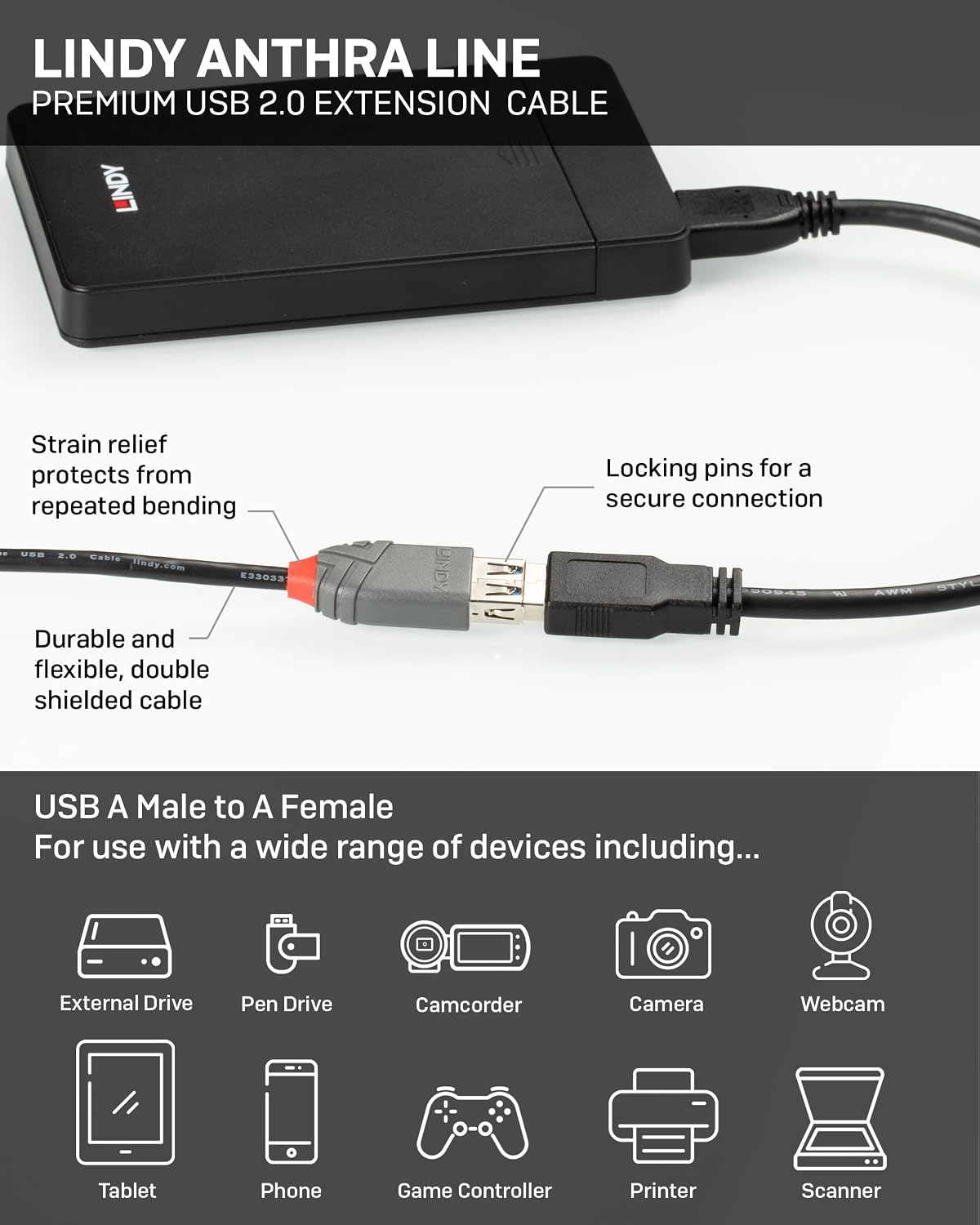

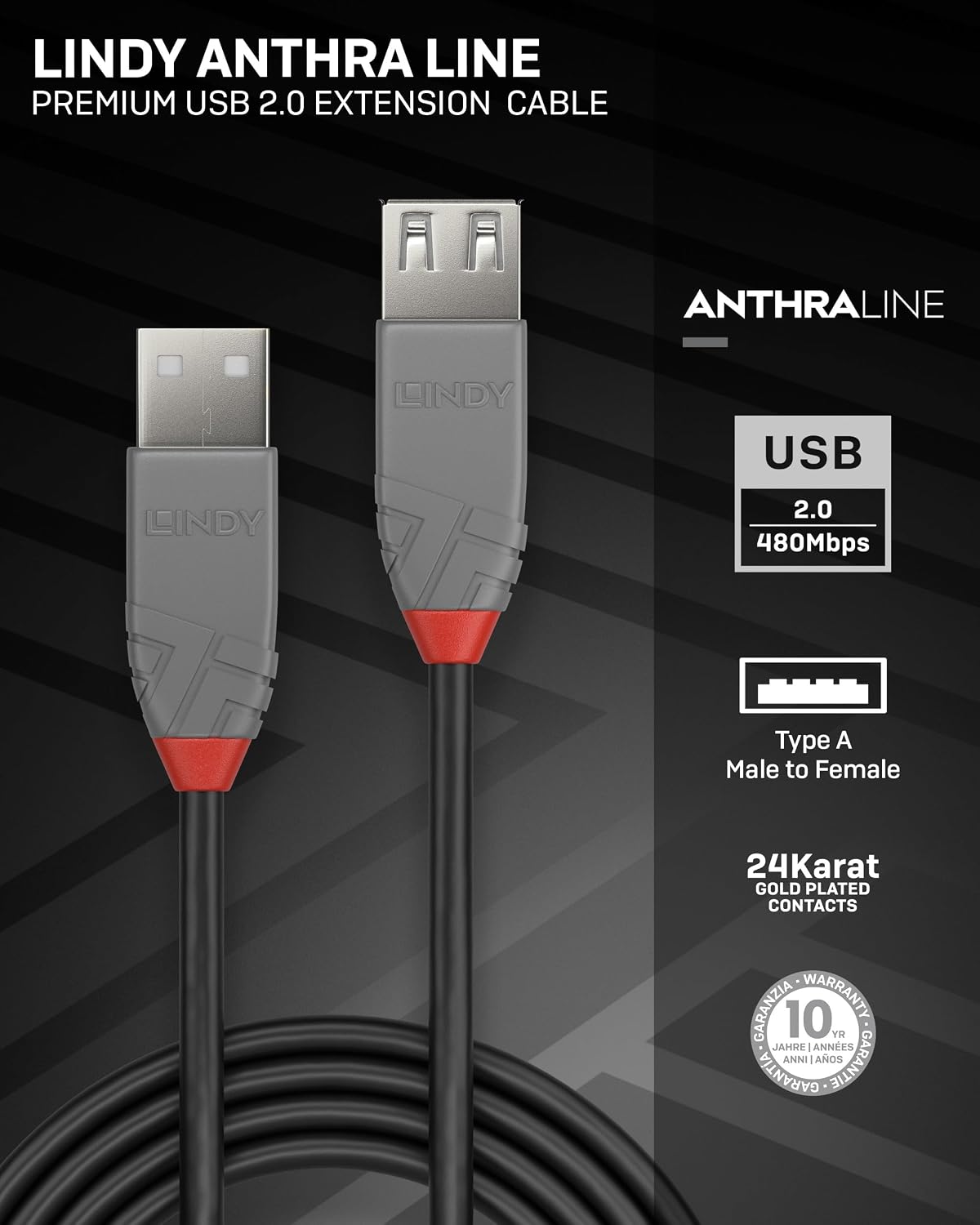

The Lindy Anthra Line USB 2.0 Type A extension cable adds reach between a USB-A port and a USB-A device or cable. Its 0.5m length suits home and office users who need a short extension, as well as installers connecting equipment in commercial AV and IT setups.

Key features

  • Professional choice USB 2.0 Type A Extension cable for commercial and high performance AV and IT installations
  • Supports data transfer speeds up to 480Mbps
  • Robust PVC housing, nickel connectors and gold plated contacts
  • Double shielded cable, corrosion resistant tinned copper conductors
  • USB 2.0, 480Mbps; 10 year warranty
  • From the Lines cable connectivity concept developed by Lindy, Anthra Line USB 2.0 Type A Extension cables are the professional choice for high performance connections in commercial AV and IT installations.
  • Anthra Line USB 2.0 cables are premium connections that feature double shielded construction with copper conductors for performance and corrosion resistance. High quality gold plated contacts and nickel connectors maintain optimal signal integrity and maximum reliability.
  • Data transfer speeds up to 480Mbps are supported for the quick and effortless transfer of large data volumes.
  • Anthra Line USB 2.0 Type A Extension cables are available in lengths from 0.2m to 5m.

Specification

Specification Detail
Connector A USB 2.0 Type A Male
Connector B USB 2.0 Type A Female
Housing Material PVC
Connector Plating Nickel
Pin Construction Copper
Pin Plating 24K Gold
USB A Male (approx.) W x D x H 15.5 x 35 x 7.8 mm (0.61 x 1.38 x 0.31in)
USB A Female (approx.) W x D x H 17 x 35 x 9.8 mm (0.67 x 1.38 x 0.39in)
Length 0.5 m (1.64ft)
Standard USB 2.0
Colour Black
Type Round
Jacket Diameter 4.4 mm (0.17 in)
Jacket Material PVC
Conductor Material Tinned Copper
Conductor Gauge 26/28AWG
Shielding Aluminium Magnesium Braid
Supported Bandwidth 480Mbps
Maximum Resolution N/A
Nominal Attenuation 5.8db/km
Minimum Bend Radius 16 mm (0.63 in)
Operating Temperature 0°C - 60°C (32°F - 140°F)
Storage Temperature 0°C - 60°C (32°F - 140°F)
Packaging Type Polybag
Warranty (Years) 10
Certificated RoHS, REACH, UL
