The LOGIX U1-516P is a compact desktop PC for home users, small offices and education settings that need a ready-to-use Windows computer without a large tower. It includes Windows 11 Pro, a wired Logitech keyboard and mouse, and a 3-year parts and labour warranty with collection and return on the UK mainland.
Prepare for the next era of PC gaming with an Intel Core Ultra processor-based AI PC. Unlock better streaming and gaming performance. Offload AI tasks like background removal, audio optimisation, and auto-framing to the NPU so you can stream and game smoothly.
Operating System: Windows 11 Pro
Processor: Intel Ultra Core 5 225
Memory (RAM): Kingston Technology 16GB DDR5 (upgradeable to 64GB DDR5)
Storage: Kingston Technology 500GB PCIE 4.0 NVMe M.2 SSD
Graphics: Intel Graphics (maximum resolution 7680 x 4320)
Motherboard: Gigabyte H810M Ultra Durable Motherboard
Case: LOGIX Small Form Factor
Specification
| Specification | Detail |
|---|---|
| Compact & Stylish Case | The discreet LOGIX small form case fits perfectly in any home setup—small enough to save space, yet roomy enough for powerful components and efficient cooling. |
| Fast & Reliable Performance | Powered by the latest Intel Ultra Core 5 processor with 10 cores and 10 threads, it runs at a base speed of 2.70GHz and can boost up to 4.90GHz—ideal for multitasking, streaming, and everyday computing. |
| Smooth Multitasking | Comes with 16GB of ultra fast Kingston DDR5 memory, giving you plenty of speed for browsing, working, and entertainment. You can upgrade later if needed. |
| Superfast Storage | A 500GB Kingston PCIe 4.0 NVMe SSD means lightning-fast boot times, quick file access, and smooth performance—much faster than traditional hard drives. Whether you're working from home, browsing the web, watching movies, or managing family tasks, the LOGIX U1-516P delivers smooth, reliable performance. It’s built with care in the UK, combining quality components with a clean, professional look—no flashy lights, just solid performance. |
| Why It’s Great for Home Use | Quiet & Compact – Fits easily on or under a desk without taking up space. Ready to Go – Comes with Windows 11 Pro pre-installed and updated. No bloatware, so you get a clean, fast experience from the start. Secure & Stable – Wired-only internet connection helps reduce online threats. Plug & Play – Includes a Logitech MK120 keyboard and mouse so you can get started right away. Built to Last: With trusted brands and high build standards, this PC is designed to be futureproof and reliable. It even comes with a full 3-year warranty for peace of mind. |
| Connections | Front – 2 x USB-A 3.0 2 x USB-A 2.0 3.5mm HD microphone & audio Back: 1 x DisplayPort 1 x HDMI 2 x USB-A 3.2 Gen 1 4 x USB-A 2.0 1 x RJ-45 Ethernet 3 x 3.5mm Audio |
| Networking | Wired: Realtek 1Gbps GbE LAN Peripherals: Logitech MK120 Wired Keyboard & Mouse Warranty: 3 years - parts and collection included (UK mainland only) |
| Processor | Intel Core Ultra 5 225 2.7Ghz up to 4.9GHz 10 Core, 10 Threads, 20MB Cache Integrated Graphics |
| Processor Cores | 10 |
| Processor Threads | 10 |
| Core Clock Speed | 2.70GHz |
| Core Boost Speed | 4.90GHz Total Cores: 10 # of Performance-cores: 6 # of Efficient-cores: 4 # of Low Power Efficient-cores: 0 Total Threads: 10 Max Turbo Frequency: 4.9 GHz Performance-core Max Turbo Frequency : 4.9 GHz Efficient-core Max Turbo Frequency: 4.4 GHz Performance-core Base Frequency: 3.3 GHz Efficient-core Base Frequency: 2.7 GHz Cache: 20 MB Intel Smart Cache Total L2 Cache: 22 MB Processor Base Power: 65 W Maximum Turbo Power: 121 W Intel Deep Learning Boost (Intel DL Boost) on CPU: Yes |
| NPU Specifications | NPU Name: Intel AI Boost NPU Peak TOPS (Int8): 13 Sparsity Support: Yes Windows Studio Effects Support: Yes AI Software Frameworks Supported by NPU: OpenVINO, WindowsML, DirectML, ONNX RT, WebNN |
| Memory | Kingston ValueRAM KVR56U46BS8-16 16GB (1x 16GB) DIMM System Memory, 5600MHz, DDR5, CL46 Voltage: 1.10V Latency Timing: CL46 Speed: 5600MT/s (PC5-44800) 1 x 16GB DIMM Memory Intel XMP Profile Support |
| Memory Configuration | 1 x 16GB 2 Lanes (1 occupied) |
| SSD Drive | Kingston NV3 (SNV3S/500G) 500GB NVMe SSD, M.2 Interface, PCIe Gen4, 2280 Data storage life 160 TBW MTBF 1,500,000 hours Interfaces/Ports PCIe Gen4 x4 NVMe |
| Format | Gen4 x4 NVMe |
| Max Read/Write Speeds | Read: Up to 6000MB/S Write: Up to 2200MB/S |
| Hard Drive | No Additional Drive Fitted |
| Optical Drive | No Optical Drive Fitted |
| Graphics | GPU Name: Intel Graphics Graphics Base Frequency: 300 MHz Graphics Max Dynamic Frequency: 1.8 GHz GPU Peak TOPS (Int8): 4 Graphics Output: eDP1.4b, DP 2.1 UHBR20, HDMI 2.1 FRL Xe-cores: 2 Max Resolution (HDMI): 4096 x 2304 @ 60Hz (HDMI 2.1 TMDS), (7680 x 4320 @ 60Hz (HDMI 2.1 FRL) Max Resolution (DP): 7680 x 4320 @ 60Hz Max Resolution (eDP) - Integrated Flat Panel), 3840 x 2400 @ 120Hz DirectX Support: 12 OpenGL Support: 4.5 OpenCL Support: 3 H.264 Hardware Encode/Decode: Yes H.265 (HEVC) Hardware Encode/Decode: Yes AV1 Encode/Decode: Yes Intel Quick Sync Video: Yes # of Displays Supported: 2 Native (4 via daisy chain) Intel Deep Learning Boost (Intel DL Boost) on GPU: Yes AI Software Frameworks Supported by GPU: OpenVINO, WindowsML, DirectML, ONNX RT, WebGPU |
| Graphics Card I/O | No Graphics Card Fitted. Uses Intel On-Chip Graphics |
| Operating System | Microsoft Windows 11 Pro 64bit English OEI DVD Operating Software - installed and up to Date. No Bloatware |
| Card Reader | No Card Reader Fitted |
| Networking | GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments. |
| Power Supply | 300w TFX Pre-Fitted PSU |
| Motherboard | Gigabyte H810M K Intel 1851 Socket Motherboard, Micro ATX, 2x DDR5 Slots, 1x M.2 Socket, GbE LAN, 1x DisplayPort / 1x HDMI Port |
| Expansion Slot | CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1) |
| Storage | Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |

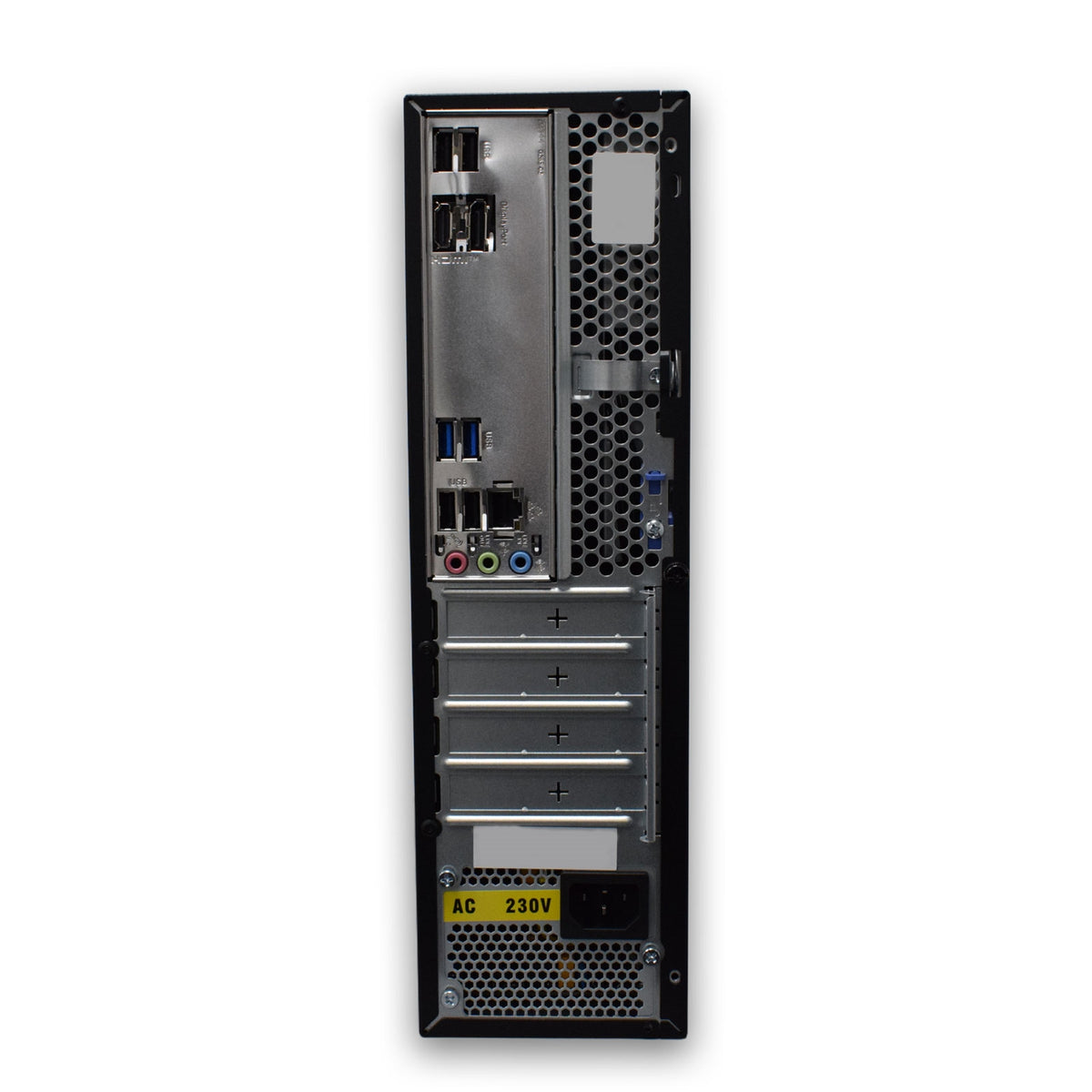

| Rear I/O | 1 x DisplayPort 1 x HDMI port 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
| Internal I/O | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x Clear CMOS jumper |
| Chassis | LOGIX Small Form Purpose Built Robust Chassis |
| Drive Bays | 5.25" x 0 3.5" x 1 2.5" x 2 |

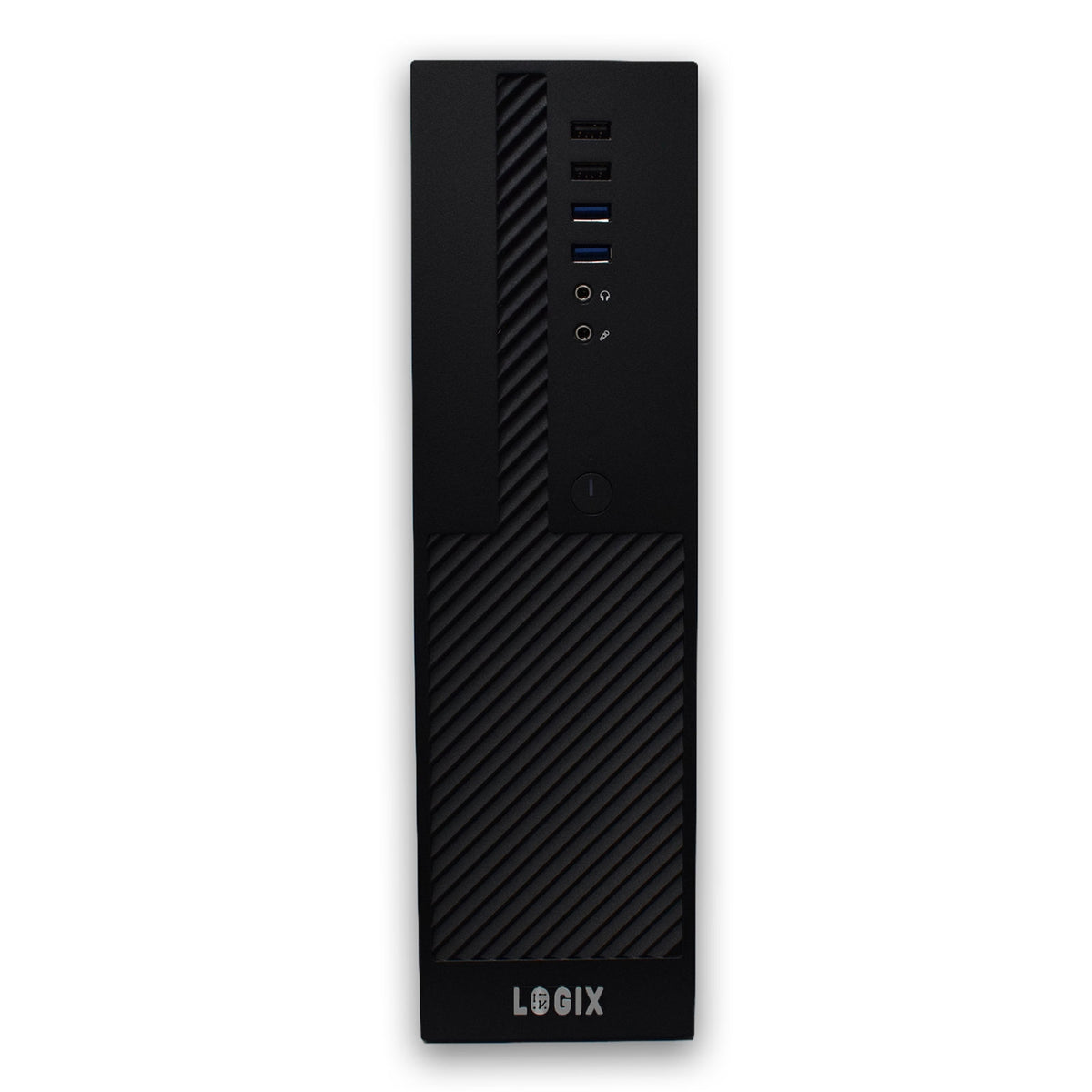

| IO Ports | 2 x USB 3.0 2 x USB 2.0 HD Mic HD Audio Power |
| Cooling | 1 x 80mm fan included |
| Dimensions | 321mm x 95mm x 283mm (W x H x D) |
| Package Weight | 6.9 kg |
| Warranty | 3 Years Parts & Labour Including Collect and Return (UK mainland only) |
-
