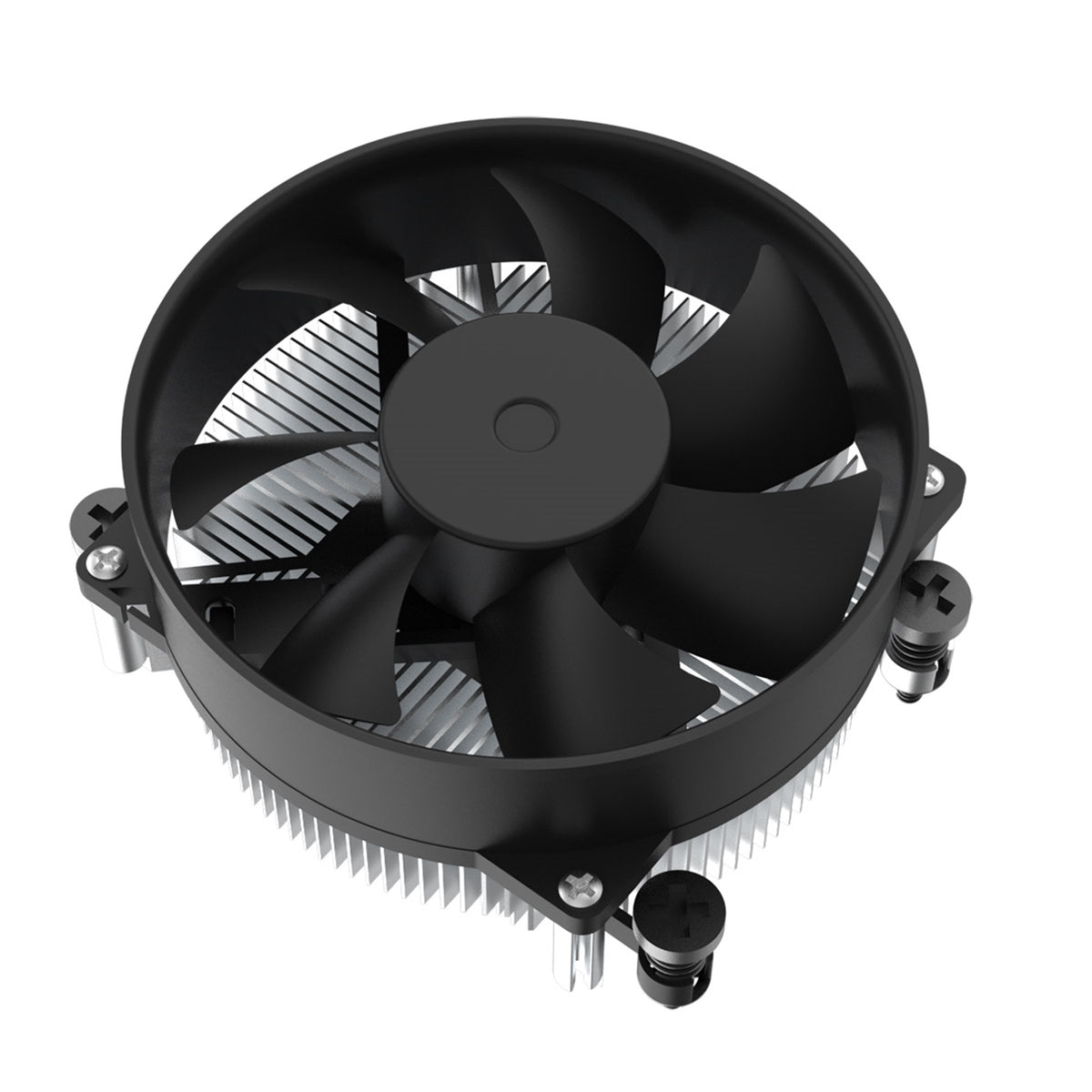

Low Profile CPU Cooler With 92mm PWM Fan For AMD Platform

CiT’s low profile CPU cooler is designed for space limited applications that utilises AMD AM4 & AM5 platforms. Made using aluminium fins for excellent thermal conduction. In addition, the CPU cooler is equipped with a custom PWM 95mm silent fan that is staggered against the aluminium fins for better airflow focus and enhanced heat dissipation. Measuring only 45mm tall, it’s a leading choice for slim cases utilising AMD AM4 & AM5 processors. Get maximum cooling with minimal footprint.

Specifications

CPU
TDP 85W
CPU Block MaterialAluminium
CPU Block Width (mm)90mm
CPU Block Height (mm)20mm

Fan

Fan Dimensions95 x 95 x 25mm
Rated Speed (PWM)0-2400 ± 10% RPM
Air Flow 40.79CFM
Noise29.5 dBA (Max.)
Bearing Type Hydraulic Bearing
Connector4pin PWM
Starting Voltage5V
Rated & Operating Voltage12V
Rated Current121mA
Power Input1.5W
Fan Pressure2.44mm H2O
Static Pressure3.01mm H2O
M.T.B.F30,000 Hours

Compatibility
AMD:AM4 & AM5

General Specifications

Manufacturer Part Number:CIT-CPU-AMD
EAN Number:5055492416278
Has Mains Plug:No
Colour:Black / Silver
What's In The Box:CPU Cooler
Fixing Screws
Thermal Paste
Unit (Product) Dimensions (mm):97mm x 45mm x 97mm (W x H x D)
Packaging Dimensions (mm):102mm x 68mm x 102mm (W x H x D)
Net Weight (KGs):0.25 KGs
Gross Weight (KGs):0.29 KGs
