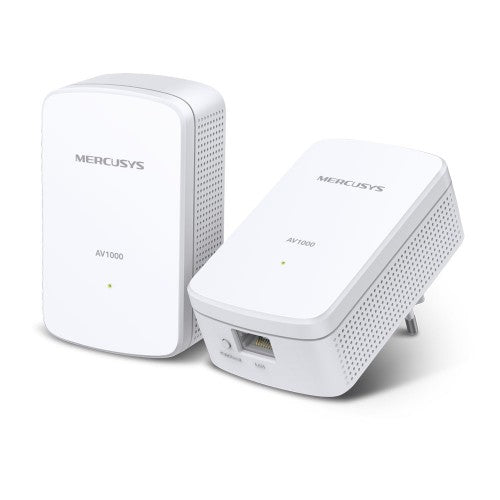

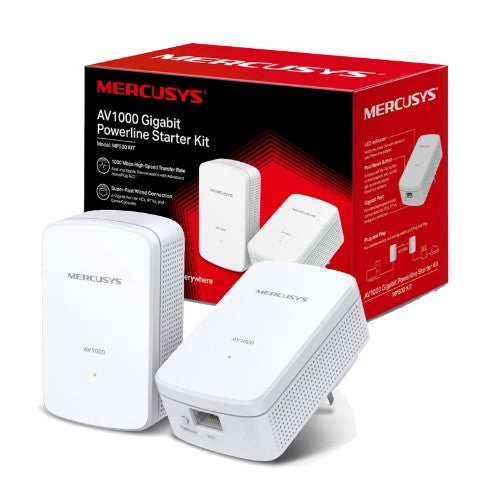

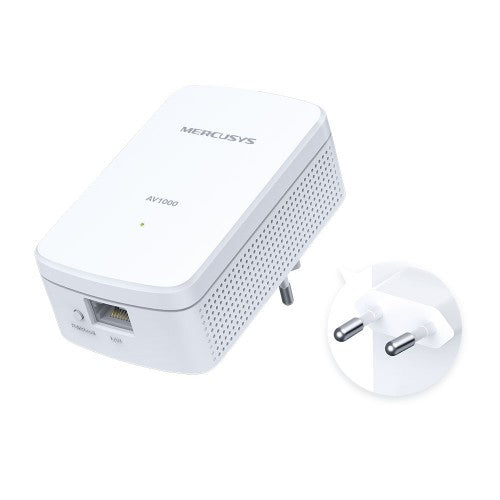

Mercusys AV1000 Gigabit Powerline Starter Kit

300 m max, HomePlug AV2, HomePlug AV, IEEE 1901, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, 128-bit AES, OFDM (PLC), 101 x 60 x 36 mm

Key Features

• 1000 Mbps High-Speed Transfer Rate — Fast and stable transmissions with advanced HomePlug AV2
• Super-Fast Wired Connection — A gigabit port provides high-speed internet to PCs, IPTVs, and game consoles
• Plug & Play — No wiring and configuration required—simply plug in
• Easy Expansion — Expand coverage by simply adding more Powerline adapters

Description

4K Streaming Mate
Enjoy an Extended Network Everywhere
AV1000 Gigabit Powerline Starter Kit

Where there’s an Outlet, There’s a Network.
The MP500 Kit transmits network data via existing electrical circuits, avoiding any negative influence obstacles have on the network. Enjoy a stable extended network with a transmission distance of up to 300 meters (on the same electrical circuit). Perfect for 4K streaming, online gaming, and graphics-intensive applications.

Dual Gigabit Transmission Fast. Unlimited. Enjoyable.
Equipped with advanced HomePlug AV2 technology, the maximum powerline transmission rate reaches a stunning 1000 Mbps—with a gigabit port that delivers a high-quality network through any one of your outlets.

Plug and Play

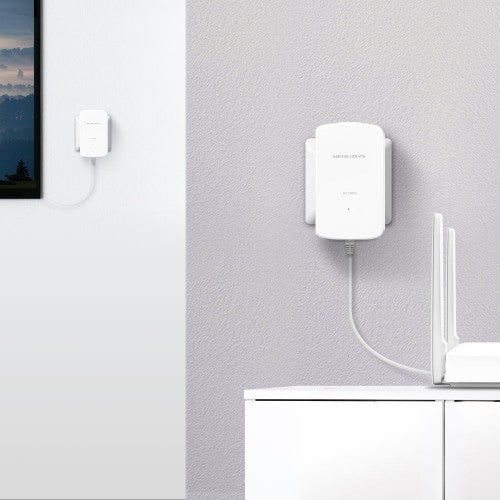

Immediately extend your network as soon as you connect one, without complex wiring and configuration. Simply connect an MP500 adapter to your router and plug another one into any outlet where you need wired internet service.

Easy Expansion
If a typical two-pack kit doesn’t meet all your networking needs, simply add more Powerline adapters to expand your network to any room.

Specifications

Performance
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports	1
Wi-Fi	No
Maximum data transfer rate	1000 Mbit/s
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Built-in power socket	No
PowerLine standard	HomePlug AV2
Modulation	OFDM
Security algorithms	128-bit AES
Maximum operating distance	300 m
Encryption button	Yes
Plug and Play	Yes
Technical details
Antenna type	Internal
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports	1
Wi-Fi	No
Maximum data transfer rate	1000 Mbit/s
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Built-in power socket	No
PowerLine standard	HomePlug AV2
Modulation	OFDM
Security algorithms	128-bit AES
Maximum operating distance	300 m
LED indicators	Power
Encryption button	Yes
Product colour	White
Plug and Play	Yes
Certification	CE
Harmonized System (HS) code	85171800
Power
Power consumption (typical)	2.78 W
Power consumption (standby)	0.64 W
AC input voltage	220 V
AC input frequency	50 Hz
Design
Antenna type	Internal
LED indicators	Power
Product colour	White
Certification	CE
System requirements
Mac compatibility	Yes
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1
Linux operating systems supported	Yes
Mac operating systems supported	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Weight & dimensions
Width	101 mm
Depth	60 mm
Height	36 mm
Packaging content
Manual	Yes
Quantity per pack	2 pc(s)
Quick installation guide	Yes
Cables included	LAN (RJ-45)
Logistics data
Harmonized System (HS) code	85171800
