MSI GeForce RTX 5070 Ti 16G VENTUS 3X OC NVIDIA 16 GB GDDR7

NVIDIA GeForce RTX 5070 Ti, 16GB GDDR7, 256-bit, DisplayPort x 3, HDMI x 1, 300W, 16-pin x1, 303 x 121 x 49 mm, 1073 g

Key Features

• Powered by the NVIDIA Blackwell architecture and DLSS 4
• SFF-Ready Enthusiast GeForce Card
• Core Clock:
• Extreme Performance: 2497 MHz (MSI Center)
• Boost: 2482 MHz

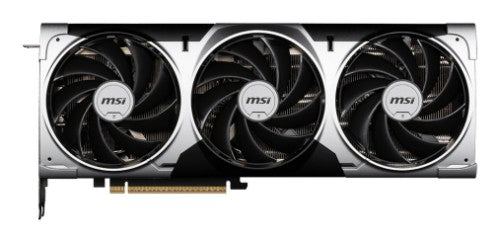

• TORX Fan 5.0: Fan blades linked by ring arcs work to stabilize and maintain high-pressure airflow
• Nickel-plated Copper Baseplate: Heat from the GPU and memory is swiftly captured by a nickel-plated copper baseplate and transferred
• Core Pipe feature a square design to maximize contact with the GPU baseplate for optimal thermal management

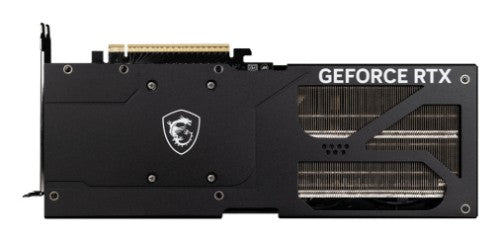

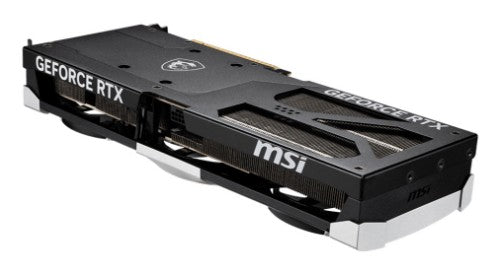

• Metal Backplate: A sturdy metal backplate strengthens the graphics card while the airflow vent design reduces excess heat
• MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time
• Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world

Description

TAKE THE ESSENTIALS
VENTUS focuses on the essentials to tackle any challenge. Its efficient thermal solution is encased in a resilient enclosure with a neutral aesthetic, allowing this sleek graphics card to integrate seamlessly into any build.

HARDENING EVERY DETAIL
*All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate.

Build Small. Play Big.
You can pack high performance into a smaller footprint with this SFF-Ready Enthusiast GeForce card. Look for cases that are compatible with SFF-Ready Enthusiast GeForce Cards to get a sure fit and streamline your PC build.

Specifications

Processor
Graphics processor family	NVIDIA
Processor frequency	2497 MHz
Processor boost clock speed	2482 MHz
Maximum displays per videocard	4
CUDA cores	8960
CUDA	Yes
Maximum resolution	7680 x 4320 pixels
Graphics processor	GeForce RTX 5070 Ti
Memory
Discrete graphics card memory	16 GB
Memory bus	256 bit
Graphics card memory type	GDDR7
Ports & interfaces
Micro HDMI ports quantity	0
HDMI version	2.1b
Mini HDMI ports quantity	0
Mini DisplayPorts quantity	0
HDMI ports quantity	1
DisplayPort version	2.1b
DVI-I ports quantity	0
DVI-D ports quantity	0

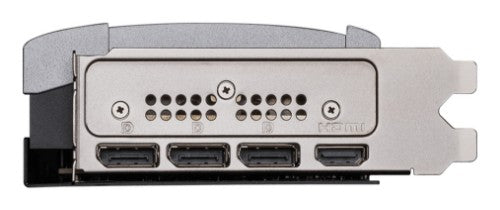

DisplayPorts quantity	3
Interface type	PCI Express 5.0
Video
DirectX version	12 Ultimate
OpenGL version	4.6
HDMI version	2.1b
HDCP	Yes
CUDA cores	8960
Performance
NVIDIA G-SYNC	Yes
DirectX version	12 Ultimate
OpenGL version	4.6
HDCP	Yes
Overclocked (OC) edition	Yes
Design
Number of fans	3 fan(s)
Cooling type	Active
Form factor	Full-Height/Full-Length (FH/FL)
Product colour	Aluminium, Black
Power
Supplementary power connectors	1x 16-pin
Power consumption (typical)	300 W
Minimum system power supply	750 W
Technical details
Cooling type	Active
Form factor	Full-Height/Full-Length (FH/FL)
Product colour	Aluminium, Black
System requirements
Minimum system power supply	750 W
Weight & dimensions
Weight	1.07 kg
Height	121 mm
Depth	49 mm
Length	303 mm
Packaging data
Package type	Box
Package weight	1.57 kg
