MSI

MSI MAG A1000GL PCIE5 WHITE power supply unit 1000 W 24-pin ATX ATX

SKU MAG A1000GL PCIE5 WHITE
£126.06
£126.06
Excluding taxes
1000W, 100-240V, 50-60 Hz, 135 mm, 80 PLUS Gold

Key Features

  • ATX 3.1 ready, native dual-color PCIe CEM 5.1 connector
  • Supports NVIDIA® GeForce RTX™ 40 / 50 series graphics cards
  • Fully modular design, flat cables
  • 80 PLUS Gold certified for high efficiency
  • Active PFC design
  • Protection with OVP / OCP / OPP / OTP / SCP / UVP
  • 135 mm fluid dynamic bearing fan
  • LLC half bridge topology with DC-to-DC module design

Description

ATX 3.1 Ready
The gaming power supply can hold up to 2x total power excursion and 3x GPU power excursion, remaining stable when paired with high performing graphics cards.

THE POWER YOU HAVE
The single rail supply of power can properly deliver the power you need. For high-performance graphics cards and CPUs, this power supply's CPU & PCIe connectors are more than plenty.

PROTECTION MECHANISMS
To make sure the entire system can operate safely and stably at all times, the power supply comes with a number of protection mechanisms to give you the best peace of mind.

Specifications

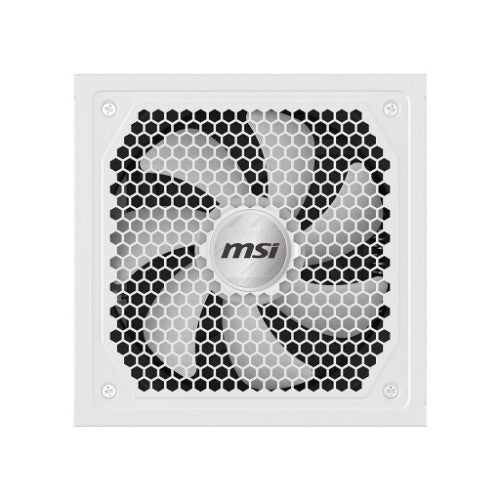

Cooling
Fan diameter 13.5 cm
Number of fans 1 fan(s)
Fan speed 500 - 1800 RPM
Cooling type Active
Performance
On/off switch Yes
Power supply unit (PSU) form factor ATX
80 PLUS certification 80 PLUS Gold
Purpose PC
ATX version 3.1
Bearing technology FDB
Design
80 PLUS certification 80 PLUS Gold
Product colour White
Fan diameter 13.5 cm
On/off switch Yes
Number of fans 1 fan(s)
Illumination No
Fan speed 500 - 1800 RPM
Cooling type Active
Power
Total power 1000 W
AC input voltage 100 - 240 V
AC input frequency 50/60 Hz
Power Factor Correction (PFC) type Active
Combined power (+3.3V) 120 W
Combined power (+12V) 999.6 W
Combined power (+5V) 120 W
Combined power (-12V) 3.6 W
Combined power (+5Vsb) 15 W
Max output current (+3.3V) 22 A
Max output current (+12V) 83.3 A
Max output current (+5V) 22 A
Max output current (-12V) 0.3 A
Max output current (+5Vsb) 3 A
Power protection features Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Efficiency 90%
Number of +12V rail(s) 1

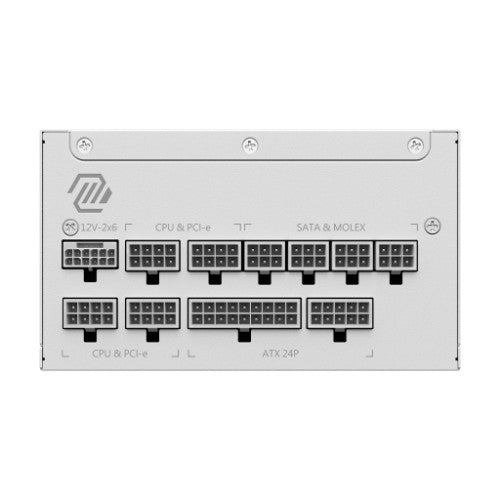

Ports & interfaces
Motherboard power cable length 60 cm
SATA power cable length 150,500 mm
Peripheral (Molex) power cable length 450,500 mm
Motherboard power connector 24-pin ATX
Number of SATA power connectors 12
Peripheral (Molex) power connectors (4-pin) 1
EPS power connector (8-pin) No
PCI Express power connectors (6+2 pin) 4
Cabling type Fully-Modular
EPS power connector (4+4 pin) Yes
PCI Express power connectors (16-pin) 1
Weight & dimensions
Width 150 mm
Depth 150 mm
Height 86 mm
Weight 169 g
Certificates
80 PLUS certification 80 PLUS Gold
