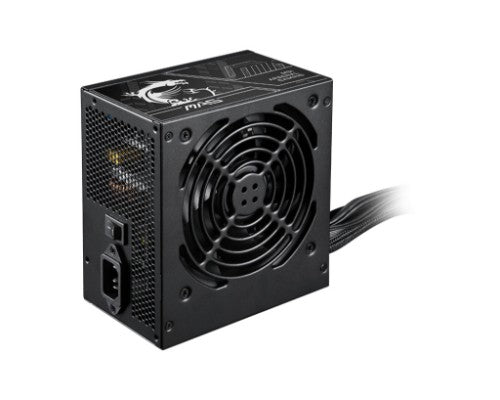

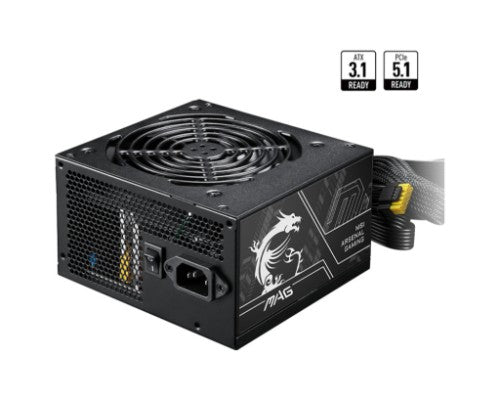

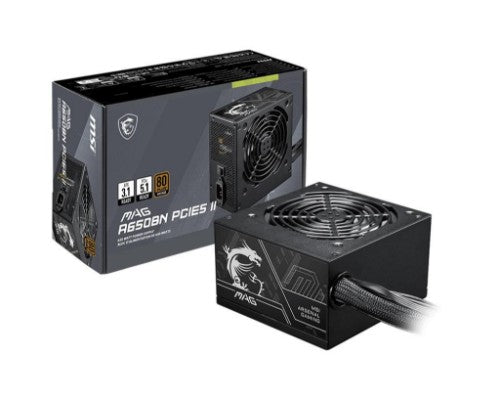

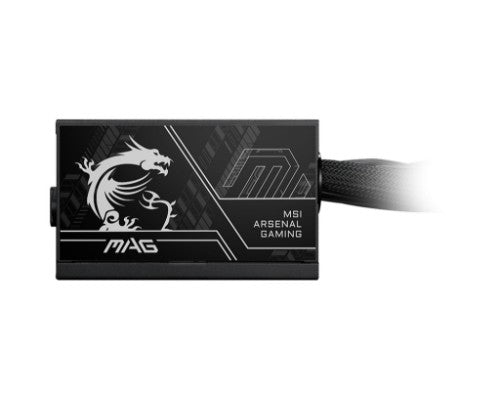

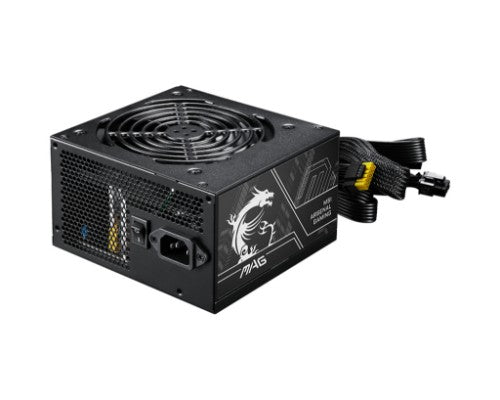

MSI MAG A650BN PCIE5 II power supply unit 650 W 20+4 pin ATX ATX Black

650W, 120 mm, PCIe 5.1, ATX 3.1, 24 PIN x1, 4+4 PIN / 8 PIN x2, 16 PIN x1, 6+2 PIN x2, 15 PIN x3, 4 PIN x2, 120mm x 120mm x 25.6mm

Key Features

• Dual-color 12V-2x6 Cable
• ATX 3.1 Ready
• PCIe 5.1 Ready (300W)
• 80 PLUS Bronze
• 120mm Fan
• DC to DC power Design
• Active PFC Design
• Industrial level protection with OVP, OCP, SCP, OPP, UVP

Description

MSI's mainstream MAG series epitomizes stability and durability and is built to withstand the most intense gaming sessions. The entire lineup features robust construction with metallic-like hardness and excellent heat dissipation, ensuring stability for all critical gaming components.

80 PLUS BRONZE CERTIFIED
The efficiency of your power supply directly influences your system’s performance and your power consumption. The 80 PLUS BRONZE certification promises lower energy consumption and higher efficiency.

ATX 3.1 READY
It has an output port that is compliant with PCIe CEM 5.1 and Intel PSDG (Power Supply Design Guide)ATX 3.1, also this power supply can hold up to 2x total power excursion and 3x GPU power excursion.

Dual-color 12V-2x6 cable
The 12V-2x6 cable’s connector color has been changed to yellow so that users can easily see if the connector has been plugged in properly.

Offer the CPU sufficient power
This power supply features dual 4+4-pin PCIe power connectors, providing ample 12V power to support high-performance CPUs.

POWER AT YOUR SIDE
The power supply is built with DC-to-DC construction, ensuring top-tier efficiency and unwavering voltage stability for your system.

SET FREE FOR THE +12V POWER OUTPUT
The latest CPUs and graphics cards demand more power, and a single +12V rail PSU provides an ideal combination of simplicity, robust power delivery.

Alloy Copper Connector Terminals
The cable connectors are made of copper alloy terminals so that thepower supply will be safer when there is a higher surge in current.

PROTECTION MECHANISMS
operate safely and stably at all times, this power supply comes with a number of protection mechanisms to give you the best peace of mind.

connectors
This non-modular power supply equipped with black flat cables, making cable management.

Specifications

Cooling
Fan diameter	12 cm
Number of fans	1 fan(s)
Cooling type	Active
Performance
On/off switch	Yes
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Bronze
Purpose	PC
ATX version	3.1
Design
80 PLUS certification	80 PLUS Bronze
Product colour	Black
Fan diameter	12 cm
On/off switch	Yes
Number of fans	1 fan(s)
Illumination	No
Cooling type	Active
Power
Total power	650 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	120 W
Combined power (+12V)	648 W
Combined power (+5V)	120 W
Combined power (+5Vsb)	15 W
Max output current (+3.3V)	20 A
Max output current (+12V)	54 A
Max output current (+5V)	0.3 A
Max output current (+5Vsb)	3 A
Power protection features	Over current, Over power, Over voltage, Short circuit, Under voltage
Efficiency	85%
Ports & interfaces
Motherboard power cable length	55 cm
Motherboard power connector	20+4 pin ATX
Number of SATA power connectors	3
Peripheral (Molex) power connectors (4-pin)	2
EPS power connector (8-pin)	Yes
PCI Express power connectors (6+2 pin)	2
CPU power connector (4+4 pin)	Yes
PCI Express connector	Yes
Floppy disk drive connector	No
ATX Power connector (24-pin)	No
ATX power connector (20+4 pin)	Yes
Cabling type	Non-Modular
EPS power connector (4+4 pin)	Yes
Weight & dimensions
Width	150 mm
Depth	140 mm
Height	86 mm
Certificates
80 PLUS certification	80 PLUS Bronze
