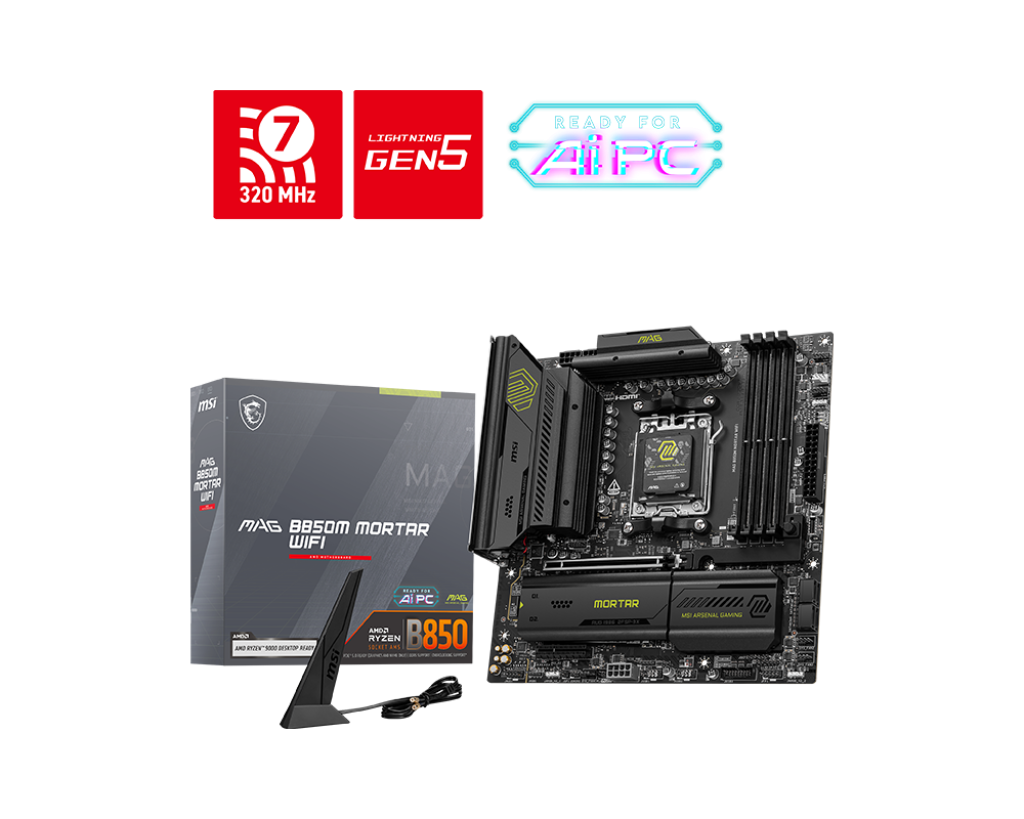

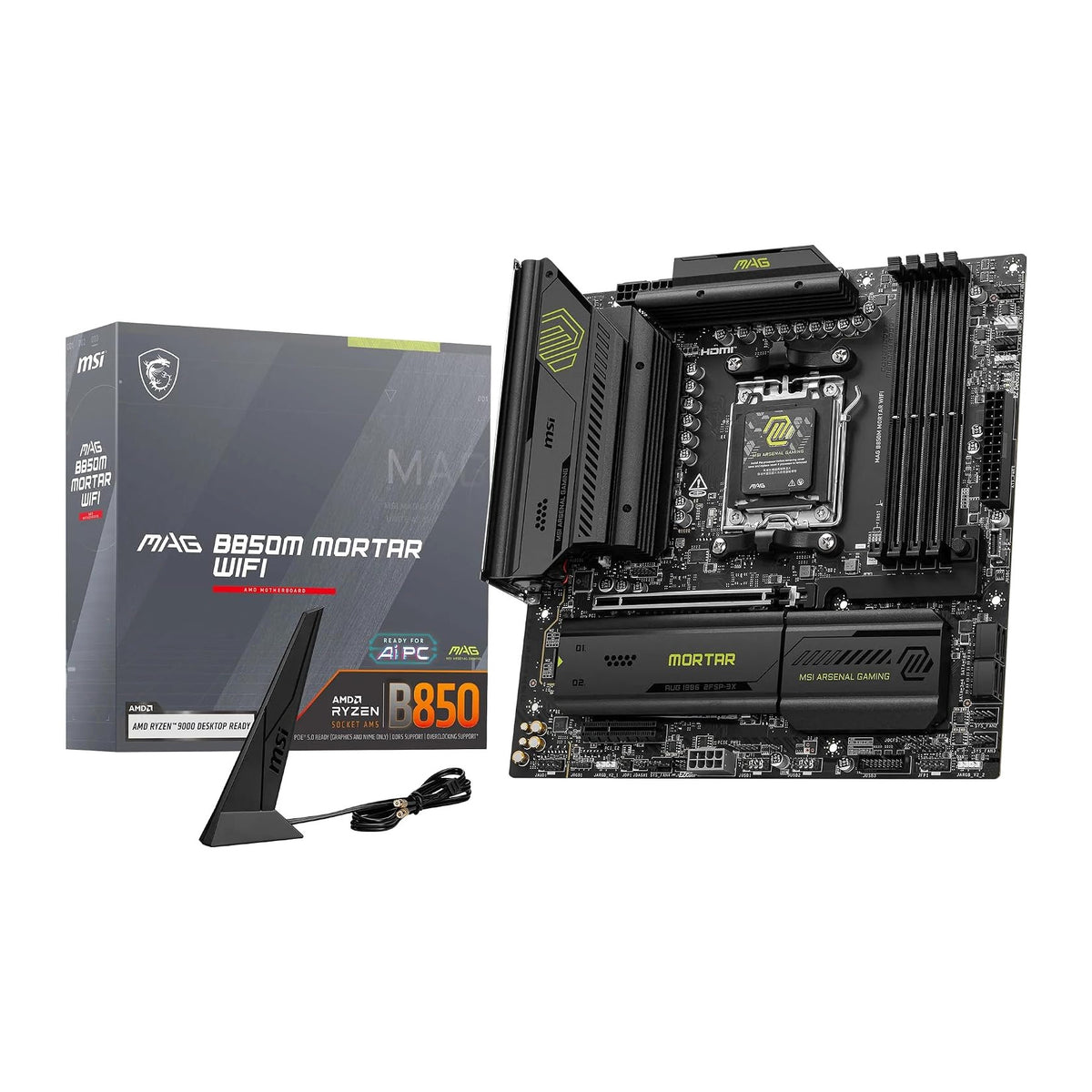

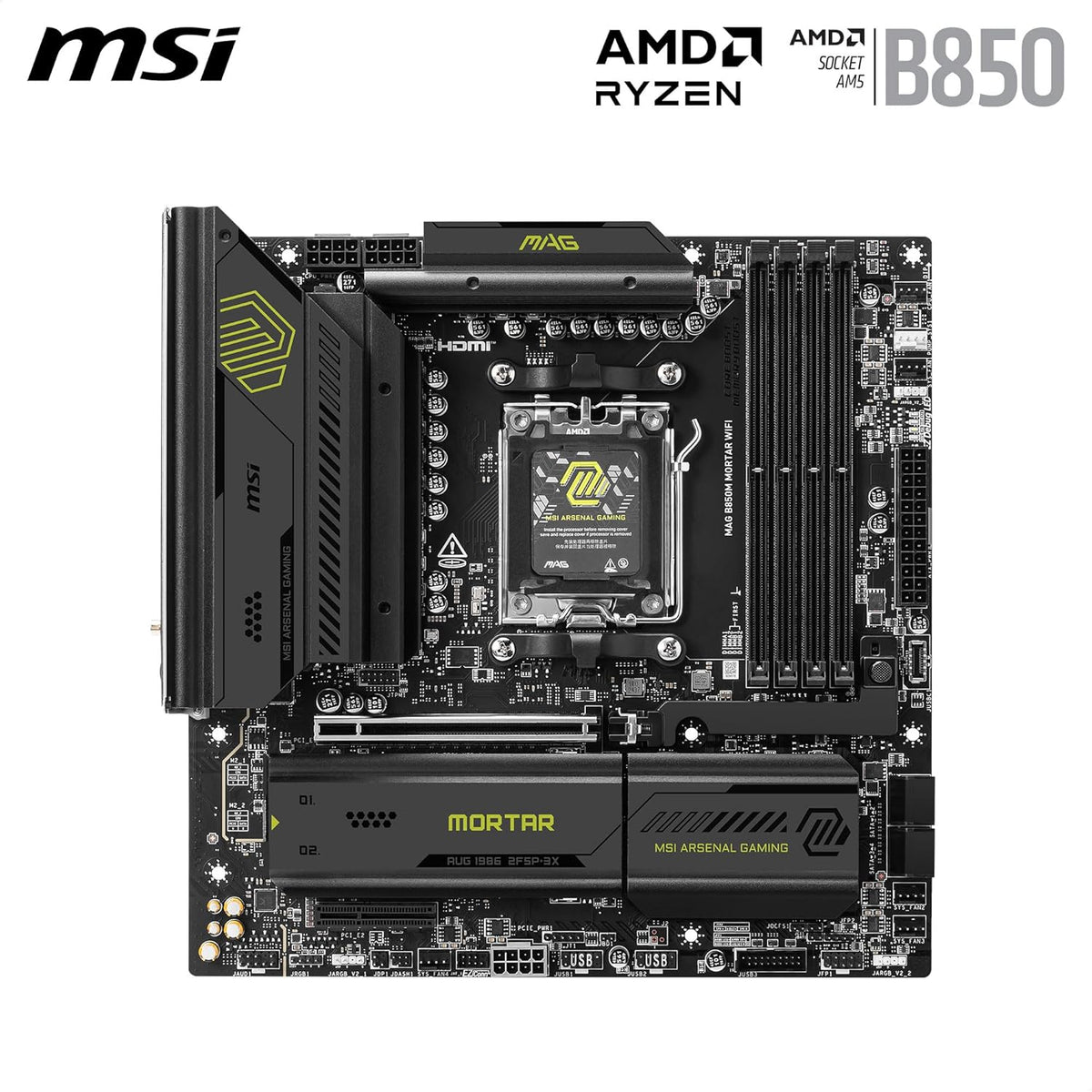

The MSI MAG B850M MORTAR WIFI is a Micro-ATX motherboard for PC builders using an AMD Ryzen 9000, 8000 or 7000 series desktop processor. Its compact form factor suits gaming and general purpose builds where space is limited but fast networking and modern storage are priorities.

The AMD B850 chipset and AM5 socket provide the platform for supported Ryzen processors, while four DDR5 memory slots support dual-channel memory. For fast storage, it has three M.2 connectors, including two PCIe 5.0 x4 slots, alongside four SATA ports. Built-in Wi-Fi 7, Bluetooth 5.4 and 5G LAN offer wired and wireless network options without requiring a separate network card. A rear USB Type-C port supports transfer speeds up to 20Gbps.

Key features

• Supports AMD Ryzen 9000, 8000 and 7000 series desktop processors.
• Four DDR5 UDIMM slots support up to 256GB of memory.
• Two PCIe 5.0 x4 M.2 slots and one PCIe 4.0 x2 M.2 slot provide storage expansion.

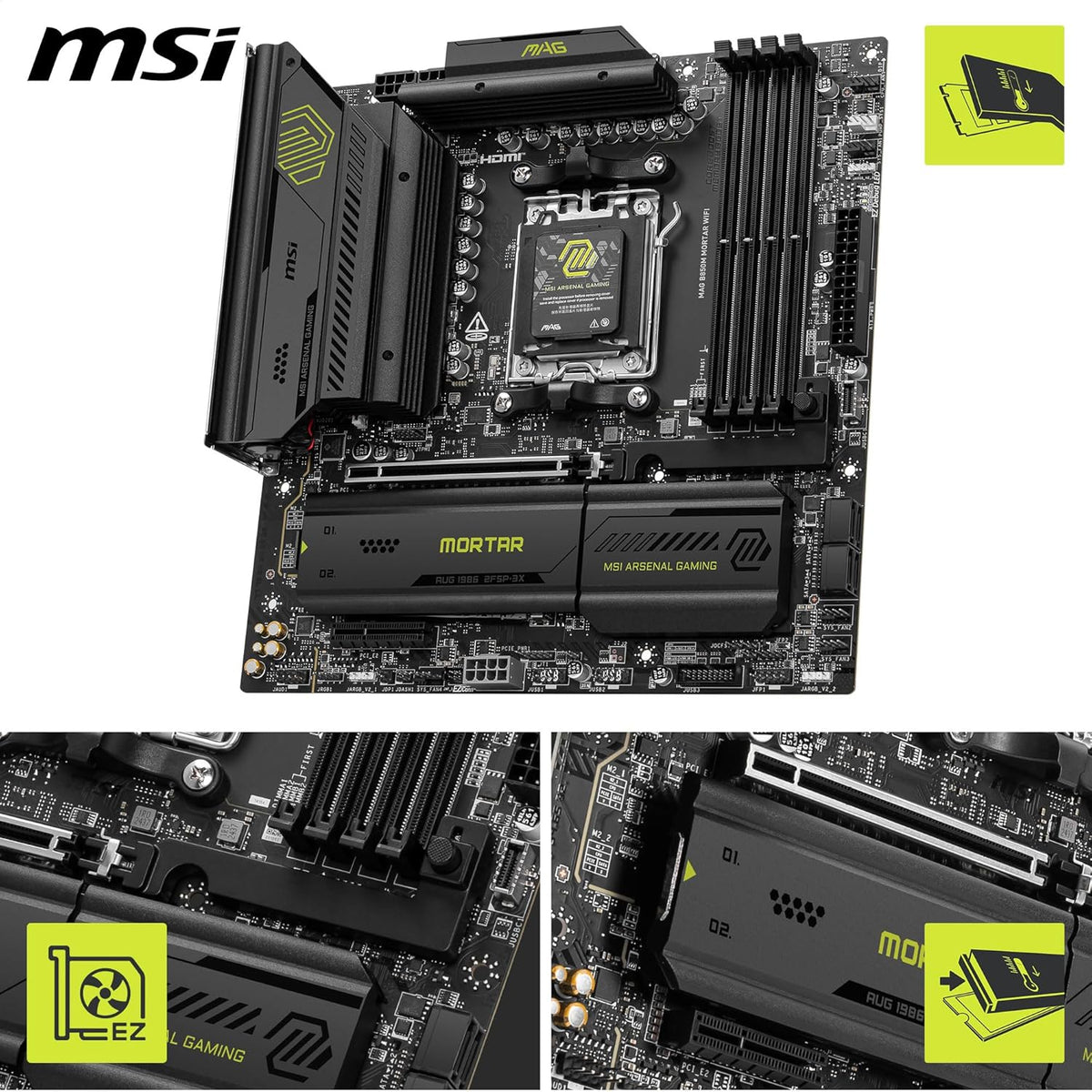

• EZ M.2 Shield Frozr II helps with M.2 SSD installation and cooling.
• Wi-Fi 7 and Bluetooth 5.4 are built in, with a pre-installed wireless module.
• 5G LAN provides a wired network connection.
• PCIe 5.0 x16 graphics slot includes a release button for easier card removal.

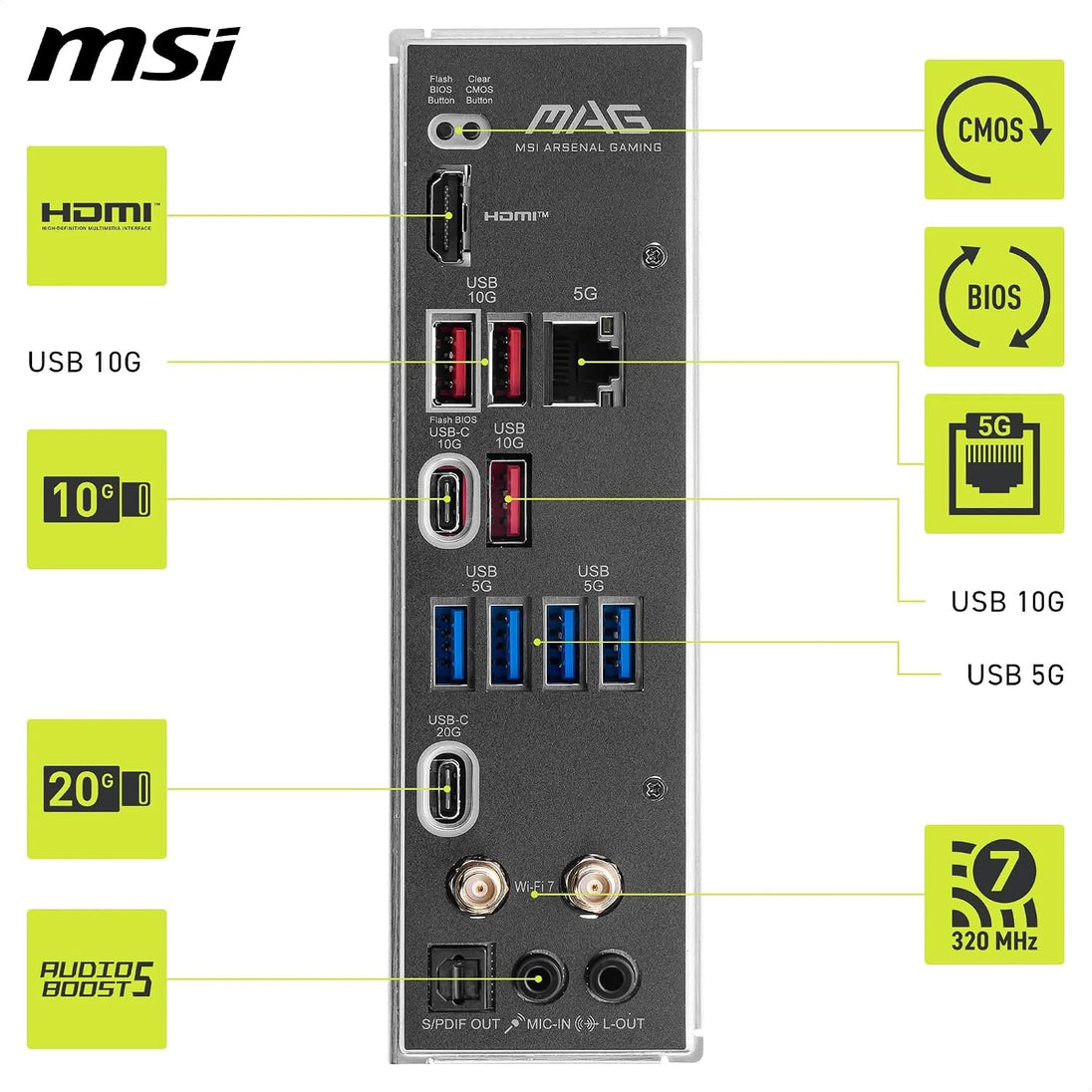

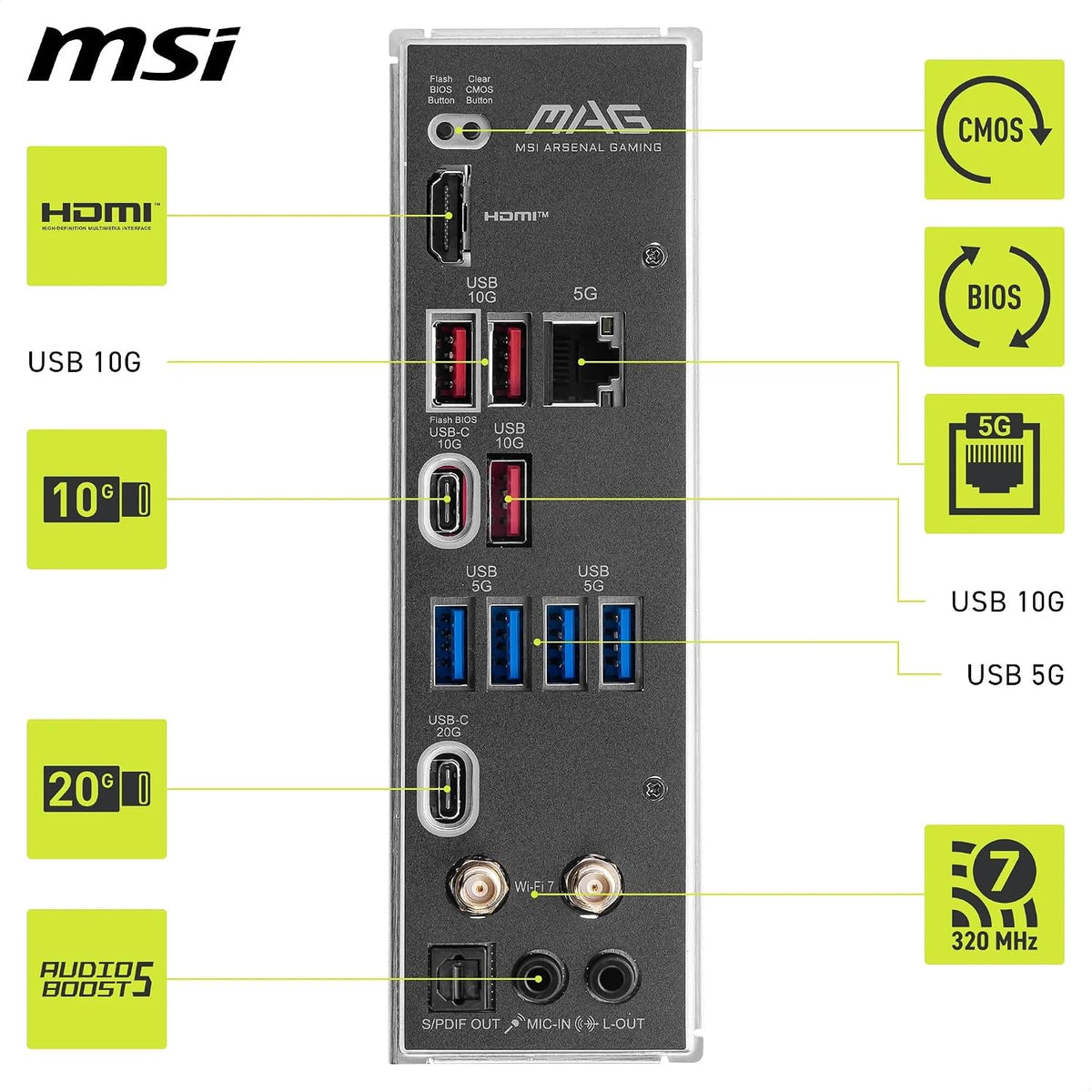

• USB Type-C connectivity includes a 20Gbps rear port.

Compatibility

Use an AMD Ryzen 9000, 8000 or 7000 series desktop processor with an AM5 socket, and DDR5 memory. The board is Micro-ATX. Its HDMI output requires a processor with integrated graphics. Good to know: the HDMI output will not provide graphics with a processor that lacks integrated graphics; check your CPU before relying on it instead of a separate graphics card.

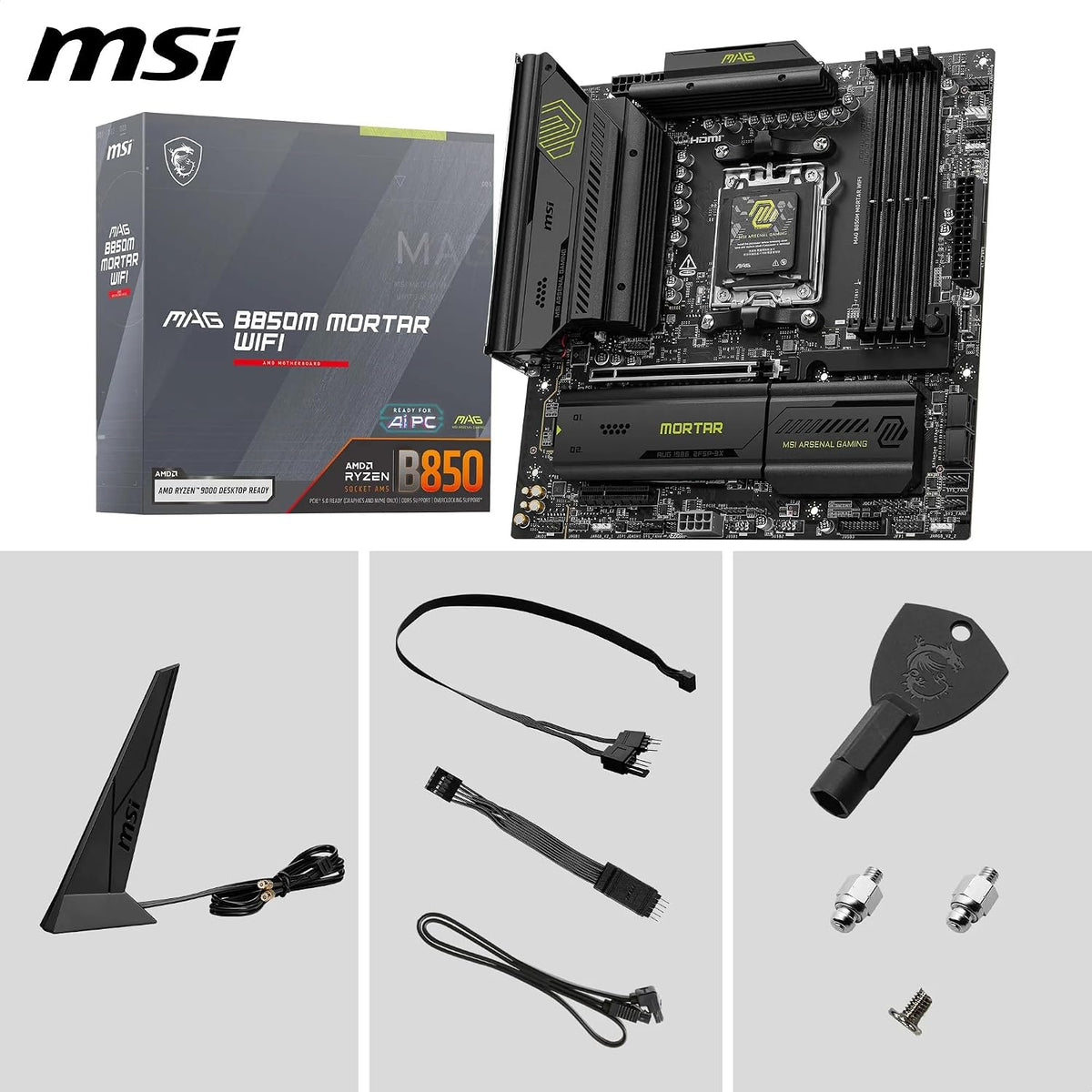

In the box

• MSI MAG B850M MORTAR WIFI

Specifications

With fast M.2 storage, current-generation wireless networking and a compact Micro-ATX layout, this board gives a capable foundation for a Ryzen gaming or productivity PC.
