MSI

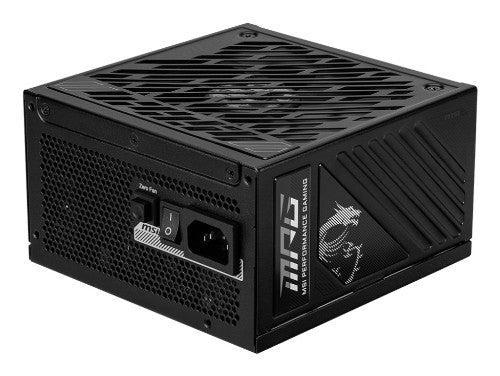

MSI MPG A1000GS PCIE5 power supply unit 1000 W 24-pin ATX ATX Black

SKU MPG A1000GS PCIE5
£143.14
£143.14
Excluding taxes
1000W, 135 mm, 80 PLUS Gold

Description

Featuring ATX 3.1 and PCIe 5.1 support with two 12V-2x6 connectors, these PSUs are built to handle NVIDIA’s 50 series graphics cards and AI PCs with ease. Advanced thermal solutions ensure cool, stable, and efficient operation, even under heavy loads, giving you the reliability and durability you need for gaming, streaming, or AI-powered tasks.

Specifications

Cooling
Fan diameter 13.5 cm
Cooling type Active
Design
80 PLUS certification 80 PLUS Gold
Product colour Black
Fan diameter 13.5 cm
Illumination No
Cooling type Active
Power
Total power 1000 W
AC input voltage 100 - 240 V
AC input frequency 50/60 Hz
Power Factor Correction (PFC) type Active
Combined power (+3.3V) 120 W
Combined power (+12V) 1000 W
Combined power (+5V) 120 W
Combined power (-12V) 3.6 W
Combined power (+5Vsb) 15 W
Max output current (+3.3V) 22 A
Max output current (+12V) 83.3 A
Max output current (+5V) 22 A
Max output current (-12V) 0.3 A
Max output current (+5Vsb) 3 A
Efficiency 90%

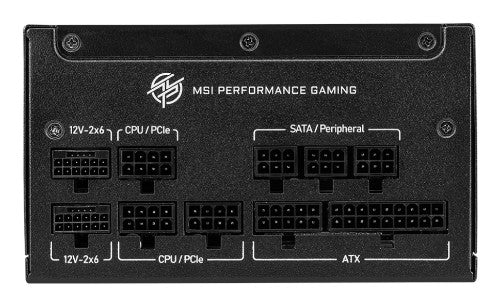

Ports & interfaces
Motherboard power cable length 60 cm
Motherboard power connector 24-pin ATX
Number of SATA power connectors 8
Peripheral (Molex) power connectors (4-pin) 4
EPS power connector (8-pin) No
PCI Express power connectors (6+2 pin) 1
Cabling type Fully-Modular
EPS power connector (4+4 pin) Yes
PCI Express power connectors (16-pin) 2
Performance
Power supply unit (PSU) form factor ATX
80 PLUS certification 80 PLUS Gold
Purpose PC
Bearing technology FDB
Weight & dimensions
Width 150 mm
Depth 150 mm
Height 86 mm
Certificates
80 PLUS certification 80 PLUS Gold
