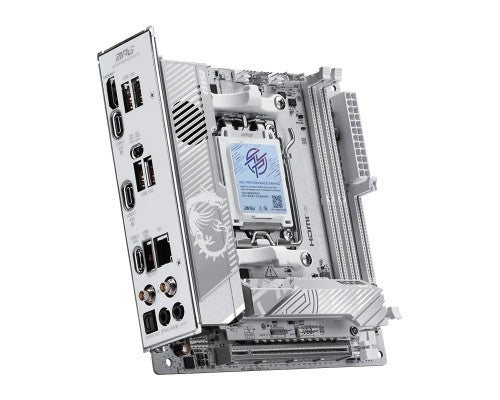

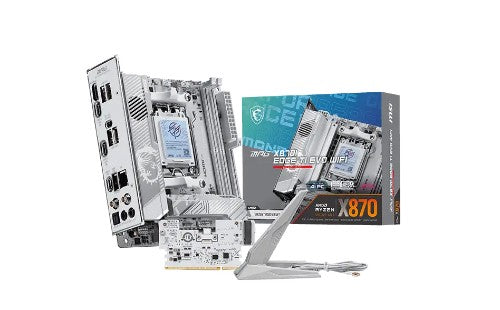

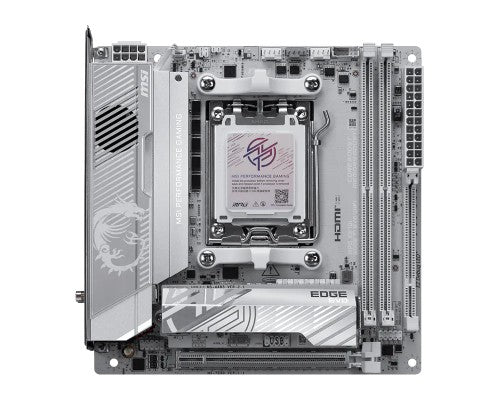

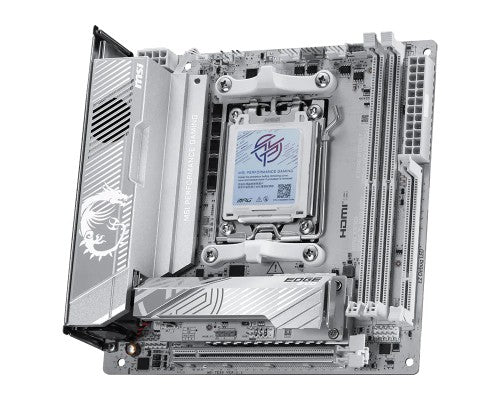

MSI MPG X870I EDGE TI EVO WIFI motherboard AMD X870 Socket AM5 mini ITX

Socket AM5, AMD X870 Chipset, 2 x DDR5-SDRAM up to 256GB, LAN, WLAN, 1 x RJ-45, 2 x SATA III, 1 x M.2(M), UEFI AMI, Mini ATX

Key Features

• Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
• Supports DDR5 Memory, Dual Channel DDR5 10000+ MT/s (OC)
• Ultra Performance: 8+2+1 Duet Rail Power System, Core Boost, Memory Boost, 12-layer PCB made by 1oz thickened copper and server-grade level material
• Frozr Guard: Enlarged heatsink, MOSFET thermal pads rated for 7W/mk and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
• EZ DIY: EZ Antenna, EZ Conn-Design and EZ Front Panel Cable
• Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 M.2
• Ultra Connect: USB4 and 5G LAN with Wi-Fi 7 Solution - The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
• Audio Boost 5: Reward your ears with studio grade sound quality for the most immersive gaming experience

Description

MPG X870I EDGE TI EVO WIFI is covered with a silver-white color scheme for white PC build lovers to show off different identity. It is also powerful because of its true Wi-Fi 7 solution, 5G LAN, USB4, and the latest PCIe 5.0 compatibility, and this is the best white theme X870 ITX motherboard for AMD Ryzen™ 9000 series processors.

Specifications

Internal I/O
Number of M.2 (M) slots	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Total number of SATA connectors	2
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
mSATA ports quantity	0
Number of SATA connectors	0
Number of SATA III connectors	2
Number of SATA II connectors	0
EPS power connector (8-pin)	Yes
CPU fan connector	Yes
ATX Power connector (24-pin)	Yes
Technical details
Motherboard chipset family	AMD
Motherboard chipset	AMD X870
Supported processor sockets	Socket AM5
PC health monitoring	CPU, Fan, Temperature, Voltage
On-board graphics card	No
HDMI version	2.1
Motherboard form factor	mini ITX
Component for	PC
Total number of SATA connectors	2
Audio
Audio output channels	7.1 channels
Performance
Number of HDDs supported	2
Supported storage drive types	HDD & SSD
Motherboard chipset family	AMD
Motherboard chipset	AMD X870
RAID levels	0, 1, 5, 10
Supported processor sockets	Socket AM5
PC health monitoring	CPU, Fan, Temperature, Voltage
Audio output channels	7.1 channels
Motherboard form factor	mini ITX
Component for	PC
Processor
Processor manufacturer	AMD
Compatible processor series	AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported processor sockets	Socket AM5
Processor socket	Socket AM5
Memory
Number of memory slots	2
Memory slots type	DIMM
Supported memory types	DDR5-SDRAM
Memory channels	Dual-channel
Supported memory clock speeds	9000,8000,7000 MHz
Maximum internal memory	256 GB
Supported memory clock speed (max)	9000 MHz
ECC сompatibility	Non-ECC
Storage controllers
Number of HDDs supported	2
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
RAID levels	0, 1, 5, 10
Number of storage drives supported	3
RAID support	Yes
Graphics
On-board graphics card	No

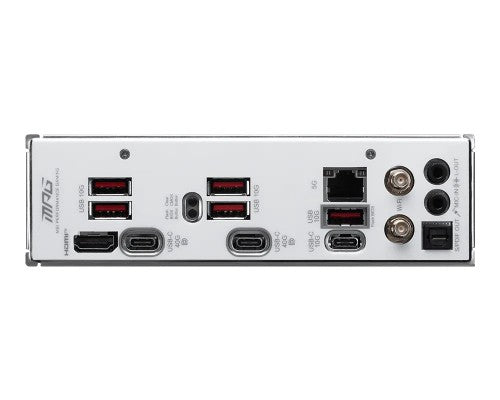

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB 2.0 ports quantity	0
VGA (D-Sub) ports quantity	0
S/PDIF out port	Yes
Microphone in	Yes
HDMI version	2.1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
DVI-D ports quantity	0
DisplayPorts quantity	2
USB4 Gen 2x2 ports quantity	1
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
LAN controller	Realtek RTL8126
Ethernet interface type	5 Gigabit Ethernet
Bluetooth	Yes
Bluetooth version	5.4
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Features
Motherboard chipset family	AMD
Motherboard chipset	AMD X870
Supported processor sockets	Socket AM5
PC health monitoring	CPU, Fan, Temperature, Voltage
Audio output channels	7.1 channels
Motherboard form factor	mini ITX
Component for	PC
Audio chip	Realtek ALC4080
Product colour	White
Expansion slots
Number of M.2 (M) slots	1
PCI Express x16 (Gen 3.x) slots	1
PCI Express x16 (Gen 4.x) slots	1
PCI Express x16 (Gen 5.x) slots	1
1st M.2 largest key size	2280
1st M.2 highest PCI Express generation	5.0
BIOS
BIOS type	UEFI AMI
BIOS memory size	512 Mbit
ACPI version	6.5
System Management BIOS (SMBIOS) version	3.7
Weight & dimensions
Width	170 mm
Depth	170 mm
Other features
mSATA ports quantity	0
