Neomounts DS70-250SL2 Monitor arm 17-32" - gas spring - Topfix - 180°-stop

Neomounts NEXT Slim DS70-250SL2 Dual monitor arm - 17-32" - 1-9 kg/screen (curved 8 kg/screen) - gas spring - 180°-stop - Topfix - Easy Install-model - 100% plastic-free packaging - silver

Description

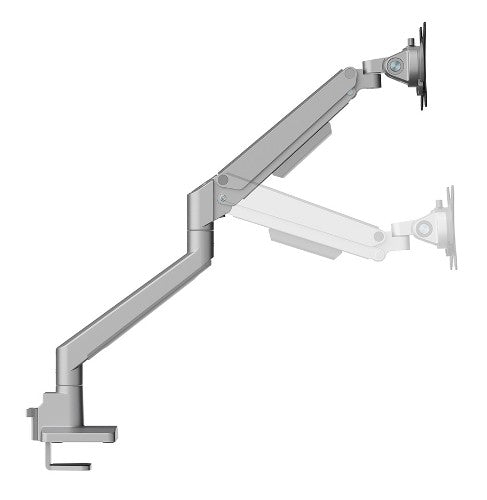

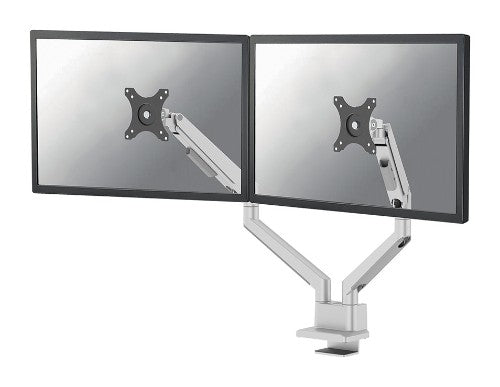

The Neomounts DS70-250SL2 NEXT Slim is a full motion desk mount designed for two screens up to 32", boasting a maximum weight capacity of 9 kg per screen. The versatile tilt (90°), rotate (360°) and swivel (180°) technology enables seamless adjustment to any desired viewing angle to fully optimize the screen's capabilities. With the gas spring height adjustment (21,5-49,5 cm) and depth adjustment (7-52,5 cm) you can effortlessly adjust the mount to suit your ergonomic needs.

The DS70-250SL2 monitor arm features a nifty 180° stop mechanism, that prevents the mount from making contact with wall or separation panel when installed near it, while the integrated cable management system maintains a clutter-free desk.

The elegant black VESA plates of the NEXT Slim provide a perfect match with your screen, accommodating standard 75x75 or 100x100 mm VESA patterns. For non-standard hole patterns, Neomounts has various VESA optional adapter plates available. The Quick-release VESA system enables easy setup, while the topfix clamp or grommet ensures a quick and straightforward installation.

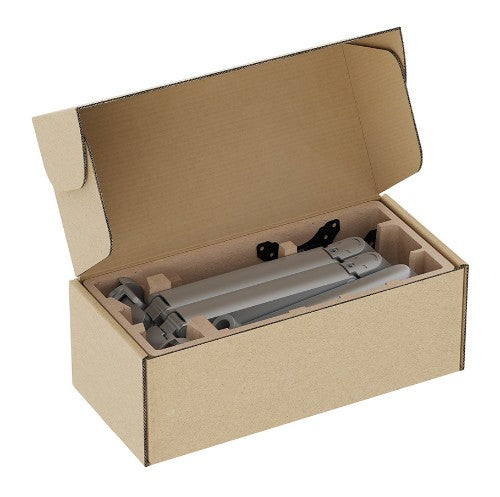

Committed to sustainability, the packaging of NEXT Slim desk mounts is 100% plastic-free and entirely made from recyclable cardboard and paper.

Specifications

Mounting
Maximum weight capacity (per display)	9 kg
Desk thickness (min)	1 cm
Desk thickness (max)	5 cm
Minimum screen size	43.2 cm (17")
Panel mounting interface	100 x 100,75 x 75 mm
Number of displays supported	2
Mounting type	Desk
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	100 x 100 mm
Mounting	Clamp/Grommet
Distance to the wall (min)	12 cm
Distance to the wall (max)	40.4 cm
Maximum weight capacity	9 kg
Maximum screen size	81.3 cm (32")
Maximum weight capacity (per curved/ultra-wide display)	8 kg
Ergonomics
Cable management	Yes
Adjustable depth	Yes
Depth adjustment range	70 - 525 mm
Height adjustment	Yes
Height adjustment range	215 - 495 mm
Pivot angle	-180 - 180°
Swivel angle range	-90 - 90°
Swivel angle	90°
Tilt angle range	-45 - 45°
Angle of rotation	360°
Height adjustment type	Gas spring
Rotating	Yes
Tilt adjustment	Yes
Swivelling	Yes
Width adjustment	98.4 cm
Design
Product colour	Silver
Housing material	Aluminium
Orientation	Landscape/Portrait
Accepts padlock	No
Technical details
Mounting type	Desk
Minimum weight	1 kg
Distance to the wall (min)	12 cm
Distance to the wall (max)	40.4 cm
Product colour	Silver
Width adjustment range	0 - 984 mm
Cable management	Yes
Warranty period	5 year(s)
Weight & dimensions
Width	114 mm
Depth	580 mm
Height	552 mm
Weight	4.35 kg
Package width	192 mm
Package depth	147 mm
Package height	430 mm
Package weight	4.9 kg
Packaging data
Package width	192 mm
Package depth	147 mm
Package height	430 mm
Package weight	4.9 kg
Other features
Minimum weight	1 kg
Width adjustment range	0 - 984 mm
Warranty period	5 year(s)
Mounting type	Desk
Mounting	Clamp/Grommet
Country of origin	China
Logistics data
Master (outer) case width	405 mm
Master (outer) case length	310 mm
Master (outer) case height	445 mm
Master (outer) case gross weight	20.7 kg
Products per master (outer) case	4 pc(s)
Country of origin	China
Products per pallet (EU)	80 pc(s)
Master (outer) case net weight	17.4 kg
Harmonized System (HS) code	7616991099
