Neomounts FPMA-D550DBLACK Monitor arm 10-32"

Neomounts FPMA-D550DBLACK Dual monitor arm - 10-32" - 0-8 kg/screen - black

Description

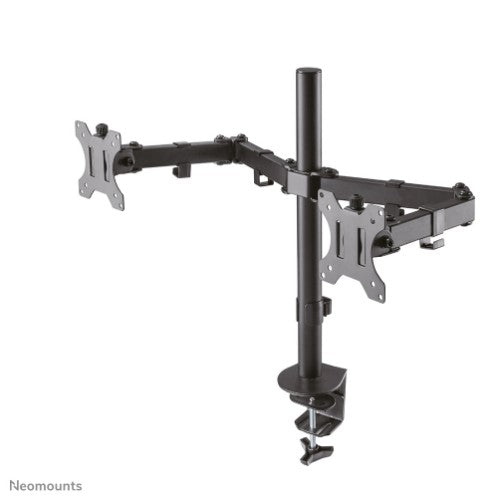

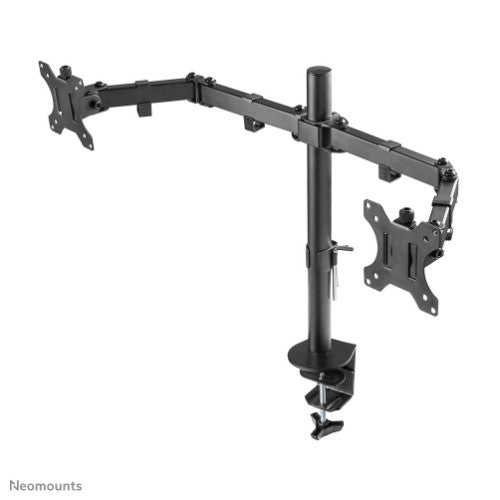

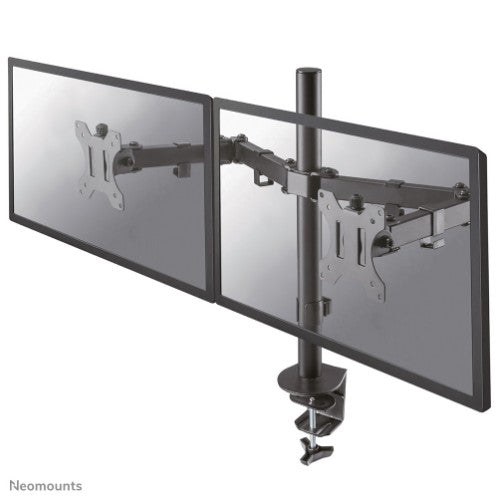

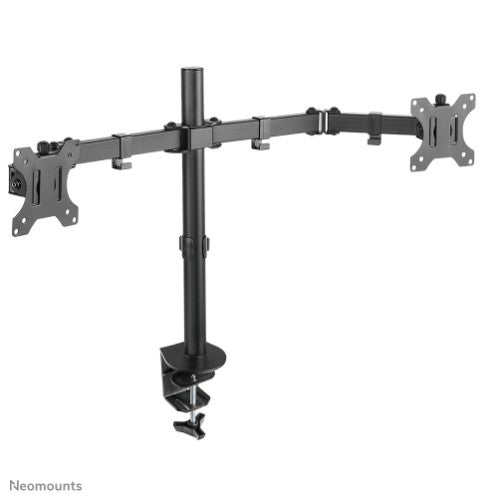

The Neomounts desk mount, model FPMA-D550DBLACK is a tilt-, swivel and rotatable desk mount for 2 flat screens up to 32". This mount is a great choice for space saving placement on desks using a desk clamp or grommet mount.

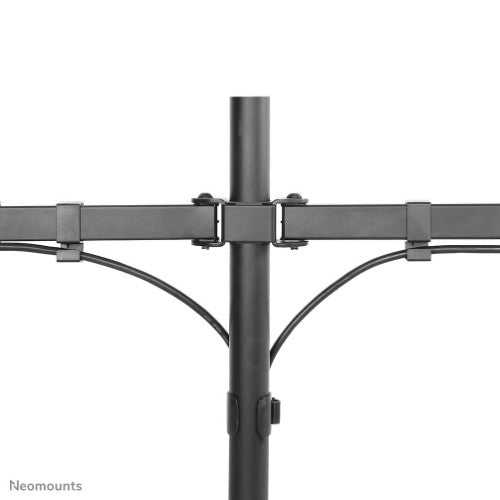

Neomounts versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is manually height adjustable from 0 to 44 centimetres. Depth adjustable from 4 to 46 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.

Neomounts FPMA-D550DBLACK has three pivot points and is suitable for screens up to 32". The weight capacity of this product is 8 kg each screen. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.

By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.

All installation material is included with the product.

Specifications

Mounting
Maximum weight capacity (per display)	8 kg
Desk thickness (min)	1 cm
Desk thickness (max)	8.8 cm
Minimum screen size	25.4 cm (10")
Panel mounting interface	100 x 100,75 x 75 mm
Number of displays supported	2
Mounting type	Desk
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	100 x 100 mm

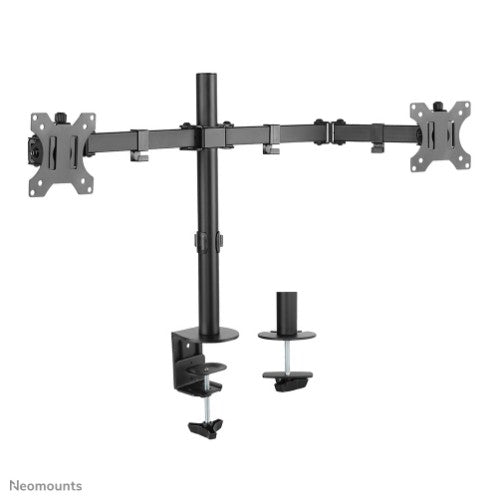

Mounting	Clamp/Grommet
Maximum weight capacity	8 kg
Maximum screen size	81.3 cm (32")
Ergonomics
Cable management	Yes
Adjustable depth	Yes
Depth adjustment range	40 - 460 mm

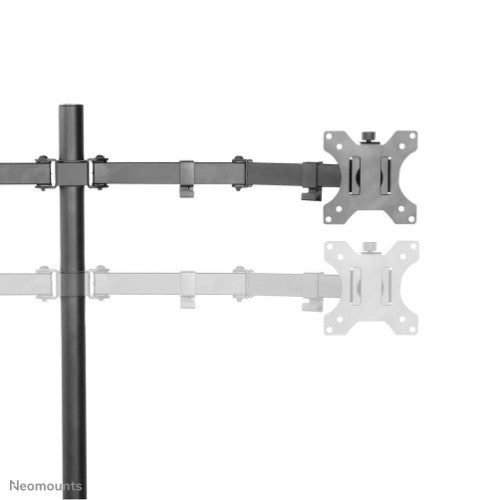

Height adjustment	Yes
Height adjustment range	0 - 440 mm
Swivel angle range	0 - 180°
Swivel angle	180°
Tilt angle range	0 - 90°
Angle of rotation	360°
Height adjustment type	Manual
Rotating	Yes
Tilt adjustment	Yes
Swivelling	Yes
Width adjustment	80 cm
Design
Product colour	Black
Housing material	Steel
Technical details
Mounting type	Desk
Product colour	Black
Width adjustment range	0 - 800 mm
Cable management	Yes
Weight & dimensions
Width	800 mm
Depth	460 mm
Height	440 mm
Weight	4.32 kg
Package width	190 mm
Package depth	120 mm
Package height	489 mm
Package weight	4.8 kg
Packaging data
Package width	190 mm
Package depth	120 mm
Package height	489 mm
Package weight	4.8 kg
Other features
Width adjustment range	0 - 800 mm
Mounting type	Desk
Mounting	Clamp/Grommet
Country of origin	China
Logistics data
Master (outer) case width	265 mm
Master (outer) case length	375 mm
Master (outer) case height	505 mm
Master (outer) case gross weight	4.8 kg
Products per master (outer) case	4 pc(s)
Country of origin	China
Products per pallet (EU)	96 pc(s)
Master (outer) case net weight	3.8 kg
Harmonized System (HS) code	7326909890
