Neomounts WL40-540BL14 TV mount wall 32-55" - full motion - easy install

Neomounts LEVEL-550 WL40-540BL14 Full motion TV mount wall - 32-55" - max 35 kg - VESA 100x100-400x400 - d 4,6-30,8 cm - Easy Install-model - black

Description

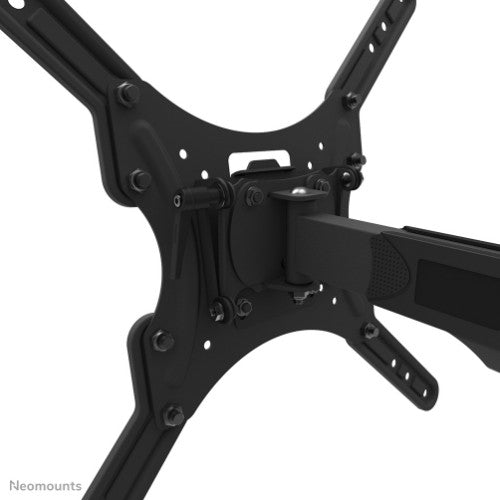

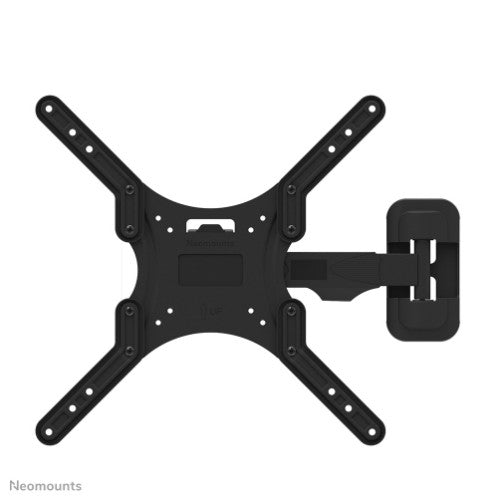

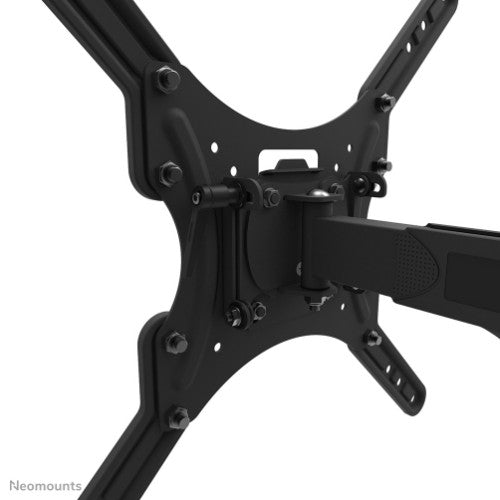

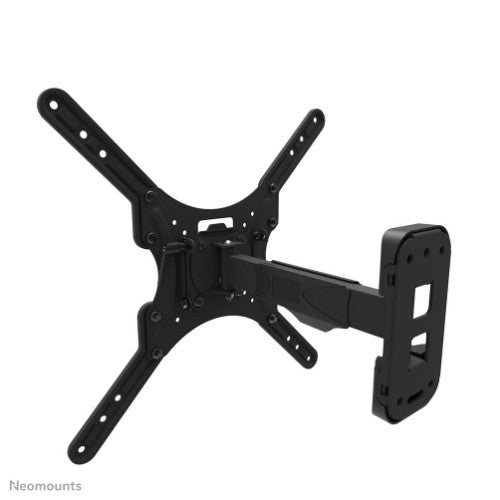

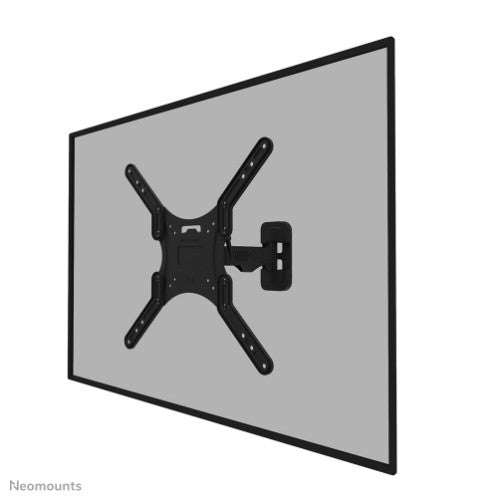

The Neomounts WL40-540BL14 LEVEL is a full motion wall mount for flat screens up to 55" with a maximum weight capacity of 35 kg. The versatile tilt (14°) and swivel (30°) technology allows you to create the optimum viewing angle. The mount can be levelled for the perfect installation.

The LEVEL-550 wall mount has a depth of 4,6-30,8 cm and is suitable for screens that meet VESA hole pattern 100x100 to 400x400 mm.

The WL40-540BL14 features a nifty Easy-release system, that allows you to attach the TV in a wink of an eye. The mount is equipped with cable management, to secure any loose cables on the back of the screen.

Specifications

Mounting
Maximum weight capacity (per display)	35 kg
Mounting type	Wall
Minimum screen size	81.3 cm (32")
Panel mounting interface	100 x 100,200 x 100,200 x 200,200 x 300,200 x 400,300 x 200,300 x 300,400 x 200,400 x 300,400 x 400
Number of displays supported	1
Minimum VESA mount	100 x 100 mm
Maximum VESA mount	400 x 400 mm
Maximum screen size	139.7 cm (55")
Maximum weight capacity	35 kg
Ergonomics
Height adjustment	No
Cable management	Yes
Tilt angle range	-2 - 12°
Swivel angle range	0 - 30°
Swivel angle	30°
Angle of rotation	6°
Pivot angle	-3 - 3°
Distance to the wall (min)	4.6 cm
Distance to the wall (max)	30.8 cm
Rotating	Yes
Tilt adjustment	Yes
Swivelling	Yes
Type	Full motion
Technical details
Cable management	Yes
Angle of rotation	6°
Pivot angle	-3 - 3°
Number of displays supported	1
Distance to the wall (min)	4.6 cm
Distance to the wall (max)	30.8 cm
Product colour	Black
Mounting type	Wall
Country of origin	China
Package net weight	3.7 kg
Master (outer) case net weight	17.5 kg
Quantity per pack	1 pc(s)
Lockable	Not lockable
Design
Cable management	Yes
Product colour	Black
Housing material	Steel
Packaging content
Mounting kit	Yes
Weight & dimensions
Width	433 mm
Depth	46 mm
Height	433 mm
Weight	2.7 kg
Depth (max)	4.6 cm
Packaging data
Package width	442 mm
Package depth	229 mm
Package height	56 mm
Package weight	3.7 kg
Mounting kit	Yes
Logistics data
Master (outer) case width	462 mm
Master (outer) case length	300 mm
Master (outer) case height	250 mm
Master (outer) case gross weight	19 kg
Products per master (outer) case	5 pc(s)
Master (outer) case net weight	17.5 kg
Products per pallet (EU)	150 pc(s)
Harmonized System (HS) code	7326909890
Other features
Mounting type	Wall
Country of origin	China
