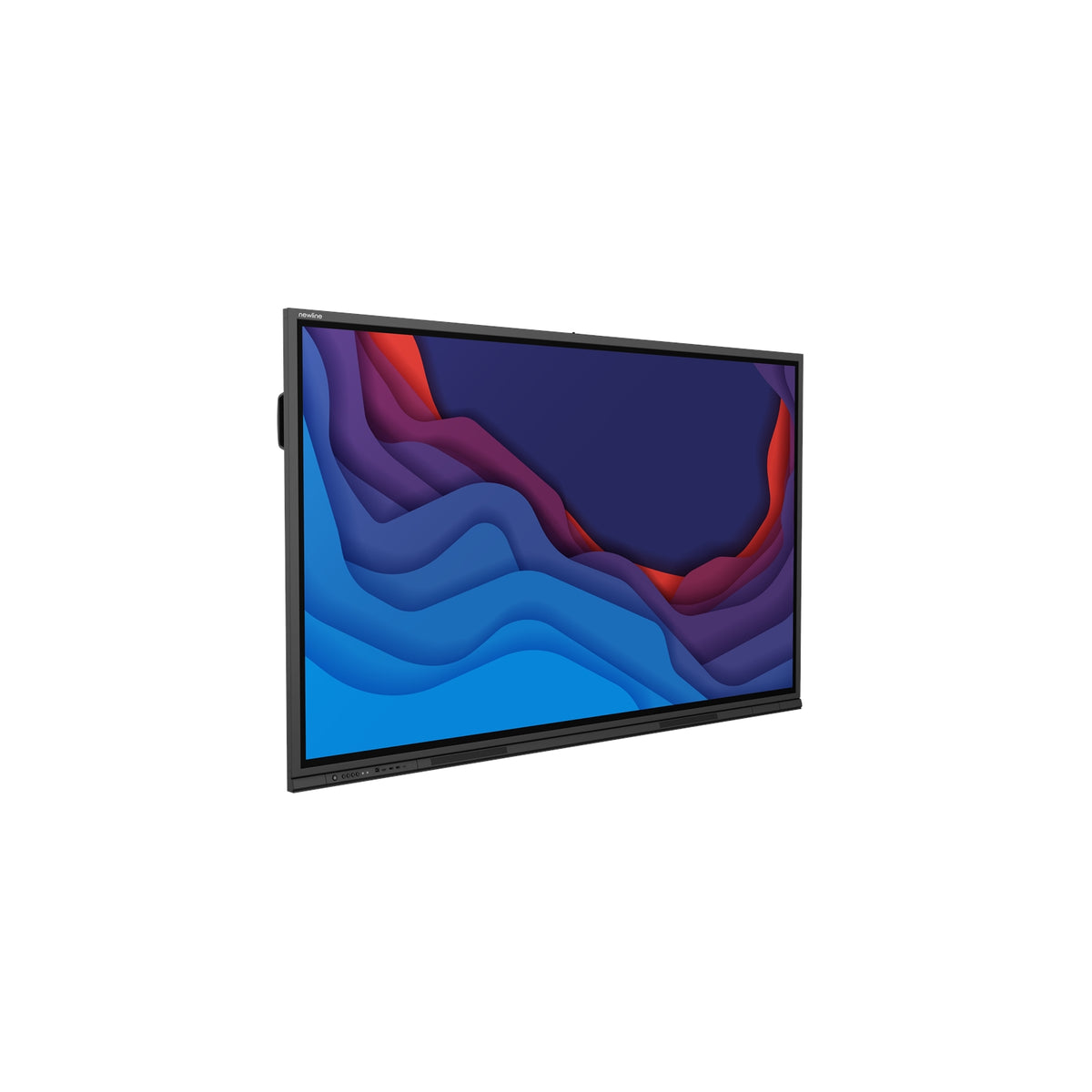

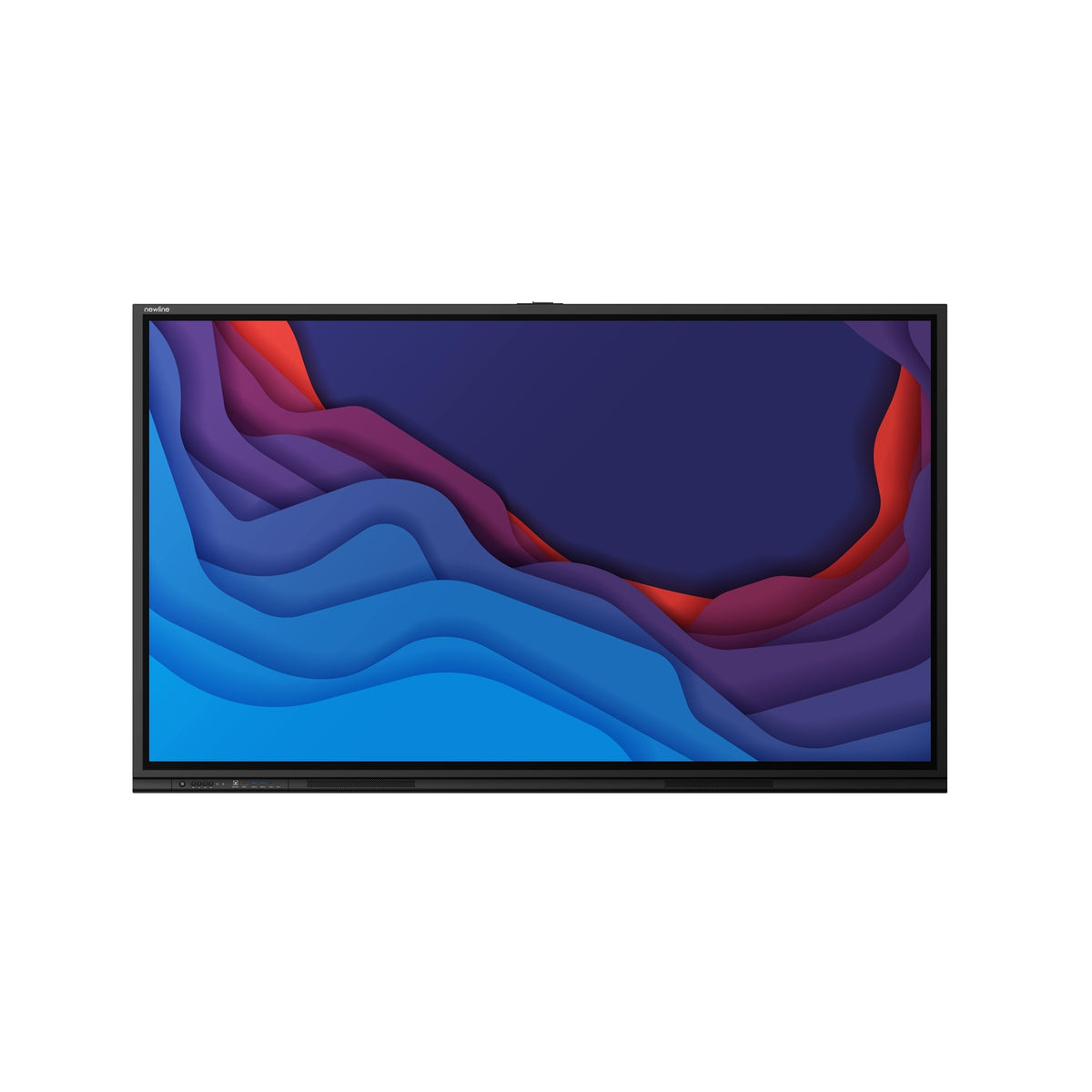

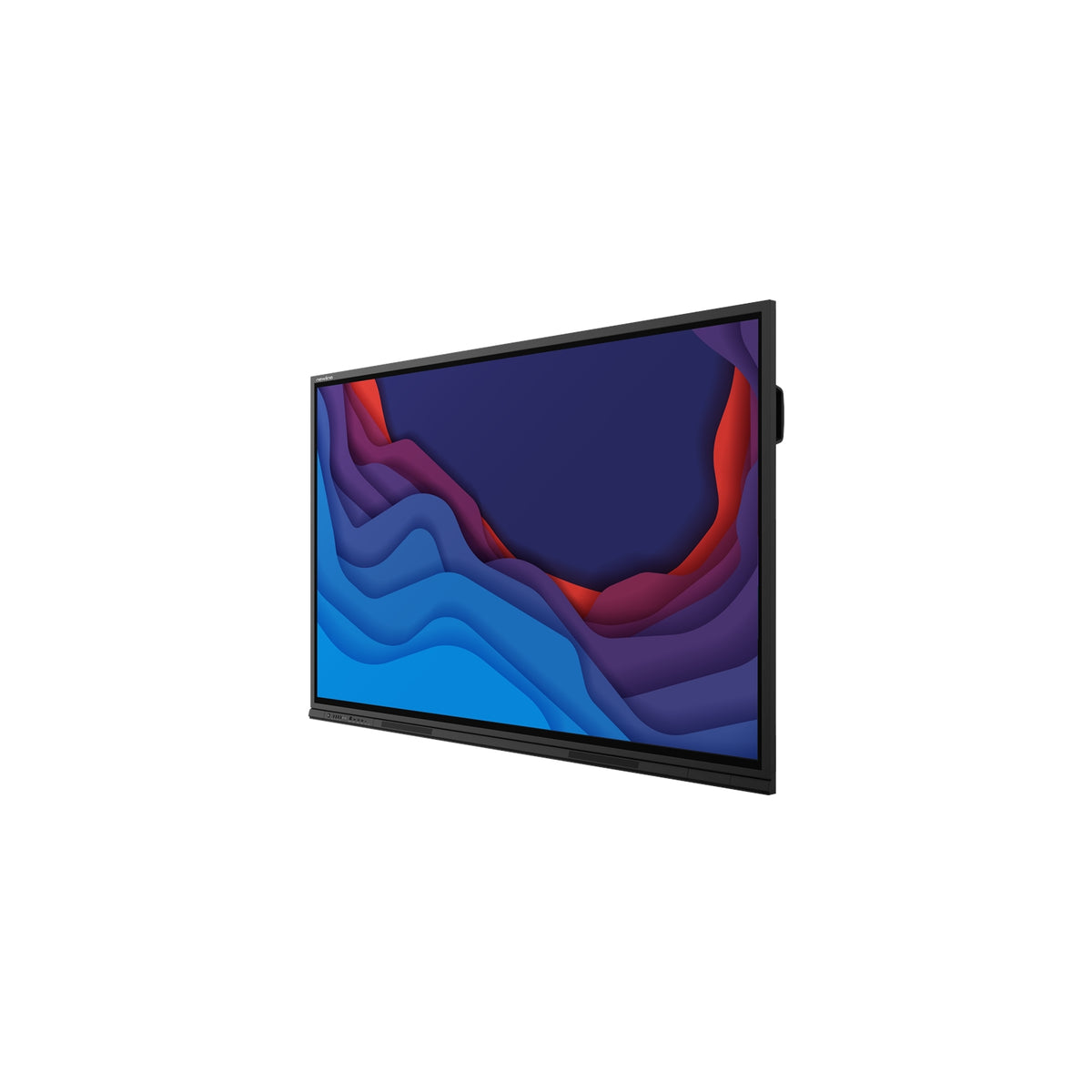

The Newline C Series TT-8623C is an 86-inch interactive touch display for classrooms, meeting rooms and teams that need a large shared screen for teaching or collaboration. It has no onboard operating system, so you can connect your own computer and work in your preferred software environment.
Specification
| Specification | Detail |
|---|---|
| SIMPLICITY MADE FOR EVERY USER | A 4K interactive display that is ready when you are. Just connect your device to start, no setup, no hassle, and no learning curve. With paper-like writing, 40 touch points, built-in speakers, and Plug and Play USB Type-C connectivity, it is a complete solution. Designed to be easy and effective, the Newline C Series keeps you focused on teaching or teamwork, not on technology. |
| BULT-IN COMPUTER INTERGRATION | Complete your display with an embedded OPS PC, bringing Windows directly to your display for a seamless all in one experience. Turn it on and get started! |
| ALL YOUR APPS AND FILES, INSTANTLY READY! | With Plug and Play, just connect one USB-C cable for instant audio, video, power, data, and touch. No delays, just start working. |
| MODEL | C Series 86" TT-8623C |
| PANEL | Backlight Direct LED Glass Surface Anti-Glare Glass Bonding Technology Certified Zero Bonding Display Area 86": 1896 x 1066 mm Display Ratio 16:9 Resolution 3840 x 2160 (4K) Colours 1,07 Billion Brightness 86": 450 cd/m² Contrast Ratio 4000:1 Response Time 5 ms Viewing Angle 178degrees Display Life Time = 50 000 hours Transparency > 88% Haze 2 % ~ 5 % Touch Surface Hardness 7 MoHs, Pencil 9H |
| POWER CONSUMPTION | Standard Mode* 86": 146 W Standby mode* <0.5 W |
| TOUCH | Touch Technology Stellar Touch Technology Touch Points 40 Windows 20 Android/MAC/Linux Touch Screen Writing Tools Passive pen, Finger, Fist Number of stylus 2 Accuracy ±1 mm |
| SPEAKER | Speaker Position Front Facing Speaker Rated Impedance 6 O Speaker Max.Power Output 15 W x 2 |
| FRONT I/O | USB Type-C 1 HDMI IN 2.0 (4k @60 Hz) 1 USB 2.0 Type-B (Touch) 1 USB 3.0 Type-A (Dynamic) 2 Microphone In (Jack 3.5 mm) 1 |
| REAR I/O | HDMI IN 2.0 (4k @60 Hz) 2 USB 2.0 Type-B (Touch) 1 USB Type-A 2.0 (Dynamic) 2 USB Type-A 2.0 (Embedded) 1 RS232 1 RJ45 (Gigabit) In x 1 / Out x 1 OPS Slot 1 SPDIF 1 Audio Line Out (Jack 3.5 mm) 1 VGA In 1 USB Type-C (Camera Slot) 1 |
| SMART SYSTEM | SoC Chipset Arm Cortex-A55 x 4 RAM 2 GB Total Storage 8 GB Operating System No OS |
| DIMENSIONS / WEIGHT | Outline Dimensions* (Excl. wall mount) 86": 1981 x 1186 x 111 mm Net Weight* 86": 74 Kg VESA* 86": 800 x 400 mm |
-
