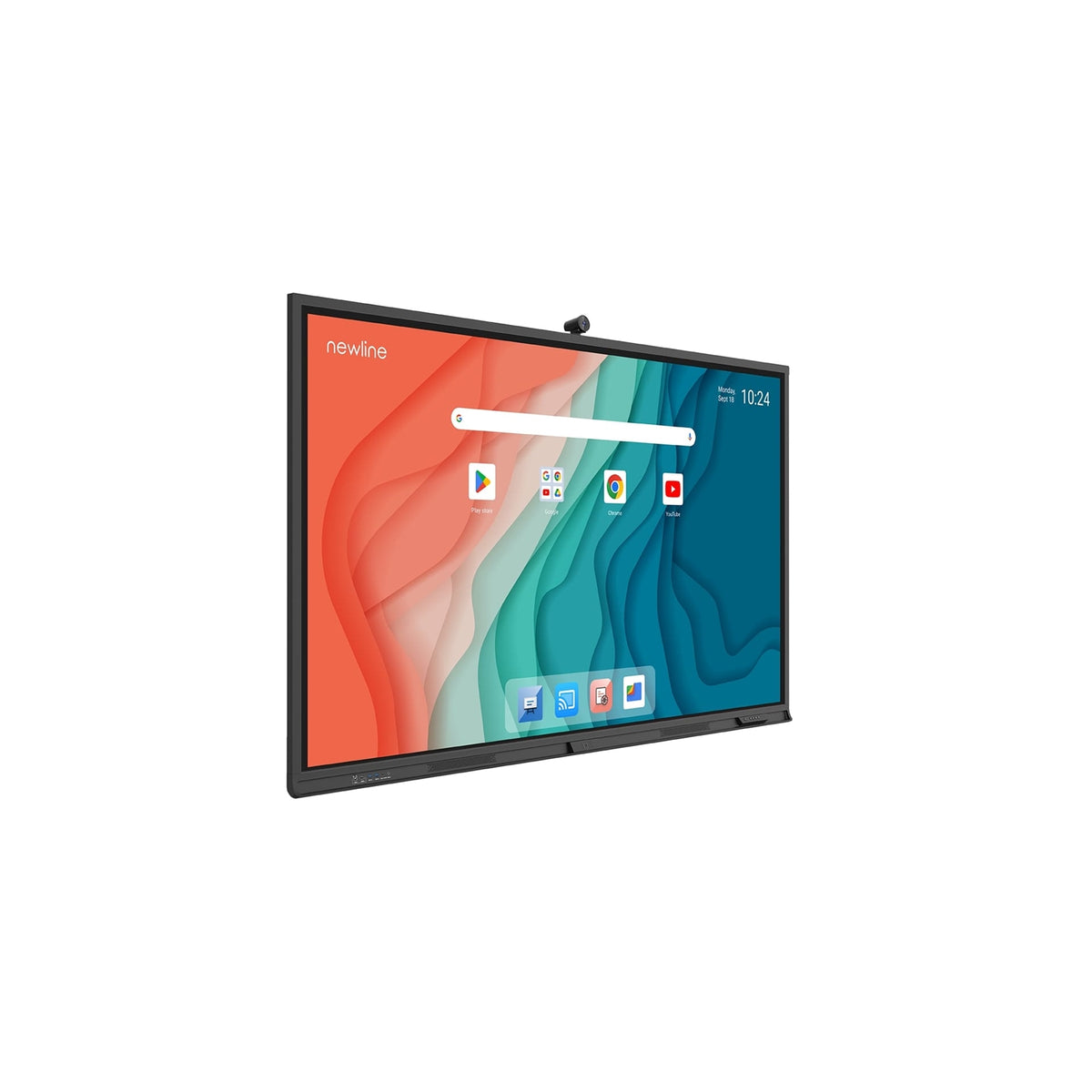

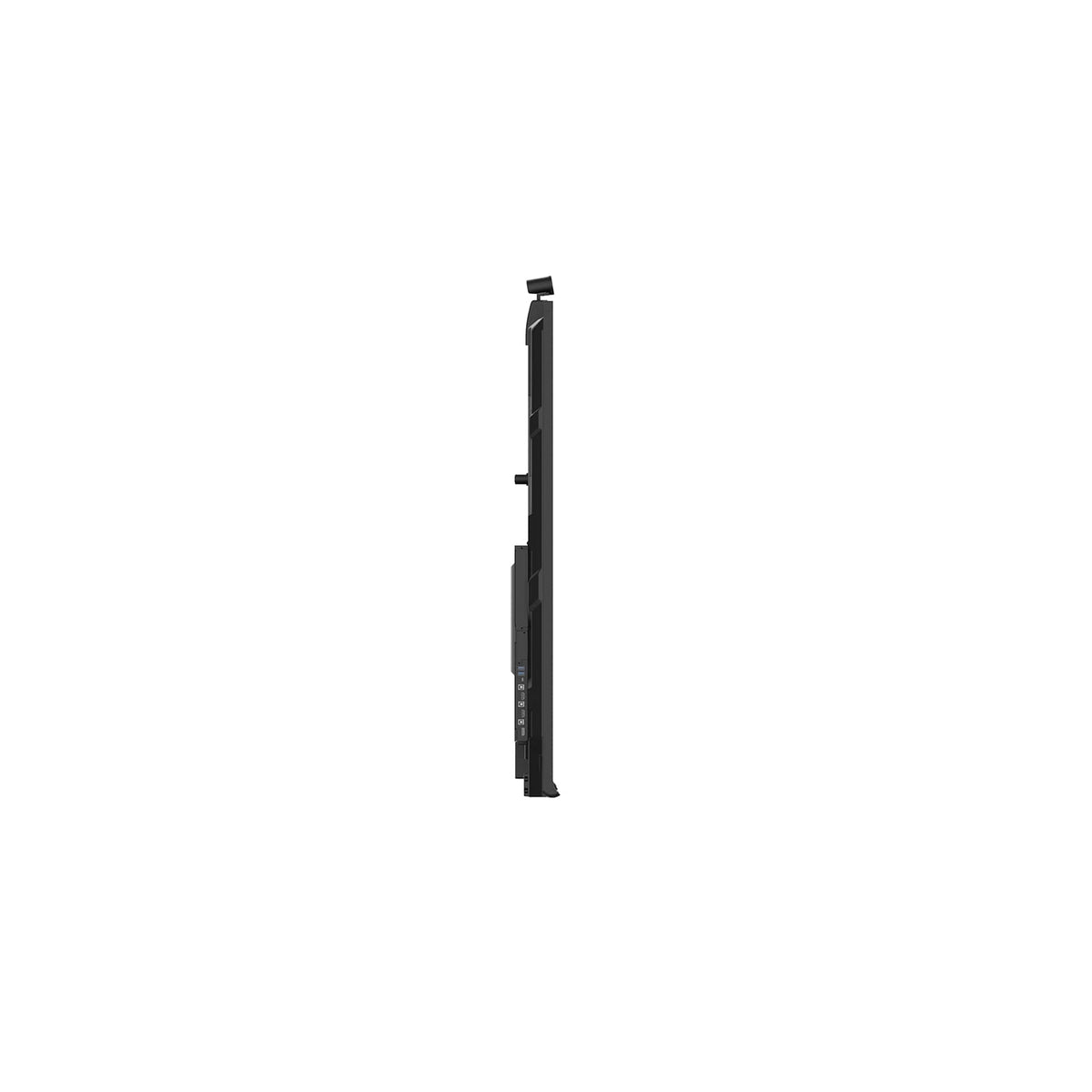

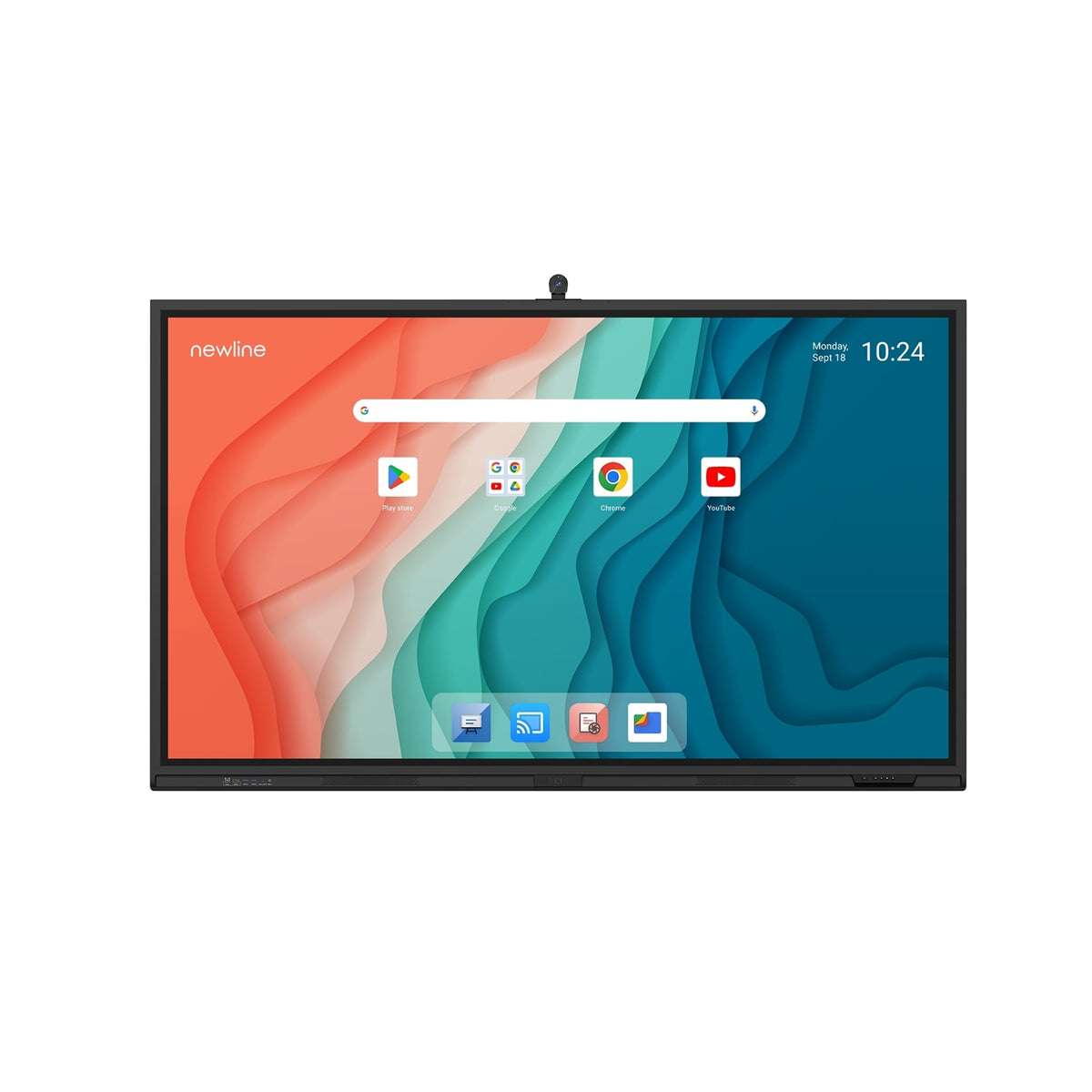

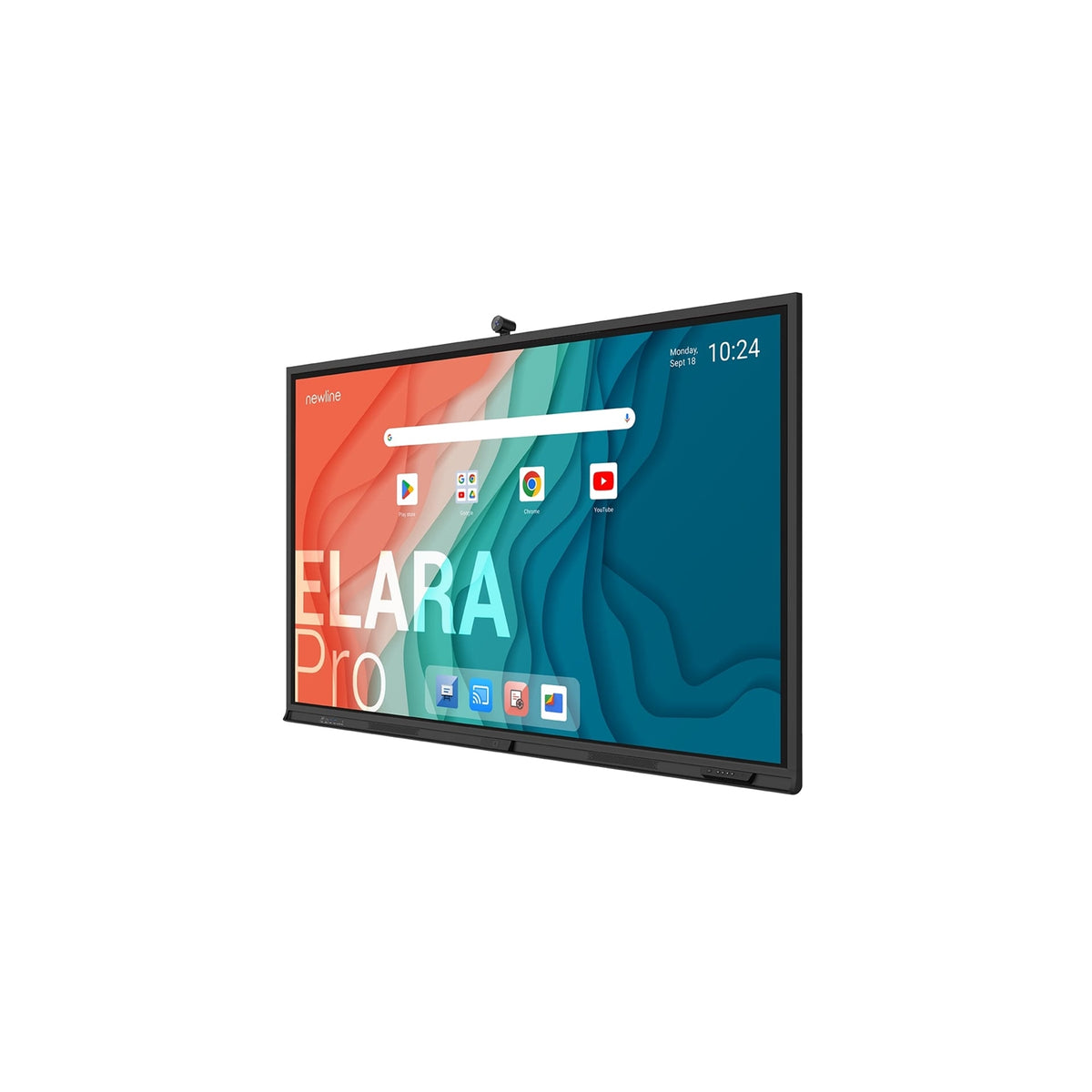

The Newline ELARA Pro 86 is an interactive 4K display for meeting rooms, training spaces and classrooms. It suits teams that need a large shared screen for presenting, annotating and collaborating, with built-in tools for hybrid meetings.
EXTRA FIRMWARE FEATURES
- Multiuser profile - Yes
- Embedded Google Apps - Yes
Specification
| Specification | Detail |
|---|---|
| POWER UP YOUR COLLABORATIVE WORKSPACE | Elara Pro, a Google EDLA certified powerhouse, seamlessly integrated with Google Apps. This flexible solution ensures a superior user experience in any workspace. High-precision writing, immersive sound with a subwoofer, NFC-enabled login and hybrid UC redefine collaboration. Reinvent your workspace, setting a new standard in corporate excellence with Elara Pro. |
| MODULAR SYSTEM | Elevate your experience with our universe of solutions. Customise your display with Newlines' accessories. Mix and match to create the perfect fit. |
| NEWLINE INTERACTIVE ECOSYSTEM | The Newline Interactive Ecosystem enhances productivity with versatile tools that seamlessly integrate with any software or device, meeting all classroom needs. |
| MODEL | ELARA Pro 86" TT-8623QCA+ |
| PANEL | Backlight Direct LED ( Wide Color Gamut + Anti Blue Light) Glass Surface Anti-Glare+Anti-Fingerprint, + Antimicrobial Tempered Glass Bonding Technology Certified Zero Bonding Display Area 86": 1895 x 1066 mm Display Ratio 16:9 Resolution 3840 x 2160 (4K) Colours 1,07 Billion Brightness 450 cd/m² Contrast Ratio 5000:1 Response Time 5 ms Viewing Angle 178 degrees Display Life Time = 50 000 hours Transparency > 88% Haze 2 % - 5 % Touch Surface Hardness 7H |
| POWER CONSUMPTION | Standard mode* 86": 150 W Standby Mode* <0,5 W |
| TOUCH | Touch Technology Stellar Touch Technology Touch Points 50 Windows 20 Android/MAC/Linux Touch Screen Writing Tools Passive pen, Finger, Fist Number of stylus 2 Accuracy ±1 mm Real Palm Rejection - Yes |
| SPEAKER | Speaker Position Front Facing Speaker Rated Impedance 6 O Speaker Freq.Response 250 Hz-20 KHz SPL -10 dB Output S.P.L. 90±3 dB Speaker Max.Power Output 20 W x 2 |
| SUBWOOFER | Speaker Position Rear Side Speaker Rated Impedance 4 O Speaker Freq.Response 20 Hz-20 KHz SPL -10 dB Output S.P.L. 77±2 dB Speaker Max.Power Output 20 W x 1 |
| MICROPHONE | Mic Position 8 Microphone Array Upper Front Pick Up Distance 8 m Mic Performance Echo cancellation, Beamforming, Noise Reduction |
| AI CAMERA MODULE | Camera Included (ModCam+) Camera Resolution 3840 x 2160/ 30 fps (4K) Field of View 120° FOV Lenses Camera Tile Range 15° |

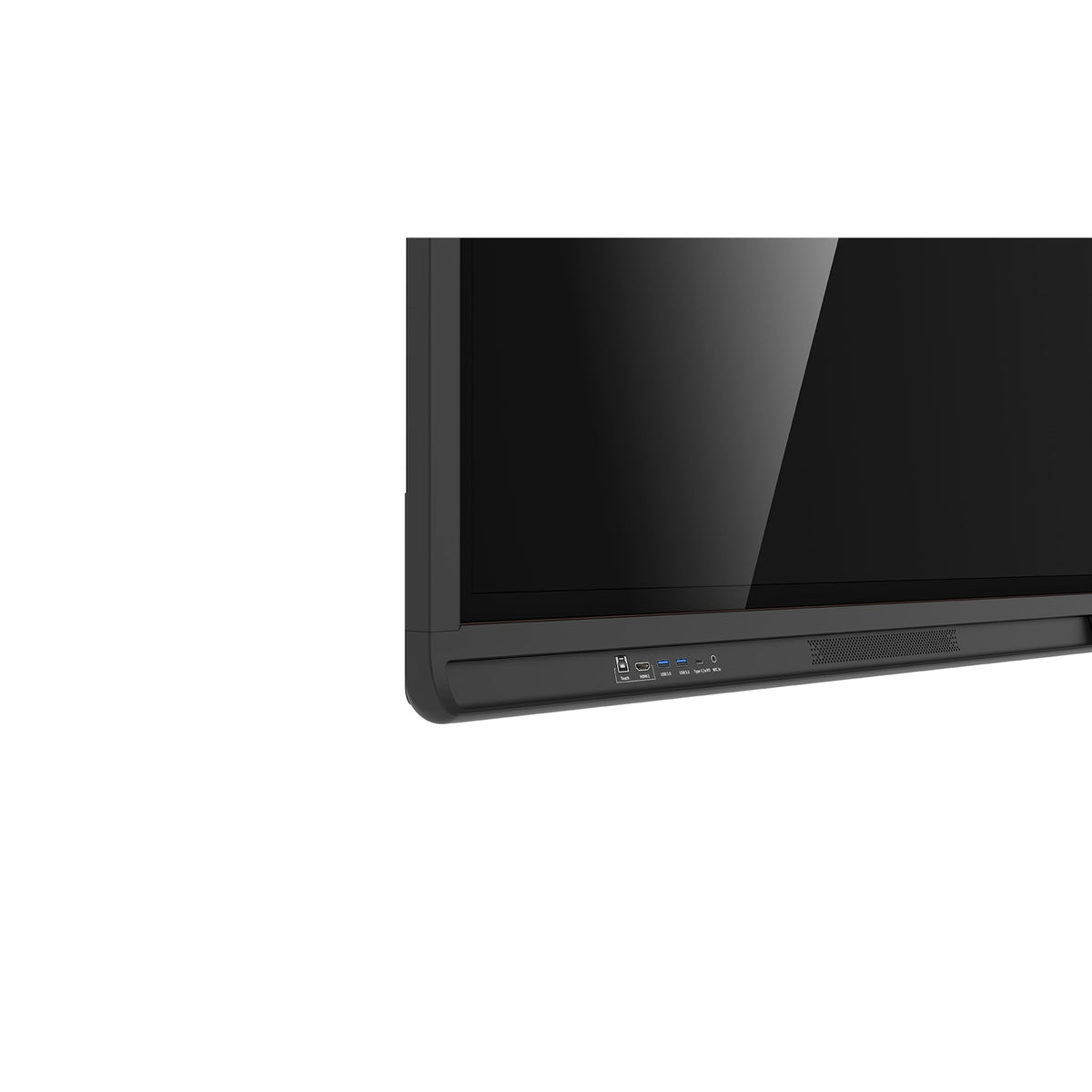

| FRONT I/O | USB Type-C (Powered 100 W) 1 HDMI IN 2.1 with HDCP 2.2 (4K @60 Hz) 1 USB 3.2 Type-B (Touch) 1 USB 3.2 Type-A 2 Microphone In 1 |

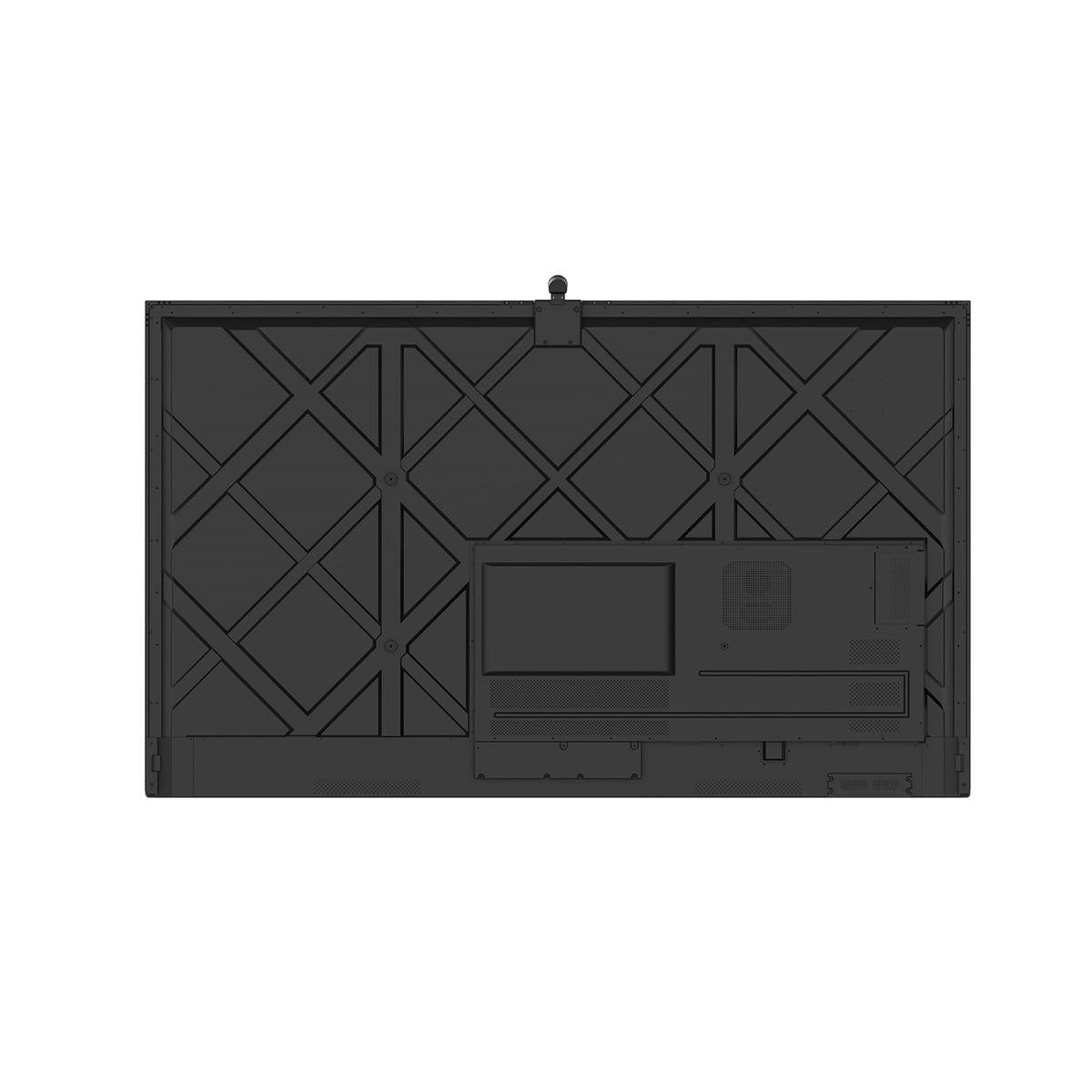

| REAR I/O | HDMI IN 2.1 with HDCP 2.2 (4K @60 Hz) 2 DisplayPort 1.2 1 USB 3.2 Type-B (Touch) 3 USB 3.0 Type-C (Powered 15 W) 1 USB 3.0 Type-C Out x 1 USB 3.2 Type-A 2 USB 3.2 Type-A Android 1 HDMI OUT 2.0 (4K @60 Hz) 1 RS232 1 RJ45 (Gigabit) In x 1 / Out x 1 OPS Slot 1 SPDIF 1 Audio Line Out 1 WIFI Module Slot 1 SDM-S Slot 1 Power Out Connect (180 W) 1 NFC 1 |
| SMART SYSTEM | SoC Chipset Rockchip RK3588 octa-core processor, 4x Cortex-A76 at 2.4GHz, 4x Cortex-A55 cores at 1.8 GHz GPU Mali Odin G610 MC4 NPU 6 Tops RAM 16 GB (DDR4) Total Storage 320 GB (Expandable) Operating System Android 13 Certified Google EDLA Formats Support For Image JPG, JPEG, BMP, PNG Formats Support For Video MPEG1, MPEG2, MPEG4, SorensonH.263, H.263, H.264, MVC, AVS, AVS+, WMV3, VC1, Motion JPEG, VP8, VP9, RV30/ RV40 Formats Support For Audio MPEG1/2 @LAYER1; @LAYER2; @LAYER3, EAC3, ACC-LC, HEAAC, VORBIS, LPCM, IMA-ADPCM, MSADPCM, G711 A/ MU-LAW, LBR (COOK), FLAC Wi-Fi 6 + Bluetooth 5.2 Module Integrated (Replaceable) |
| DIMENSIONS / WEIGHT | Outline Dimensions* (Excl. wall mount) 86": 1982 x 1191 x 119 mm Net Weight* 86": 65 Kg VESA* 86": 800 x 400 mm |
-
