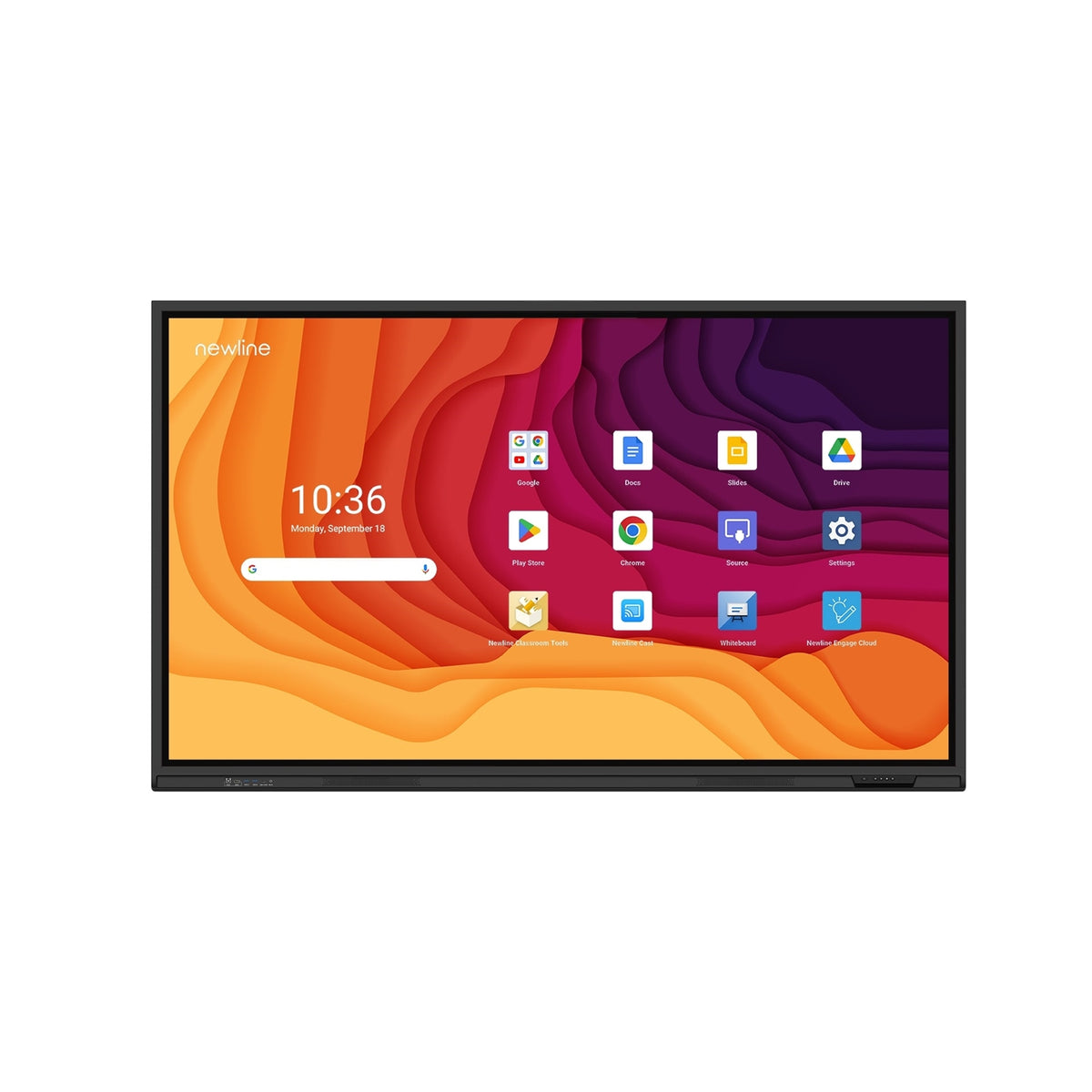

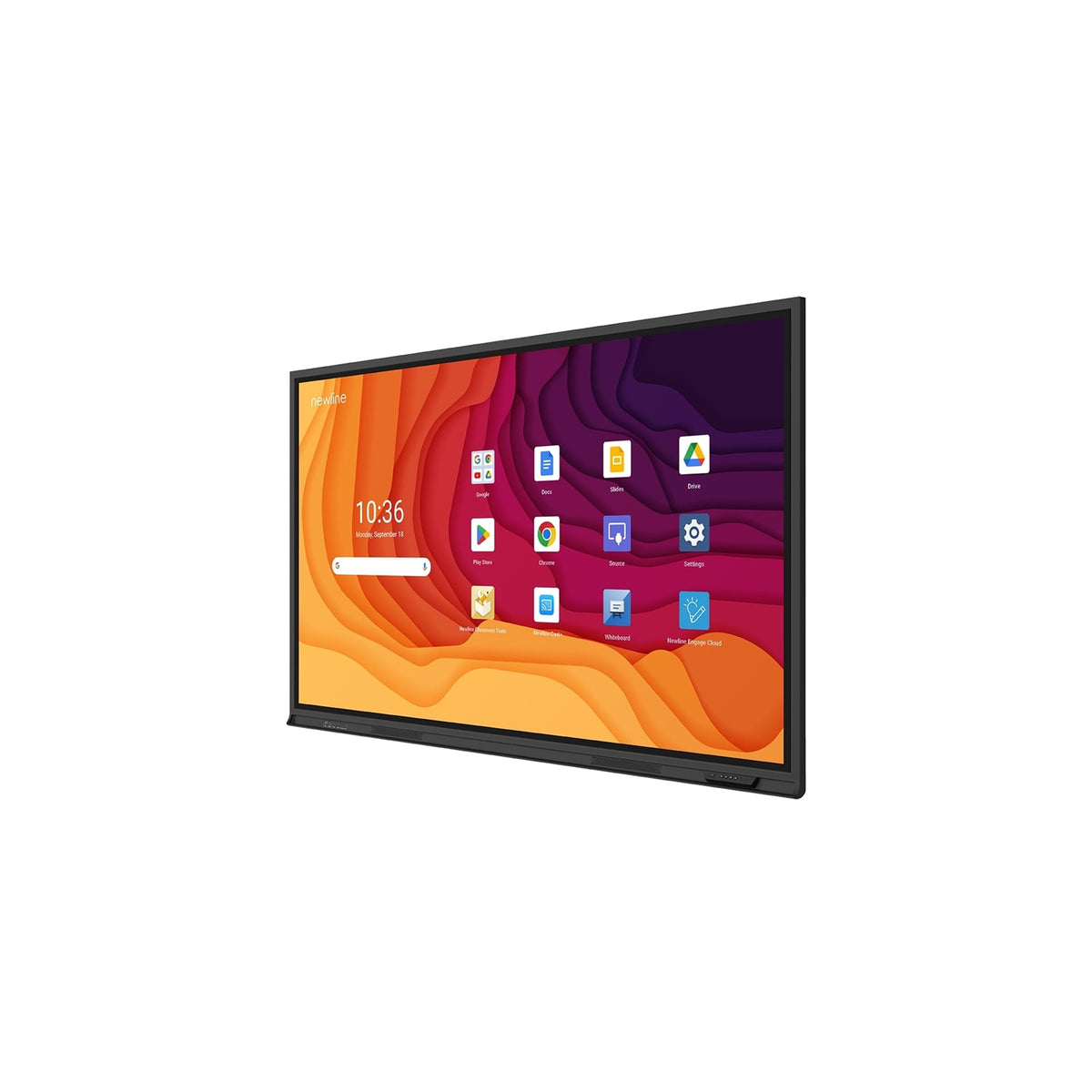

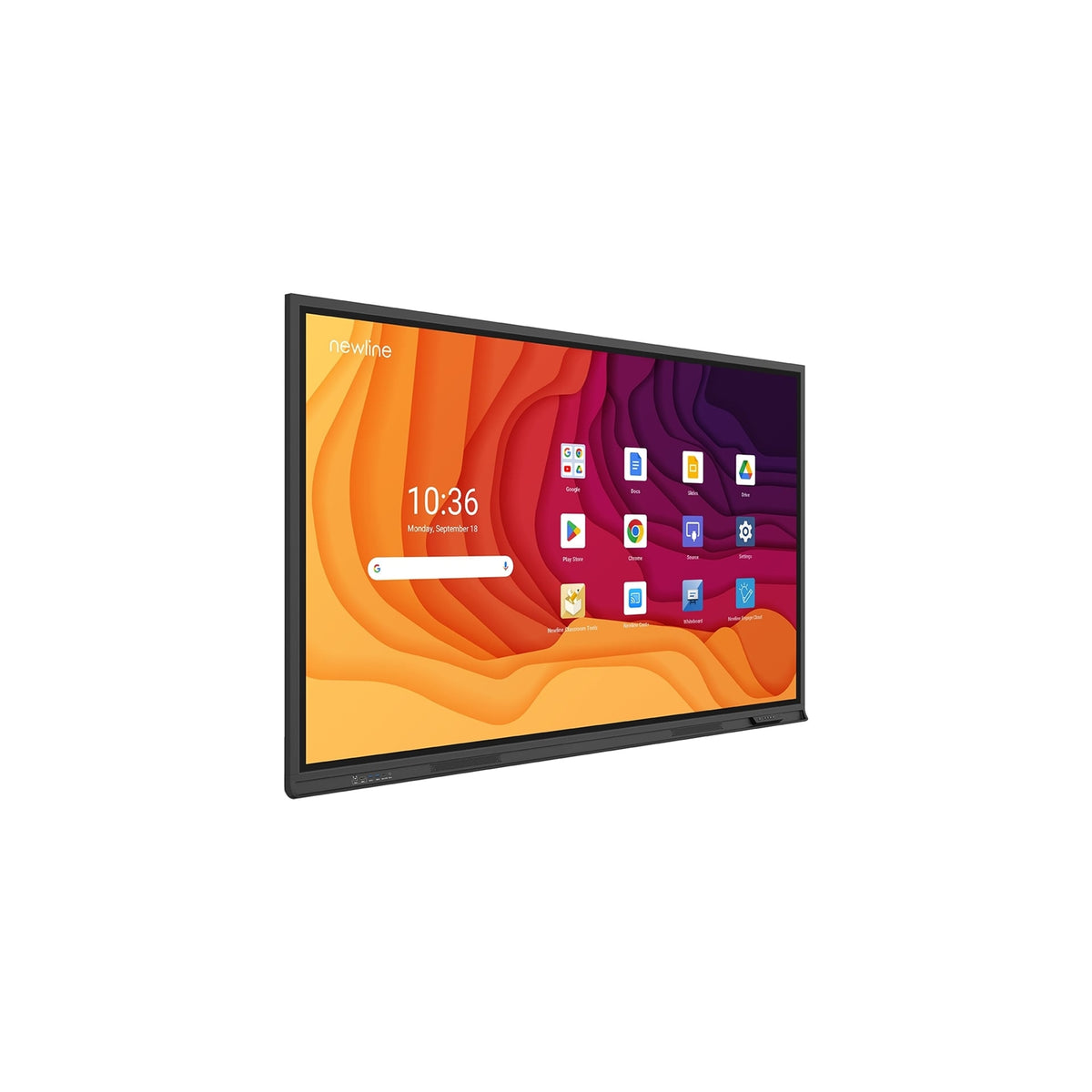

The Newline LYRA Pro 65 is a 65-inch interactive display for schools, meeting rooms and other shared spaces where people need to present, annotate and work together on screen. Its built-in Android platform and Google EDLA certification suit teams that use Google apps as part of lessons or meetings.
EXTRA FIRMWARE FEATURES
- Multiuser profile - Yes
- Embedded Google Apps - Yes
Specification
| Specification | Detail |
|---|---|
| SECURE EDLA INNOVATION | Discover Lyra Pro, our our dependable enterprise solution. Google EDLA certified, it seamlessly integrates with Google Apps, featuring high-precision zero bonding for unparalleled writing. The display delivers crystal-clear 4K images with sound. Modular upgrades ensure adaptability, while the secure Android 14 platform prioritizes safety. Lyra Pro enhances efficiency and productivity, offering a reliable solution for today's needs. |
| MODULAR SYSTEM | Elevate your experience with our universe of solutions. Customise your display with Newlines' accessories. Mix and match to create the perfect fit. |
| NEWLINE INTERACTIVE ECOSYSTEM | The Newline Interactive Ecosystem enhances operations with integrated tools seamlessly across software and devices, meeting business needs and optimizing workflow. |
| MODEL | LYRA Pro 65" TT-6523QA |
| PANEL | Backlight Direct LED (Wide Color Gamut + Anti Blue Light) Glass Surface Anti-Glare + Anti-Fingerprint + Antimicrobial Tempered Glass Bonding Technlogy Certified Zero Bonding Display Area 65": 1428 x 803 mm Display Ratio 16:9 Resolution 3840 x 2160 (4K) Colours 1,07 Billion Brightness 65": 450 cd/m² Contrast Ratio 5000:1 Response Time 5 ms Viewing Angle 178 degrees Display Life Time = 50 000 hours Transparency > 88% Haze 2 % ~ 5 % Touch Surface Hardness 7 H |
| POWER CONSUMPTION | Standard mode* 65": 106 W Standby mode* <0,5 W |
| TOUCH | Touch Technology Stellar Touch Technology Touch Points 50 Windows 20 Android/MAC/Linux Touch Screen Writing Tools Passive pen, Finger, Fist Number of stylus 2 Accuracy ±1 mm Real Palm Rejection - Yes |
| SPEAKER | Speaker Position Front Facing Speaker Rated Impedance 6 O Speaker Max.Power Output 20 W x 2 |
| FRONT I/O | USB Type-C (Powered 65 W) 1 HDMI IN 2.1 with HDCP 2.2 1 USB Type-B (Touch) 1 USB 3.2 Type-A 2 Microphone In 1 |
| REAR I/O | HDMI IN 2.1 with HDCP 2.2 (4k @60 Hz) 2 DisplayPort 1.2 1 USB Type-B 3.2 (Touch) 3 USB Type-C (Powered 15 W) 1 USB Type-A 3.2 2 USB 3.2 Type-A to Android 1 HDMI OUT 2.0 (4k @60 Hz) 1 RS232 1 RJ45 (Gigabit) In x 1 / Out x 1 OPS Slot 1 SDM-S Slot 1 SPDIF 1 Audio Line Out (Jack 3,5 mm) 1 Power Out Connect (180 W) 1 |
| SMART SYSTEM | SoC Chipset GPU Amlogic A311D2 octa-core processor 4 x Cortex-A73 at 2,2 GHz, 4 x Cortex-A53 at 2,0 GHz Arm Mali-G52 RAM 8 GB DDR4 Total Storage 128 GB (Expandable) Operating System Android 14 Certified Google EDLA - Yes Formats Support For Image JPG, JPEG, BMP, PNG Formats Support For Video MPEG1, MPEG2, MPEG4, SorensonH.263, H.263, H.264, MVC, AVS, AVS+, WMV3, VC1, Motion JPEG, VP8, VP9, RV30/ RV40 Formats Support For Audio MPEG1/2ER1; @LAYER2; @LAYER3, EAC3, ACC-LC, HEAAC, VORBIS, LPCM, IMA-ADPCM, MS-ADPCM, G711 A/MU-LAW, LBR (COOK), FLAC Camera Slot 1 Wi-Fi 6 + Bluetooth 5.2 Module Integrated (Replaceable) |
| DIMENSIONS / WEIGHT | Outline Dimensions* (Excl. wall mount) 65": 1513 x 927 x 118 mm Net Weight 65": 39 Kg VESA* 65": 600 x 400 mm |
-
