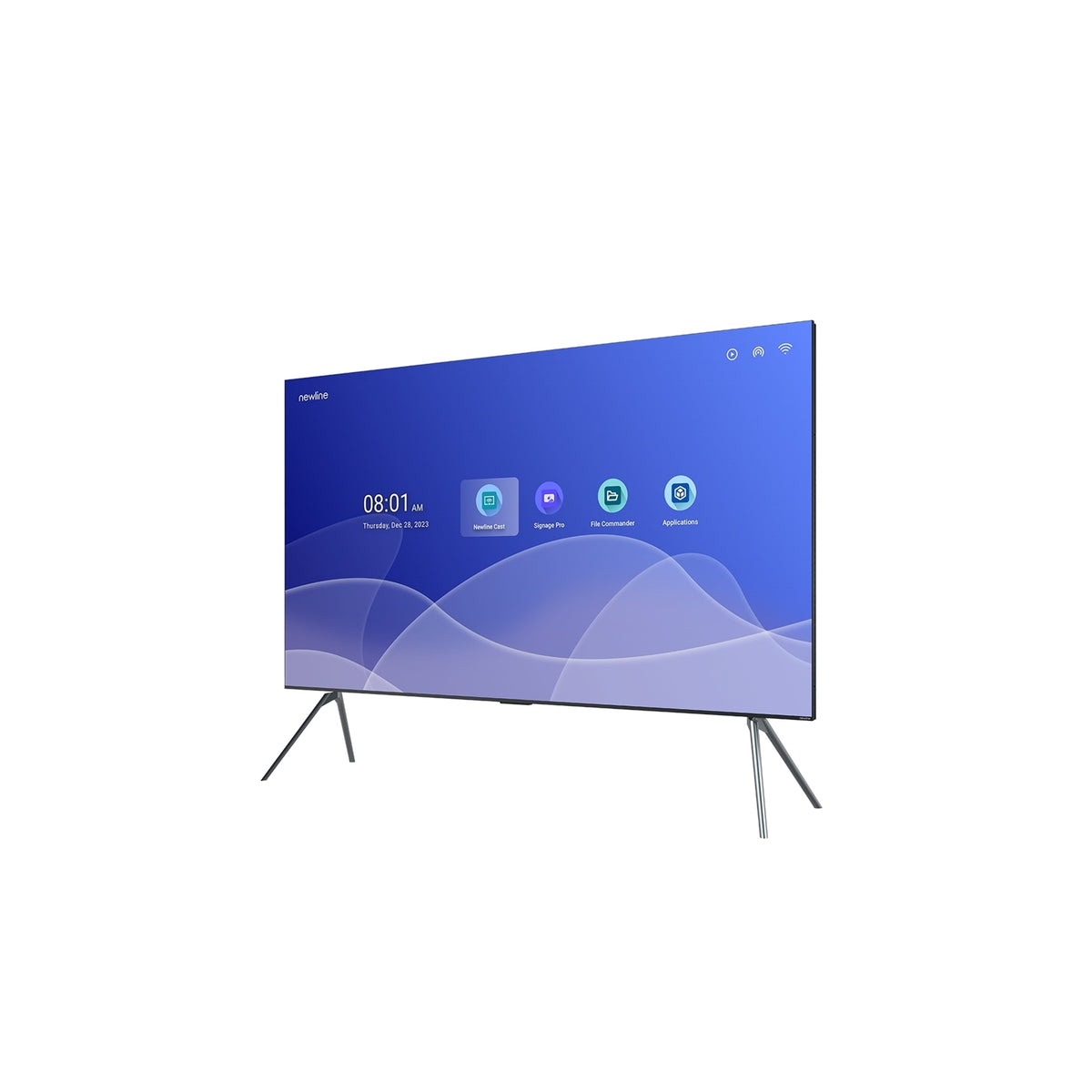

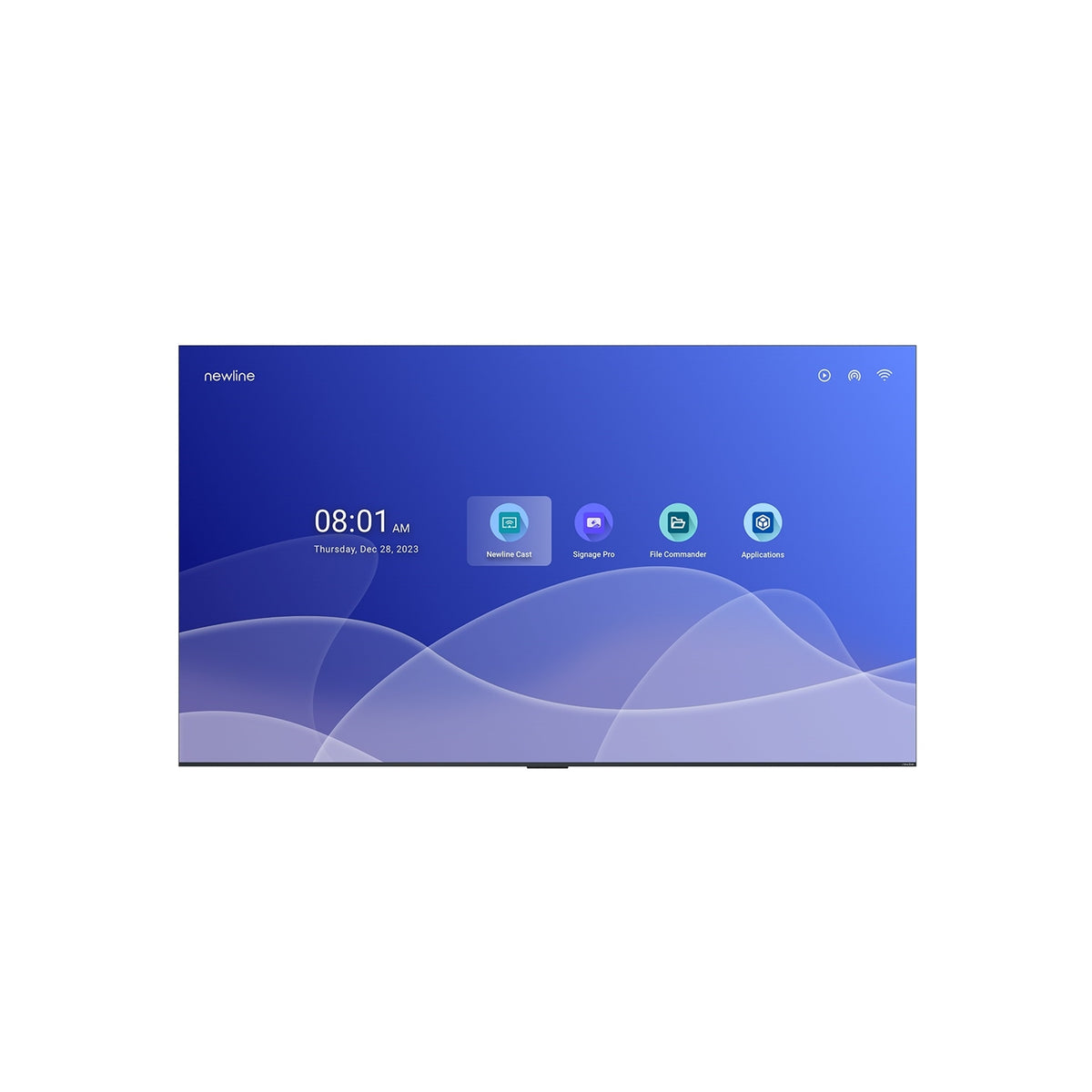

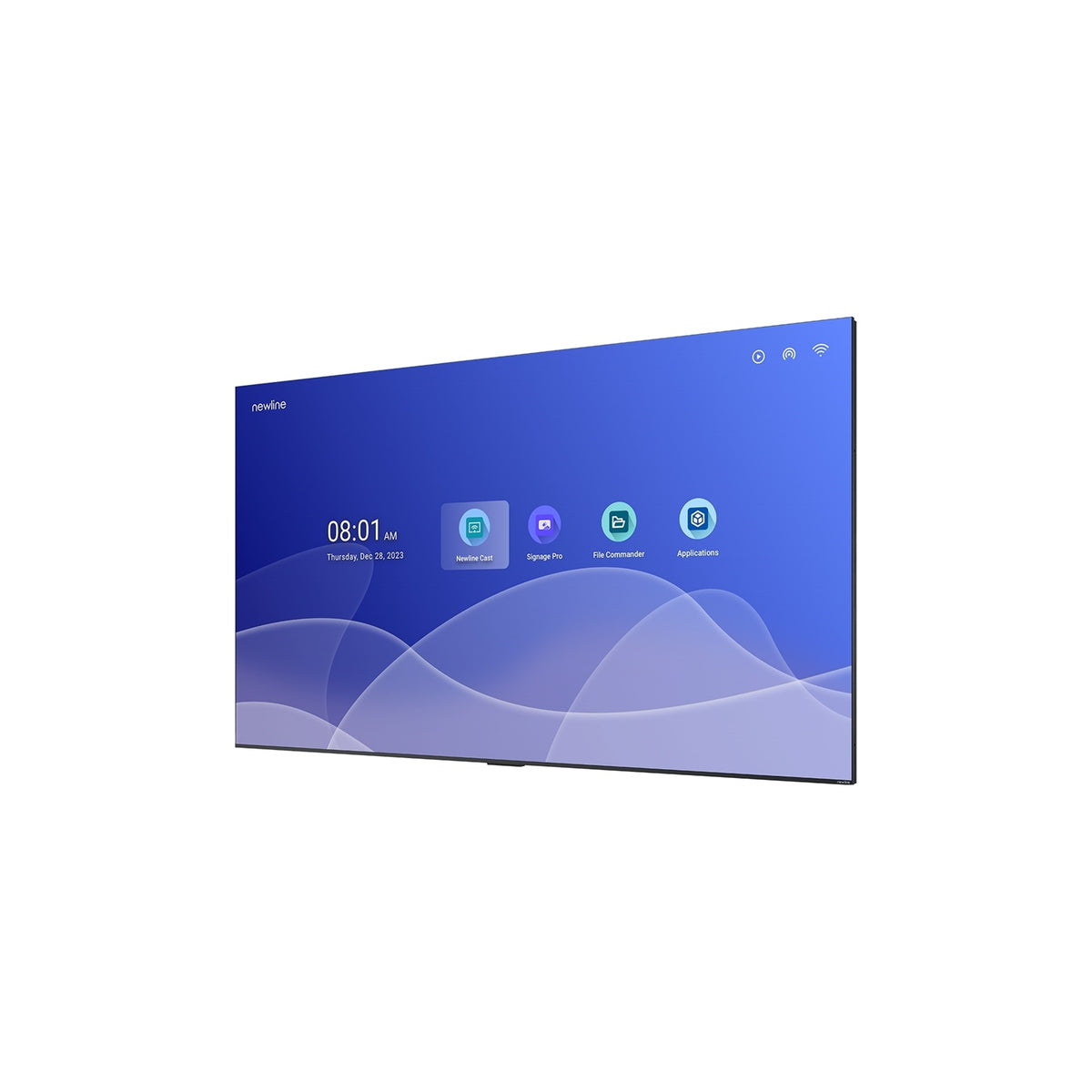

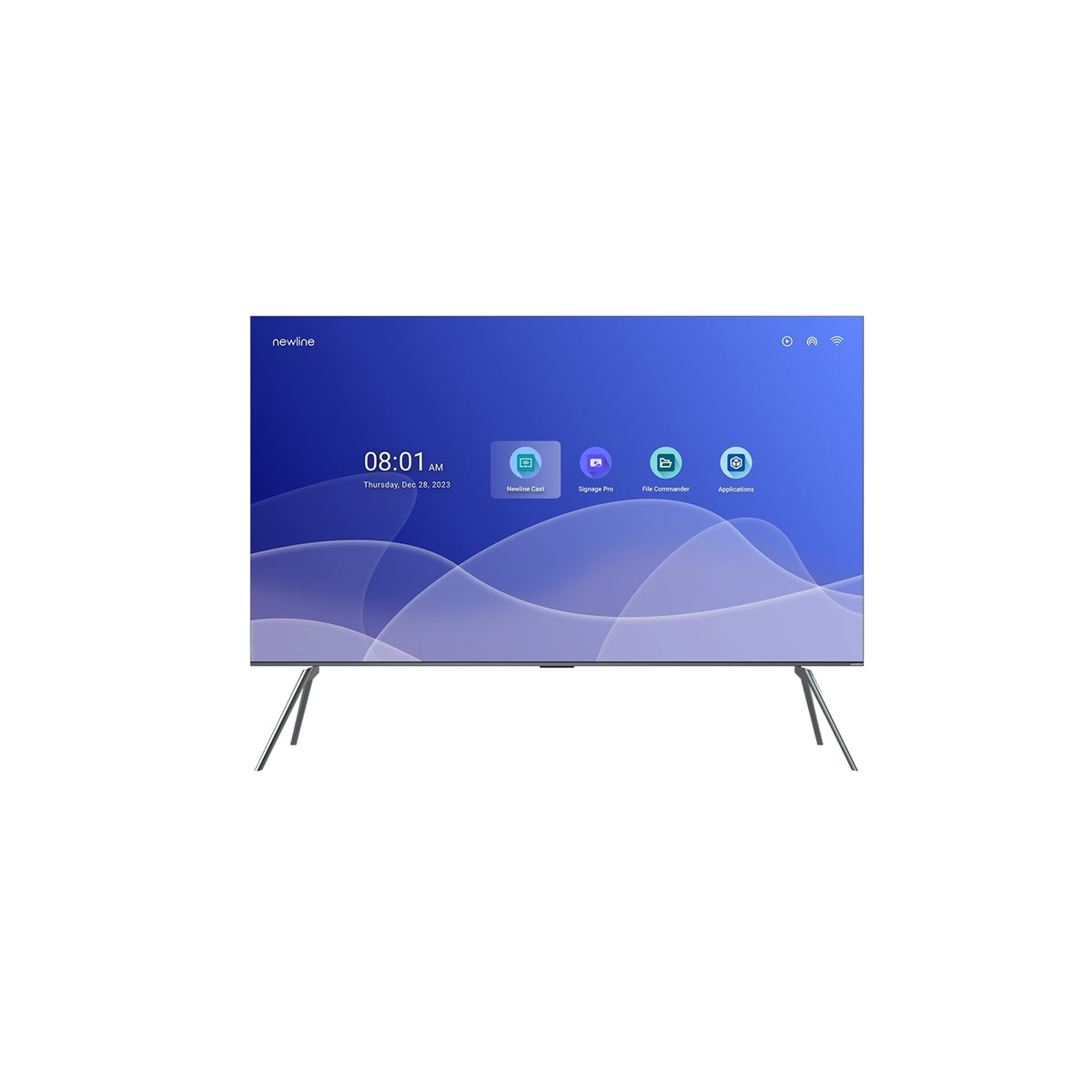

The Newline STV+ 55-inch is a 4K commercial display for businesses, schools and organisations that need a large screen for presentations, lessons or digital signage. Its 24/7 operating rating suits shared spaces where the display needs to remain available throughout the day.
EXTRA FEATURES
- Wake-on-LAN Yes
- Wake-on-WiFi Yes
- Firmware Update Via OTA
- HDMI EDID 1.4 and 2.0
- HDMI Arc HDMI 2.1 Support HDMI ARC/eARC
- Hotspot 2.4 GHz and 5.0 GHz
- Failover YEs
Specification
| Specification | Detail |
|---|---|
| NEXT-GEN DYNAMIC COMMUNICATION | The Newline STV+ enhances business presentations, classroom lessons, and digital signage with stunning 4K visuals, up to XDR 2000 nits brightness, and an ultra-high 7000:1 contrast ratio, all wrapped in a sleek, modern design. Available in a wide range of sizes from 43" to 115", it fits perfectly into any environment. Cast+ enables instant content sharing from any device, while seamless integration with Signage Pro software streamlines content management. Display Management Plus centralizes control of settings and updates across all screens. |
| GO BEYOND WITH CLICK2CAST! | Compatible with the Newline Click2Cast dongle, a hassle-free hardware solution for one click casting. Just a single button to initiate wireless screen casting effortlessly. |
| NEWLINE INTERACTIVE ECOSYSTEM | The Newline Interactive Ecosystem streamlines operations with seamless tools for content sharing, signage management, and display control, optimizing workflows |
| MODEL | STV+ 55" |
| PANEL | Display Type Direct LED Display Area 1210 x 680 mm Display Ratio 16:9 Resolution 3840 x 2160, 4K UHD Colours 1,07 Billion Brightness 300 cd/m² Contrast Ratio 5000:1 Response Time 6,5 ms Viewing Angle 178degrees Operating Time 24 hrs / 7 days Refresh Rate 60 Hz Display Lifetime 50 000 hours Haze 2% |
| POWER CONSUMPTION | Standard Mode 84 W Standby Mode 0,5 W |
| SPEAKERS | Speakers Position Back Speakers Max. Power 2 x 15 W Subwoofer no Sound System 2.0 |
| SMART SYSTEM | CPU 4 x A73 2,20 GHz, 4 x A53 2,20 GHz GPU Arm Mail-G52 RAM 4 GB Storage 16 GB Operating System Android 14 Wi-Fi 5 Bluetooth 5.0 |
| PORTS I/O | Rear 1 x USB Type A 3.0, 1 x USB Type A 2.0, 3 x HDMI in 2.1 with HDCP 2.2 (4K@30 Hz), 1 x Audio Line Out, 1 x SPDIF Out, 1 x LAN In (RJ45), 1 x RS232, 1 x AV In |

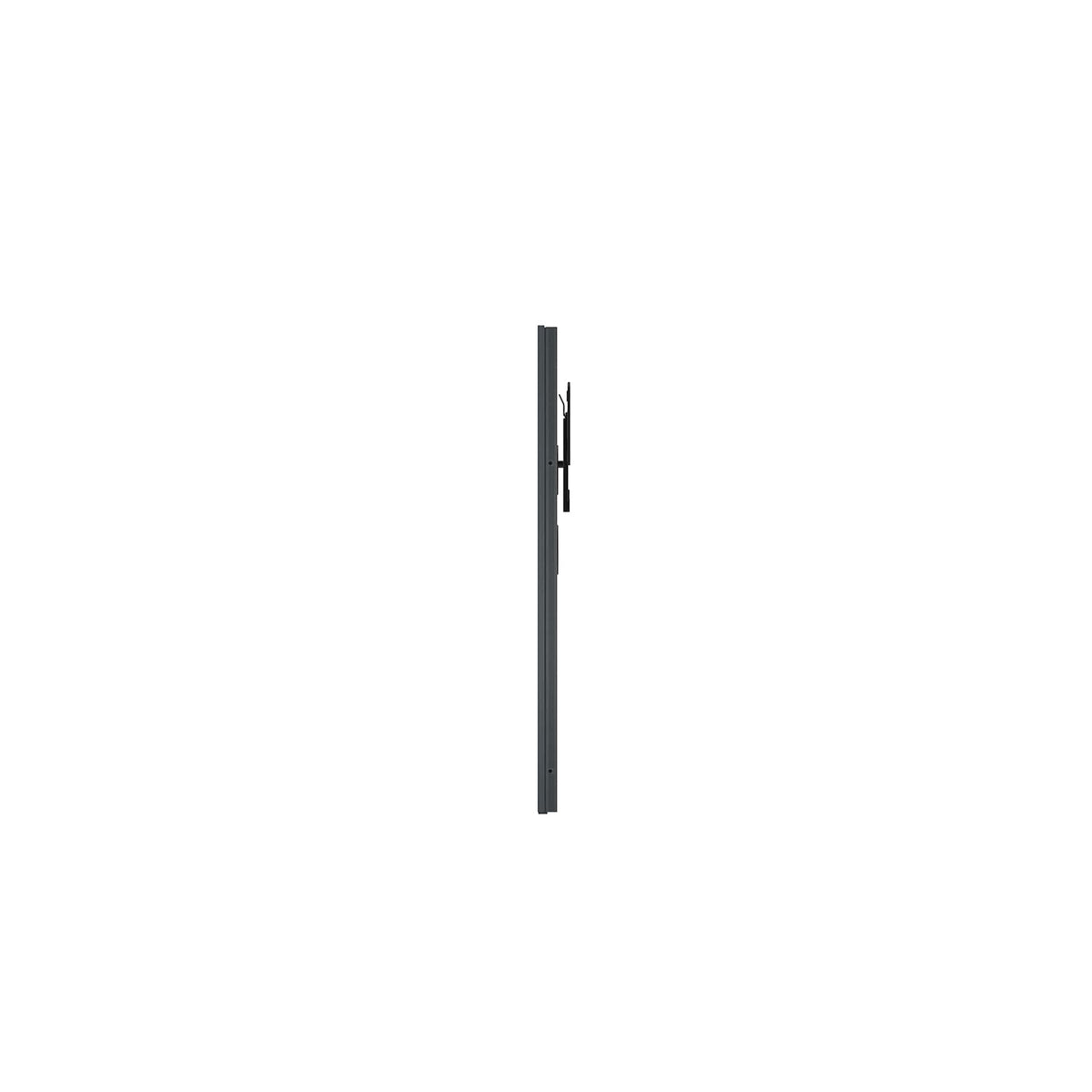

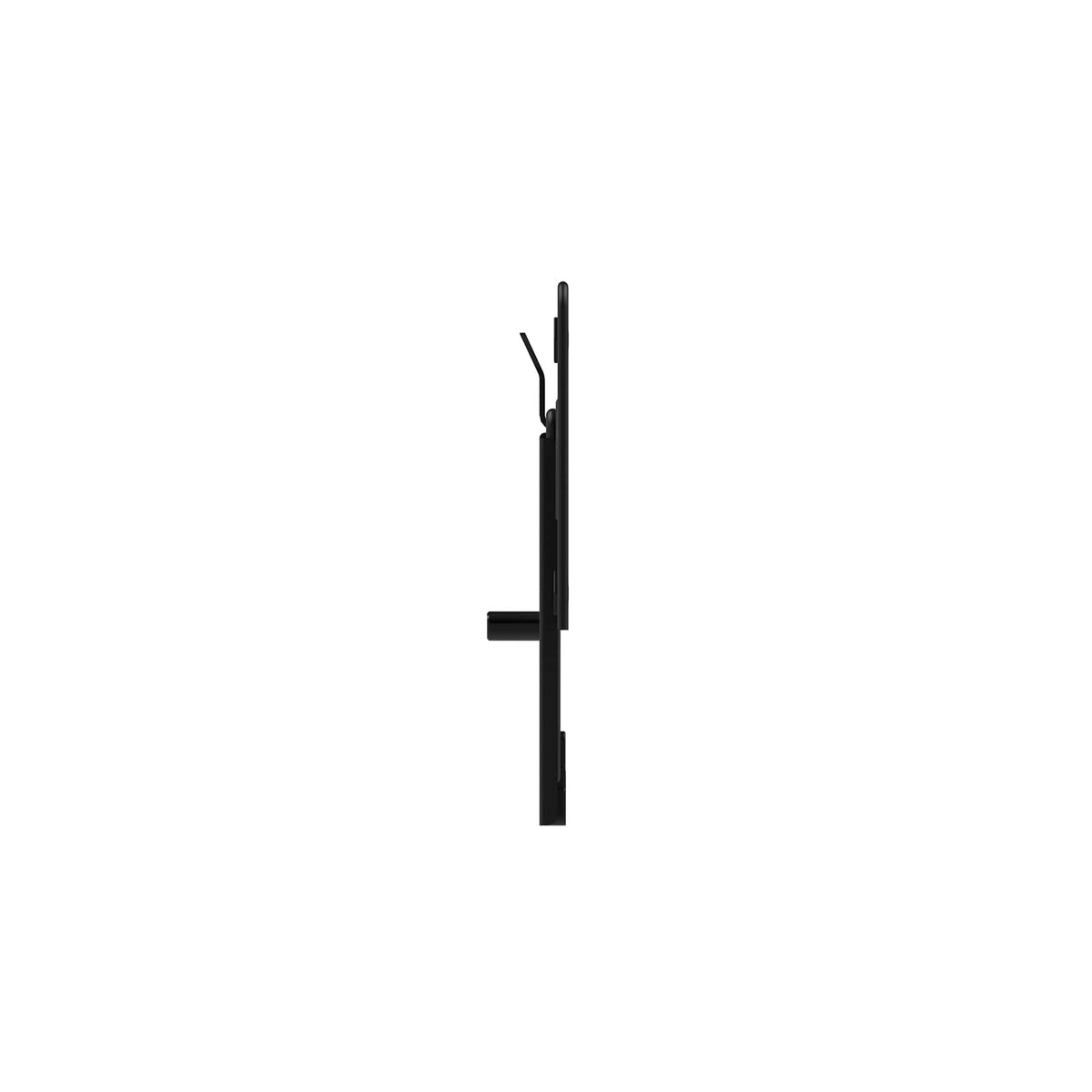

| DIMENSIONS / WEIGHT / STORAGE | Net Weight (Kg) 10,5 Gross Weight (Kg) 14.3, Outline Dim. (mm) 1226 x 709 x 87 Packaging Dim. (mm) 1350 x 144 x 837 Operating/ Storage Temperature 0°C - 40°C /-20°C - 60°C Operating/ Storage Humidity 10% - 90% / 20% - 80% (non-condensing) VESA (mm) 400 x 300 |
| NEWLINE COMPATIBILITY | Software Ecosystem Cast, Broadcast, App Store, Display Management Plus, Signage Pro, Cast+ (Available in App Store) Accessories Click2Cast |
-
