NZXT H7 Flow RGB Midi Tower Black

E-ATX, ATX, Micro-ATX, Mini-ITX, 544 x 244 x 468 mm, 11.13 kg

Key Features

• Supports three bottom-mounted 120mm fans for direct GPU cooling while retaining a narrow mid-tower footprint
• Comes equipped with a F360 RGB Core single-frame fan for exceptional out-of-the-box cooling and RGB lighting
• High-performance mesh panels maximize airflow for both intake and exhaust, as well as filter dust
• Supports up to 420mm radiators in the front and 360mm radiators in the top for powerful cooling potential
• Intuitive cable management system with wide channels, built-in hooks, and included straps for easy routing
• Capacity for up to 10 fans in total: 3 up top, 3 in front, 3 on bottom, and 1 in the rear
• Conveniently access 2 x USB-A and 1 x USB-C ports located on the top panel
• Tool-less access to the front, top, and side panels makes building and upgrading a breeze

Description

The H7 Flow RGB revolutionizes GPU cooling in a classic mid-tower form factor. Its vertical PSU layout allows space for 3 x 120mm bottom fans, offering efficient cooling without expanding the case footprint.

Dedicated GPU Cooling
Supports three bottom-mounted 120mm fans for direct GPU cooling in a narrow mid-tower footprint.

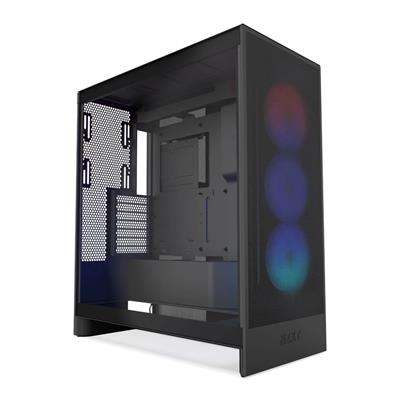

Angled H7 Flow showing front 3 120mm fansAngled H7 Flow showing front 3 120mm fans

Out-of-the-Box Performance
Comes equipped with a F360 RGB Core single-frame fan for out-of-the-box cooling and RGB lighting.

Optimized for Airflow
High-performance mesh panels maximize airflow for both intake and exhaust, as well as filter dust.

Large Radiator Support
Supports up to a 420mm radiator in front and 360mm radiator up top for max cooling potential.

Easily Manage Cables
Intuitive cable management system with wide channels, built-in hooks, and included straps for easy routing.

10-Fan Capacity
Capacity for up to 10 fans in total: 3 up top, 3 in front, 3 on bottom, and 1 in the rear.

Top I/O Ports
Conveniently access 2 x USB-A and 1 x USB-C ports located on the top panel.

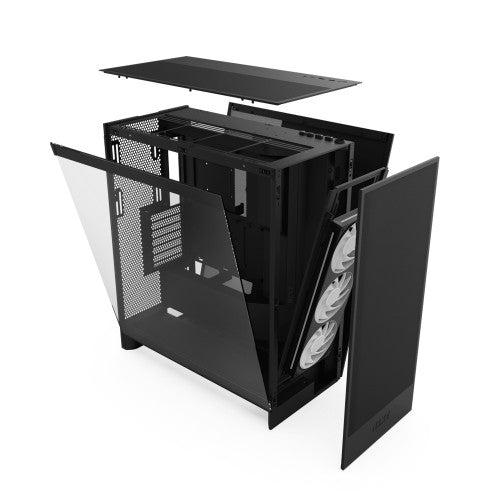

Exploded view of H7 Flow panelsExploded view of H7 Flow panels

Tool-less Panel Access
Tool-less access to the front, top, and side panels makes building and upgrading a breeze.

Specifications

Technical details
Number of 5.25" bays	0
Number of 3.5" bays	2
Number of 2.5" bays	4
Supported motherboard form factors	ATX, EATX, micro ATX, Mini-ITX
Supported HDD sizes	2.5,3.5"
Side window	Yes
Reset button	No
Product colour	Black
Maximum CPU cooler height	18.5 cm
Maximum graphics card length	41 cm
Maximum PSU length	20 cm
Type	PC
Form factor	Midi Tower
Warranty period	2 year(s)
Material
Material	SGCC, Tempered glass
Indication
Illumination	Yes
Ergonomics
Reset button	No
Cable management	Yes
On/off button	Yes
Design
Material	SGCC, Tempered glass
Number of 5.25" bays	0
Number of 3.5" bays	2
Number of 2.5" bays	4
Supported motherboard form factors	ATX, EATX, micro ATX, Mini-ITX
Side window	Yes
Reset button	No
Illumination	Yes
Cable management	Yes
Product colour	Black
Maximum CPU cooler height	18.5 cm
Maximum graphics card length	41 cm
Maximum PSU length	20 cm
Type	PC
Form factor	Midi Tower
On/off button	Yes
Tempered glass panel(s)	Yes
Power supply
Power supply included	No
Ports & interfaces
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Audio output	Yes
USB 2.0 ports quantity	0
Cooling
Front radiator sizes supported	360,420 mm
Rear radiator sizes supported	140 mm
Top radiator sizes supported	360 mm
Maximum airflow	50.1 cfm
Front fans installed	3x 120 mm
Number of front fans supported (max)	3
Front fans diameters supported	120,140 mm
Number of rear fans supported (max)	1
Rear fans diameters supported	120,140 mm
Number of top fans supported (max)	3
Top fans diameters supported	120,140 mm
Fan speed	1200 - 1500 RPM
Fan speed control	No
Maximum air pressure	1.27 mmH2O
Fan 2 maximum airflow	50.1 cfm
Fan 2 maximum air pressure	1.27 mmH2O
Storage
Supported HDD sizes	2.5,3.5"
Weight & dimensions
Width	244 mm
Depth	468 mm
Height	544 mm
Weight	11.1 kg
Other features
Maximum airflow	50.1 cfm
