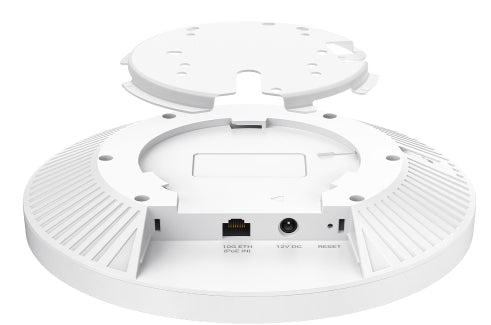

OMADA EAP787 wireless access point White Power over Ethernet (PoE)

BE15000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point

Key Features

• Tri-Band 8-Stream Wi-Fi 7
• Wi-Fi Speeds up to 15.0 Gbps†
• Dedicated Spectral Analyzer Radio
• 1× 10G/2.5G Port
• 802.3bt/at PoE
• Omada Mesh & Seamless Roaming△
• Centralized Management
• Easy, Quick Setup

Description

- Dedicated RF Scanning: Offers real-time spectrum monitoring and dynamic interference avoidance for robust wireless performance.§
- Maximized 6 GHz Coverage with AFC: Unlock stronger signals and extended 6 GHz range performance#
- Tri-Band 8-Stream Wi-Fi 7: 5765 Mbps on 6 GHz, 8648 Mbps on 5 GHz, and 688 Mbps on 2.4 GHz.†
- 1× 10G Port: Ensures fast connectivity throughout the network
- Low Latency and Interference: 320MHz Bandwidth, Multi-Link Operation, Multi-RUs, and 4K-QAM ensure high performance for your network.‡
- Flexible Deployment and Easy Setup: Supports both 802.3bt PoE and DC power supply for flexible installation with Omada SDN for one-click setup.
- Advanced Features: Supports centralized management, Mesh, and Seamless Roaming.△
- More Capacity and Wider Coverage: Supports 510+ concurrent clients** and covers up to 1750 ft² (160 m²)* for reliable and extensive wireless connectivity

Dedicated Spectral Analyzer Radio for Higher Efficiency in O&M

Optimized Wired Performance with 10G PoE++ Port
With a 10 Gigabit Ethernet Port, EAP787 delivers remarkable multi-gigabit performance for higher bandwidth and faster WiFi. Compatibility with 802.3bt PoE is ideal for flexible deployment.

Empowering Businesses
with Reliable Omada SDN Solutions
Omada’s Software-Defined Networking (SDN) solution seamlessly integrates access points (APs), managed switches, and gateways, enabling 100% centralized cloud management for a highly scalable network.

Specifications

Performance
2.4 GHz	Yes
5 GHz	Yes
Flow control support	Yes
Automatic channel selection	Yes
Reset button	Yes
Frequency band	2.4 - 6 GHz
Number of users	510 user(s)
VLAN support	Yes
Rate limiting	Yes
Quality of Service (QoS) support	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n
Certification	CE, FCC, RoHS, IC
MIMO type	Multi User MIMO
MIMO	Yes
Band steering	Yes
Airtime Fairness (ATF)	Yes
Wireless LAN features
Frequency band	2.4 - 6 GHz
Network
Number of users	510 user(s)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n
Management features
VLAN support	Yes
Rate limiting	Yes
Quality of Service (QoS) support	Yes
Features
6 GHz	Yes
2.4 GHz	Yes
5 GHz	Yes
Flow control support	Yes
Automatic channel selection	Yes
Frequency band	2.4 - 6 GHz
Number of users	510 user(s)
VLAN support	Yes
Rate limiting	Yes
Quality of Service (QoS) support	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n
Bluetooth	Yes
Automatic channel scanning	Yes
MIMO type	Multi User MIMO
MIMO	Yes
Band steering	Yes
Airtime Fairness (ATF)	Yes
Maximum data transfer rate (2.4 GHz)	688 Mbit/s
Maximum data transfer rate (5 GHz)	8648 Mbit/s
Maximum data transfer rate (6 GHz)	5765 Mbit/s
BeamForming	Yes
Coverage area	1750 m²
Security
Security algorithms	WPA, WPA2, WPA3
Access Control List (ACL)	Yes
Ports & interfaces
USB 2.0 ports quantity	0
DC-in jack	Yes
Power
Power over Ethernet (PoE)	Yes
Input current	2.5 A
DC voltage range	12 V
Design
Placement	Ceiling, Wall
Product colour	White
Reset button	Yes
LED indicators	Yes
Certification	CE, FCC, RoHS, IC
Antenna
Antenna type	Internal
Technical details
Reset button	Yes
Certificates
Certification	CE, FCC, RoHS, IC
Indication
LED indicators	Yes
Software
Automatic channel scanning	Yes
Access Control List (ACL)	Yes
Weight & dimensions
Width	220 mm
Depth	220 mm
Height	38.8 mm
Packaging data
Quick start guide	Yes
Mounting kit	Yes
Package type	Box
Packaging content
Quick start guide	Yes
Mounting kit	Yes
Quantity per pack	1 pc(s)
Package type	Box
Operational conditions
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Logistics data
Quantity per pack	1 pc(s)
