12 GB, GDDR7, 192-bit, 2587 MHz boost clock, PCI-Express 5.0 x16, 3x DisplayPort, HDMI, 1x 16-pin

Key Features

  • NVIDIA Blackwell Architecture
  • 12GB GDDR7 Memory

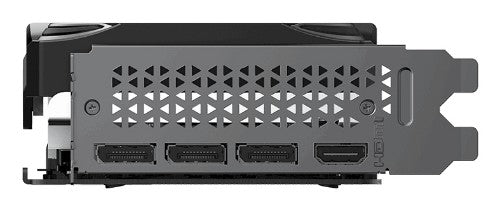

  • 3x Display Port, 1x HDMI
  • 6,144 CUDA® Cores
  • 250 W Thermal Design Power

Description

Get game-changing performance with the GeForce RTX™ 5070, powered by NVIDIA® Blackwell. Game at high frame rates with DLSS 4, supercharge your creativity with NVIDIA Studio, and enable new experiences with the power of AI.

Specifications

Processor
Graphics processor family NVIDIA
Processor frequency 2325 MHz
Processor boost clock speed 2587 MHz
Parallel processing technology support Not supported
Maximum displays per videocard 4
CUDA cores 6144
CUDA Yes
Maximum resolution 7680 x 4320 pixels
Graphics processor GeForce RTX 5070
Memory
Discrete graphics card memory 12 GB
Data transfer rate 28 Gbit/s
Memory bandwidth (max) 672 GB/s
Memory bus 192 bit
Graphics card memory type GDDR7
Ports & interfaces
HDMI version 2.1b
HDMI ports quantity 1
DisplayPort version 2.1b
DVI-I ports quantity 0
DVI-D ports quantity 0
DisplayPorts quantity 3
Interface type PCI Express x16 5.0
Video
DirectX version 12 Ultimate
HDMI version 2.1b
Dual Link DVI No
CUDA cores 6144
Performance
NVIDIA G-SYNC Yes
Virtual Reality (VR) ready Yes
DirectX version 12 Ultimate
Dual Link DVI No
TV tuner integrated No
Overclocked (OC) edition Yes
Design
Number of fans 3 fan(s)
Cooling type Active
Form factor Full-Height/Full-Length (FH/FL)
Product colour Black
Number of slots 2.4
Bracket height Full-Height (FH)
Software
Windows operating systems supported Windows 10 x64, Windows 11 x64
Linux operating systems supported Yes
Power
Supplementary power connectors 1x 16-pin
Minimum system power supply 650 W
Thermal Design Power (TDP) 250 W
Weight & dimensions
Number of slots 2.4
Height 120 mm
Depth 48 mm
Length 299.5 mm
Technical details
Cooling type Active
Form factor Full-Height/Full-Length (FH/FL)
Product colour Black
TV tuner integrated No
System requirements
Windows operating systems supported Windows 10 x64, Windows 11 x64
Linux operating systems supported Yes
Minimum system power supply 650 W
Packaging data
Package type Box
Package width 382 mm
Package height 194 mm
Package depth 72 mm
Manual Yes
Packaging content
Manual Yes
Power cord included Yes
